"Seaside" fish farm got the tank on the chassis MAN for the carriage of trout fry

20.08.2019

MAN put Russian farmers spetstsisterna for the transport of live fish

The owner of the farm raised trout in the Leningrad region, Primorskoe, OOO, occupying a leading place among similar enterprises in North-West Russia, got a tank for transportation of live fish/fry on the chassis MAN TGX 26.440 6x4 BL. and Equipment for the transportation of fish to the Polish company "Merke" mounted on the chassis of the Russian firm "Tekhpro".
The Russian representative office of OOO "MAN Truck end Bass RUS" for the first time participated in the production and sale of such a specialized vehicle. The customer is also at the stage of formation of long-term business relations with the representation of MAN.
Aquafarmers of Primorskoe, OOO bribed professional approach, speed of decision making and appropriate response to emerging issues demonstrated OOO "MAN Truck end Bass RUS", cooperation with which began in 2018. By the way, from the chassis of another brand aquafarmers had to be abandoned due to the fact that sellers did not show sociability in negotiations.

The new car MAN TGX 26.440 6x4 BL will primarily work on the transportation of live fish from farms in the main production and delivery of fingerlings to farms for cultivation.
Company OOO "Primorskaya" with a staff of 20 employees cultivates trout, and whitefish for the reproduction of aquatic resources. The basis of the fleet of the customer are isothermal van, a forklift, a wheeled tractor, cars and light commercial vehicles of foreign brands. Some of them occupied for the storage of feed and auxiliary materials. Ordered MAN TGX 26.440 6x4 BL became the first special purpose vehicles that are directly adapted for transport of live fish.

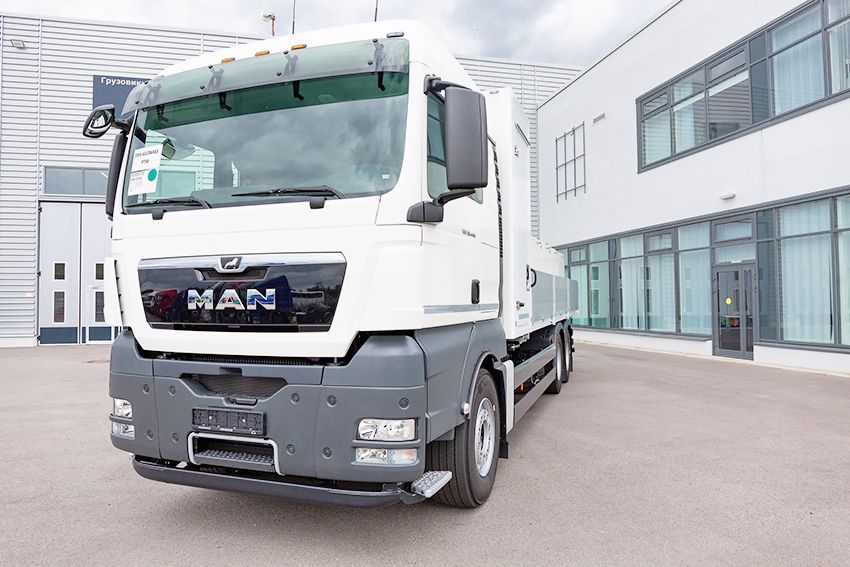

MAN TGX 26.440 6x4 BL: features
Together with the technical specialists of the customer is quickly made up optimum specification chassis, adapted for mounting the side platforms and vans.

For the farm business were selected-axle chassis MAN TGX 26.440 6x4 BL with a wheelbase 5100+1350 mm, rear overhang 2800 mm. the customer choose the XLX cabin with a roof of middle height, length 2280 mm and width of 2440 mm. placed On the frame 590-litre aluminium fuel tank and 35 litre container of AdBlue.
The truck chassis is equipped with controllable front axle load 9000 kg parabolic springs, designed for a load of 9,500 lbs. Rear drive axle and a lifting axle with hypoid gear drive is equipped with dual air bags with a carrying capacity of 11,500 kg. Front and both rear axles are equipped with stabilizers. To tow a trailer with centrally located axles are designed towbar Ringfeder 5050A.
The power plant of a tanker includes economical engine D2066 LF40 power of 440 L.C. the level of Euro-5 (SCR) and 16-speed manual ZF gearbox 16S223DD. The data is time-tested units that are reliable for long time use. The engine is equipped with a protection ensuring the idle at very low temperatures. The main and additional fuel filter with water separator equipped with heating. An adjustable engine brake EVBec.

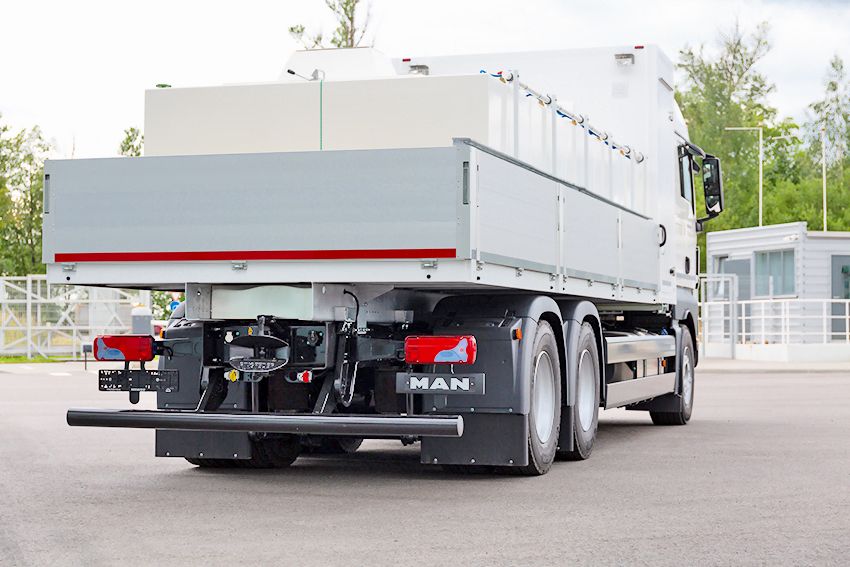

Specialisterne
On the chassis MAN TGX 26.440 6x4 BL body add-on set production "Tekhpro" overall length 6430 mm and a width of 2550 mm. the Base platform is made of reinforced galvanized steel Ruukki. Folding, removable side and rear side sections are made of aluminum profile with a height of 600 mm. the Floor is lined with waterproof plywood 24 mm (9+15 mm), with entirely polyurethane coating. In front of the mounted transportation box of 5-layer plastic sandwich panels dimensions 1125х2550 mm height flush with the cab. On the inside of the Hutch has three machine-breaker and two outlets (24V, 15A). The boxes are equipped with two ventilation Windows with bars, three air compressors and two holes for output tubes. The side walls of the box made door opening width 700 mm, with fittings made of stainless steel and locking mechanism recessed type. Under them is established branded retractable ladder.

Equipment for transport of live fish on the car platform "Adapt 5-240" set OOO "Merke". The list of equipment included an insulated chamber, vadobag volume of 2240 litres, top and discharge hatches, five drain taps. Provides multi-row sprayer for oxygen and the air diffuser with connection hoses, block air compressors on 24V. The chassis also includes a set of primary and backup oxygen equipment, a container for liquefied gases and other special equipment.

Service support
The chassis MAN TGX 26.440 6x4 BL was due not only to the combination of consumer qualities of German engineering. An important role was played by the fact that along with the car training will be given to drivers under the program ProfiDrive. It will be on real trails vehicle operation without a separate payment from the client. Additionally, the car will monitoring is in MAN Pride c biennial free service. In addition, the planned conclusion of the service contract Comfort Super. All of this makes the exploitation of MAN TGX 26.440 6x4 BL maximum efficiency and profitability..
