LADA has updated a number of commercial pickups Granta

In 2019 the market of pickups a new series of LADA 2390

AVTOVAZ has officially announced the start of sales of the updated line of commercial cars LADA Granta 2390-60, instead of front wheel drive pickups RV series vis-2349 produced LLC "PSA vis-Auto" in 2012-2018, making it now an integral part of restyled LADA Granta family.

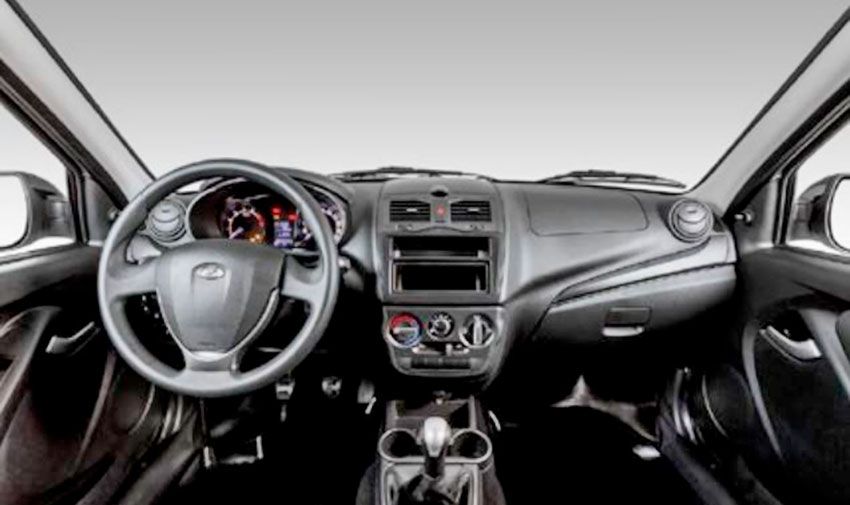

Accordingly, the car received a completely new exterior feathers of the cab, front doors and seats and the instrument panel. Actually, for the upgrade of the line commercial models used front passenger restyled the original model Granta (on tn. a stand In). Now, according to the corporate philosophy is: "reflects the affiliation to the model range of LADA new generation in the corporate style "X graphics". the Front of the headlight on the dark glossy substrate more organically inscribed in the upper part of the grille, and X-style front end is visually underlined by chrome inserts in the form of boomerangs. Respectively equipment includes: daytime running lights, bumpers in body color, lockers and aprons of the front fenders and shields with aprons rear wheel ABS and brake assist BAS, the electronic system of redistribution of brake efforts EBD.

Extended equipment package cabin: it includes electric power steering, adjustable steering wheel, airbag driver, hydrocollator beam headlights, trip computer, sensor outside temperature, electronic prompter gear (on dash), power Windows, Central locking, lightweight, athermal tinted Windows, full sound insulation package, air filter, navigation system, audio preparation (antenna, wiring and 4 speakers), delay function switch off when you close the doors, glove compartment and cargo compartment, 12V power socket. Surcharge for cab roof mounted plastic fairing.

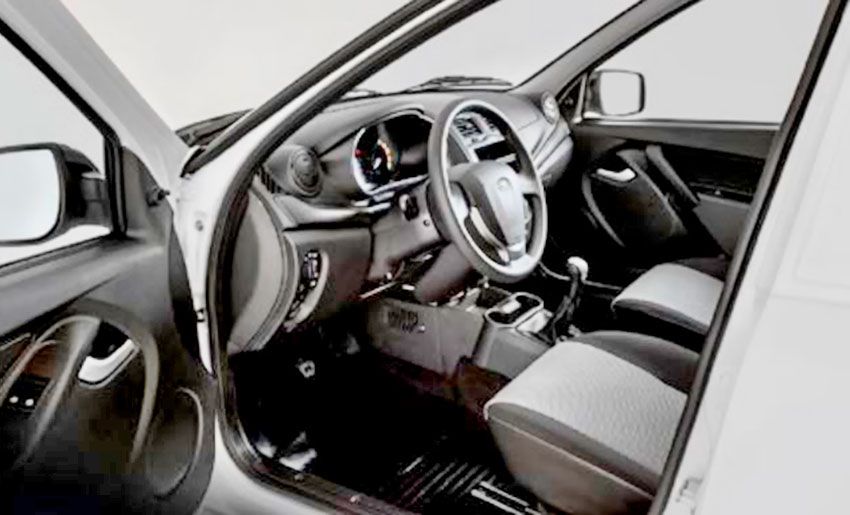

New front seats have more side support and are applicable on all versions of commercial car LADA Granta. In addition, all versions are equipped with 8-valve 1.6-liter engines VAZ-11186 (87 PS, 140 N·m). And here's a 5-speed manual transmission got a new (more "cargo") gear ratio of a pair (a 3.9 instead of 3.7), which improved dynamics and has resulted in more confident acceleration even with a full load.

Carriers loved a series of vis-2349 (and now LADA 2390-60), for the fact that in addition to increased load capacity (up to 850 kg pickup truck and up to 790 kg in the wagon-box) also and for what europalette it is possible freely to load a forklift.

Design of a commercial line of LADA Granta has retained its polutemnoy scheme (the rear frame is welded to the rear of the cab) and leaf spring rear suspension. This solution increases the reliability and load capacity of the truck compared to the original passenger version, which is capable of carrying almost a half times more cargo – up to 720 kg.

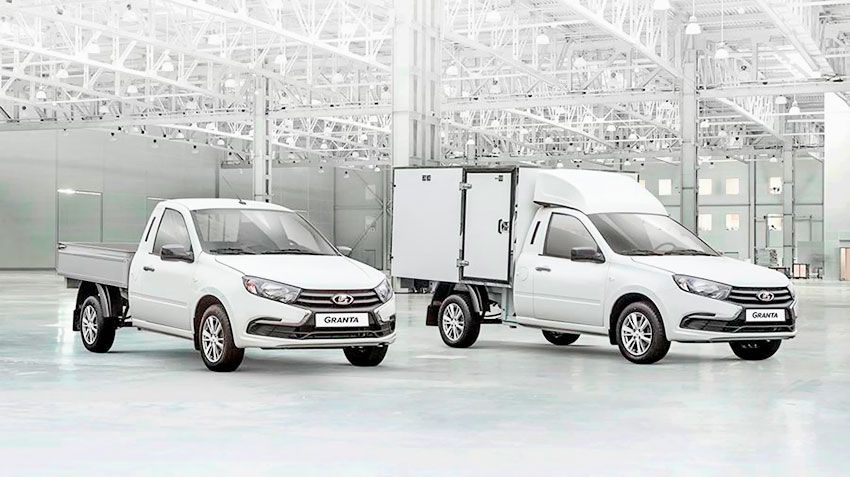

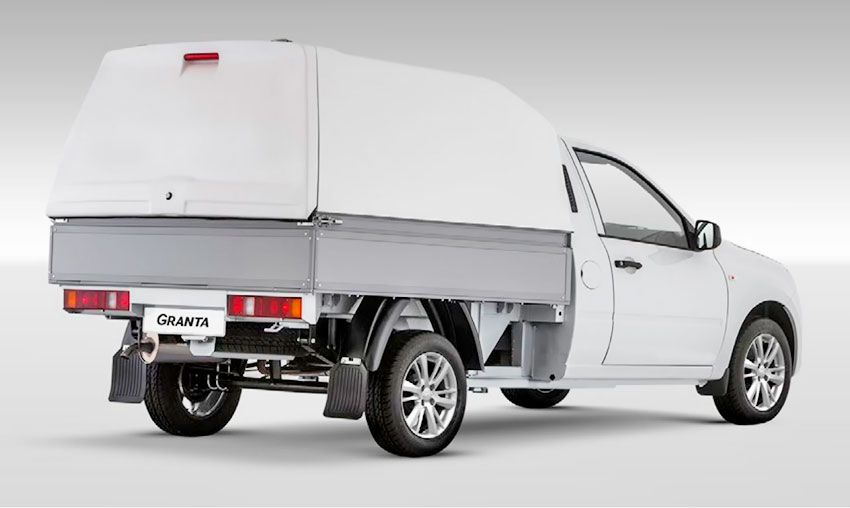

Commercial models vis (now a commercial product line LADA) are available with three basic types of add-ons pickup truck with aluminum side body, pick-up with GRP box van (with rear lift leaf – the photo on the splash screen) and pick-up with extended to 2.2 m flatbed,

and a whole range of the van boxes (manufactured goods, isothermal and refrigerated)

In addition, all versions are equipped with 8-valve 1.6-liter engines VAZ-11186 (87 L.S., 140 N·m). And here's a 5-speed manual transmission got a new (more "cargo") gear ratio of a pair (a 3.9 instead of 3.7), which improved dynamics and has resulted in more confident acceleration even with a full load.

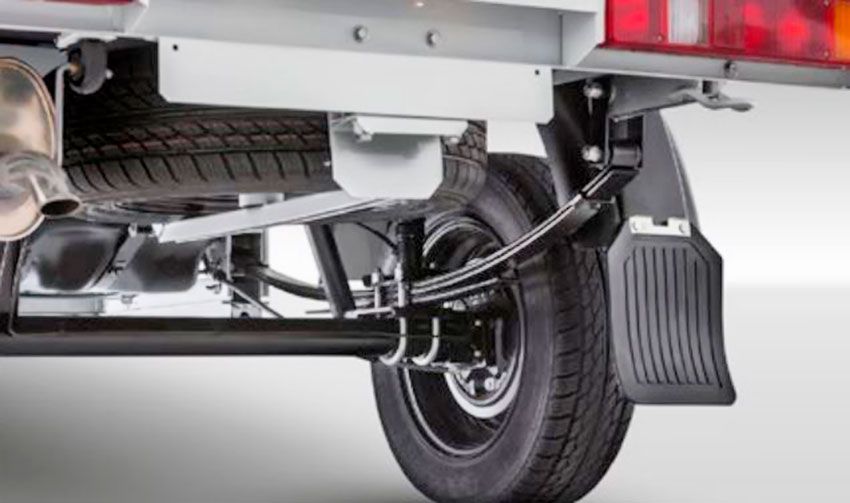

Rear suspension simple and reliable spring – traditionally, models of the vis

Design of a commercial line of LADA Granta has retained its polutemnoy scheme (the rear frame is welded to the rear of the cab) and leaf spring rear suspension. This solution increases the reliability and load capacity of the truck compared to the original passenger version, which is capable of carrying one and a half times more cargo – up to 850 kg (670-790 kg in vans depending on the version).

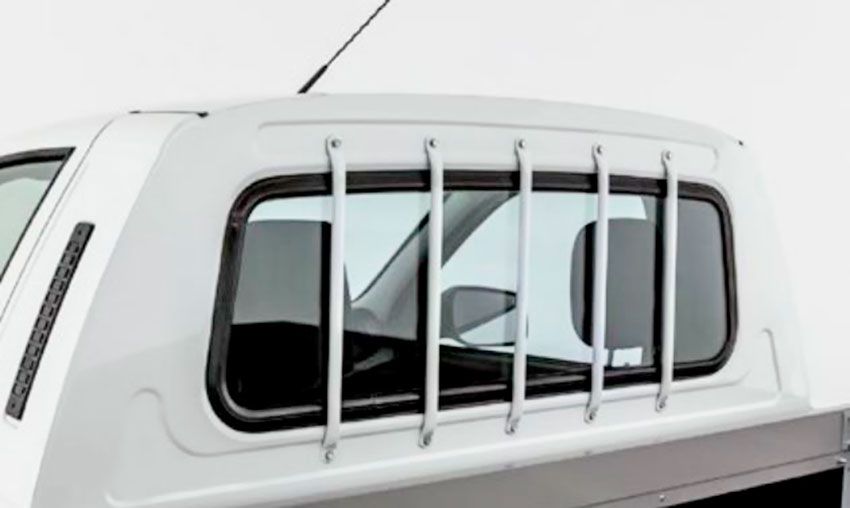

Rear cab glass pickup trucks protected by steel rails

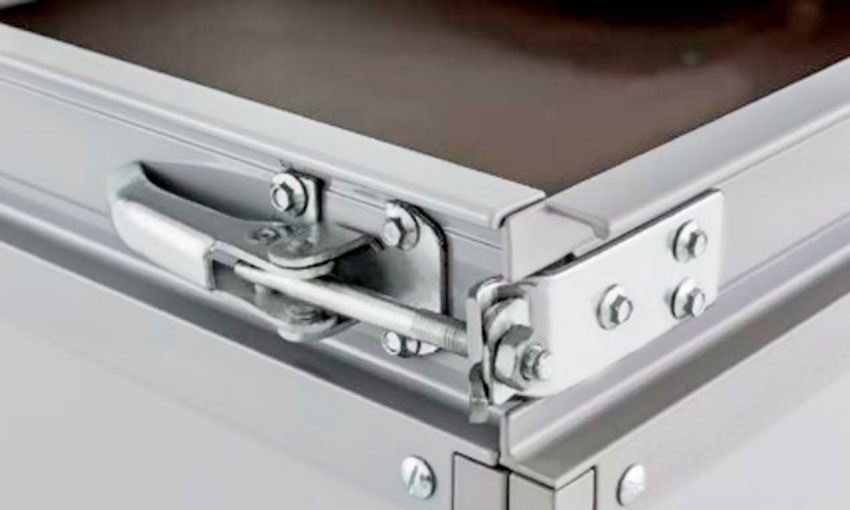

Loop modern design securely fix aluminum side truck

 a line of commercial modifications of LADA Granta version with included side platform (including plastic kung), isothermal and manufactured goods vans with various options of body volume to 4.0 m³.

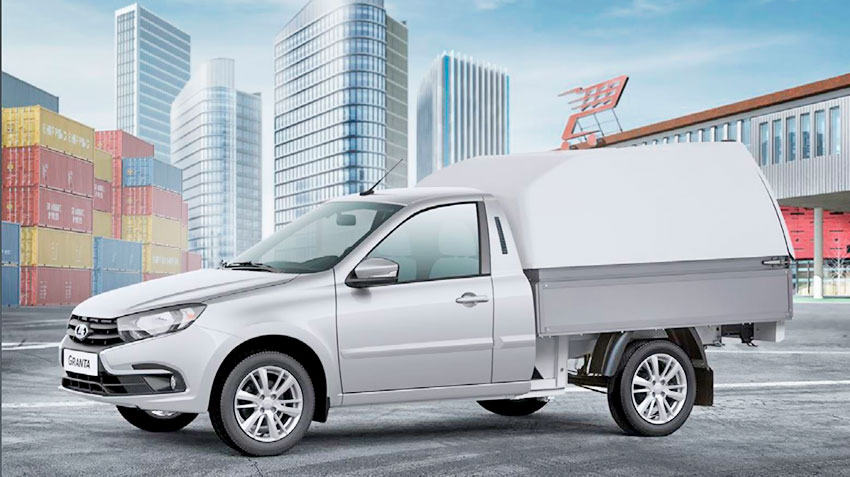

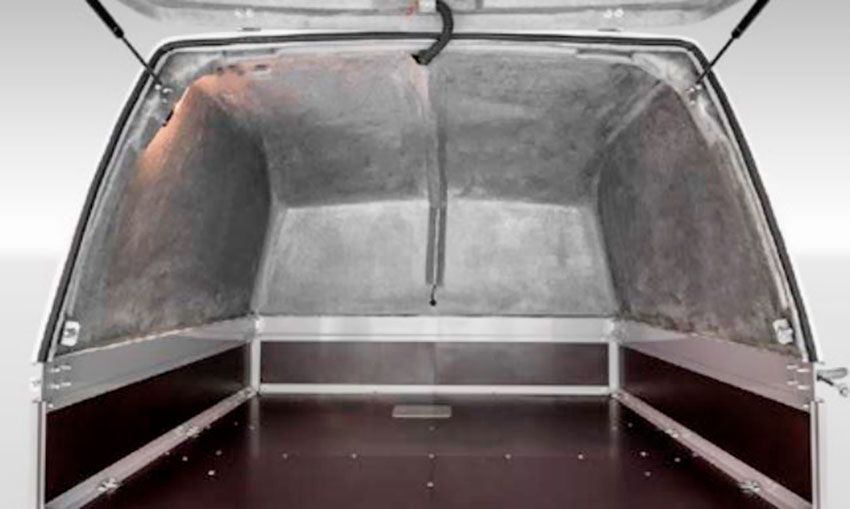

the amount of Useful pickup truck with flatbed – 1.0 m³ (1.2 m³ with the extended), and a kung – 2.7 m³

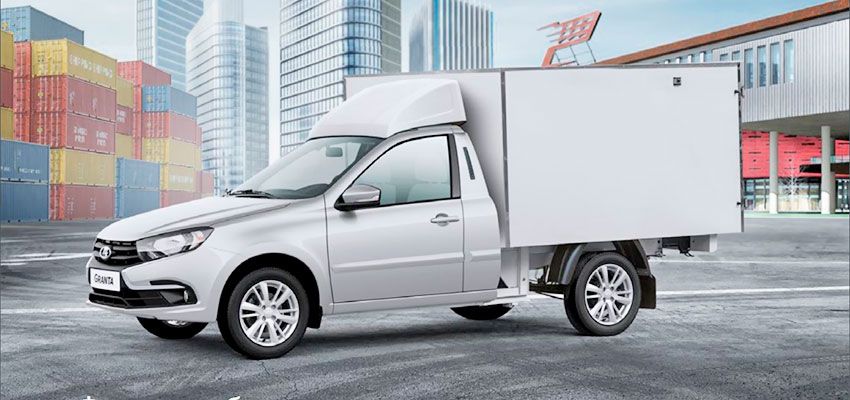

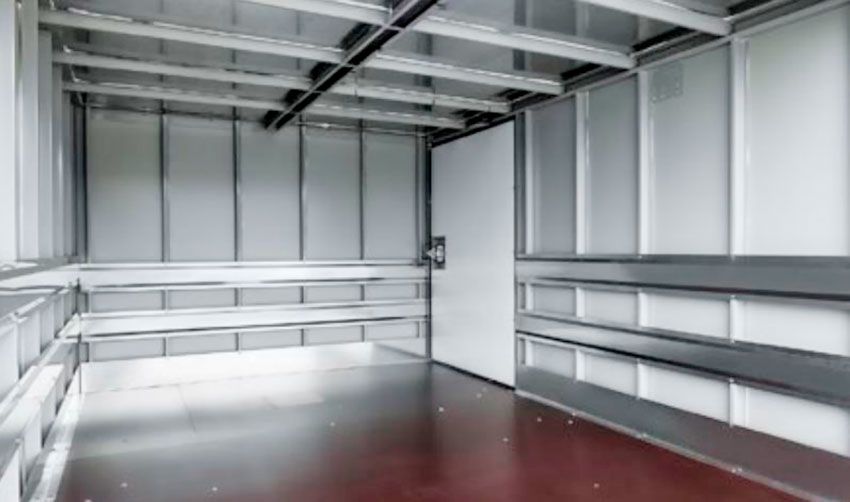

Manufactured goods van can be a volume of 3.5 m³ or 4.1 m³ (elongated)

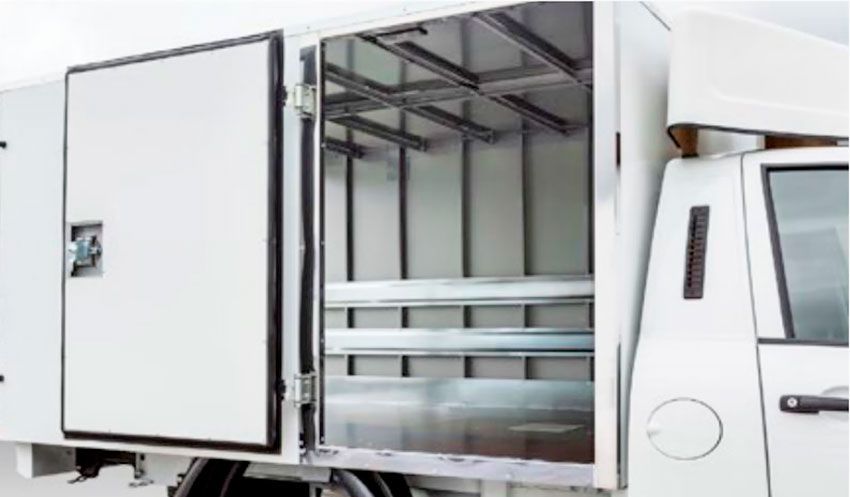

Fairly wide side door on the starboard side greatly facilitates the loading and unloading of the van

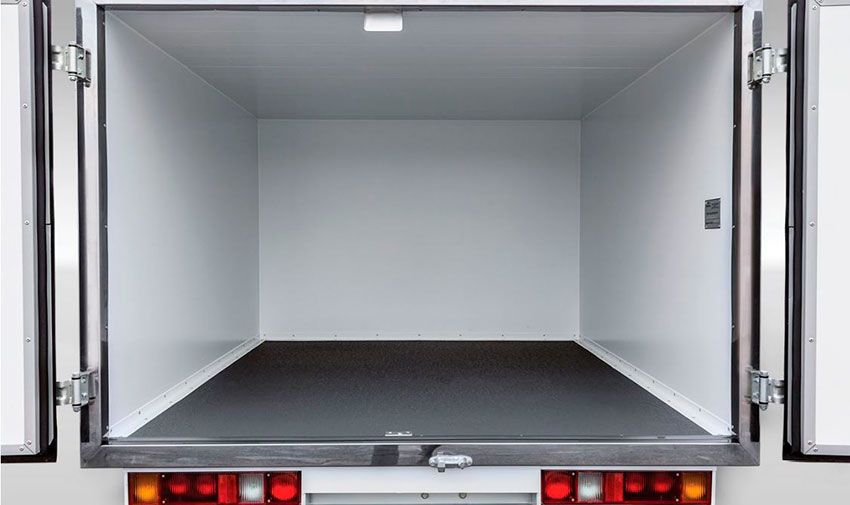

Useful volume of insulated and refrigerated vans from 3.2 to 4.0 m³

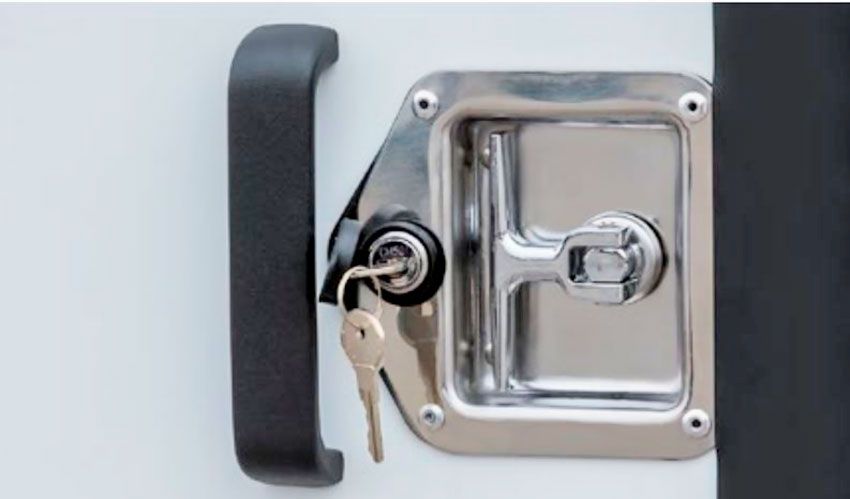

Lock cylinders and lock the door securely in any position

Also available is a wagon version of the refrigerator with refrigeration and refrigeration and heating installations. In fact, the popularity of vans series vis-2349, complementing the main commercial van LADA Largus F90, and due to the presence of vans (and airborne platforms) the increased capacity while maintaining an acceptable compact size, which is important for a number of carriers, in addition, a complete commercial mass of LADA Granta remains within 2,5 t (in fact, 1,99 t), which allows free operation of, for example, in Moscow, outside the truck frame.

Mass-dimensional and operational oneshycesia data series LADA 2390 (according to the site "vis-Auto"):

dimensions: length – 4450 mm (4750 mm for versions with extra long bodies) width (at cabin) – 1620 mm height (over cab) – 1,500 mm, according to the kung – 1700 mm, van-box (depending on version) – 1875-2150 mm (mainly 2000 mm) wheelbase 2845 mm front track/rear – 1430/1428 mm, ground clearance – 160 mm.

Internal dimensions of bodies: on-Board pickup – 1860х1620х330 mm, flatbed pickup truck with a kung – 1860х1620 х1060 mm, flatbed pickup truck with extended platform – 2160х1620х330 m, manufactured goods van-box – 1830(2130 elongated)х1590х1180 mm, universal frameless van-box – 1910х1650х1130 mm (1300 mm with increased height 1055 mm with 30 mm sandwich panels and 1155 mm with 40 mm sandwich panels), the elongated insulated frameless van-box – 2130х1590х1180 mm insulated frameless – 1800х1610х1095 (sandwich 40 mm), extended refrigerated frameless – 2130х1590х1180 mm (sandwich 50 mm).

Capacity: pickup – 850 kg pickup truck with a kung – 790 kg, pickup truck with long platform – 840 kg, manufactured goods van-box – 734 kg (725 kg extended platform), universal frameless van-box – 790 kg (718 lbs with rails for 40 trays), elongated isothermal and isothermal – 733 kg, with universal guidelines for the 48 trays – 670 kg, elongated universal height 1.3 m – 670 kg, frameless van isothermal-box (sandwich 40 mm) – 734 kg, elongated refrigerated frameless – 704 kg ("Elinzh") and 734 kg (Carrier Viento 200).

Petrol: octane number  – 95 min, fuel tank capacity – 55 L.

fuel Consumption l/100 km (combined cycle): of 9.0 (standard pickup), 9,5 (pickup UDL. and vans) and 9.8 (refrigerators).

Suspension: front – independent with racks of type McPherson with stabilizer bar, rear – dependent spring.

Tires (size): 185/70 R14 (88 T / 86 T).

the price of commercial models LADA 2390 sample 2019 be: a basic side version of the pickup 2390-60-010 ₽648 000; for the version with plastic kung 2390-60-022 ₽672 000; for extended side version of the pickup 2390-60-011 ₽651 000; for the basic version manufactured goods van-box 2390-60-210 (volume 3.4 m³, of clad metal) ₽694 000; for extended (2.2 m) and high (1.3 m) van 2390-60-220 (volume 4.0 m³, of clad metal) ₽683 000; for basic universal frameless van-box 2390-60-430(volume of 3.5 m³) ₽694 000; for the increased height (1.3 m) version of the universal frameless van-box 2390-60-436 (volume 4.1 m³) ₽712 000; for hlebosol version 2390-60-431 complete with rails for 40 trays (volume of 3.5 m³) ₽707 000; for an isothermal version (the thickness of the sandwich panel 30 mm) 2390-60-432 (volume 3.3 m³) ₽683 000; for long hlebosol version 2390-60-434 (volume 4.1 m³) with a guide for 48 trays ₽683 000; for long isothermal version (the thickness of the sandwich panels 40 mm) 2390-60-440 (volume 3.4 m³) ₽699 000; for the base insulated frameless version (the thickness of the sandwich panels 40 mm) 2390-60-450 (volume 3.2 m³) ₽704 000; for refrigerated (thickness of sandwich panel 50 mm) extended version 2390-60-452 (volume 4.0 m³) with refrigeration equipment "Elinzh" (operating temperature range from 0°C to -20°C) – ₽891 000; for this version of the refrigeration and heating system Carrier Viento 200 (operating temperature range between +12°C to -20°C) – ₽899 000.
.
