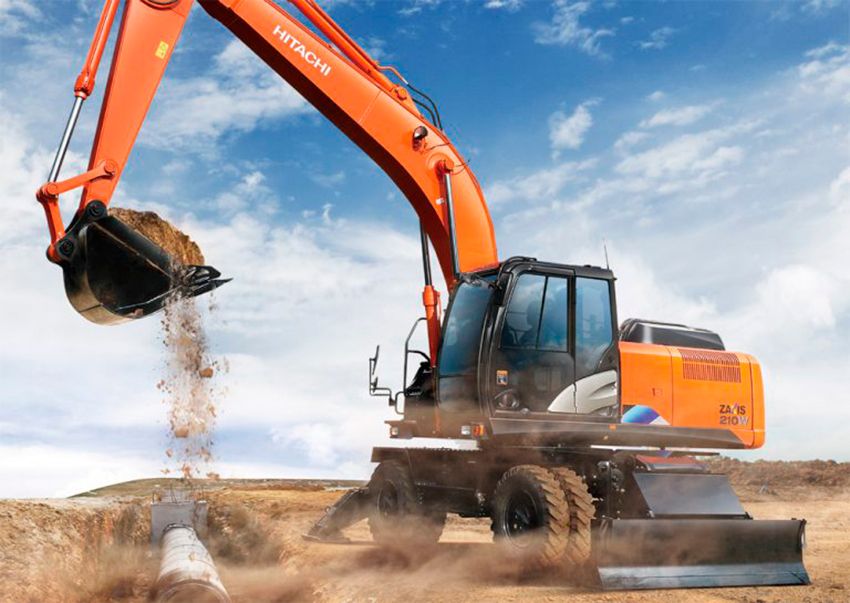

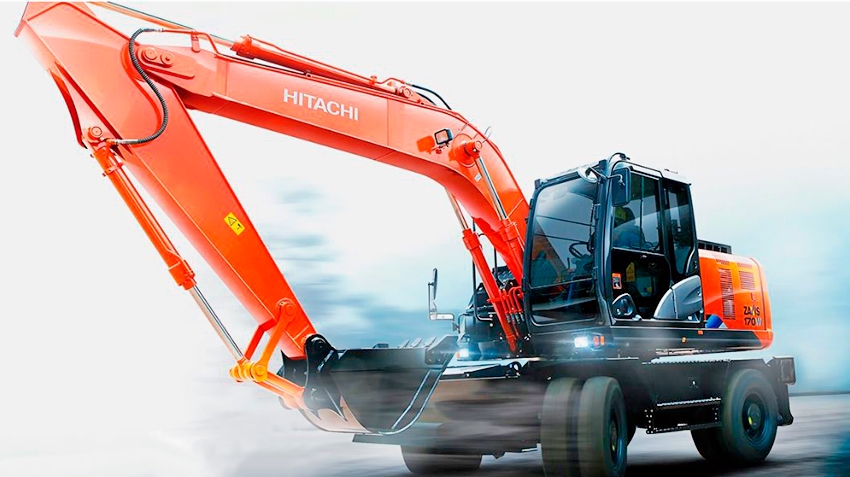

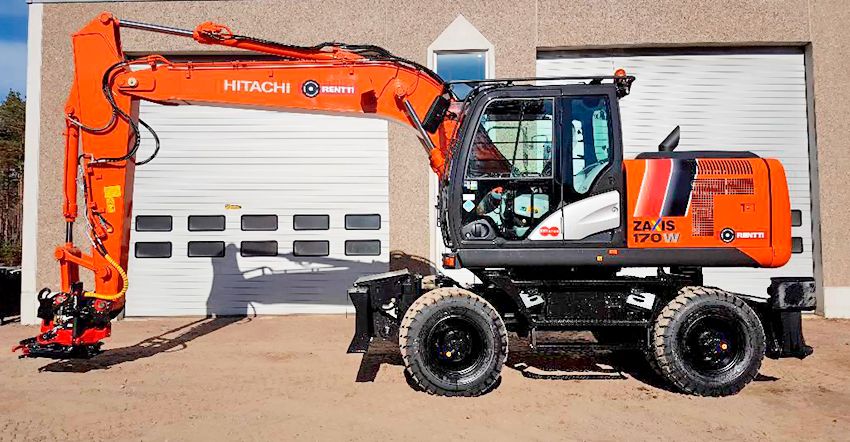

Hitachi is launching a new series of wheeled excavators Zaxis-5A

On the Russian market a new series of excavators Hitachi

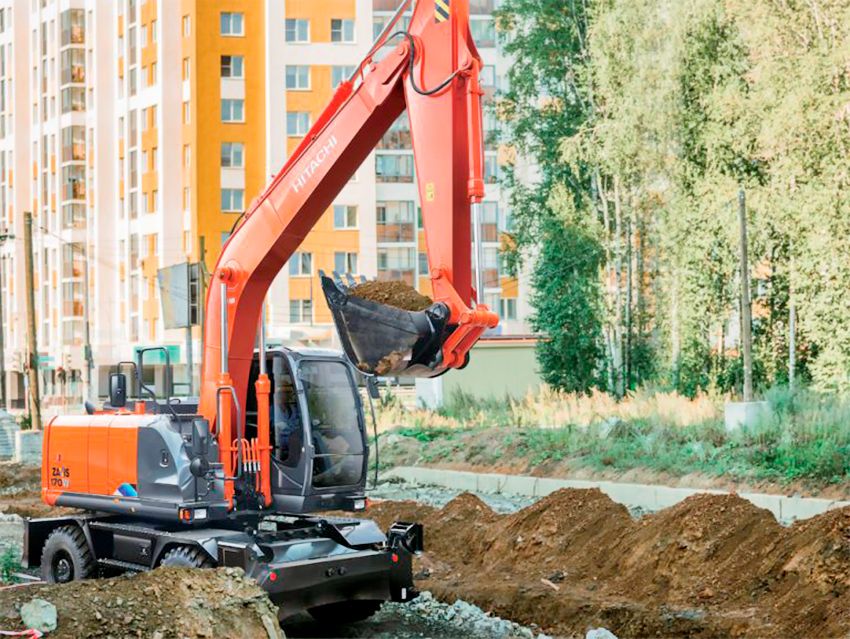

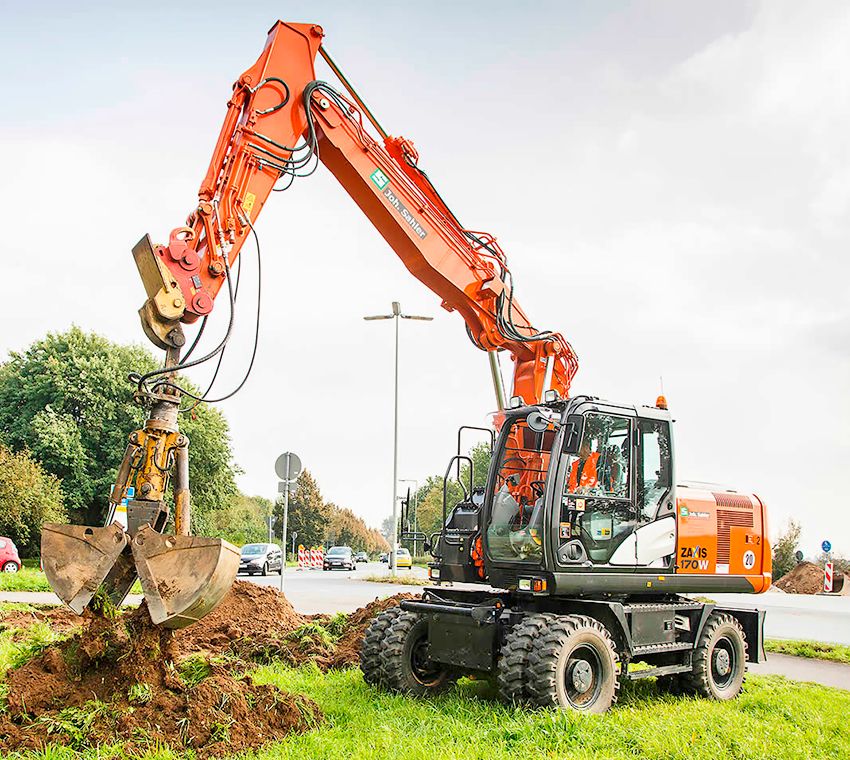

Hitachi Construction Machinery Eurasia presented on the Russian market a new range of wheeled excavators that includes three models: ZX170W-5A, ZX190W-5A and ZX210W-5A. These machines are intended for construction in cities and road construction, including in difficult conditions.



Operating weight new wheeled excavators from 16 up to 800 kg 21 600 kg. loading Capacity compared with cars of the previous series Zaxis-3 was increased by 6% for the model ZX210W-5A and 7% for model ZX170W-ZX190W 5A and-5A. Bucket capacity, depending on model is 0,6–0,9 m3.



Equipped with excavators Zaxis-5A diesel Isuzu of new generation capacity of 152 HP, the appropriate Tier 3, and the hydraulic system HIOS III. Accordingly, the overall performance of the actuator was increased with greater fuel efficiency compared to previous generation models. For example, in the model ZX210W-5A fuel consumption increased power reduced by 14%.



Fuel system-generation ZX-5A improved in many respects compared to the ZX-3, so that the reliability of the engine has increased significantly. In the Chinese market, where the fuel is of high quality, machine series ZX-5A available with 2013. During this time, engines with upgraded fuel system have established ourselves as a high reliability and performance.



All new models feature Power Boost: a temporary increase in power, which can be used to increase the digging force by 10% and hold it at this level to 8 seconds. This feature contributes to a more rapid and easy excavation.
A maximum travel speed of the excavator ZX170W-ZX190W 5A and-5A is 35 km/h, and ZX210W-5A – 27, 5 km/h.

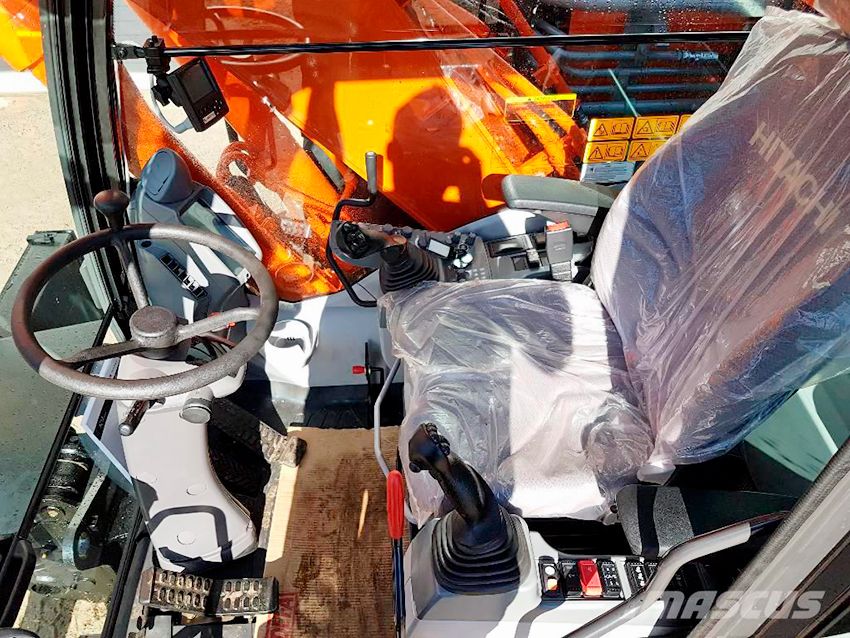

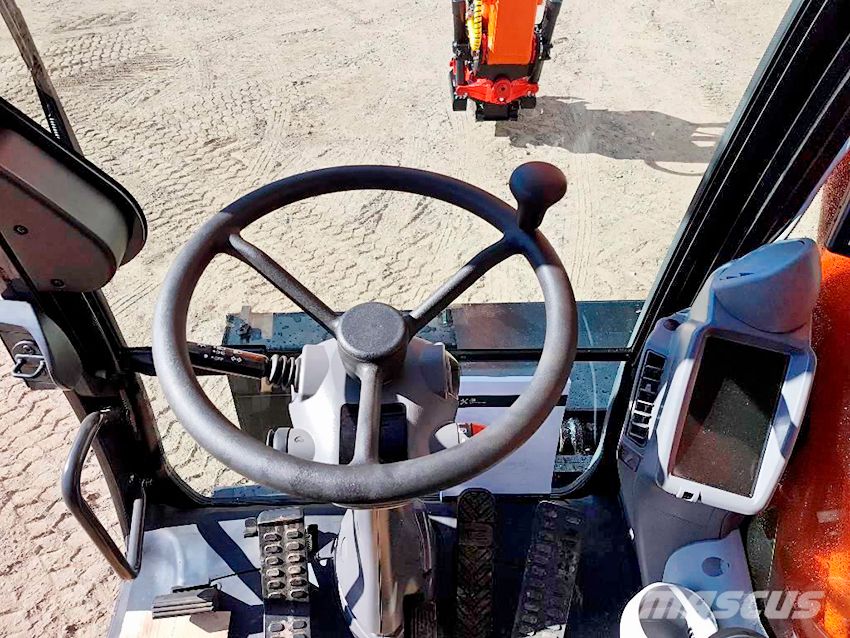

Excavator cabin became more spacious: to the operator became more comfortable thanks to a sufficient legroom and the wide doorway, and plenty of seat adjustments allows you to adjust the most comfortable position for work. The cabin is also equipped with air conditioning system, which significantly uluchshaet working conditions and increases productivity of the operator.
Thanks to the compact monitor, which now does not exceed the width of the side rails, an overview of the space to the right is not limited. New rear view camera provides a broader scope, covering almost all the space under the counterweight, allowing the operator to better control the work. In addition, the display simultaneously shows the image from the rear camera and the status lights systems. As a result, the operator is not distracted by switching the display modes and pays more attention to security.



Dustproof mesh is now placed on the outside of the air conditioning condenser and fuel cooler, which ensures even distribution of dust and simplifies cleaning.
Simplified maintenance procedures to minimize downtime. A number of simple functions allows to reduce the likelihood of unexpected exit of the machine. For example, a multifunctional control system displays on the monitor a wide range of important for the operator technical information: status and customize the operating system equipment, as well as the need for IT.

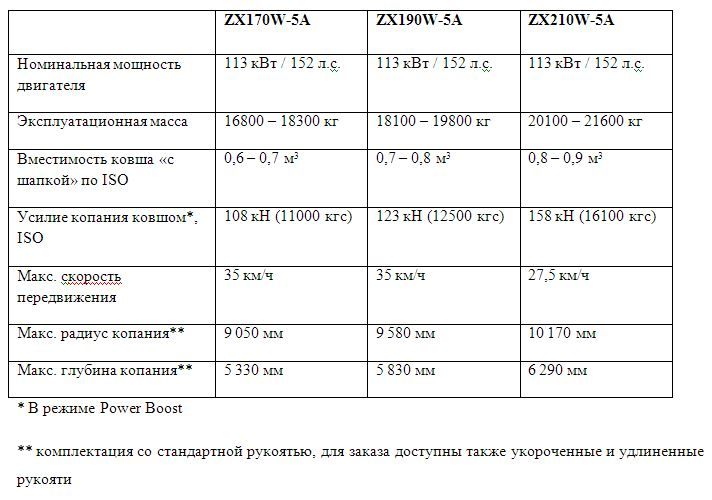

Technical specifications series Zaxis-5A:


Implementation of all three models of the new series of Zaxis-5A in Russia is engaged in a network of official dealers of construction machinery Hitachi Construction Machinery Eurasia..
