Gas technologies in Sokolniki

On international exhibition GasSuf‑2016, held this fall, foreign and Russian manufacturers and suppliers presented gas equipment

On international exhibition GasSuf‑2016, held this fall, foreign and Russian manufacturers and suppliers presented gas equipment, gas systems and vehicles on gas fuel.

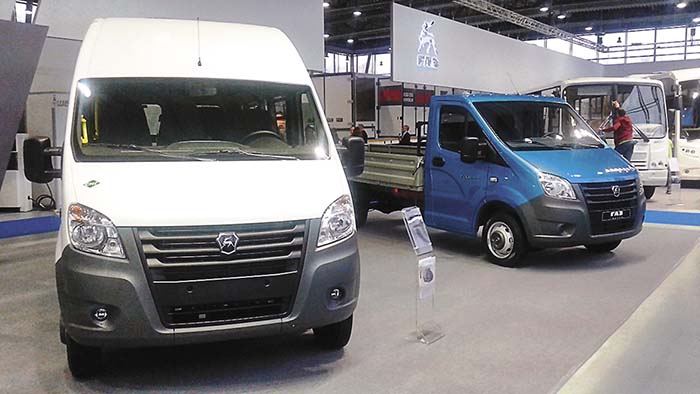

Gas the premiere of "GAZ Group"

"GAZ group" presented new model a van "GAZelle NEXT" with bi-fuel gas‑petrol engine EvoTech 2,7 LPG (LPG, liquified petroleum gas – LPG). Minibus "GAZelle NEXT" with engine Evotech 2.7 LPG has a low cost of ownership and high fuel efficiency. In the car is equipped with a single engine control unit the LPG/petrol with sensor mass air flow. According to compared to separate traffic management gasoline to gas single unit ensures smooth switching from one fuel to another, and also supports the optimum ratio of air and gas the combustible mixture. Upgraded gas reducer machine provides the heating of the gas mixture and the optimal engine performance in low temperatures. Engine power – 107 HP gasoline 104,3 HP at work on gas fuel, the maximum torque – 220,5 N;m at work on the petrol 219 N·m gas. The volume of the fuel tank – 80 years, the volume of the two gas cylinders – 87 years, cruising on a petrol gas – more than 1050 km bus – 16 passengers.

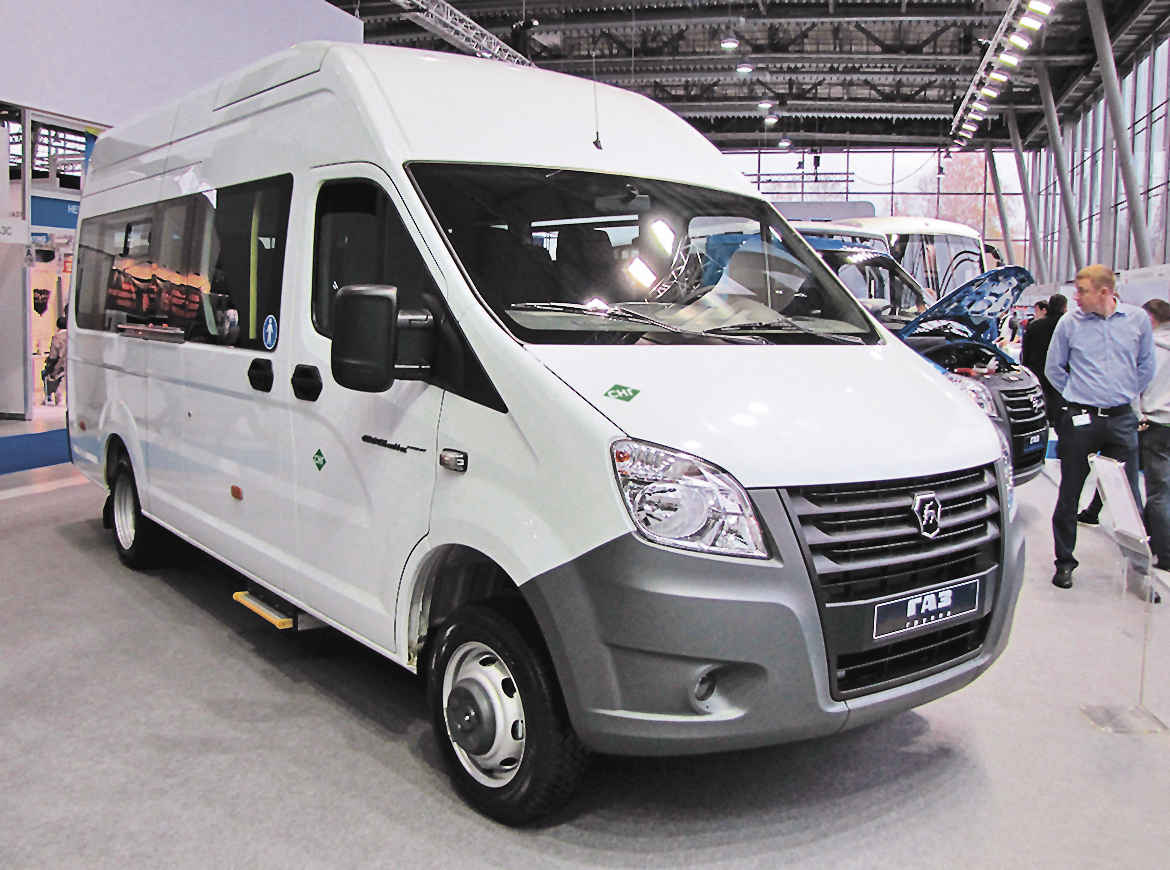

Minibus "GAZelle NEXT LPG" with two-fuel engine

On-Board the vehicle "GAZelle NEXT" equipped with bi-fuel engine EvoTech TurboCNG (CNG, compressed natural gas – compressed natural gas). For the use of a turbocharger increased the power characteristics of the powertrain, improved dynamics of acceleration and speed characteristics. In particular, maximum torque increased to 255 N·m (in the increased torque in the low frequencies, with 1 thousand 2,5 thousand revolutions per minute) maximum engine power increased to 120 HP the vehicle has four gas cylinder with a total volume of 41.6 cubic meters of the Reserve is 750 km including 300 km gas. Module gas engine valves ensures precise dosage of fuel at all modes of operation, and exhaust manifold allows Assembly in a long time to work on lean mixtures, which provides low fuel consumption.

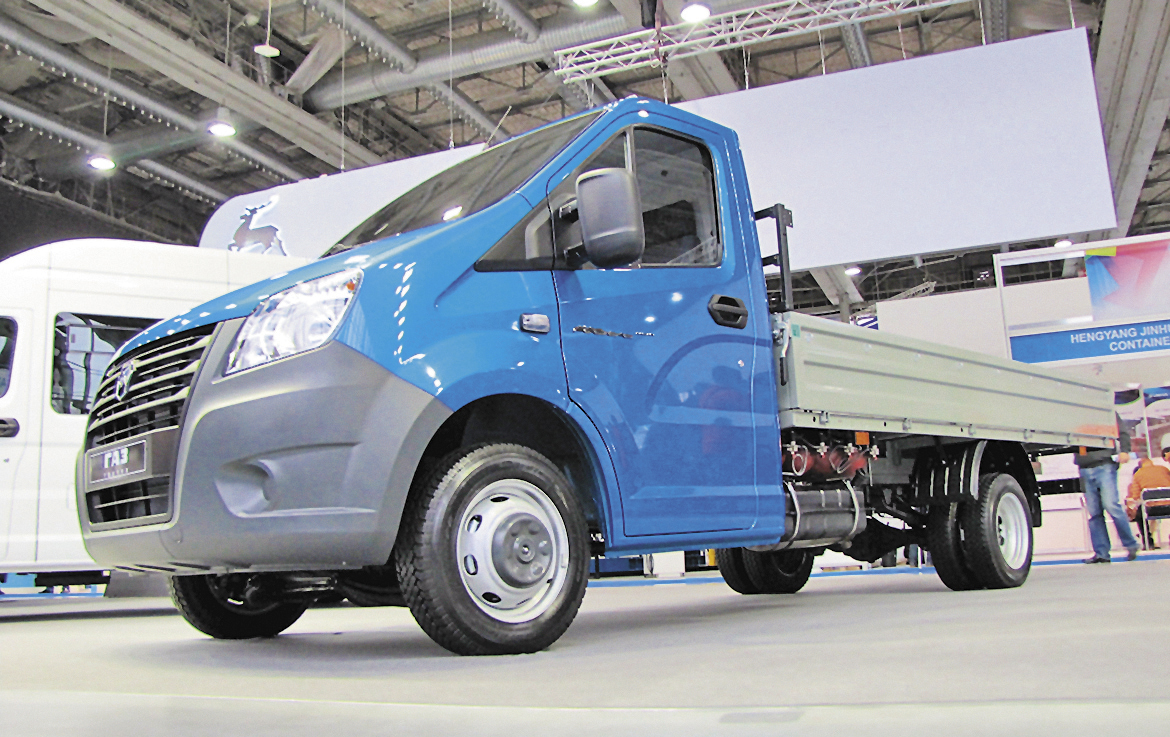

Flatbed truck "GAZelle NEXT CNG"

Evakuator on the basis of medium-duty trucks "Gazon NEXT CNG" is equipped with the latest diesel engine YAMZ‑534 CNG with capacity of 150 L.S. Seven gas cylinders with a volume of 72,8 cubes provide a power reserve of not less than 370 km and Maximum torque of 493 N·m. "Gazon NEXT CNG" is designed for evacuation of vehicles up to 2,5 With the cost of the basic car chassis with the 2.5–3 times lower than that of models traditionally used for installation evacuation add-ons, and the engine using CNG can save up to 160 thousand year, with mileage of 60 thousand.

Stationary evacuation platform of Russian production of V‑Simple on the car "Lawn NEXT" made of stainless steel. A feature of the platform is a 4‑componenta coating, providing wear-resistant and durable finish. Crane‑manipulator installation Palfinger 13500TB, specially designed for car tow, has a maximum capacity of 5 t on the boom 2 m and 1.5 t on the flight 8 m. The wrecker traverses equipped with hydrocortisonum in complete with cords and wheel clamps.

Evakuator on the basis of medium-duty trucks "Gazon NEXT CNG"

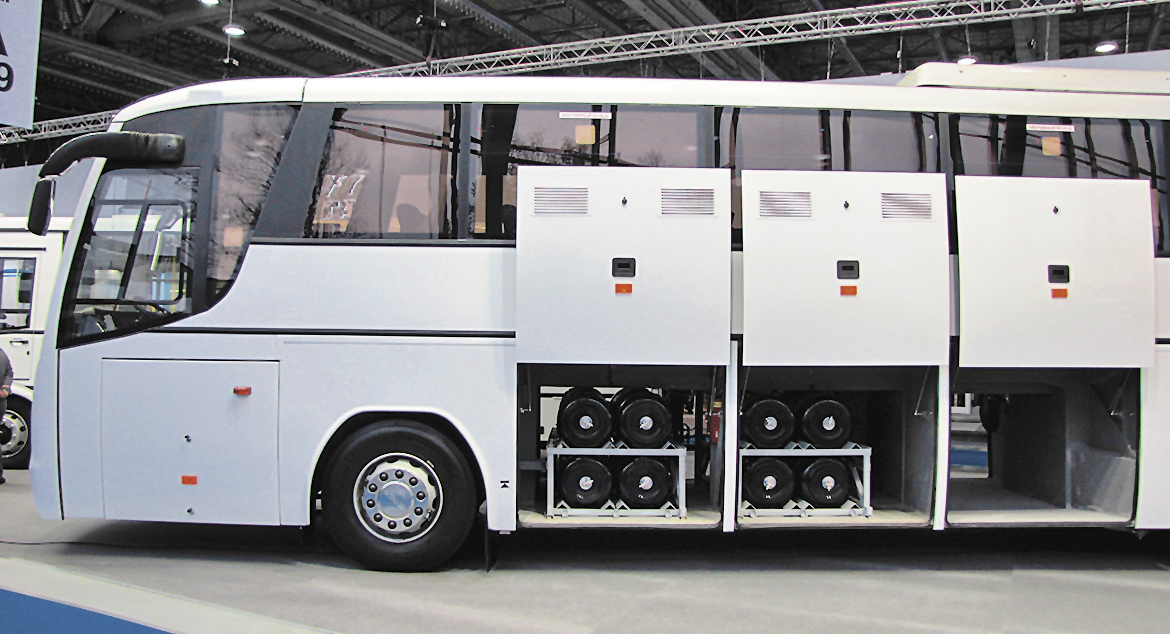

Bus Cruise on Scania chassis is designed for transportation 47 passengers. Comes with a gas engine Scania's environmental standard "Euro‑6". Gas fuel (methane) fill-in the eight bottles of 150 l, whose total volume in 1200 l provides a range of 600 km Comfort during movement creates air suspension with the stabilizer front and the rear axle and electronic control system with the function of lifting and lowering of the body. In the basic package of bus climate‑control, onboard computer, cruise control, electronic stability and roll-over body, help with the ascents and descents, the video two. Additionally available digital rasoazanany, video system, Wi‑Fi, auto, rear view camera, terminal navigation and communication, DVR, external and interior photos and video camera, sleeper co-driver, kitchen and toilets. Also the bus is equipped with temperature sensors and smoke automatic alarm system and fire fighting.

Gas LIAZ "Cruise" on chassis of Scania

Medium class bus PAZ -320412 CNG has already gained popularity among carriers who develop fleet on environmentally friendly natural gas. The bus is designed for urban and suburban routes. The machine is designed for transportation 60 passengers 21 seat is equipped with a gas engine YMZ‑534 environmental standard "Euro‑5" working volume of 4.43 liters and output of 170 L.C. Gas fuel (methane) dressed in the six cylinders on 62 l tank 50 that allows you to provide a power reserve of up to 320 km away. all-Metal cylinders are located in the underbody. PAZ‑320402‑14 has a high return for optimal ratio of fuel consumption of a resource of body and power unit.

The components of LPG equipment installed on the machines GAS, certified for compliance with the requirements of the Eurasian economic Commission of the UN and ensure compliance with the maximum requirements for fire safety.

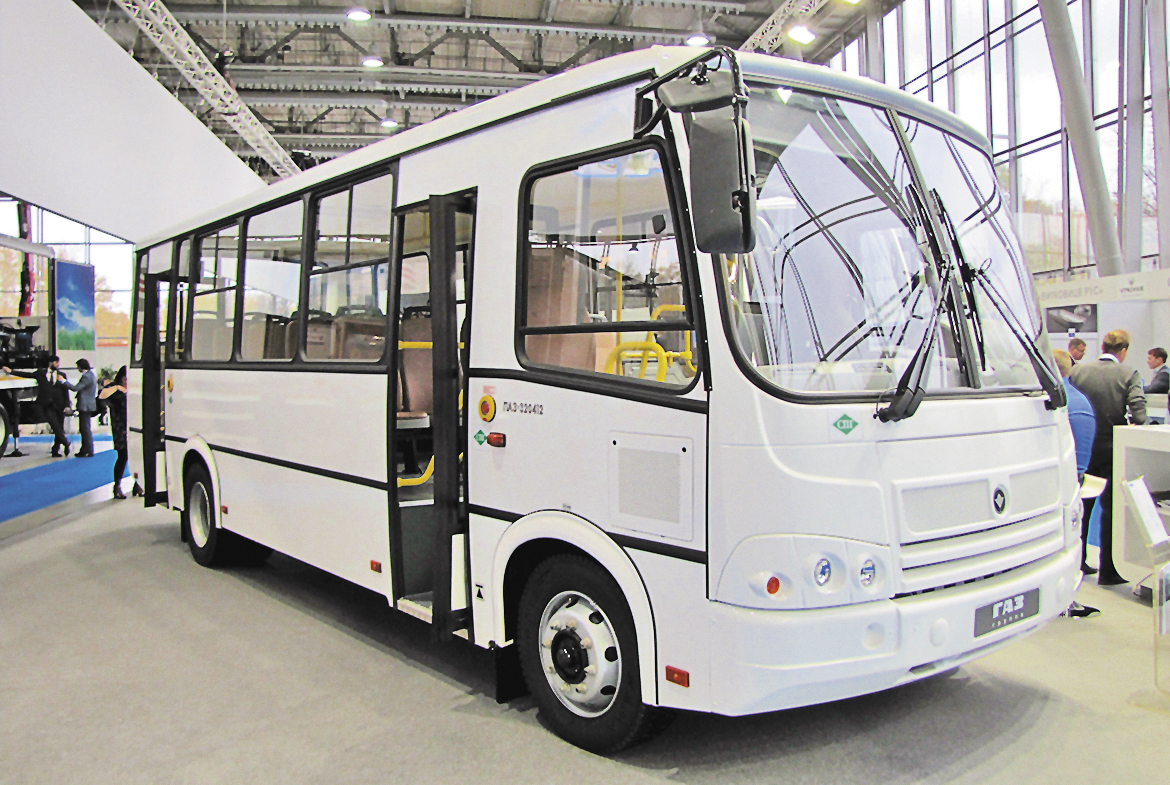

The GROOVE bus -320412 CNG

On the basis of towed vehicles

The company "Raritek" introduced a Mobile complex of technical examination of cylinders (IGBC‑2016) mounted on a triaxial semitrailer‑the container ship. The model allows to perform wide range of operations like cylinders with the vehicles running on natural gas. In this number includes the dismantling of the cylinders with the help of the CMU, their degassing preparation for testing, pressure testing of cylinders and system supply gas, results of operational documents on the basis of protocols of diagnostics and diagnostics filling of gas systems of vehicles.

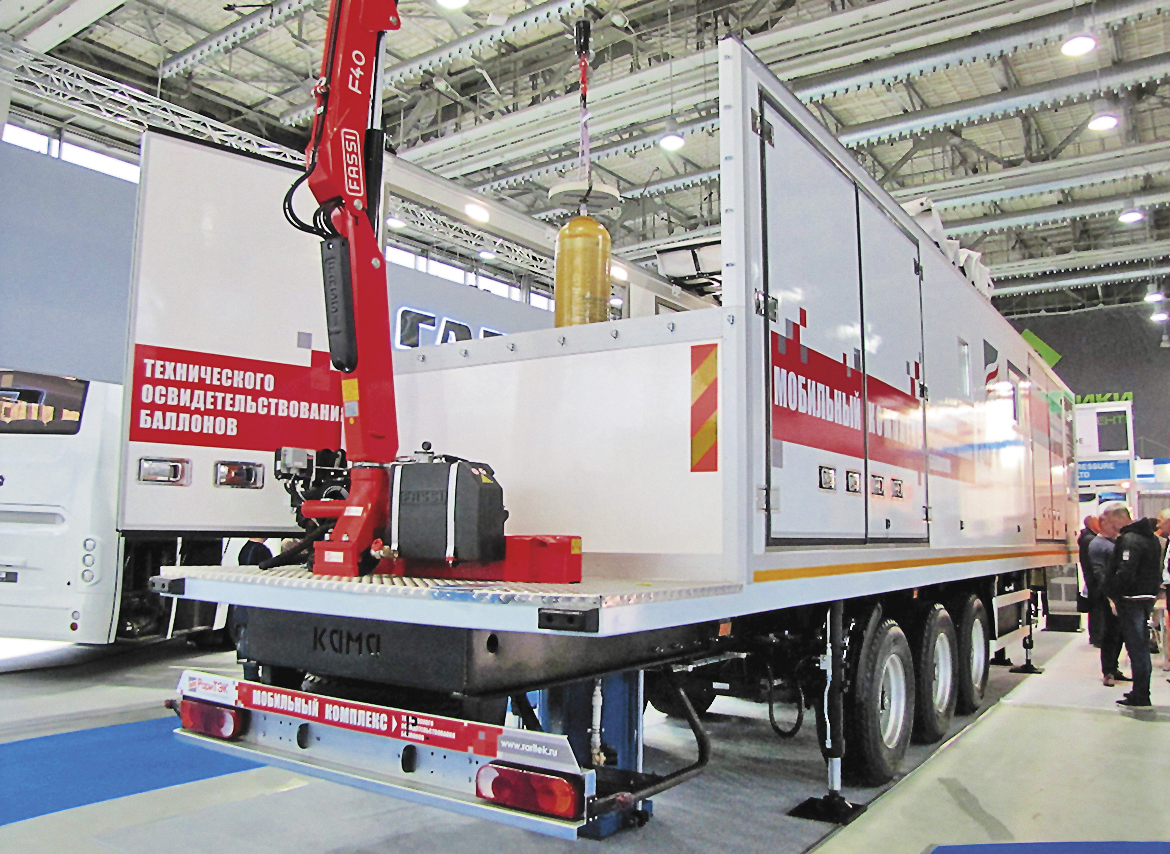

Mobile complex technical inspection of cylinders

Fresh development Novogrudok gas equipment plant – mobile automotive gas tanker (PAHs) is used for storing and transporting compressed natural gas with a maximum pressure of 25 MPa, the mobile refueling of motor vehicles and used case of building a pipeline to temporary supply consumers with natural gas. On triaxial semitrailer mounted cylinders with a capacity of 148 l, is placed in 5 with 22 unit in each (110 PCs) and metering the flow of gas. The total mass of natural gas transported pigs is 3179 kg.

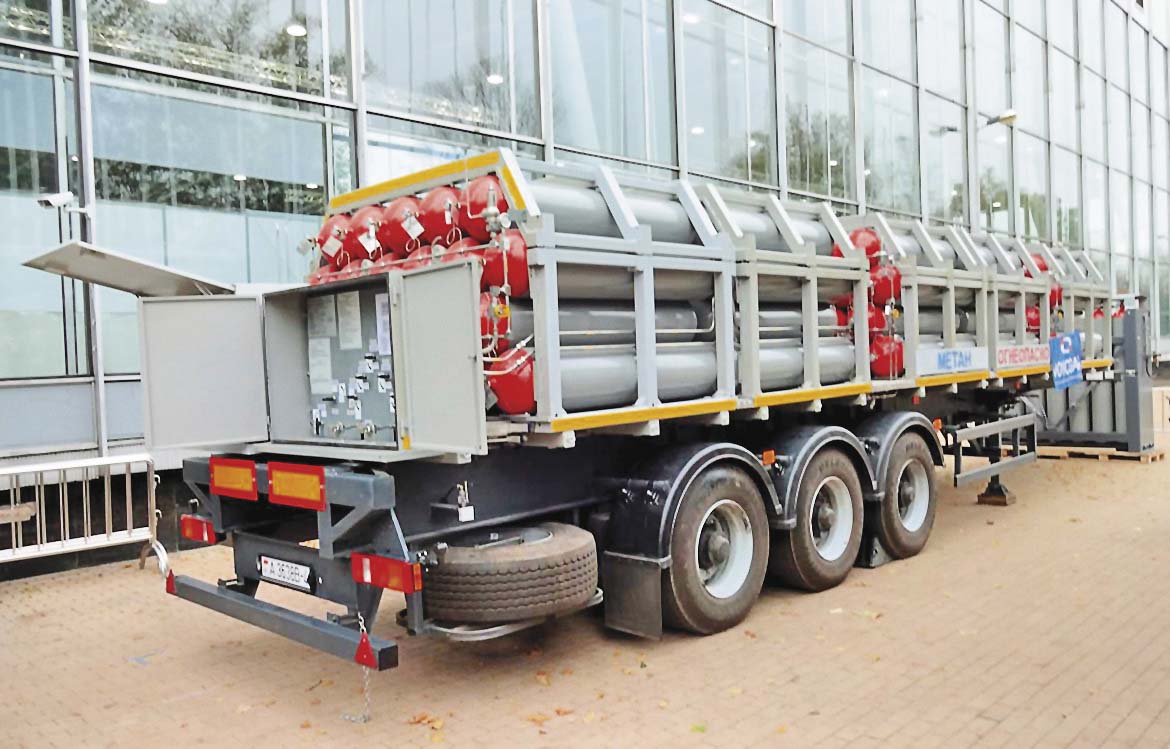

Mobile automotive gas tanker Novogrudok plant

Its novelty showed, OOO "Russian cylinders". It was mobile gas storage (IYC) MOBILES 6000+ in a represents a standard 20‑foot container in the performance of the HC (High‑Cube), which is filled with high pressure cylinders. The latter are arranged vertically and tied between a shut-off valve and piping. All the unit is mounted on a triaxial semitrailer. The dimensions of the high pressure cylinder (diameter and length) allow you to fit in a standard container has a maximum capacity of compressed gas among similar systems in the world. Each metal-composite cylinder the patented design has a volume of 400 l and in the reinforcement material of cylinder carbon fibre is used. All IYC includes 55 cylinders methane total capacity of 6500 m³.

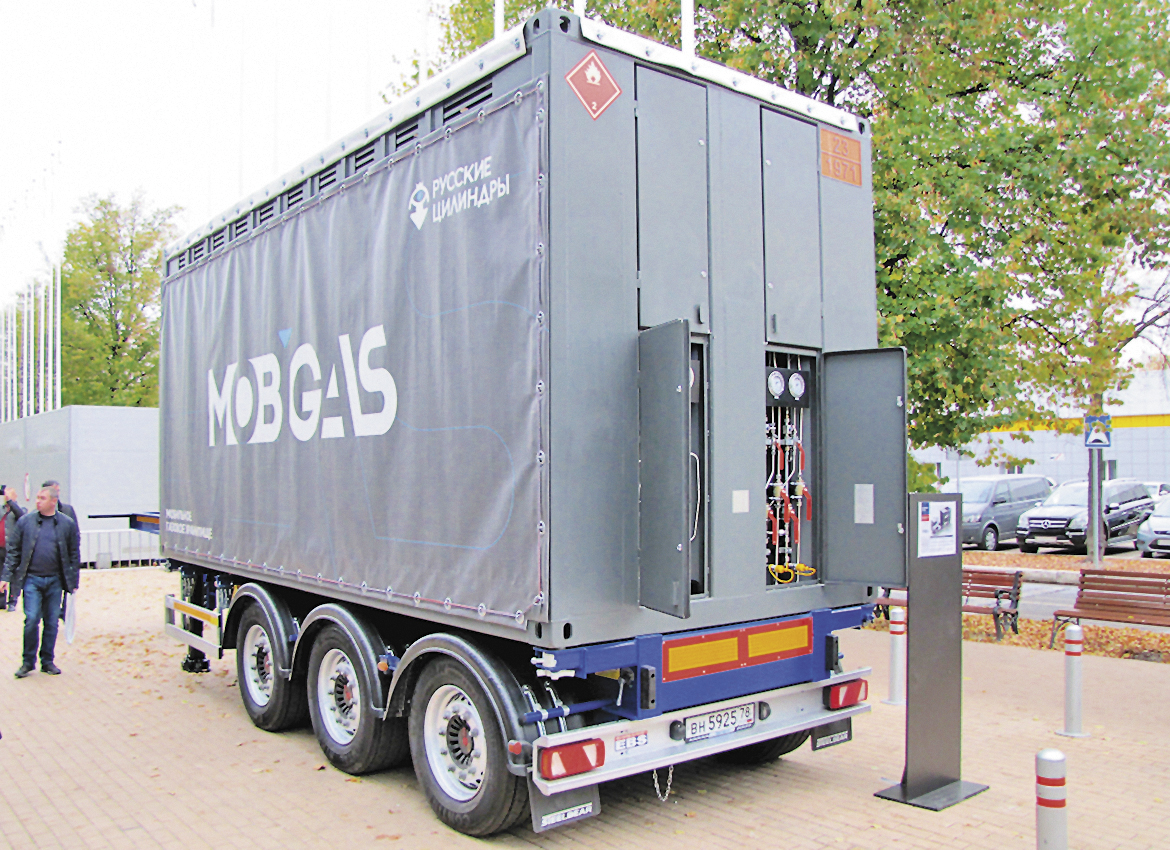

Mobile gas storage (IYC) MOBILES 6000+

.
