Minsk wheel tractor plant (MZKT OJSC) produces heavy specialised chassis and tractors under the brand name "Volat". Date of occurrence of the enterprise is considered to be July 1, 1954 in Minsk automobile plant was created special design Bureau of heavy wheeled artillery tractors and engines to it. In March of 1959 year the newly constructed the shops gathered the first series of the MAZ-537 (8 × 8). In the next few decades for the Soviet armed forces was developed and implemented in manufacture many unique design of cars, but the independence of the Minsk factory of wheel tractors were acquired gradually – formally it was created and isolated from the composition of the MAZ only in February 1991 years. While in state-owned and subordinated to the military-industrial Committee of the Republic of Belarus, today the company produces a range heavy army vehicles and car dual-use. Since 1992 years due to the adoption of the conversion program in its lineup there is a wide range of equipment and for civil customers.

Among the new models of "MWTP" – dump truck MZKT-750500-011 (8x4), considered the successor to the popular, but obsolete MZKT-65151, MZKT tractor-741600-011 (8x8) and a unified him fifth wheel ballast tractor MZKT-741600-010 with engine capacity of 600 HP Truck with lifting capacity of 32 tons is equipped with a reinforced frame and 6-cylinder, 460-horsepower engine MMZ-WP12.460E5 power 460 HP environmental standard Euro-5. With him packaged Chinese 9-speed manual gearbox Fast Gear 9JS220TA+QH50 with pneumatic clutch MFZ430 or DSP430B9 able to transmit a torque of more than 2000 N·m. Standard platform 20-cylinder engine traditional cross-section with heated exhaust gases, but it's possible to set other types of freight platforms, in particular, a U-shaped unheated platform. Tractor MZKT-741600-011 is able to tow a train of total mass 90 t. It is equipped with the same 600-horsepower diesel engine Cummins, and tractor ballast, but on it uses 6-speed automatic gearbox own production factory with built-in retarder. As and dump truck, new tractor you'll be upgraded with a comfortable cab, but already two bunks.

The new factory was the model 750440 tractor with a restyled cab and Paccar MX340 engine (Euro 5) with a power of 462 HP and ΜM=2300 N·m. It is capable of pulling a road train of total mass 90 t To the number of new products are army trucks series 5002-6002 with the wheel formula from 4x4 up to 8x8, and in term 10x10 designed for installation of various add-ons for military purposes.

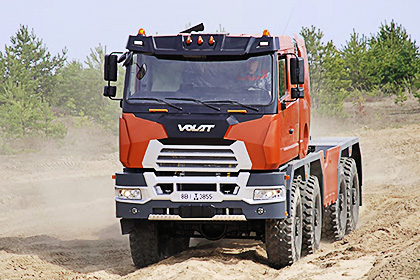

New road truck tractor MZKT-750440 (8x8) with a Cummins diesel engine power 600 HP (Euro 4) can work in a roadtrain full weight of 90 tons

In 2016 MZKT produced 476 cars (-1,7% to 2015), most of which (423 units) are traditionally made cars-pletevozy. Delivery in Russia in 2016 amounted to 14 units (+27.3 per cent).

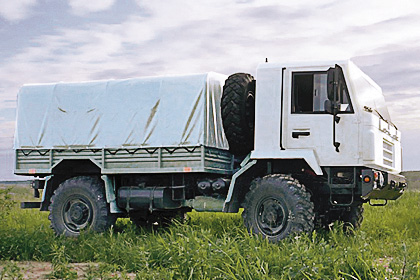

MZKT-5002 (4x4), 6001 (6x6), 6002 (8x8)

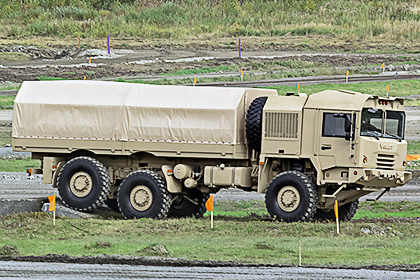

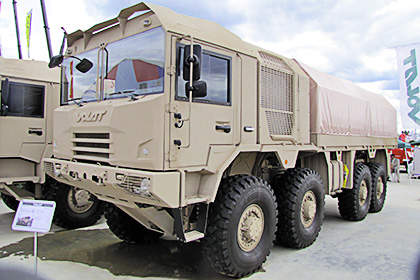

A new family of AWD vehicles dual-use includes lightweight chassis MZKT-5002 (4x4), average MZKT-6001 (6x6) and heavy MZKT-6002 (8x8), and in term 10x10 super heavy. At the total mass 9400 kg chassis 4x4 is designed to install add-ons weighing up to 3000 kg, respectively, of the chassis 6x6 with GVW 24 000 kg can carry up to 11 000 kg, and 8x8 chassis with GVW 34 000 kg . The wheelbase of the model 5002 is equal to 4200 mm, and models 6001 – 4050/ 1645 mm. Power unit 5002 includes a 4-cylinder in-line diesel YAMZ-53452 capacity of 215 HP and 5-speed manual transmission of SAAZ. On model MZKT-6001 set 8-cylinder V-shaped diesel YAMZ-7513 power of 420 HP and a hydro-mechanical transmission GPC-400 of its own production. The cabin on all models frame and panel. Basic body type is adopted tilt the platform.

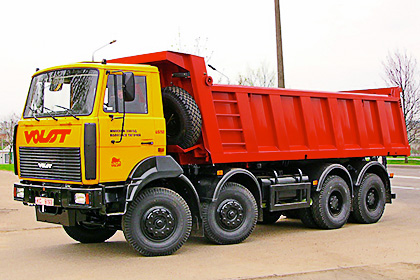

MZKT-6923 (8x4)

A family of four-axle road vehicles with drive rear wheel includes unified suspension the cockpit (made by MAZ) chassis MZKT-692371 and dump truck MZKT-65151. Front suspension spring, rear – spring-balance, the ground clearance is 280 mm.

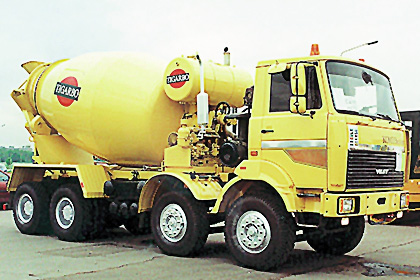

MZKT-692371. At the full weight 41 000 kg chassis is designed for installation of superstructures weighing up to 29 000 t. Its wheelbase is 1600/ 2900/ 1400 mm. the Power unit includes a V-shaped 8-cylinder diesel engine JAMZ-7511 with a capacity of 400 HP and 9-speed gearbox of own production. Modification MZKT-692382 difference increased up to 4100 mm distance between the second and third axes.

MZKT-740400, MZKT-750100 (8x4)

A new family of four-axle road vehicles with drive rear wheel includes unified suspension the original cabin (prefabricated type) truck/ ballast tractor MZKT-740400 and dump truck MZKT-750100. Their front suspension spring, rear – spring-balance.

MZKT-740400. Curb weight of truck/ ballast tractor is 14 950 kg ballast variant 13 850 kg – truck, gross weight – 41 000 kg Wheelbase– 1850/ 1900/ 1400 mm. load limit SSU – 27 000 kg, may tow a trailer weighing up to 105 000 kg, gross combination weight of 250 000 lbs. the engine compartment for a cab mounted 8-cylinder V-shaped diesel Mercedes-Benz OM502 LA power 600 HP in a pair 16 speed manual gearbox ZF 16JSD240TA. Fuel tank capacity – 900 l

MZKT-750110 (8x4)

New model four-axle road chassis with drive rear wheel and low cab MAZ-5440. Front suspension spring, with the stabilizer bars, rear – spring-balance with the stabilizers. The curb weight is 11 950 kg, gross weight – 45 100 kg. Wheelbase– 2100+3500+1400 mm. Maximum weight of installed equipment (the crane) – 45 100 lbs. the engine compartment for the cockpit is a 6-cylinder in-line diesel engine JAMZ-651 with a capacity of 412 HP in a pair gearbox YAMZ-239 with a PTO. The volume of the fuel tank – 350 l

MZKT-750440 (8x8)

A new family of four-axle off-road vehicles drive all-wheel drive and the cabin of the new generation includes truck MZKT-750440. Their front suspension spring, rear – spring-balance. The cabin is equipped for level, long-range road tractor: cruise control, air conditioning and climate control, electric Windows, electric mirrors, Central locking, heated seats, and also in equipment includes, independent cabin heater, the insulation of the front, the headlight, Wabco ABS, winter pack with liquid engine heater, heated fuel filter-sump heating of the intake fuel, heated batteries, dryer of brake system with heater.

MZKT-750440. Curb weight of the truck tractor is 16 600 kg, gross weight – 43 750 lbs. Wheelbase– 2000+3060+1500 mm. load limit SSU – 27 000 kg, may tow a trailer weighing up to 73 000 kg, gross train weight is 90,000 lbs. the engine compartment for a cabin mounted in-line 6-cylinder diesel engine Paccar MX340 with a power of 462 HP pair with 16-speed manual gearbox. The capacity of the fuel tank – 500 l.

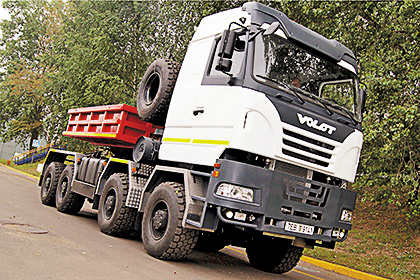

MZKT-741600 (8x8)

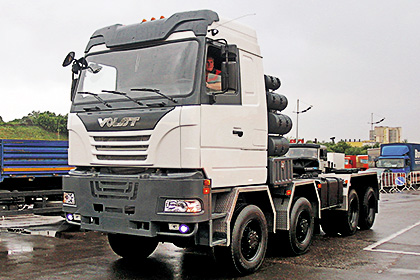

A family of four-axle tractors of new generation (fifth wheel ballast -010, -011 saddle) through 2550 mm width can work freely on public roads. Cabin MAZ-6430 with two sleeping places, Autonomous heating and air-conditioning (optional), satellite system GLONASS controlled for fuel consumption. Equipped with 6-cylinder inline diesel engine Cummins QSX15 600 with capacity of 600 HP, locking torque Converter and a 16-speed manual gearbox Fast Gear. The wheelbase is 2000/ 3080/ 1500 mm, ground clearance – 345 mm. Front suspension spring, rear – spring-balance. Center and millennia differentials are equipped with locking mechanisms. Load limit SSU tractor (ballast weight), designed to work in the 90-tonne of train (permissible train weight of 250 tonnes) is 27 600 kg, the height of the "saddle" over the road – 1800 mm fuel tank capacity – 1000 litres

MZKT-652513 (6x6)

A family of bonnet three-axle vehicles with 3-seater cabin is a private production company for today is only the chassis for use on the public roads (the overall width does not exceed 2,550 mm) and off-road, aided by four-wheel drive, energy-intensive suspension, ground clearance is 320-380 mm, single tread of all wheels, and also tyre advanced tread pattern and the pressure regulation system. Engine – V-shaped "eight" YAMZ-7511.10 power of 400 HP With him agregation nine-manual transmission single-stage transfer case with locking differential. Front suspension spring, rear – spring-balance.

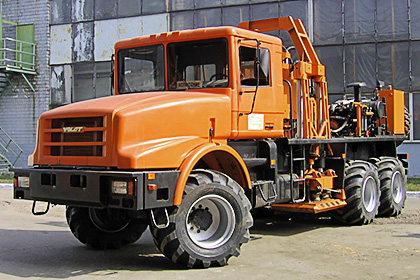

MZKT-652513. Chassis with a wheelbase of 4800+1500 mm are intended for mounting superstructures weighing up to 14 600 kg. of gross vehicle weight is 29 000 kg. Feature modification is a frame with the production well for the installation of a vibrating source.

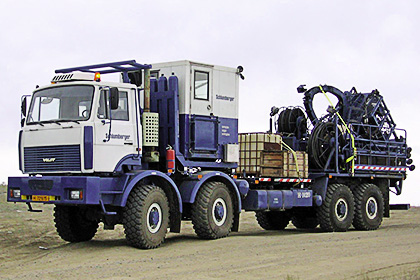

MZKT-652712, MZKT-652716 (8x8)

Off-road four-axle chassis MZKT-652712 at gross weight 46 000 kg designed for installing add-ins weighing up to 30 800 lbs. the Wheelbase of the car– 2050+5100+1500 mm. Base 8-cylinder V-shaped diesel YAMZ-7511 develops 400 horsepower, it agregation 9-speed manual gearbox and 2-speed transfer case. Independent torsion suspension, center and millennia differentials with the locking mechanism. The cabin of the MAZ-5337. Modification MZKT-652716 intended for installation of MBU. Its base is equal 2100+5200+1600 mm. total weight capacity same as MWTP-652712.

MZKT-79091 (8x8)

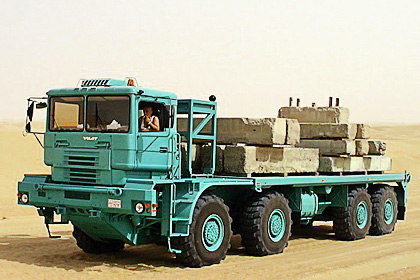

Off-road four-axle chassis MZKT-79091 with the full weight of 43 500 kg designed for installing add-ins weighing up to 24 000 kg the Wheelbase of the car– 2200/ 3300/ 2200 mm, ground clearance – 400 mm. the Base 8-cylinder V-shaped diesel TMZ-8424.10 develops or 425 470 horsepower, it agregation 9-speed manual gearbox and 2-speed transfer case. Independent torsion suspension, center and millennia differentials with the locking mechanism. The cabin is borrowed from MAZ.

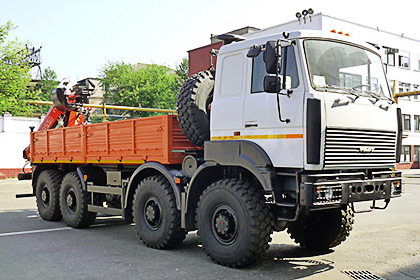

MZKT-730100 (8x8)

Trucks with the Cabinet of Ministers on four-wheel drive off-road four-axle chassis MZKT-7301 at the full weight 42 000 kg can carry 24 000 kg the Wheelbase of the car– 1830/ 3240/ 1400 mm, ground clearance – 385 mm. the size of the on-Board platform – 6140х2420 mm. In the engine compartment mounted 8-cylinder V-shaped diesel YAMZ-7511.10 power 400 HP transmission: 9-speed automatic, transfer case – 2-speed with michelianum locking differential. Front suspension is independent torsion bar, rear – spring-balance, millennia differentials are equipped with locking mechanisms.

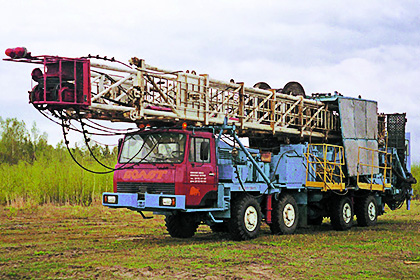

MZKT-700200 (8x8)

Four-axle all-wheel drive chassis MZKT-700200 designed for installation of mobile drilling rigs (MBU) and its transportation on both on-road and off-road. With the full weight 48 000 kg chassis is designed for mounting of superstructures weighing up to 29 000 kg. Wheelbase is 1900+5500+1500 mm, ground clearance – 380 mm. Basic engine – Сaterpillar C15 ACERT (482 HP), with him to be aggregated 6-speed automatic gearbox Allison 4700. Single-stage transfer box with lockable differential. Differentials of all bridges are equipped with mechanisms push lock. Cabin single high comfort. In the list of additional equipment includes: liquid engine heater, heated filter Separ sump, heated fuel intake, the Parking heater and air conditioning, headlight.

MZKT-700700 (8x8)

Four-axle all-wheel drive chassis MZKT-700700 designed for installation of special equipment and its transportation on both on-road and off-road. At gross weight 46 000 kg chassis is designed for mounting of superstructures weighing up to 29 500 kg. Wheelbase is 2050+5100+1500 mm. Base engine JAMZ-652 (410 HP), aggregated with it 9-stage transmission YAMZ. Single-stage transfer box with lockable differential. Differentials of all bridges are equipped with mechanisms push lock. The cabin of the MAZ-5337. In the list of additional equipment includes: liquid engine heater, heated filter Separ sump, heated fuel intake, the Parking heater and air conditioning, headlight. In addition, KOM from the intermediate shaft KP.

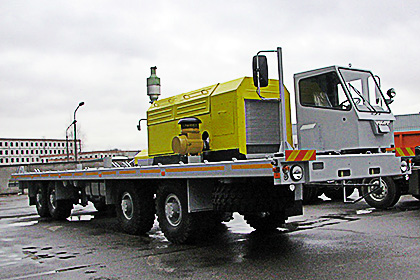

MZKT-700800 (8x8)

New four-axle all-wheel drive chassis MZKT-700800 frame platform with individual adjustment Posadnik places directly on the frame and hydrobalance suspension designed for installing mobile drilling rigs (MBU) and its transportation on both on-road and out of them. With the full weight of 61 000 kg chassis is designed for mounting of superstructures weighing up to 40,000 lbs. the Wheelbase is 2000+5400+1500 mm, ground clearance – mm. 407 Basic engine – Сaterpillar ACERT C15 (475 HP), with him to be aggregated 6-speed automatic gearbox Allison 4700. Single-stage transfer box with lockable differential. Differentials of all bridges are equipped with mechanisms push lock. Cabin single high comfort. In the list of additional equipment includes: liquid engine heater, heated filter Separ sump, heated fuel intake, the Parking heater and air conditioning, headlight.

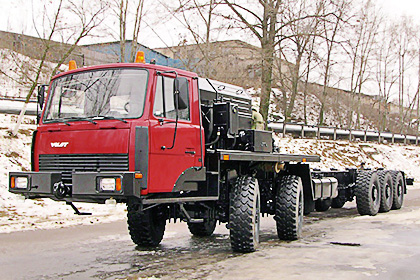

MZKT-700400 (10x10)

New patienoe all-wheel drive chassis MZKT-700400 total weight of 61 000 kg designed for mounting superstructures weighing up to 40 000 kg Three axles grouped at the rear of the truck, the wheelbase is 1900+5500+1500+1500 mm ground clearance 360 mm. Basic engine – Сaterpillar C15 ACERT (400 HP), it aggregated 6-speed automatic transmission Allison 4700 OFS. Single-stage transfer box with lockable differential. Differentials of all bridges are equipped with mechanisms push lock.

MZKT-800300 (12x12)

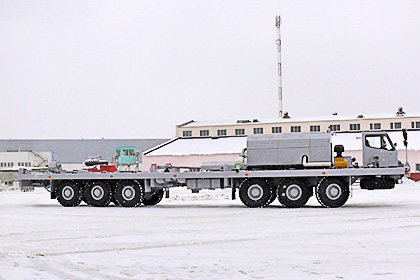

New chestionare special chassis MZKT-800300-drive all axes with a frame-a platform (no subframe to specialstring) intended for the carriage of MBU on the road. Its full length is 17 755 mm wheelbase– 2050+2400+3500+2250+2050 mm, ground clearance – 340 mm, maximum height of 3300 mm With the full weight of 92 000 kg chassis is designed for installation of equipment weighing up to 56 000 kg. Applies the dual power Assembly of diesel engines Caterpillar C-15 with a capacity of 580 HP and an automatic 6-speed transmission Allison 4700 OFS with locking torque Converter, which implements a single-stage transfer box with lockable differential. The mechanisms of forced lock inter-axle and cross-axle differentials. Is used system of regulation of air pressure in the tires. Cabin single high comfort.

MZKT-800500 (14x14)

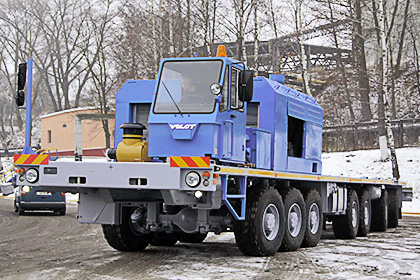

New seminoe special chassis MZKT-800500-drive all axes with a frame-a platform (no subframe to specialstring) intended for the carriage of MBU on the road. His full length is 18 250 mm, wheelbase– 1500+1500+4000+1500+2550+1950 mm, ground clearance – 340 mm, maximum height 3460 mm. With the full weight of 92 000 kg chassis is designed for installation of equipment weighing up to 56 000 kg. Applies the dual power Assembly of diesel engines Caterpillar C-15 with a capacity of 580 HP and an automatic 6-speed transmission Allison 4700 OFS with locking torque Converter, which implements a single-stage transfer box with lockable differential. The mechanisms of forced lock inter-axle and cross-axle differentials. Is used system of regulation of air pressure in the tires. Cabin single high comfort.

MZKT-65276 (10x10)

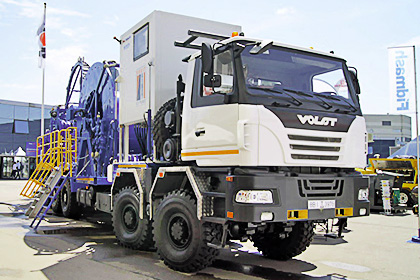

Patienoe all-wheel drive chassis MZKT-65276, the useful length of the frame which is 8,97 m, thanks to its width of 2550 mm without restrictions can be applied on roads and on roads of all types. Its full length – 625 mm 13, wheelbase– 2050+4750+1500+1500 mm, ground clearance – 380 mm, maximum cab height – 3350 mm. With the full weight of 59 000 kg chassis is designed for installation of equipment weighing up to 38 000 kg Base diesel YAMZ-7511 (400 HP), it implements a 9-speed manual gearbox and single-stage transfer box with lockable differential. The mechanisms of compulsory blocking cross-axle differentials. Front suspension spring, rear – Hidrolandia. Tires with adjustable air pressure.

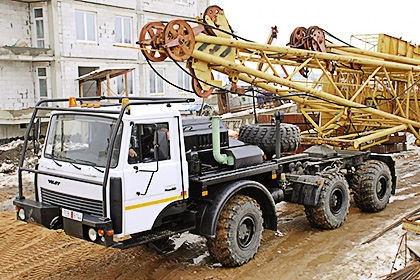

MZKT-690610 (6x6)

Special three-axle truck tractor for towing tower cranes on public roads and off-road. Can be used for carrying of different loads in a roadtrain full weight of 55 000 kg semi-trailers of the type MZKT-5247Д and MAZ-93. Equipped with a forward cabin and a reduced production of MAZ. Its wheelbase is 3100/ 2050 mm, permissible load on fifth wheel – 13 000 kg Base diesel 8-cylinder V-shaped YAMZ-238ДЕ2 300 HP transmission: 8-speed automatic, transfer case – 2-speed.

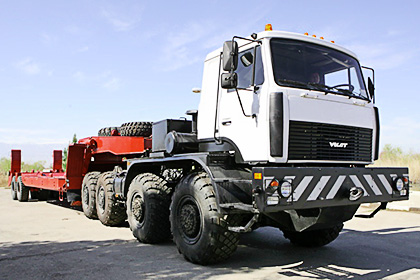

MWTP-7429, MWTP-742910 (8x8)

Four-axle truck tractors MZKT-7429 and MZKT-742910 designed to work in difficult road conditions and off-road, aided by all-wheel drive transmission, 400-mm ride height, front torsion bar suspension energy-intensive, mechanisms to block cross-axle and inter-axle differential, single wheels and tires with adjustable pressure and the developed tread pattern.

MZKT-7429 manned stall production of MAZ, its wheelbase is 2200+2650+1700 mm, and permissible load on the fifth wheel is equal to 23 000 kg Base diesel 8-cylinder V-shaped TMZ-8424.10-03 power of 470 HP transmission: 9-speed automatic, transfer case – 2-speed.

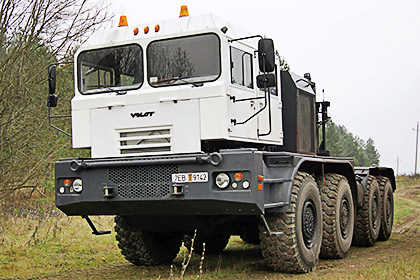

MZKT-742910. tractor is different with the 7-seat double row cabin private MZKT, fully independent suspension, and increased to 28 000 kg permissible load on the SSA. Its wheelbase is 2200+2750+1700 mm. Overall length 10 200 mm ground clearance mm 500 Engine 600-horsepower TMZ-85431.10, he packaged a 6-speed GMP. Installed pair them with a KP – hydromechanical MZKT-6561 with 6 ranges. Tractor able to tow semi-trailers with full weight 100 000 kg.

MZKT-741310, MZKT-741320 (8x8)

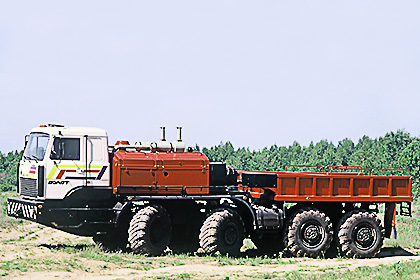

Unified chassis, powertrain and cab truck tractor MZKT-741310 and ballast the tractor MZKT-74132 designed for transportation of large indivisible loads like on the road and out of them. The first can work in a roadtrain weighing up to 124 000 kg (maximum load on the "saddle" – 30 000 kg), the second is designed to tow a trailer weighing up to 400 000 kg (ballast weight up to 15,000 kg). Engine – 12-cylinder V-shaped YAMZ-8401.10-04 power of 650 HP Gearbox – 4-speed "automatic" MZKT, transfer case – 2-speed. In the transmission used locked center and millennia differentials, front suspension torsion bar, rear – spring-balance.

MZKT-700800 (8x8), MWTP-00500 (10x10)

Unified chassis, powertrain and cab chassis – MZKT-700300 (8x8) and MZKT-800500-axle chassis with GVW weight of up to 124 000 kg (maximum load on the "saddle" – 30 000 kg), the second is designed to tow a trailer weighing up to 400 000 kg (ballast weight up to 15,000 kg). Engine – 12-cylinder V-shaped YAMZ-8401.10-04 power of 650 HP Gearbox – 4-speed "automatic" MZKT, transfer case – 2-speed. In the transmission used locked center and millennia differentials, front suspension torsion bar, rear – spring-balance.

The special crane chassis MZKT

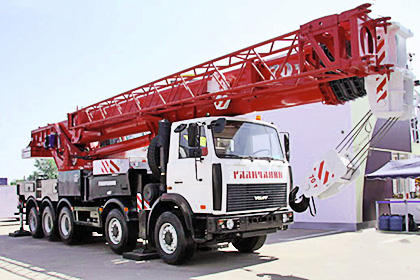

Program special crane chassis MZKT, since 2011, is expanding and modernizarea, including by models terrain MZKT-652714 (8x8) and MZKT-65715 (8x8) heavy pationic models MWTP-MWTP and 750120-740001 (10x4), MWTP-790400 (10x8), as well as a new series MZKT-750110 (8x4) with a modern cab with the driver seat on pneumatic suspension, which replaced the previous accounting model MZKT-69234.

MZKT has gradually upgraded its entire line of crane chassis. In the photo the chassis of the new generation MZKT-750110 cabin with increased comfort

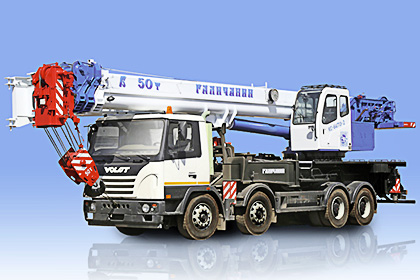

MZKT-750110. a New series of crane chassis with the wheel formula 8x4 intended for movement on public roads and with the full weight of 42 000-45 000 kg designed for installation of equipment weighing up to 30 300-33 000 kg. With a total length of their 9350 mm wheelbase is 2100+3500+1400 mm, cab height – 2900 mm, ground clearance – 210 mm. From other equipment MZKT new chassis has a more low position of the upper beam flange frame (980 mm). Themselves longerons of channel cross-section is made flat throughout its length. Front suspension leaf spring, dependent, with telescopic shock absorbers type. Rear bogie suspension spring-balance. Steering integral power steering in Europe. Rear axles with hypoid main gear. Basic engine – YAMZ-651 (Euro-4), transmission: 9-speed manual. In the list of additional equipment includes: liquid engine heater, heated filter Separ sump, heated fuel intake, the Parking heater and air conditioning, headlight.

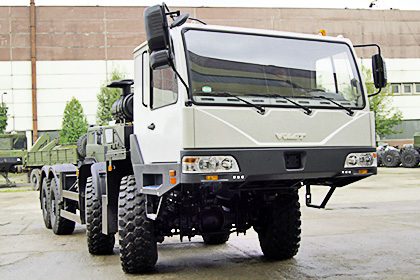

MZKT-652715. Crane chassis with the wheel formula 8x8 is designed to operate both on-road and off-road. His full weight 46 000 kg, the weight of installed add-ons – 31 500 kg Diesel – row "six" JAMZ-652 power 412 HP, Euro 4, transmission: 9-speed manual 9JS220TA FAST GEAR, transfer case – 2-speed MWTP. The wheelbase of the chassis– 2100+3600+1500 mm, cab height – 2880 mm.

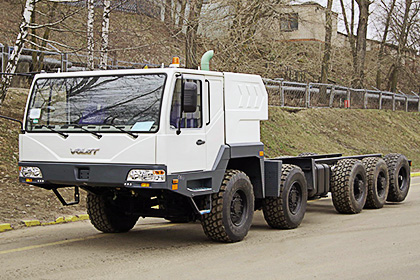

MZKT-740001. Chassis is a new generation wheeled formula 10х4 is designed for installation of crane equipment and other construction equipment weighing up to 44 000 kg With an overall length 11 100 mm, its wheelbase is 2100+3200+1400+1400 mm, cab height – 2650 mm, ground clearance – 250 mm. At gross weight 58 000 kg it is designed to operate primarily on roads, an improved type. Diesel – row "six" (Euro-4) – JAMZ-652 power 412 HP, manual transmission 9-speed. In the list of additional equipment includes: liquid engine heater, heated filter Separ sump, heated fuel intake, the Parking heater and air conditioning, headlight.

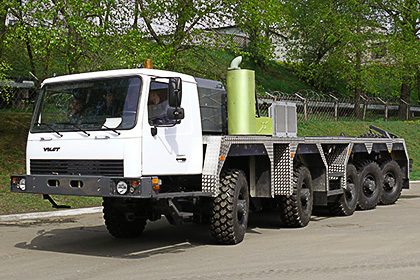

MZKT-790200. all-wheel drive chassis of the new generation with the wheel formula 10x10 and all powered wheels for use on-road and off-road is designed for installation of crane equipment and other construction equipment weighing up to 38 000 kg. total weight is 65 000 kg. With a total length of 13 500 mm and its wheelbase is 2600+2600+1600+1620 mm, cab height is 2740 mm, ground clearance – 360 mm. V8 Diesel (Euro-4) – TMZ-8431.10 power 470 BHP transmission automatic 6-speed. In the list of additional equipment includes: liquid engine heater, heated filter Separ sump, heated fuel intake, the Parking heater and air conditioning, headlight.

Dump trucks on the chassis MZKT

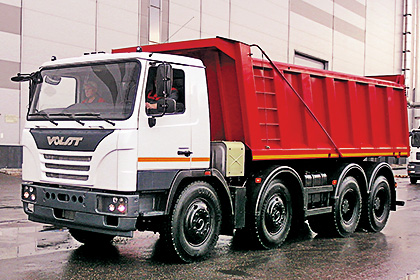

MZKT-750500. Road four-axle dump truck MZKT-7505-drive the two rear axle is designed to replace the MZKT-65151, is also intended for use on public roads and with the full weight of up to 49 000 kg designed to carry 32 000 kg of cargo. The wheelbase of the car– 2100+2600+1500 mm, ground clearance – 330 mm, the geometric volume dump back tippers – up to 20 m³. Installation of body side discharging. Basic engine – inline-6-cylinder diesel engine MMZ-WP12.460E5 power of 460 HP (Euro 5), with him agregation 9-speed manual gearbox in China.

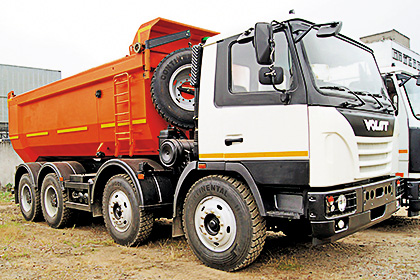

MZKT-750100. dump Truck with rear unloading of the body with a volume of 20 m3. When structurally permissible total weight 48 700 kg load capacity is 32 000 kg total length equal to the wheelbase of 6200 mm. the Truck is equipped with a V8 diesel engine, YAMZ-651-05 (Euro 4) power 412 HP and 9-speed transmission MZKT-7000600. It is possible to order ustavnovki diesel MMZ-WP12.460E5 (Euro 5) with a power of 460 HP fuel tank capacity – 312 HP 2014 truck comes with a new cab.

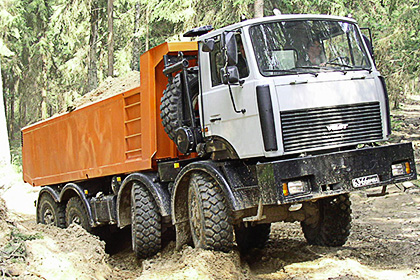

MZKT-652700. This four-axle dump truck model being all-wheel drive, energy suspension, ground clearance 380 mm, single wheels and tyres developed cleats, designed for use on the roads. The base engine is a 400 – horsepower YAMZ-7511.10, transmission: 9-speed manual "transfer case" – single stage. With the full weight of 48 000 lb truck in a 14-kubova ago discharged the body can carry up to 27 000 kg of cargo. A new modification 652700-200 with ribbed walls increased by the amount of body with the full weight of 44 000 kg capable of carrying the same 27 000 kg of cargo.

MZKT-751650. off-road truck with a wheelbase of 2200+2650+1700 mm and a ground clearance of 400 mm equipped with a diesel engine YAMZ-8424.10 (470 HP), which operates a 9-speed manual transmission and 2-speed transfer box. With the full weight of 47 000 kg it is designed to carry 24 500 kg bulk cargo. The volume of the dump platform is 16.5 m³.
