Commercial cars

JSC "MAZ-MAN"

www.maz-man.by

Agreement on the establishment in Minsk of the joint venture to produce modern heavy trucks of European class for regional and international traffic, the composition of the main founders of which are incorporated MAN Nutzfahrzeuge AG (now MAN Truck & Bus AG), Minsk automobile plant and JSC JSCB "Infobank", was signed on 10 December 1997. Three months later, on 5 March 1998, there was a joint Belarusian-German company JSC "MAZ-MAN", which released its first car in late April 1998. And in October of the same year saw the commissioning of its main Assembly line with an annual capacity of up to 3 thousand cars. The German partner undertook to supply for cars SP power unit (D28), the cabin (F2000) and some other units, and the frame, axles and a number of nodes remained in Belarus. In 2005 JSC "MAZ-MAN" launched the production of front end loaders, and in 2008 became the official distributor of MAN Nutzfahrzeuge in Belarus. Since 2007, the company used the cabin MAZ due to the discontinuation of the cab MAN F2000. In the fall of 2011, MAZ-MAN has begun production of the third generation trucks with cab MAZ-5440, featuring original front fascia, and modern engines of the MAN D08 and D20 environmental classes Euro-3, Euro-4 and Euro-5. Among the new series – all-wheel drive chassis 656558 to work in the far North, as well as dump truck with single or 752539 gable busbar. The company certifies its products in accordance with Russian regulations, including promising. In 2016, Russia implemented 756 trucks (-6,3%) which, however, 594 units (nearly 4/5) of the triaxial model MAZ-6312, the release of which cooperation is conducted at the facilities of the "MAZ-MAN".

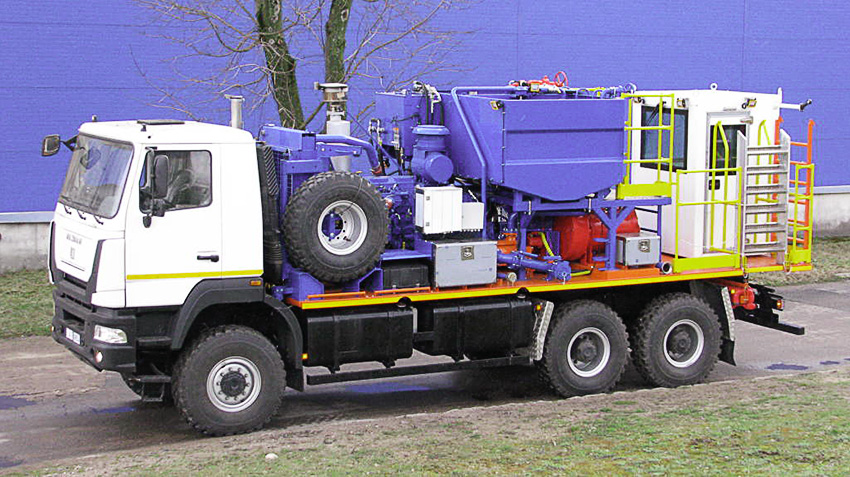

In 2017, the firm MAZ-MAN presented the three-axle all-wheel drive multi-purpose chassis
MAZ-MAN-636558 (6x6) with a pent busbar. The photo of the chassis with a pumping unit Н505-10 for work in the oil and gas industry.

MAZ-MAN (4x2, 6x2, 6x4)

Updated family road truck JV "MAZ-MAN" in mid-2013 includes truck tractors with wheel formula 4x2 and 6x4, chassis 6x2 and 6x4, dump truck 6x4 and 6x6. The standard fuel tank for all the tractors MAZ-MAN holds 500 L. Front axles, drive axles and cabins (Queen-size or extra-long sleeper) supplies of MAZ. Front suspension spring, rear air with automatic control ECAS, custom – spring-beam with stabilizer bar.

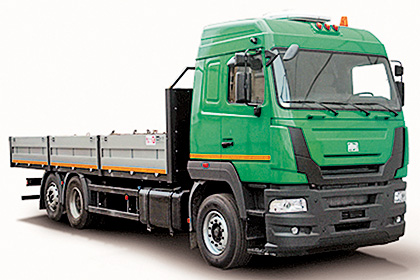

Chassis MAZ-MAN-631558, 631559 (6x2). three-axle chassis with tow lift rear axle weights of up to 26 500 kg (valid up to 28 t), capacity 17 000 kg (up to 18.5 t), a valid combination weight – up to 40 000 kg the Wheelbase of the car is 4900+1350 mm maximum length – 9610 mm, mounting frame length – of 6.94, which is 7.1 m Chassis equipped with 6-cylinder inline diesel engines of class Euro-5 – MAN D2066LF45(LF41) with a capacity of 400 HP (modification of the MAZ-MAN-631558) or MAN D2066LF44(LF40) power of 440 HP (modification of the MAZ-MAN-631558) with a 9-speed gearbox ZF 9S-1310 TO.

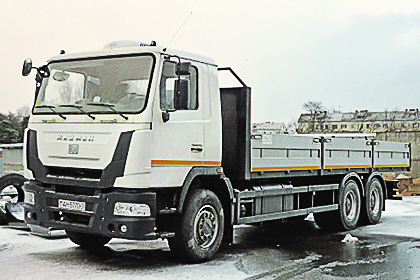

Chassis MAZ-MAN-632558, 632559 (6x4). three-axle chassis with GVW up to 29 500 kg (possible up to 35 t), with capacity of 20 000 kg (up to 24 or 25.5 t), train weight up to 40,000 kg (possible up to 65 or 75 tons). The car's wheelbase is 3300-5000+1350 mm maximum length – 9900 mm, mounting frame length – to 7.32 m. the Chassis equipped with 6-cylinder inline diesel engines of class Euro-5 – MAN D2066LF45(LF41) with a capacity of 400 HP (modification of the MAZ-MAN-632558) or MAN D2066LF44(LF40) with a capacity of 440 HP (modification of the MAZ-MAN-632558) with a 9-speed gearbox ZF 9S-1310 TO. Is possible to install a PTO.

Main truck tractors MAZ-MAN-540558 and 540559 (4x2). two-Axle tractor curb weight 7500 kg is designed to work in the combination weights of 40 000-44 000 kg Wheelbase 3600 mm, seat height – 1150 mm MAN Engines (Euro-5) D2066LF45 capacity of 400 or D2066LF44 power of 440 HP transmission: 16-speed manual ZF.

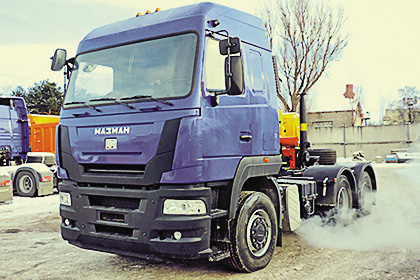

Truck tractors MAZ-MAN-642558 and 642559 (6x4) GVW 35 000 kg designed for use in the composition of the combination weights 51 000-75 000 kg Wheelbase – 3300+1400 mm, height SSA – 1400mm. the MAN Engines (Euro-5) – D2066LF45(LF41) rated at 400 HP and D2066LF44(LF40) with a capacity of 440 HP transmission: 16-speed manual ZF.

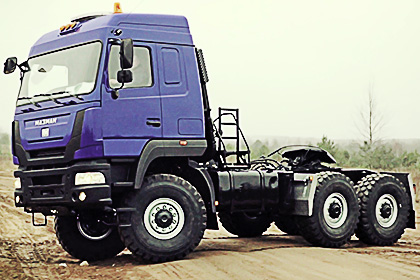

Truck tractors MAZ-MAN-646539 (6x6) with a gable and pent busbar total weight 33 500 kg designed for use in the composition of the combination weights of 75 000 kg (with a gable busbar) and 60 000-75 000 kg (with a single bus). Wheelbase 3650+1400 mm, height SSU – 1700 mm Engine MAN D2066LF01 (Euro-4) with a capacity of 430 HP transmission: 16 speed manual gear ZF 16 S 2220 TO plus transfer box.

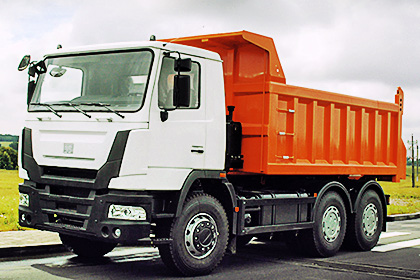

dump Truck MAZ-MAN-752558 (6x4). dump Truck on three-axle rear-wheel drive chassis with full weight 41 000 kg and designed to carry 26 500 kg of cargo. Geometric volume discharged back body is 16 m³, wheelbase is 3300+1400 mm Engine MAN (Euro-5) – D2066LF45 rated at 400 HP with 16 speed manual gearbox ZF.

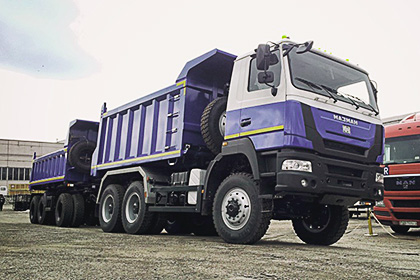

dump Truck MAZ-MAN-756539 (6x6). Dump trucks on a triaxial all-wheel drive chassis with full weight 41 000 kg and designed to carry 25 500 kg of cargo. Geometric volume discharged back body is 16 m³, the wheelbase is equal to 3650+1400 mm Engine MAN D2066LF01 (Euro-4) with a capacity of 430 HP transmission: 16 speed manual gear ZF 16 S 2220 TO plus transfer box.
