Commercial cars

PJSC "AutoKrAZ" (Kremenchug automobile plant)

www.autokraz.com.ua

Private joint-stock company "AvtoKrAZ" (Kremenchug automobile plant) was founded in 1946 in the town of Kremenchuk (Ukrainian SSR), initially as an engineering company. Soon, he was entrusted with the production of combine harvesters, and in 1959 – the production of heavy trucks, previously produced by the Yaroslavl automobile plant. In its heyday, in the 80-ies of the last century, the enterprise annually izgotovleno to 30 thousand trucks (the record was in 1986 – 30 of 655 units). In 1993 the Assembly line of KrAZ came 750 th car, but then due to the economic downturn in the independent States formed after the collapse of the Soviet Union, production dropped significantly, so the 800-thousandth car in Kremenchuk was done only in 2006. In 1996, was established as a holding company "AvtoKrAZ". In 1999, a controlling stake was acquired by the Ukrainian-German JV "Mega-motors". The company then became PAO and CHAO and now today it comprises nine Ukrainian companies and enterprises. Today AvtoKrAZ produces 33 basic models, more than 350 modifications in more than 1500 models as the traditional bonnet and bonnetless layout with two, three and four axles. In 2016, the Smelter received the certificate for quality management system for auto industry, ISO / TS 16949:2009 "quality management System. Particular requirements for the application of ISO 9001:2008 for automotive production and organizations engaged in relevant service part." KrAZ vehicles are operated in more than 60 countries. In the foreign market KrAZ is fairly active, so its range is quite adapted to the norms of Euro-5. Deliveries are made in the CIS countries and the Middle East, Latin America, Africa and Southeast Asia. By the end of 2015, AvtoKrAZ produced 1741 car, and in 2016 was made 837 trucks (-51,9%). In 2016, more than 93% (according to the manufacturer 68%) of automotive products were exported, and the national market was only 57 units (-30,5%). The plan of production of cars in 2017 is 1.2 thousand in Russia In 2015, there were 86 new KrAZ (-45,9%) models 6505, 6322, 6503 and timber 64372, and in 2016 – 22 units (-52,2%) models 6503, 6322, 6233, 6505 and 64372. At the beginning of 2017 AvtoKrAZ introduced on the domestic market several new products, for example, 18-ton chassis 6511Н2 with the wheel formula 6x2, i.e., movable with a lifting rear axle manufactured by the Dutch company SAF Holland. Interestingly, the bridge automatically rises with decreasing vehicle load. The car was created in the framework of import substitution.

The latest development KrAZ in 2017 – 6511Н2 chassis with the wheel formula 6x2 lift movable bridge Dutch company SAF Holland

Another novelty was the 6-ton chassis with cab 5401Н2 type Renault (equivalent with cabin F3000 of Shaanxi has index 4501Н2). Even before it was presented to the 5-ton chassis 4501Н2. Medium-duty chassis designed to expand the range lightweight beskapotniki load capacity 9, 10 and 12 tons, and are designed primarily for specific adjustments municipal purposes. By the way, the model 4501 5401 and were the first Trucks with 4-cylinder engine. In the production retained the traditional bonnet of the cab as with the old angular steel and updated with a streamlined plastic feathers.

In 2017 there is a debugging compact (dimensions 6195х2550х2800 mm) and maneuverable (turning radius of about 6.8 m) 6-ton utility chassis KrAZ-5401Н2 with 4-cylinder 170-horsepower diesel engine. Created on its basis construction dump truck 5401С4.

All-wheel drive chassis KrAZ-5401НЕ designed for firefighters and other emergency vehicles, equipped with engine capacity 312-320 HP

KrAZ-4501Н2, 5401Н2 (4x2)

The new series cabover 5 ton chassis cab Shaanxi MAN F3000 (4501) or Renault Kerax (5401) total weight of 10 800 kg, capacity 5000 kg chassis Engine 4-cylinder 170 HP, transmission 6-speed dual band.

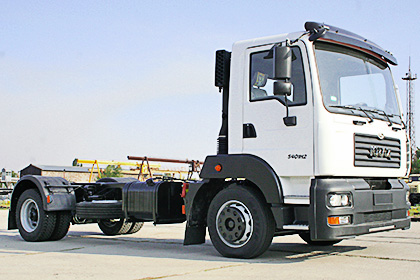

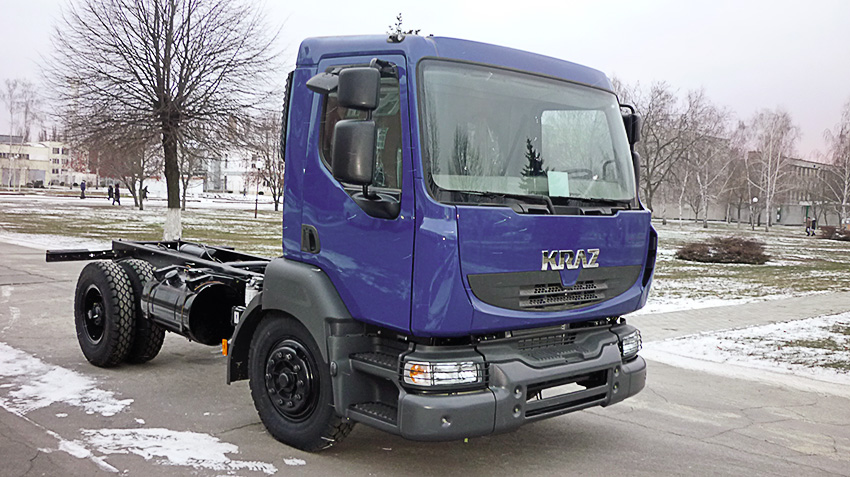

KrAZ-5401Н2 (4x2), 5401НЕ (4x4)

Series cabover chassis 4x2 and 4x4 cab-over-engine (5401Н2 Shaanxi MAN F3000, and 5401НЕ – dual type "NATO" under fire trucks). Gross weight: 5401Н2 – 21 000 kg, 5401НЕ – 17 200 kg Capacity: 5401Н2 – 13 500 kg, 5401НЕ – 9000 kg. mounting frame length: 5401Н2 – a 4.65–5.9 m, 5401НЕ – n / a Engine: 5401Н2 power 312-320 HP, on 5401Н2 CNG gas MB OM906LAG (Euro 5), on 5401НЕ is a 400 – horsepower diesel. Transmission 9-speed mechanical, suspension – extra leaf springs front and rear, with stabilizer bars. Fuel tank capacity 250 l Intended for use in transport (isothermal van the van with a volume of 33.1 m³), utilities and construction sectors, as well as dual-use (5401НЕ).

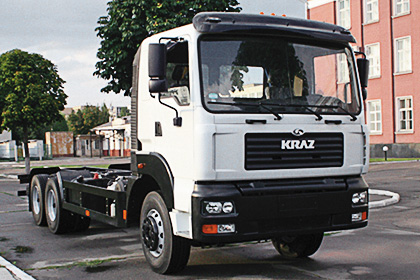

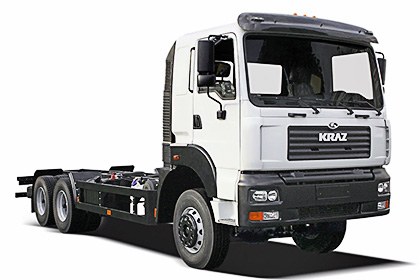

KrAZ 6511Н4 (6x4), 6511Н6 (6x4, 6x6)

Series three-axle cabover chassis with GVW 33 200 kg (6x4) and 32 400 kg (6x6), carrying capacity, respectively, and 23 400 21 500 kg designed for use in construction and road building industry. Useful frame length: 6.6 m (6x4) and 6.9 m (6x6). Both models are equipped with cab manufacturing Shaanxi MAN F3000 and diesels 362 or 400 HP transmission: 9-speed manual Eaton. Rear axles with locking differential.

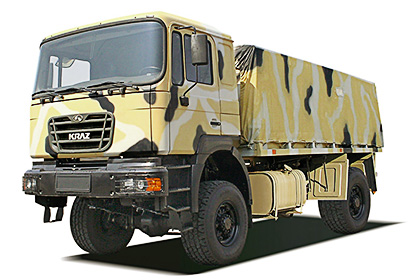

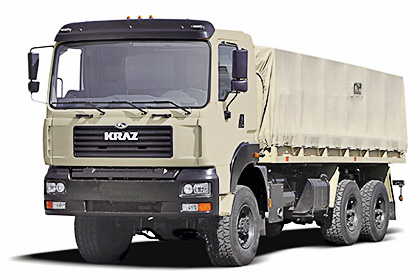

KrAZ B6.2MEX (4x4), B12.2MEX "the Sergeant" (6x6)

A series of two - and three-axle cabover flatbed trucks, all-terrain dual-purpose total weight of 17 400 kg (4x4) and 25 000 kg (6x6), with capacity of 6000 and 12 000 kg with pent busbar all bridges are designed for operation on roads of all types and off-road. Both models are equipped with cab manufacturing Shaanxi MAN F3000 and diesels 362-400 HP transmission: 9-speed manual dual-band. Rear axles with locking differential.

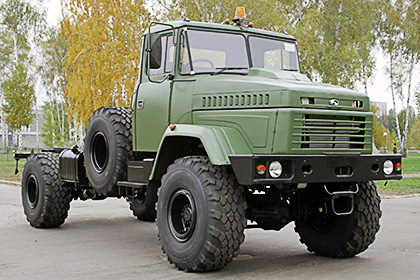

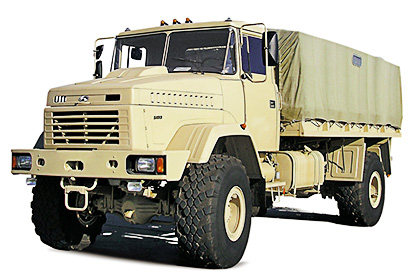

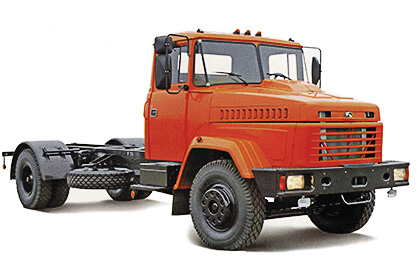

KrAZ-5233Н2 (4x2), 5233НЕ (4x4), 5233ВЕ "special Forces" (4x4)

Series two-axle conventional chassis and flatbed trucks (mod. 5233ВЕ "special Forces") load capacity 9900 kg (4x2) and 7000 kg (4x4). The engines are V-shaped 6 - and 8-cylinder power 330-370 HP, transmission – 8 - and 9-speed dual-band on 5233НЕ – locking center differential and the rear differential locks. The suspension spring. At the customer's request vehicles can be equipped with pre-heater, independent heater of a cabin, a sleeping compartment, rear and side protective devices. Model 5233НЕ can be equipped with a centralized pumping air into the tire. The chassis is designed for use in the oil and gas industry.

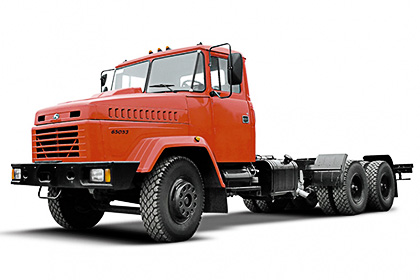

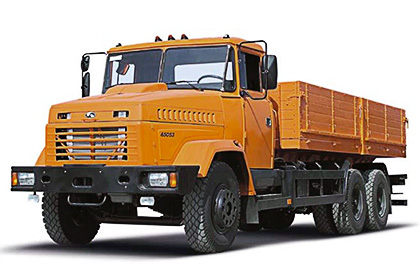

KrAZ 65053 (N22.1), 63221 (H20.1X) (6x4, 6x6)

A series of conventional triaxial chassis and flatbed trucks ("Soldier") with carrying capacity 16 000-21 000 kg (6x4) and 16 000-20 600 kg (6x6), frame useful length of 4.88 (6x4) and 6,32 m (6x6) with saddle, strapped the rear wheels. The average bridge is the entrance, with lockable differential axles. The engines are V-shaped 6 - and 8-cylinder power 330-370 HP, transmission – 8 - and 9-speed dual band. Suspension is fully sprung, back – beam. At the customer's request vehicles can be equipped with pre-heater, independent heater of a cabin, a sleeping compartment, rear and side protective devices.

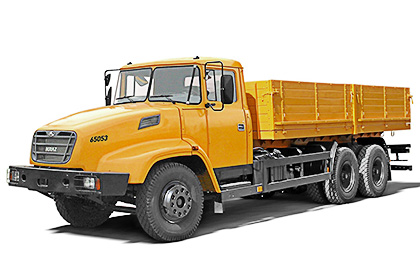

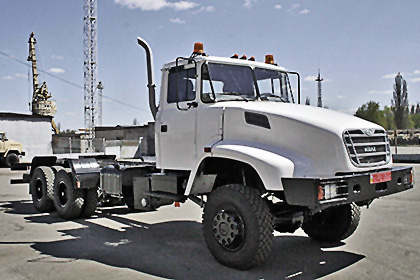

KrAZ-65053IK (N22.1), 63221IK (H20.1X) (6x4, 6x6)

Streamline series triaxial bonnet chassis and flatbed trucks, with a modernized cockpit with a plastic tail with a lifting capacity of 18 500/ 21 000 kg (6x4) and 20-200 kg (6x6), frame useful length of 4.88 (6x4) and of 6.47 m (6x6) with saddle, strapped the rear wheels. Rear axles with locking differential, middle bridge entrance, with lockable differential axles. Fully spring suspension, rear beam, upgraded, enhanced, with a bar. Both models are equipped with engine capacity of 362-380 HP, with single-plate clutch MFZ 430, and a 9-speed transmission 9JS200TA with a divider. At the customer's request vehicles can be equipped with pre-heater, independent heater of a cabin, a sleeping compartment, rear and side protective devices.

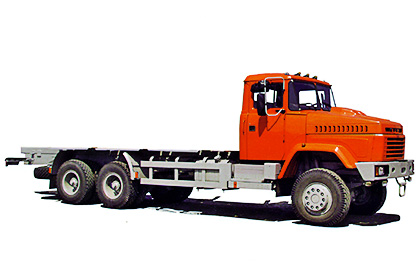

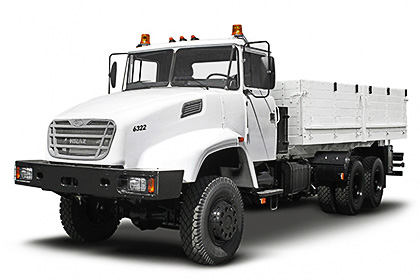

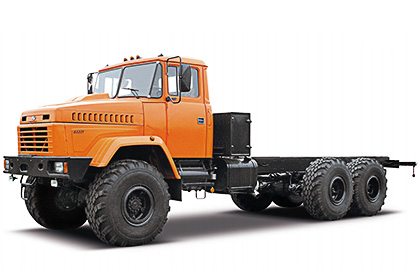

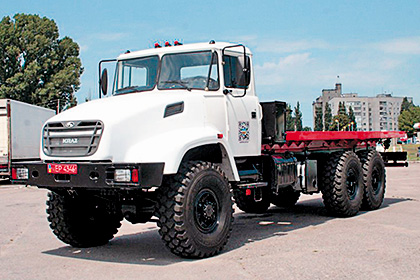

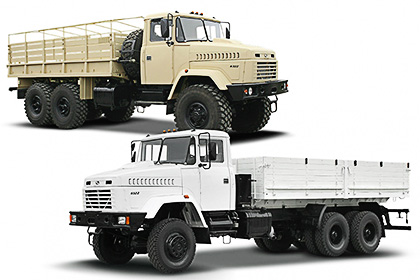

KrAZ-6322, KrAZ-63221, 6322IK, 63221IK (6x6)

A series of four-wheel drive three-axle conventional chassis and flatbed trucks (also in IK with a plastic tail) high cross with pent busbar rear wheel and frame useful with a length of 4.99 metres (mod. 6322) or of 6.09 m (mod. 63221) depending on the size of wheelbase. Ground clearance – 370 mm, the fording depth – 1.2 m, fuel capacity – two tank 250 l. Both models are equipped with engine capacity of 362-380 HP, with single-plate clutch MFZ 430 and 8-speed manual gearbox 9JS150TA-B or 9-speed 9JS200TA with a divider. Bridges with lockable cross-axle differentials, the average bridge – the entrance with lockable differential axles, transfer case – two with a center locking differential, the suspension is fully sprung, back – beam. By order of the trucks can be equipped with pre-heater, auxiliary cabin heater, tires with increased carrying capacity system of centralized tire inflation (for KrAZ-6322 and -63221), extended cab (for KrAZ-63221-045), rear and side protective devices.

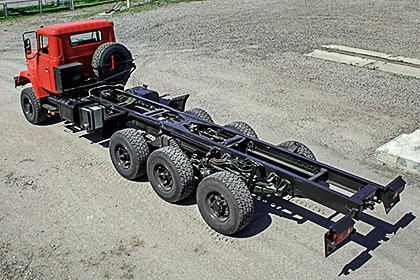

KrAZ 7140H6 (Н30.1E) (8x6)

Four-axle conventional chassis frame useful length of 7.83 m. Rear axles with a locking differential, the first axle of the rear truck entrance with lockable differential axles. The fourth movable bridge. Transmission – 8-speed, fully spring suspension, rear bogie – beam. By order of the car can be equipped with pre-heater, independent heater of a cabin, a sleeping compartment, rear and side protective devices. Chassis can be equipped with an inline-or V-shaped diesel engines with the capacity 400-408 HP

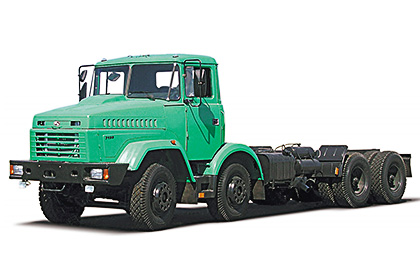

KrAZ-7133Н4 (8x4)

Conventional four-axle chassis with GVW 37 500 kg useful length of the frame of 6.15 m. Rear axles with a locking differential, the first axle of the rear truck entrance with lockable differential axles. Transmission – 8-speed, fully spring suspension, rear bogie – beam. Order car set pre-heater, independent heater of a cabin, sleeping cabin, rear and side protective device. Chassis can be equipped with an inline-or V-shaped diesel engines with the capacity of 330-370 HP level Euro-4 or Euro-5.

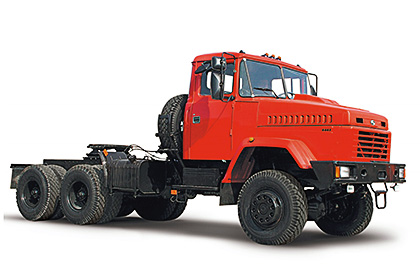

KrAZ-64431, 6443 "Docker" (6x4, 6x6)

Series three-axle truck tractors with a gable busbar rear. Model 64431 rear-wheel drive and all-wheel drive model 6443 "Docker" equip as short (both steel and plastic tail) and extended cab with bunk. Bridges with lockable cross-axle differentials, intermediate axle and two-speed transfer box with inter-axle lockable differentials. Transmission – 8-speed, fully spring suspension, rear beam. The height of the fifth wheel is 1420 mm. At request, the car can install a pre-heater, independent heater of a cabin and piss of low height production or JOST George Fisher.

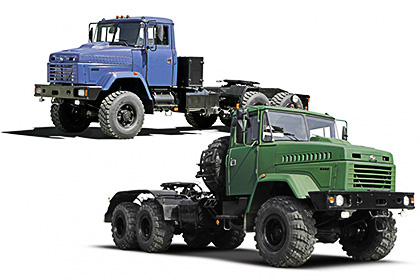

KrAZ-6446, T17.0EX "Burlak" (6x6)

A series of four-wheel drive three-axle truck tractors terrain with pent tread of all wheels, which are equipped as short (both steel and plastic tail), and extended cab with bunk. The load on the SSU: 6446 – 16 600 kg, T17.0EX "Burlak" – 17 000 kg ground clearance – 300 mm (type 1/2 6446 – 370 mm), bridges with lockable cross-axle differentials, intermediate axle and two-speed transfer box with inter-axle lockable differentials. Transmission – 8-speed, fully spring suspension, rear beam. The height of the fifth wheel – 1410 (1700) mm. By order of the car can be equipped with pre-heater, independent heater of a cabin, tires with increased carrying capacity system of centralized tire inflation and SSU of low height production or JOST George Fisher. 6446 tractors can be equipped with an inline-or V-shaped diesel engines with the capacity of 330-370 HP, and Burlak – power 400-408 HP

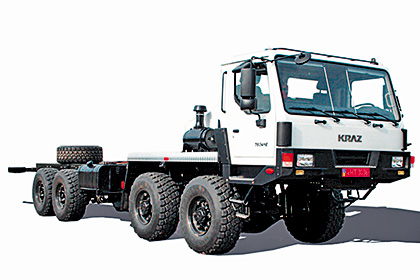

KrAZ-7634НЕ (8x8)

Four-axle 27-ton special chassis KrAZ-7634НЕ (Н27.3) with the wheel formula 8x8 and cabin schemes "before the engine" dual-use for mounting of special superstructures for use on all types of roads and off-road. Mounting frame length of 8.08 m. axles with locking differential, second and third pass. Suspension is fully spring, rear truck – beam. Diesel engines are 6 - or 8-cylinder power 400-500 HP transmission: 9-speed with a divider. Maximum speed 25 km/h.

DUMP

In the Russian market "AvtoKrAZ" previously offered a greater range of three-axle trucks, designed primarily for the carriage of wide range of bulk cargoes, but with the introduction in 2013 in Russia environmental standard Euro-4, the range is significantly decreased, and beginning in 2015, all, almost came to naught.

The existing range of three-axle dump trucks KrAZ is still RWD 16-18-ton series 65055 "Foreman" both old and new plumage (prefix IK in the index). Another subfamily of lapotnikov includes all-wheel drive 18-20-ton series KrAZ-65032 (also with the old or new feathers) with a gable busbar of the rear wheels, and the model "Profi" with pent busbar and significantly increased ground clearance for work in difficult road conditions. Three-axle heavy-duty dump trucks "Foreman" and 65032 equip bodies with rear unloading, volume of 10.5, 12, or 16 m³, and "Pro" – only 12-kupovini.

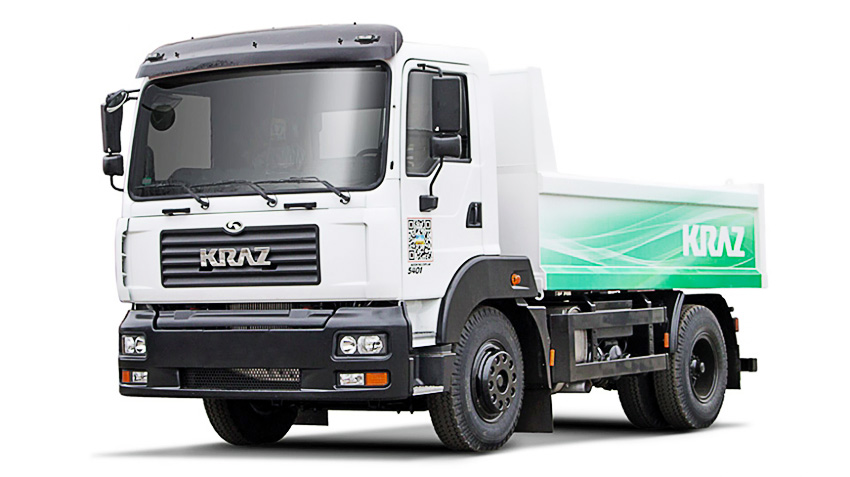

New model 10-ton two-axle truck the KrAZ-5401С2

Series three-axle cabover trucks with cabins Shaanxi consists of a new two-axle 10-ton model 5401С2 (4x2) with a body 7 m³, three-axle 20-ton model 6511С4 (6x4) and 19-tonne models 6511С6 (6x6) with a body 14 and 15.5 m³, with a body of three-axle 26-ton 7511C4 (6x4) with body 14 m³, as well as the new four-axle (8x4) 26-ton dump truck 7133С4 with cab from a Renault Kerax with a body volume of 20 m³ for the transport of goods of low density. KrAZ-

Dump trucks KrAZ-6511С4 (6x4) and 6511С6 (6x6) equipped with restyled cabs Shaanxi

Trucks equipped with new units and assemblies, including the front axle, balance suspension of the rear wheels, integral steering gear, and a number of other design innovations, not previously used on the KrAZ.

Headed by tipper range of Trucks family of heavy models 7133С4 four-axle "Brigadier" (8 x 4) includes two versions: the first (type 1) designed for transportation of construction cargoes weighing up to 23 tons and is equipped with rear unloading, volume 14 m³; the second (type 2), designed to carry up to 22.5 tons of bulk cargo of low density, equipped with dump platform with a capacity of 20 m³.

In the segment of grain KrAZ 2014, offers a 20-ton model 6511С4 "Caravan" (the amount of body 35 m³) with Chinese diesel engine Weichai WP12.400E40 (Euro-4), consisting of 46.4-ton trailers (trailer-truck chassis WIELTON PS3D) carrying up to 75 m³ bulk, bulk and fine fraction of cargoes with a density of from 0.4 to 0.85 t/m³.

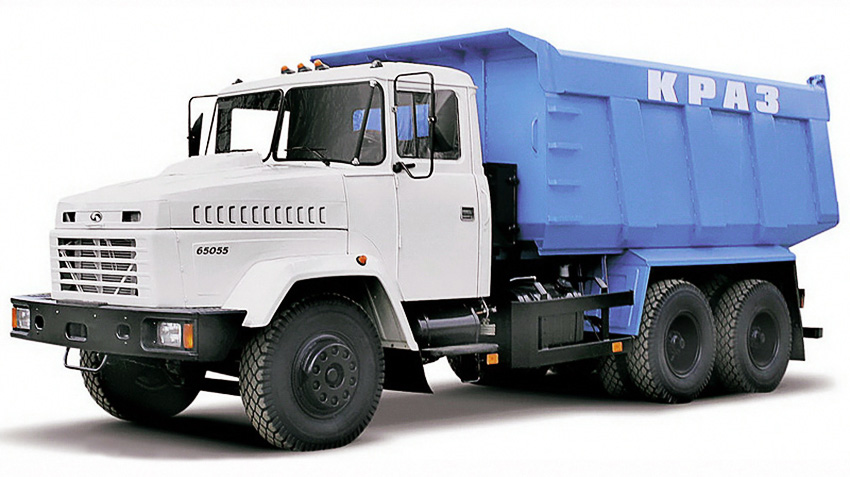

The basic model of the dump truck KrAZ-65055 (Type 3) is called "the Foreman"

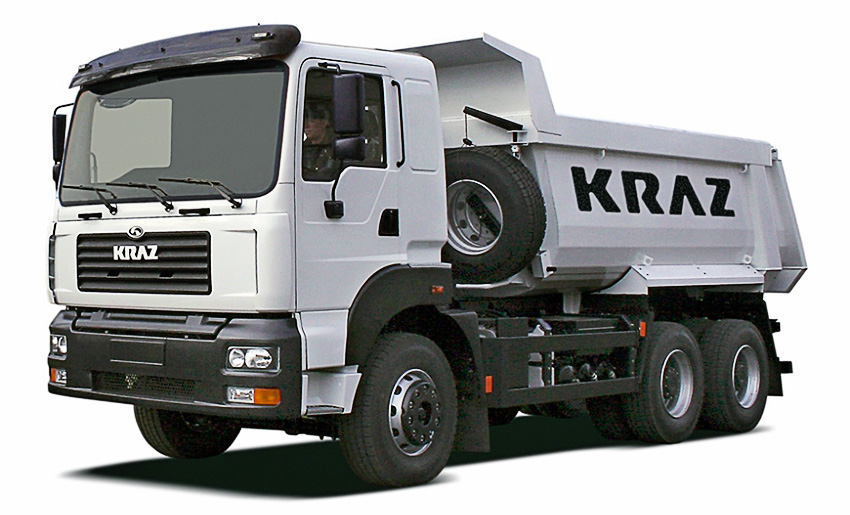

Dump truck KrAZ-7511С4 (6x4) cab Shaanxi trucks up to 26 tons

Four-wheel drive dump truck KrAZ-65032-042 with a gable busbar carries up to 17 tons

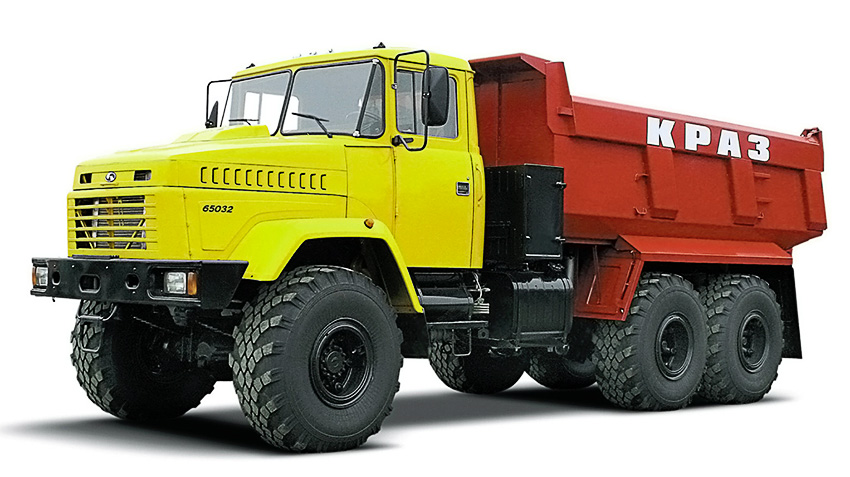

AWD 13-15-ton dump truck KrAZ-65032-060 "Pro" has high endurance

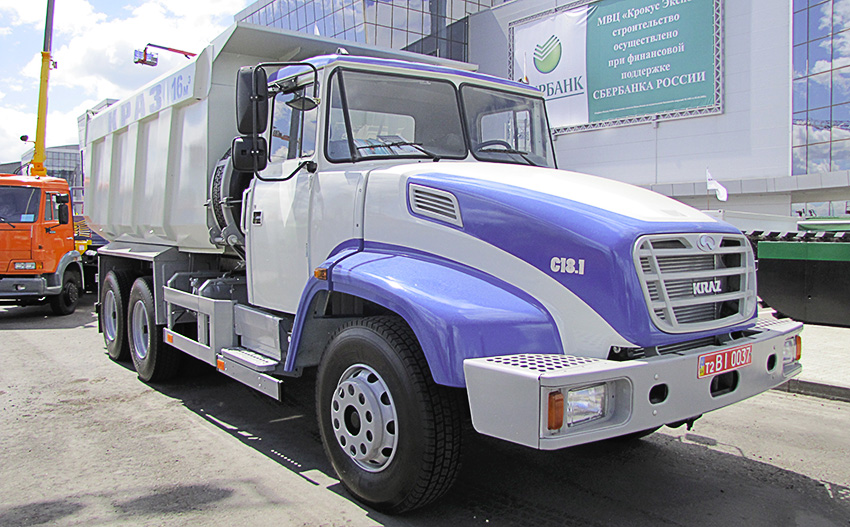

Rear-wheel drive three-axle truck the KrAZ-65055IK (formerly C18.1) with cabin with plastic tail

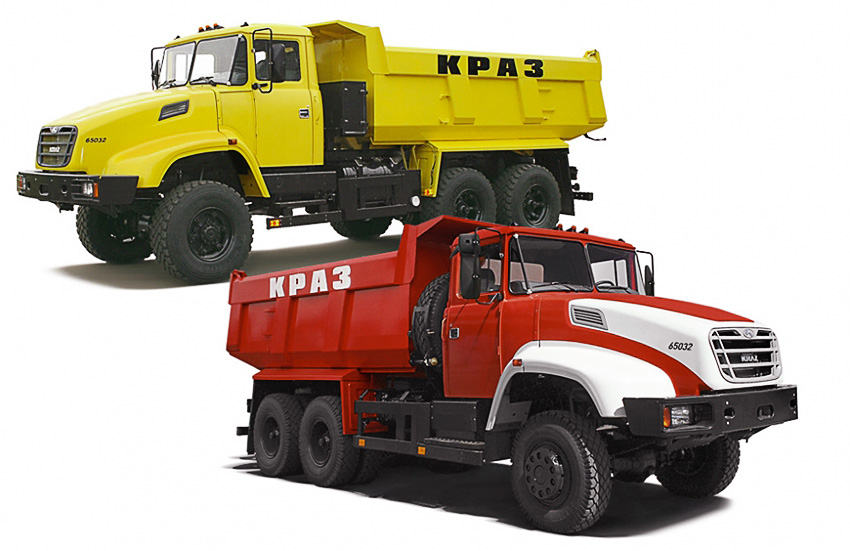

Four-wheel drive three-axle dump truck KrAZ-65032IK with plastic tail cabin is offered as with a pent and gable busbar rear truck

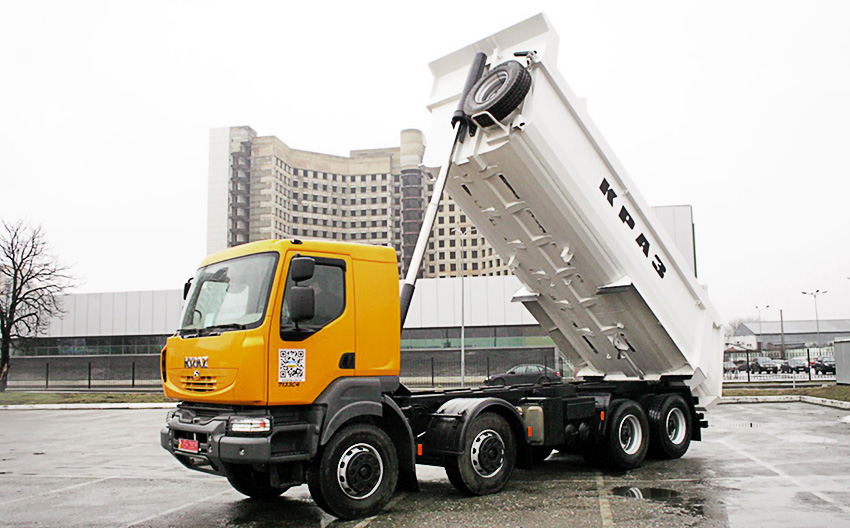

New four-axle truck the KrAZ-7133С4 equipped with a cabin type Renault Kerax

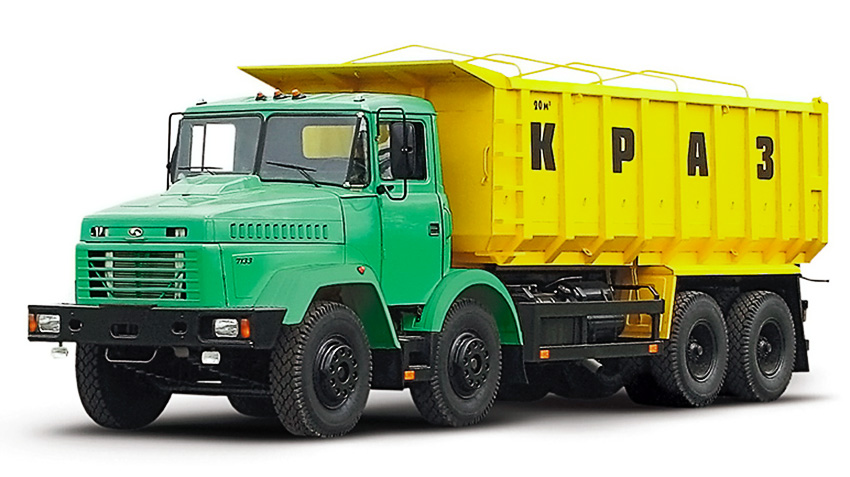

Four-axle dump truck KrAZ-7133С4 "Brigadier"

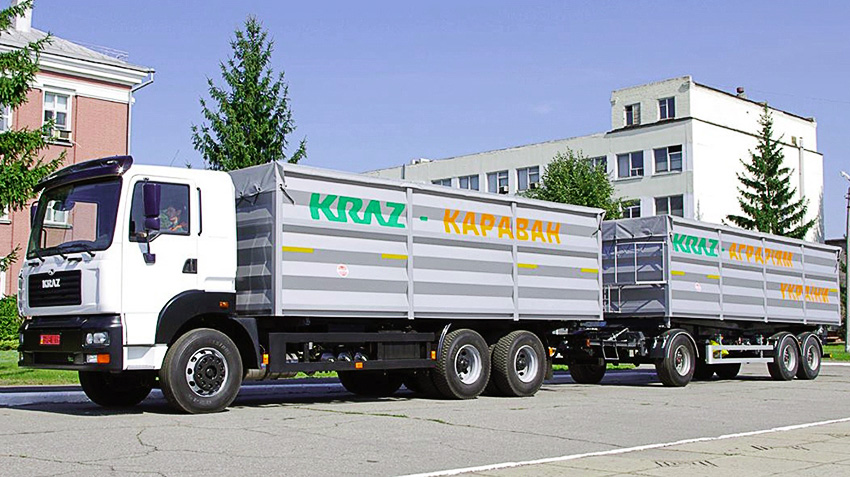

Ternovsky the road train consisting of a dump truck KrAZ-6511С4 Caravan with side unloading and trailer WIELTON with tripartite unloading trucks to 46.4 tonnes (total train weight 66 t)
