KAMAZ

KAMAZ


Group "KAMAZ", JSC "Kama automobile plant"

www.kamaz.ru

Kama complex of plants for the production of heavy trucks (KAMAZ) was founded in 1969, and the first the truck rolled off the Assembly line 16 Feb 1976. In December of the same year was introduced into regular operation the first stage of the factory production complex. In August 1990, KAMAZ became joint-stock company (today the authorized capital is 35.36 billion rubles.). The main the company's shareholders are the state Corporation rostec (49.9 percent), the company Avtoinvest Limited (24,53%), Daimler AG (11%), KAMAZ International Management Co. (4,25%), the European Bank for reconstruction and development (4%) and Decodelement Services Limited (2,73%). The company is the Top 20 global manufacturers of heavy trucks exports products in the 30 countries of the world. In Russia and worldwide employs more than 100 corporate centers and more than 300 service points Kamsky trucks. The staff of JSC "KAMAZ" at the beginning of 2014 consists of 41.8 thousand. In February 2012, was released on the 2 millionth truck KAMAZ. At the beginning of February 2017, manufactured 2 mln 208 thousand complete trucks and more than 2.85 million engines and power units. Consumers today offers 60 models in 1500 trim. On KAMAZ chassis of more than 250 producers set their specialisterne, just as there are over 2000 models of special equipment on the chassis KAMAZ.

the Group of companies of JSC "KAMAZ" includes as at the beginning of 2017 89 organizations on the territory of Russia, CIS and Far abroad.

Now part of KAMAZ includes more than 150 organizations, including such large as the Neftekamsk automobile plant (NEFAZ), which organized the production of several models of buses large class on the Kama chassis; Stavropol plant of automobile trailers (SZAP), now "Avtopritsep-KAMAZ"; Tuimazy Hauler, traditionally manufactures concrete mixers, and now has developed more and more models of cranes. At the same time implemented a JV with a foreign manufacturers of automotive components: Zahnrad Fabrik, Cummins, Federal Mogul, Knorr-Bremse and Daimler Trucks.

the joint venture "KAMMINZ KAMA" on the territory JSC "KAMAZ-Diesel" produces for the Russian market Cummins engines series In electronic control, the relevant environmental standard Euro-4. In the future they will complement the engines of level of Euro-5. In June 2010 OJSC KAMAZ and Cummins Inc. we have also concluded the Memorandum on the implementation of project production license line diesel engine Cummins displacement of 4.5 and 6.7 liters satisfying the environmental standard Euro 6.

Thanks to the efforts of JV "Federal Mogul Naberezhnye Chelny" has managed to significantly improve the quality and reliability KAMAZ engines. Their characteristics was further improved after the introduction of the system of fuel supply Common Rail German company Bosch. The use of new the operating time on the engines KAMAZ allowed to increase their operational life up to 1 million km.

At the end of 2008 in the circle of the owners of KAMAZ became the German company Daimler AG. In November 2009 the two automakers signed an agreement to establish two joint enterprises producing and selling trucks in Russia. JV "Fuso KAMAZ trucks Rus" established in 2010, OJSC KAMAZ and Mitsubishi Fuso Truck and Bus Corporation (MFTBC, the main shareholder of which is Daimler AG), lead Assembly at the production site of Kamsky industrial Park "Master" in Naberezhnye Chelny medium-duty chassis Mitsubishi Fuso Сanter (see Mitsubishi Fuso). In February 2010, it was created by OOO "Mercedes-Benz Traks Vostok" (50% – Daimler, 50% KAMAZ). In Naberezhnye Chelny 30 Sep 2010 the company launched SKD Assembly of trucks Mercedes-Benz (see "Mercedes-Benz"). Under a licence agreement from June 2012 in Naberezhnye Chelny will be gradually localized production of cabs of the Axor type to the new generation of long-haul tractors KAMAZ-5490. In June 2015 FCTR teamed up with MTV in a single OOO "Daimler KAMAZ Rus" (LLC "DK RUS").

in addition, in the fall of 2012 KAMAZ and Daimler AG signed a contract for the supply of diesel engines OM 457 class Euro 5 engines and M906 natural gas for buses, as well as the front and rear axles for trucks and buses of the Russian company. However, the 2014 crisis has made their adjustments and during the development of the family with localized cabins K4 (Axor) was used the engines produced by Chinese branch Cummins.

In accordance with the approved in December 2016, the new strategy development of the Kama auto giant "KAMAZ-2025" the export volume of the company is expected to grow by 2025, 3 times (26~30% of the issue), and the total amount implementation to 62~73 thousand cars a year. Accordingly, the revenue will be 382~488 billion.

JSC "KAMAZ" has Assembly plants in Vietnam, Iran, Kazakhstan, Pakistan and India. In 2005 the company created in Kazakhstan joint venture on production of trucks and buses "KAMAZ-Engineering". The company invested $10 million, created 400 new jobs. The production volume since then has built over 6,000 machines. It allowed Kazakhstan for quite a long time to be in the lead among importers Chelny products.

In recent years, JSC "KAMAZ" pays the closest attention to the problem of gasification of motor transport of LNG, i.e. methane. Such cars annually provide economic benefit several hundred thousand rubles due to the difference in the cost of diesel fuel and compressed methane. At the moment, most of the heavy models the family of KAMAZ vehicles received gas cylinder versions of the engine KAMAZ-820 spark ignition. Implemented and LPG versions of srednetonnazhnye 4308 with a Chinese YC engine. The model range of NGVs will to expand further, by the way, in 2017 planned for her. release the auxiliary heater on gas fuel (runs on regular diesel), that should reduce the overall harmful emissions from the vehicle.

the Current model range of KAMAZ includes upgraded transport vehicles, cars load, haul vehicles, including the latest series 5490 (М1842) cab type K4, AWD and distribution of vehicles.

Among the completed strategic projects of KAMAZ in 2017 – launch in a series of new trucks 6580 and 65802, and trunk model 65208 with the wheel formula 6x2. In the framework of import substitution started assembling and distributing boxes.

In 2016 of JSC "KAMAZ" produced according to "ASM-holding" 34.6 thousand cars (+22,5%) trucks, of which 12,2 thousand (-4,5%) chassis and 5.2 million (+34.2 per cent) of truck tractors. In addition, the division of the Corporation JSC "NefAZ" produced 8.5 million (+37%) dump installations. Of this product according to the manufacturer 82% was sold in the domestic market, including 27 units of 785 HCV (total weight over 14 tons) and 483 units of MCV (GVW of 8-14 tons). On the Russian market the share of HCV brand KAMAZ for 2016 was (according to manufacturer) 55,7% vs 50,9% in the previous year, and in the MCV segment of 4.1%. According to "AUTOSTAT Info" KAMAZ
in 2016 have taken 40.7 per cent of the Russian market of medium-duty and heavy trucks, with sales of 357 units 21 (+22,9%). By the way, the fleet of KAMAZ vehicles in the country is the largest among the trucks.
is 752,7 million (24,1%).

For the first 9 months of 2017 the implementation of KamAZ trucks on the domestic market amounted to 19 thousand (+27,2% compared to the same period last year).

the Export of KAMAZ trucks for 2016 amounted to 5348 units (+9.1 per cent) and 872 units assembling CKD-kits (-7,9%), of which the CIS – 1796 units and 723 units of the CKD, in the far abroad countries –
3552 units. and 149 units of CKD. The share of exports to CIS dreamed by 40.5% vs 72% in 2015, mostly due to the fall of the market (-61,9%). Not better things in other CIS countries due to falling oil price: Azerbaijan and Turkmenistan. Export to far-abroad countries occurred mainly in Vietnam – 1885 units, and Cuba – 1024 units.

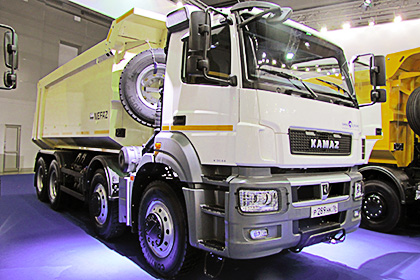

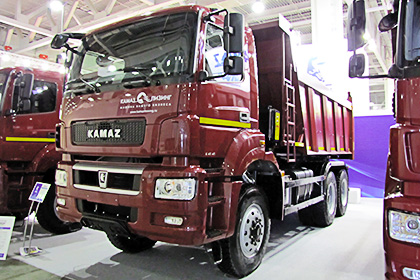

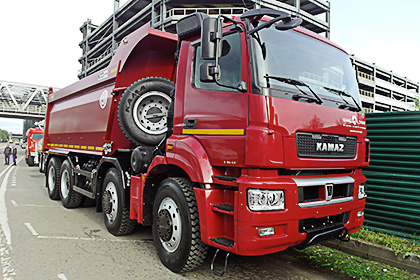

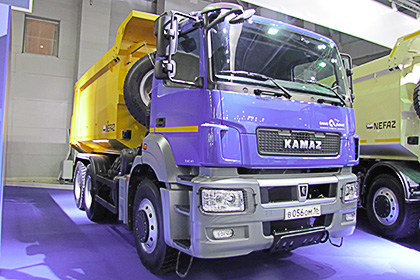

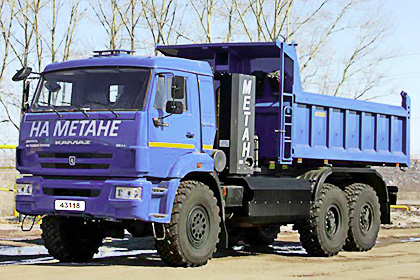

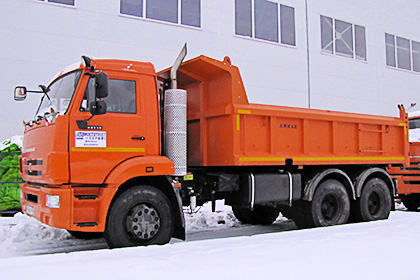

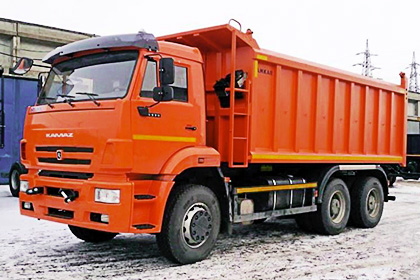

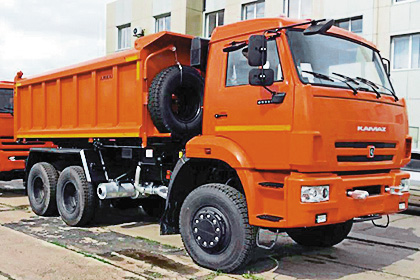

New the generation of dump trucks KAMAZ family-6580 with bodies NefAZ

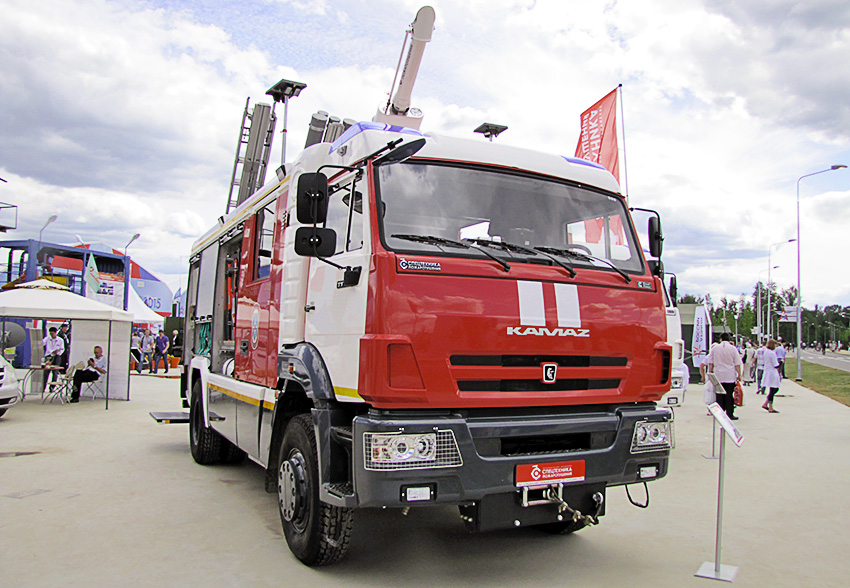

all-wheel drive two-axle chassis KAMAZ-RIAT-5387 found application primarily.
as a firefighter the car (pictured fire tank ATS-3,2-40-4 manufacturing firms
"Special sprinkler")

On STT-2015 has been shown promising (semi-secret) patienoe all-wheel drive (10x10) 53-ton crane chassis KAMAZ-7360 (K5340) with the cab type of DMEC and perhaps with a 400-horsepower engine.

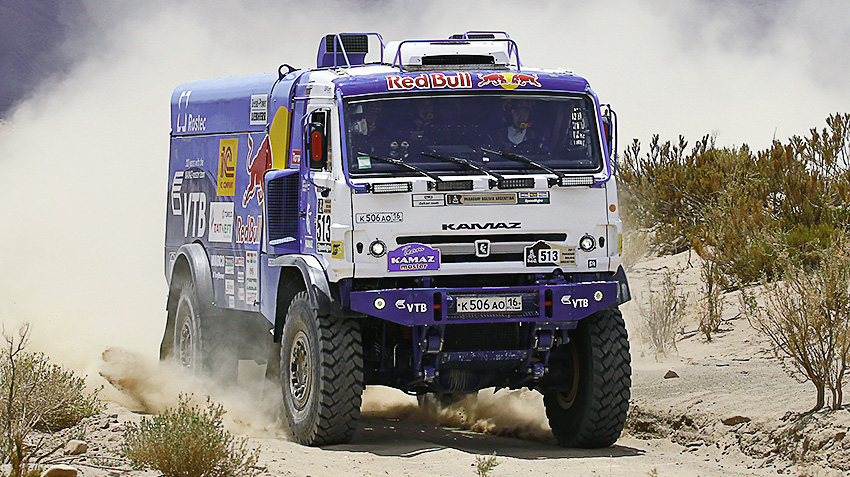

factory racing team "KAMAZ-MASTER" (crew No. 513 Eduard Nikolaev) for the 14th time won the 39th rally-marathon "Dakar". Photo – battle of KAMAZ-4326 Nikolaev on the track the South American "Dakar".

...and finish in the Argentina Cordoba

in the second quarter of 2017, the series went upgraded according to the wishes of customers truck tractor KAMAZ-5490-S5 Neo with diesel Mercedes-Benz OM 457LA.V/3 Euro-5
and the RCP ZF 12AAS2130 TD

On COMTRANS-2017 of JSC "KAMAZ" showed a number of novelties, first of all, the latest long-haul tractor KAMAZ-54901 cab K5

Internal cab height K5 – 1980 mm, width 2270 mm. It has two berths to a width of 750 mm, as well as the on-Board information system is equipped with 10-inch screen. Forward-looking truck, whose production will be deployed in 2019, equipped with advanced row 12 l the "six" (power 380-550 HP) and automatic ZF Traxon RCP, reinforced front axis under a load of 9 tons, the frame of high strength steel, bridges low noise (i=2,5–3,07) and superior tanks (700 l or 2х1200 l). The fuel consumption of KAMAZ-54901 decreased by 10% and the resource overhaul increased by 20% to 1.2–1.5 million km Service the mileage actually increased by 80% to 150 thousand km.


a New generation delivery trucks was presented to the isothermal van on the modernized KAMAZ-5325

Chassis 4x2 (GVW 18-19 t) equipped with the new cabin generation K4, diesel engine Cummins ISB6.7E5250 250 HP and Inc ZF 6S1000. Isothermal van the amount of 38 m3 with the capacity of 8550 kg equipped with refrigeration the installation of a Thermo King V max 800 30 (-20°C to +6°C) driven from the engine and tail lift MBB Palfinger C1500LX/900 24V.


NGV version KAMAZ-5490-891-S5 intended for export to third world countries, suggests that painting the cockpit "Zebra".

Saddle the tractor with a load on the SSU – to 10.76 t is equipped with a diesel engine Mercedes-Benz OM 457LA.V/3 Euro 5 power 401 HP and MKP ZF 16S1820 TD. Capacity gas cylinders – 4х80 L.

tractor KAMAZ-54909-090-B5 (4x4H) feature plug hydrostatic drive KAMAZ H-Drive front axle

Load piss on the KAMAZ-54909 is 11.05 so the total combination weight is 44, so Diesel – Cummins
ISL400 50 Euro 5 rated at 400 HP, MKP ZF 16S1820 TD. This kind of drive, increasing the permeability of the terrain (maximum slope 18%), does not increase fuel consumption on the highway (automatic shut-off at speeds above 25 km/h).

the First serial domestic truck tractor KAMAZ-65209-S5 new family NEO
with the wheel formula 6x2.2 with lifting rear axle

Load at SSU (height 1150 mm) from KAMAZ-65209-S5 – 17,16 t Load on average the axle is 11.5 tonnes, and on the back – 7.5 t Diesel Mercedes-Benz OM 457LA.V/3 Euro 5 power 401 HP.
with the RCP ZF 12AS2135 TD. Tractor besides the usual ABS equipped with EBS, ESP and ASR. Brakes on all wheels, blades, and optional equipment included load sensors on the rear axle.

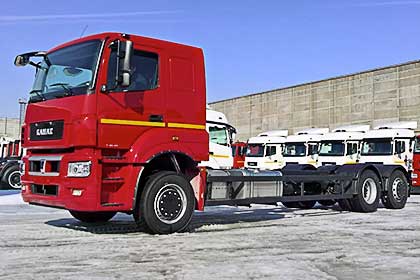

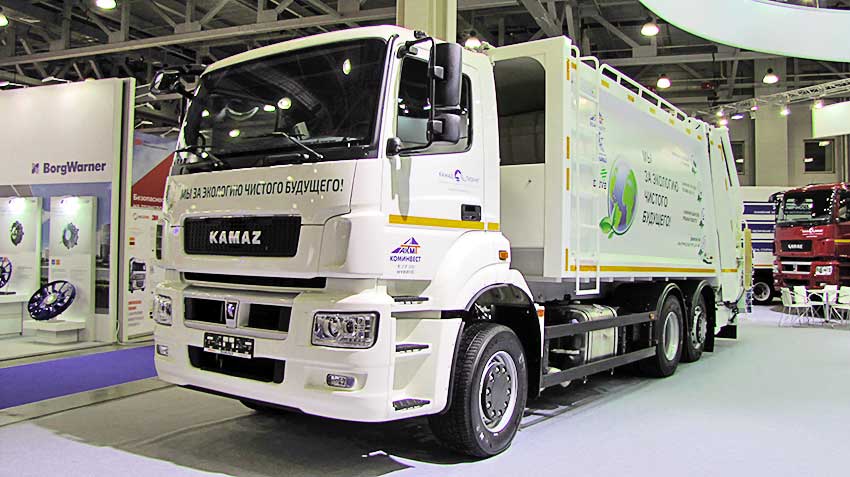

Multifunctional chassis KAMAZ-65208 (6x2.2) equipped with components of the traction electric drive

the Chassis with a lifting capacity of 14.35 t (full weight 26 tons) are equipped in addition to the main diesel engine Cummins ISB6.7 300 Euro 5 300 HP motor Bosch IMG 440/105 power 120 kW, and a battery that provides mileage of 8 km only on electric, which is enough for silent operation in residential yards, for example, of the truck.

a Family of urban srednetonnazhnye (4x2)

the Family of urban srednetonnazhnye, designed primarily for utility transport in the city, as well as long-haul bulk cargo with low specific weight enables the model 4308 capacity of 7.1 t (Of 5.73 tons side platform), as well as a 9.3-ton (7.5 t) model 5308. The collection features low-profile 19.5-inch wheels and, accordingly, reduced loading height. All belonging to the family chassis and truck tractors equipped with a 4 - or 6-cylinder inline Cummins engines ISBe4 and mechanical transmission ZF (production JV "ZF-KAMA"). The volume main tank – from 170 to 350 l Cabin short "day" (4308) or low long with a sleeping compartment (5308). Brake mechanisms of all wheels the disk.

KAMAZ-4308-C4/ R4 (4x2). Srednetonnazhnye equipped with 19.5-inch wheels, which allowed to increase the loading height up to 1140 mm. gross weight – 11 900 kg, gross train weight 19 900 kg. Length standard on-Board platform (option R4 N3) 5.2 m long (modification A3) – 6.1 m Cabin short "day", the volume of the fuel tank 170 or 210 HP Cummins diesel Engines: chassis: C4 – 4-cylinder 4.5-liter engine 4ISB4.5e4 output of 177 HP and with a manual gearbox, ZF 6S700, R4 – 6-cylinder 6.7-liter engine 6ISB6.7e4 245 power of 242 HP environmental standard Euro-4 with 6-speed manual gearbox ZF 6S1000. Pendant, standard spring, but the rear may be pneumatic. Brakes front and rear disc, with pneumatic drive. Stock fuel – 210 l.

KAMAZ, Raritek 4308R 333656 (4x2). Gas (methane) utility version chassis 4308R with a 3.5 meter wheelbase or side 333656 a 4.2-metre base. Gas are equipped with a 178-horsepower engine YC6J190N-40 spark ignition emission class Euro 4 China. Total weight 11 900 kg, load capacity in a vehicle option (333656) – 5,95 T. the Volume of cylinders 360 l (100х2 plus 80х2) 72 m3 the compressed methane.

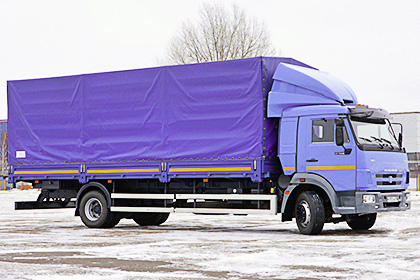

KAMAZ-5308 (4x2). Srednetonnazhnye KAMAZ-5308 is designed for distribution transport in urban areas and mainline transportation. Base chassis 5308 9540-10 length 140 mm, with a wheelbase of 5600-5900 mm designed for installing add-ins in length to 7690, up to 50 m3 and weighing up to 9295 kg gross vehicle weight – 15 000 kg, the total combination weight – 28 000 kg. Cabin with a sleeping low place or a short "day" fuel tank capacity – 350 l Rear axle hypoid North Benz. Pneumatic suspension with the remote remote MAN. Brake mechanisms of all wheels disc with ABS.

KAMAZ-53082 (6x2). Custom triaxial modification of 53082 with moving the rear axle load capacity 11 800 kg calculated to install add-ins length 7690 mm. gross weight – 20 000 kg, the total combination weight – 34 000 kg Model 53082 equipped with 6-cylinder diesel engine Cummins 6ISBe4-300 300 HP Rear axle hypoid North Benz. The suspension is pneumatic, with remote remote MAN. Brakes all wheel disc, with ABS.

a Modernized vehicle family (4x2, 6x4, 6x6, 8x4)

Upgraded transport the family created with the use of the updated aggregate base and heavy duty suspension (load on axle 9 t). Used cab – short day or long "sleeping", 2010 restyled. Diesels fourth ecological class – localized in-line Cummins ISBe4 and upgraded V-shaped Of 11.76-liter "eight" KAMAZ-740. ZF gear box – 6-, 9- or 16-speed manual. The volume of the fuel tank 210, 350 or 500 l Front suspension spring, rear – spring-balance (at biaxial models spring), brakes-drum. On cars with engines Cummins in the cabins is possible to install a middle seat.

KAMAZ-43253 (4x2). Biaxial chassis with a wheelbase of 4200 mm is mainly applied for the installation various public bodies or side of platform (length of 5.19 m, the loading height – 1425 mm) therefore, it is equipped with only a short "day" cabin. Useful length of the frame depending on the magnitude of the rear overhang is 4.7 or 5.0 m Full vehicle weight is 15 to 200 kg allowable weight of superstructure – 8850 kg. Cummins Engines 4ISBe4 185 or 245 6ISBe4 and 6-speed manual gearbox ZF.

KAMAZ-65117 (6x4). Base three-axle chassis family with rear wheel drive and a wheelbase 4970/ 1320 mm with the full weight of 24,000 kg designed to install the add-on weight up to 15 500 kg Useful frame length – 7.3 m, length set factory on-Board platform – 7,8 M. Valid combination weight – 38 000 kg. Engine 6ISBe4 300 Cummins and 9-speed MKP ZF. Cylinder version – 65117-34 engine KAMAZ-820.73-300 (Euro 4).

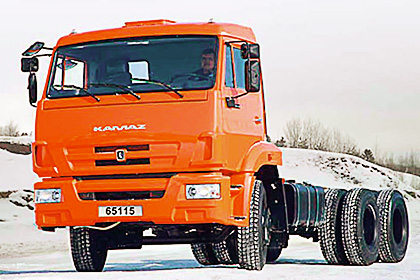

KAMAZ-65115 (6x4). Three-axle rear-wheel drive chassis with a wheelbase of 3190-4470/ 1320 mm for the installation of saddles and other specialized bodies of mass to 17 350 kg gross vehicle weight -25 200 kg useful length frames depending on the modification is 3.75–5,9 m. Engine 6ISBe4 300 Cummins and 9-speed gearbox ZF.

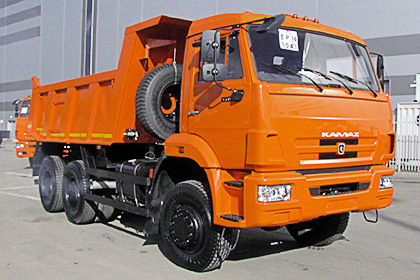

KAMAZ-65111 (6x6). All-wheel drive three-axle chassis with a gable busbar rear wheels designed for mounting superstructures weighing up to 16 000 kg. It total weight is 25 200 kg, and the wheelbase is equal 3340/ 1320 mm Engine KAMAZ-740.622-280 or 740.662-300 and 10-speed manual gearbox KAMAZ or 9-speed ZF.

KAMAZ-6540 (8x4). Rear-wheel drive four-axle chassis with a wheelbase 1800/ 2080-2840/ 1320 mm has a full weight 31 000 kg and can be used for mounting add-ons weighing up to 22 000 kg Useful length of the frame – from 4.9 to 5.7 m The 6ISBe4 300 Cummins engine and 9-speed MKP ZF.

KAMAZ-65116 (6x4). Three-axle truck tractor curb weight 7700 kg with a wheelbase of 2840/ 1320 mm and a height of the fifth wheel 1300 mm. Valid the load on the SSU is 15,000 kg, and the permissible mass of combination – 37 850 kg. Engines: diesel Cummins 6ISBe4 300, the gas KAMAZ-820.60-260 and 9-speed MKP ZF.

a Family of high load capacity (4x2, 6x4, 6x6, 8x4, 10х4)

the Family includes two-, three-, four- and even patigonia rear - wheel drive models with a valid load on axle 13 so They are designed to work on a short shoulder as carriers of various spetskuzovov and add-ins (main way tipper, mixers, and mobile cranes), so, with rare exceptions, completed a short "day" cabs. Basic engines – upgraded under the Euro-4 V-shaped "eight" working volume of 11.76 l that develops 300 HP and 320 (for 6520) and 400 HP (and for 6522 65222), 400 and 420 HP (65201), as well as inline of the six Cummins with a capacity of 300 and 400 HP With them agregation 16-speed manual ZF gearbox and four-wheel drive versions set even and 2-step "razdatki" ZF-Steyr. Two-axle chassis equip 53605 only a 6-cylinder inline Cummins 6ISBe power of 285 HP, which is paired with a set 9-speed gearbox ZF, and the latest patienoe 7330 crane – Cummins ISLE 400 40 rated at 400 HP fuel tank capacity – 350 or 400 l Front suspension spring, rear – spring-balance, brake mechanisms of drum type.

KAMAZ-53605 (4x2). two-Axle rear-wheel drive chassis with a wheelbase 3950 mm total weight 20 500 kg designed mainly for dump bodies or other minor the length of the add-ons (including crane) weight up to 13 200 kg. Developed a modification with increased up to 5700 mm wheelbase.

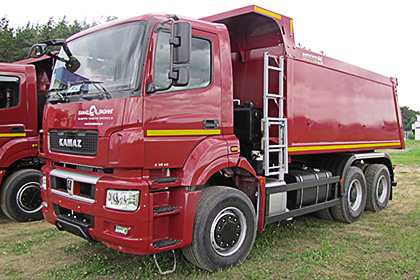

KAMAZ-6520 (6x4). three-axis rear-wheel drive chassis with a wheelbase of 3600-4800/ 1440 mm, designed for the installation of specialized, including dump bodies weighing up to 750 kg. 23 It 33 total mass 100 kg, useful frame length depending on the modification is 4.9 to 7.6 M.

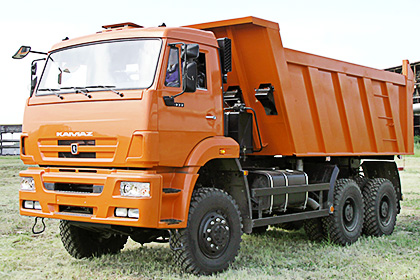

КАМАЗ-6522 (6х6). Трехосное полноприводное шасси с двускатной ошиновкой задних колес может быть оборудовано надстройкой массой до 22 750 кг. Его полная масса составляет 33 100 кг, колесная база – 3600/ 1440 мм, полезная длина рамы – 4,9 м.

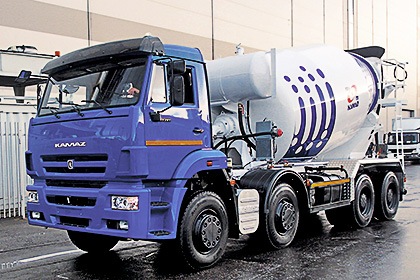

KAMAZ-65201 (8x4). Four-axle chassis with two driven rear axle with full weight 41 000 kg designed for the installation of add-ons weighing up to 30 000 kg. It wheeled base– 1960/ 3000/ 1440 mm, useful frame length – 6.2 m. Developed a modification with increased up to 4500 mm distance between the second and third axes, its payload 29 000 kg.

KAMAZ-7330 (10х4). Promising patienoe crane chassis with drive two "average" of the bridge with the full weight of 43 000 kg designed for installation of the superstructure crane with a lifting capacity of 63 000 kg. It wheelbase– 2060/ 3000/ 1440/ 1440 mm, load on first, second and fifth axis does not exceed 9000 kg, and for double truck (third and the fourth axis) – 16 000 kg. During the transportation of additional balances weighing up to 10.2 tonnes, the load on the rear bogie does not exceed standard 24 T.

Main family (4x2, 6x2, 6x4)

long-haul tractor KAMAZ-5490 (М1842) with the MB Axor cab is available since September of 2013. The series also includes three-axle (6x4 and now even 6x2) models, including chassis and flatbed 65207 (6x4), the latest chassis and truck 65208 (6x2), 6520 dump truck- (6x4), with cabin the development of the Korean Studio DMEC, which is going to match the engine KAMAZ-740.75-440 with Common Rail system power 440 HP, Euro-4 class, which is a next generation Naberezhnye Chelny diesel engines, but also with AdBlue injection. Further provided the introduction of a completely new diesel engine KAMAZ-750.10-500 General heads for each row of cylinders, which will to conform to the standards Euro-5 and Euro-6 and develop 500 HP Parallel perspective models Т2642 and Т2640 (lot 6580) will apply diesel engines Cummins families ISLe (8.9 l) and ISX (12 l). Developed a gas (11,76-litre KAMAZ-830.13-400) and even a hybrid version. Thus, KAMAZ intends to make the most to diversify the engine range. In small-scale production went three-axle (6x4) truck tractor 65206, but without high roof and with a 400-horsepower engine KAMAZ-740.73-400, and are unified with him a 15-ton flatbed truck 65207 and all-wheel drive (6x6) 20-tonne dump truck 65802.

KAMAZ-5490 (4x2). Main-axle truck tractor new series М1842, able to work as part 44-ton articulated lorry equipped with fifth wheel hitch height installation which is 1150 mm, and the perceived load – 10 550 kg. The wheelbase of the car – 3580 mm, curb weight – 7900 kg. Except for the Mercedes cabin type K4 it is equipped with German turbodiesel OM 457 LA power 401 HP (realization S5) or 428 HP (T5) HP level Euro 5 with the BlueTec system, as well as economical and low-noise axle with hypoid transmission and locking differential. Transmission or 16-speed mechanical ZF16S 2221 with Intarder, either a 12-speed automated ZF Astronic 12FS2131 IT. Rear axle hypoid Daimler. Dual fuel tanks hold 2x400 liters of fuel. The level of equipment of the cockpit corresponds to the model 65207. The truck is equipped with ABS, EBS, ESP and ASR, as well as system electronic height control air suspension ECAS. Provided version 5490-014-S5 for transportation dangerous goods with a 16-speed manual gearbox without retarder, low cabin mechanical suspension, without side rails, protected by a grid and flashing lights on the roof, the only tank 400 l

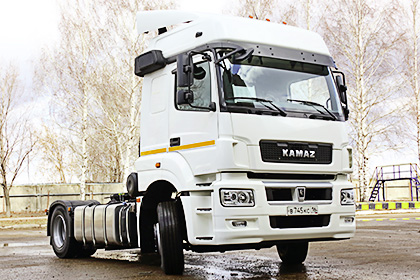

KAMAZ-5490 Neo (4x2). Upgraded in accordance with the wishes customers version of the tractor (indexes 5490-022 S5 and 5490-023-S5) whose serial production started in the second quarter of 2017. List of changes: increased by 200 mm wheelbase, improving weight distribution axis, dozagruzki front axle, which in turn reinforced due to more durable few-leaf springs and stabilizer bar sustainability, bushings springs replaced with maintenance-free silent-blocks; the load sensor on the rear axle displays it on the display side computer that allows you to avoid fines for exceeding the axial load; modified form the top of the mudguards of the rear wheels that no longer requires their dismantling at the coupler with the trailer; base fuel tank (with the right side of the frame) is increased to 695 liters, and on the left side of the frame placed spare wheel mounting, and in return can be assembled optional fuel tank 400 l, thus the total capacity of fuel tanks brought to 1095 litres; optional pre-start liquid heater of the engine; a second sleeping space (mounted at dealership).

KAMAZ-65208 (6x2). Newest trunk triaxial flatbed truck to work in the trains full weight up to 44 tons payload chassis – 16 770 kg on-Board truck – 14 500 kg, isothermal van – 11 500 kg. The car's wheelbase – 3300+1440 mm, curb weight – kg. 9325 transmission 16-speed manual ZF16S 2221 with Intarder. Rear tandem axles air suspension. The cabin interior includes: the Parking heater, air conditioning, electronic tachograph, audio preparation (2 speakers, antenna), a sensor critical wear brake linings, load on the axles. Provided pre-start liquid heater of the engine.

KAMAZ-65207 (6x4). Main three-axle flatbed truck for working in a roadtrain full weight up to 40 t equipped with the side platform with the capacity 14 725 kg gross vehicle weight – 26 000 kg. Wheelbase vehicle – 5100+1440 mm. Gearbox 16-speed manual ZF16S 2220 TD with Intarder. Rear tandem axles, air suspension. The cabin interior includes: auxiliary cabin heater, air conditioning, electronic tachograph, audio preparation (2 speakers, antenna), transducer critical wear of the brake linings, load on the axles. Provided pre-start liquid heater of the engine.

KAMAZ-65206 (6x4). Main three-axle truck tractor for work in the trains full weight up to 44 tons equipped with fifth wheel hitch with a permissible load of up to 16 750 kg, the height of which is 1300 mm. the Wheelbase of the car – 3300+1440 mm, curb weight – 9175 kg. the Tractor is equipped with German turbodiesel OM 457 LA.V/3 a power 401 HP (realization S5) or 428 HP (T5) the level of Euro-5, with the system BlueTec. Box transmission: T5 to – 16-speed gearbox ZF 16S 2221 with interdenom on S5 – 12-speed automated ZF12AS2135 (2130). Rear tandem axles, air suspension. Disc brakes mountain brake (Intarder), systems EBS ESP and ASR. Cabin with a berth, there is a heated driver's seat, auxiliary heating the cabin, air conditioning, pre-start liquid heater of the engine, the sensor critical lining wear of the brakes, the load on drive axles, electronic tachograph, audio preparation (antenna, 2 speakers). The capacity of the fuel tank: 2х300 L. Version 65206-005-S5 with hidroviaria (PTO pump and hydraulic tank 170 l).

KAMAZ-6580-3001-J5 (6x4). three-axle chassis under the truck with a lifting capacity of 29 600 kg the Wheelbase of the car – 4410+1440 mm curb weight 11 400 kg. Transmission 16-speed manual ZF16S 2220 TO. The suspension spring. Equipment cabin includes: auxiliary cabin heater, air conditioning, electronic tachograph, audio preparation (2 speakers, antenna). Provided pre-start liquid heater of the engine.

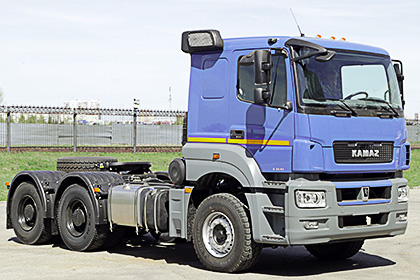

KAMAZ-65806 (6x4). Construction of a three-axle truck tractor for work in the trains full weight up to 74,28 t equipped fifth-wheel device with permissible load up to 23 225 kg installation height which is 1300 mm. the Wheelbase of the car – 3300+1440 mm, curb weight – 10 200 kg. the Tractor is equipped with German turbodiesel OM 457 LA.V/4 with a capacity of 428 HP, Euro-5, with the BlueTec system. Gearbox 16-speed MKP ZF 16S 2220. All wheel suspension spring. Brake drum with ABS and ASR. Cabin with a berth, there is a heated driver seat, heated exterior mirror, auxiliary heating the cabin, air conditioner, pre-heater "advers" 14TC, electronic tachograph, audiopreparation (antenna, 2 speakers). Fuel tank capacity: 2х300 L.

Main family (4x2, 6x4)

the Redesigned "Main the family of" KAMAZ vehicles includes two models – biaxial (5460) and three-axis (6460) tractors. Both are equipped with restyled cabs, extra-long with a sleeping compartment and can be equipped with aerodynamic Dodger. For both 2013 engine only one – 8-cylinder V-neck KAMAZ-740.73-400 (E-4) a displacement of 11.76 l, rated at 400 HP transmission: 16-speed manual ZF 16S 151 (run – machine KAMAZ ZF-AS Tronic). Standard double tanks can accommodate 300 or 350 liters of fuel each. Front suspension leaf spring, rear – pneumatic, brake mechanisms of drum-type type.

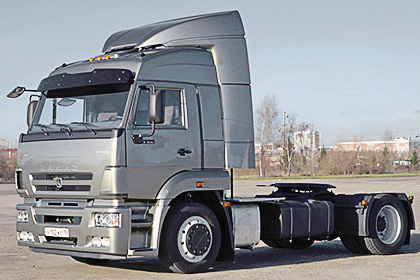

KAMAZ-5460 (4x2). Main-axle truck tractor, able to work as part 40-ton articulated lorry equipped with fifth wheel hitch height installation which is 1140-1200 mm, and the perceived load – 10 500 kg. The wheelbase of the car is 3950 mm, curb weight – 7350 kg. Rear axle hypoid production FAW. Dual fuel tanks hold 350 liters of fuel each. Provides Autonomous cabin heater and its air suspension.

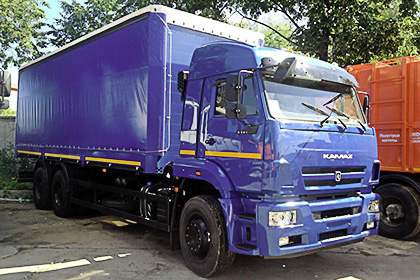

KAMAZ-6360-73 (6x4). Main three-axle flatbed truck with drive on two rear axle (wheel base 5300+1440 mm), with a curb weight 12 100 kg can run as part of a convoy of up to 47 500 kg. Capacity 15 325 kg. Increased fuel tank capacity 550 liters of fuel. Tow hitch (trailer hitch) Rockinger or Mireal or "Technotron".

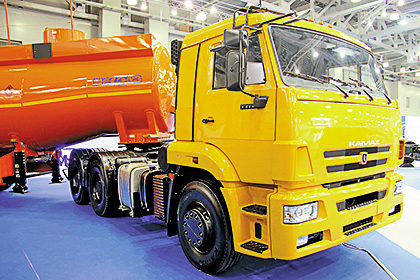

KAMAZ-6460 (6x4). Main three-axle truck with drive on two rear axle (wheelbase 3020+1430 mm), at unladen weight 9350 kg it can work in the trains weighing up to 49 000 kg (and in some cases up to 62 000 kg). The height of its SSU is 1345 mm, the permissible it – 16 500 kg. Double fuel tanks hold 300 liters of fuel each. By order of the COM the production of engines with pump safety cover TB and upper exhaust pipe.

a Family of four-wheel drive vehicles (4x4, 6x6, 8x8)

Kama automobile plant produces a range of four-wheel-drive vehicles with pent busbar all wheels, with the number of bridges of two, three or four. The civic lineup (with engines of the ecological class Euro-4) is represented by the biaxial model 43502-45 (payload on-Board version – 4 t) two-axle special chassis 5387 with saddle (single) rear busbar production RIAT (carrying capacity Of 8.45 t), triaxial 5350-42 (7,32 m) and 43118-46 (11,2 t) and 65111-42 (16.5 t), and a four-63501-40 (16 t). This family of tools a restyled cab in a short "day" or long "sleeping" modifications. Chassis and flatbed truck 43502 equipped with a diesel engine KAMAZ-740.652-260 (E-4) working volume of 10.85 l, 260 HP, chassis and side 43118 – KAMAZ-740.662-300 (E-4), which agregation 9-speed manual MKP ZF or 10-speed MKP KAMAZ. Chassis 5387 – diesel engine Cummins ISLe-C340 volume of 8.9 l turbo 340 HP and 9-speed manual gearbox ZFАвтомобили as rule, complete with two tanks with a volume of 125, 170, 210 or 350 l (in various combinations). Two-axle models suspension spring rear suspension three-axle and four-axle models of the spring-balance, brakes drum-type.

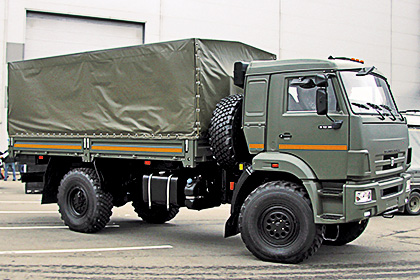

KAMAZ-43502 (4x4). Two-axle four-wheel drive all terrain vehicle with the wheel base 4200 mm designed for the installation of add-on weight of 5950 lbs. to His total weight is 12 700 kg and a useful length of the frame based on the configuration is in the range of 5.22 m. Version chassis referred to as 43501, and saddle tractor – as 43504.

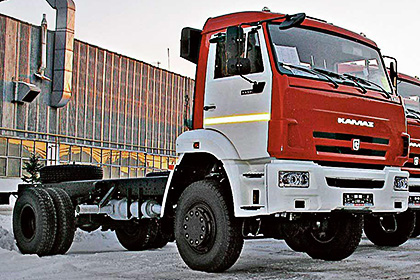

KAMAZ-5387 (4x4). two-Axle four-wheel drive all terrain vehicle with a wheelbase of mm 3800-5100 calculated to install add-ons weighing up to 8550 kg. their total weight is 15 200 kg and a useful length of the frame, depending on configuration is in the range of 4.1–6.5 m.

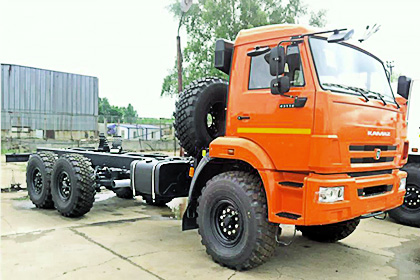

KAMAZ-43118 (6x6). three-axis all-wheel drive chassis with increased up to 3690/ 1320 mm wheelbase and 13 to 170 kg capacity. Its total weight is 21 600 kg, a useful frame length is in the range of 4.44–6.1 m

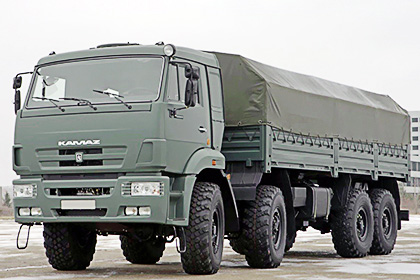

KAMAZ-63501-40 (8x8). four-axle all-wheel drive chassis with a wheelbase 1950+3340-3690+1320 mm designed for installation add-ons weighing up to 16,000 lbs. gross vehicle weight – 27 200 kg useful frame length is 6.1–8,05 m.

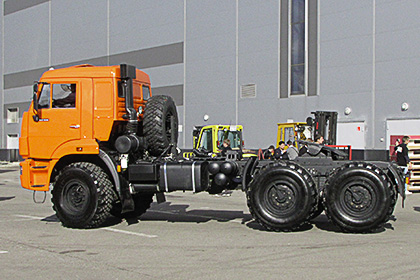

KAMAZ-53504-46 (6x6). Three-axle four-wheel drive tractor of the increased passability with the engine 740.662-300 (E-4), with a wheelbase 3690/ 1320 mm seat height 1540 mm (type 5410 either JOST) and the load 12 for SSU 200 kg can be equipped with a CMU and to work as part road trains with GVW of 38,000 kg Old model 44108-24 different engines with a capacity of 260 or 280 HP ecological class Euro-3.

a Family of four-wheel drive heavy-duty vehicles (6x6, 8x8)

the Family of heavy Kama vehicles, which, despite the presence of drivetrain all-wheel drive and single tyres of the rear wheels, have comparable rear-wheel drive counterparts road characteristics, includes base chassis KAMAZ-65224, truck tractor KAMAZ-65221 and chassis under the truck (trabajos) and Konik dump truck (chassis N) KAMAZ-65222, and four-axle chassis KAMAZ-6560 (8x8) trucks for very heavy trucks KAMAZ-65225 (6x6) and KAMAZ-65228 (8x8). All these machines, in addition to tractors and 65225 65228, equipped with an 8-cylinder V-shaped diesel engine KAMAZ-740.632-400 (E-4), developing 400 BHP, and 16 speed manual gearbox c ZF16S1820 2-speed transfer case ZF-Steyr. Fuel tank capacity – 350-450 L. Front suspension spring, rear – spring-balance, brake mechanisms of all wheels-drum.

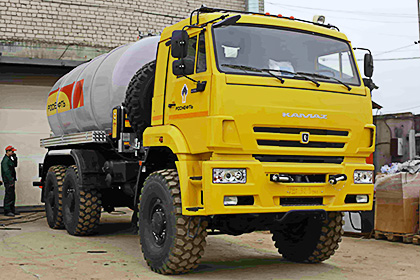

KAMAZ-65224-43 (6x6). all-wheel drive three-axle chassis with a wheelbase 4115+1440 mm designed for installation of add-ins weighing up to 19 025 kg gross vehicle weight – 30 kg 500, useful frame length of 5.81 m.

KAMAZ-65221-43 (6x6). all-wheel drive three-axle chassis with a wheelbase 3515+1440 mm designed for installation of add-ins weighing up to 22 900 kg. gross weight – 34 000 kg useful frame length is 4.13–4,26.

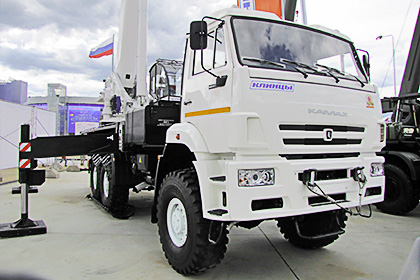

KAMAZ-65222-43 (6x6). all-wheel drive three-axle chassis with a wheelbase 4115+1440 mm designed for installation of add-ins 23 weighing up to 100 kg. gross vehicle weight – 34 000 kg useful frame length – 4,86 m. By order of – COM.

KAMAZ-65225-43 (6x6). all-wheel drive three-axle chassis with a wheelbase of 3600/4200+1440 mm designed for installation of add-ins weighing up to 22 050/ 22 900 lbs. gross vehicle weight of 33 500 kg useful length of the frame – 4,26–of 5.81 m.

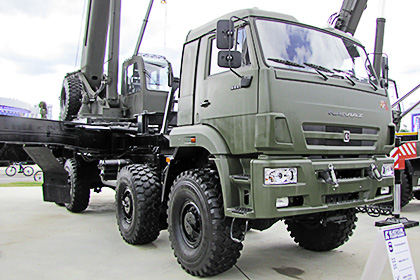

KAMAZ-6560-43 (8x8). four-axle all-wheel drive chassis with a wheelbase 2060+4000+1440 mm designed for installation superstructures weighing up to 23 525 kg gross vehicle weight – 38 000 kg useful frame length of 8.15 m.

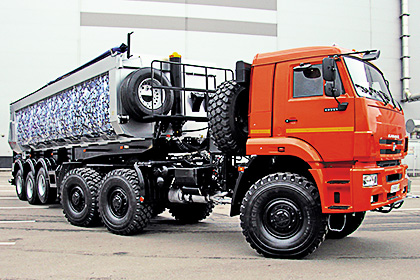

KAMAZ-65221-43 (6x6). four-wheel drive tractor with a wheelbase 3515+1440 mm, with a curb weight 11 550 kg able to work as part 62,7-ton road trains. Height fifth wheel – 1965 mm, permissible load on it – 17 000 kg.

KAMAZ-65225-43 (6x6). Four-wheel drive three-axle truck (wheelbase 3600/ 1440 mm) with a gable strapped the rear wheels designed to work in the trains weighing up to 75 kg. It 360 curb weight – 11 285 kg load fifth-wheel device (height of 1925 mm) is 22 000 kg the package includes transfer case РК6522 (KAMAZ), aerodynamic sun visor, cross-axle lock the bus "North" and heater "planar".

KAMAZ-65228 (8x8). Custom four-wheel drive truck with a curb weight of 16 150 kg able to work as part of a 120-tonne road train. Cummins Engine ISXe 535 30 rated at 535 HP, located behind the cabin. Transmission automatic Allison HD4500R. Wheelbase– 1960/ 3000/ 1440 kg, the height of the fifth wheel (type KZKT-7426) – 1925 mm, acceptable the load on it – 24 700 kg. the Volume of fuel tanks – 2х600 L.

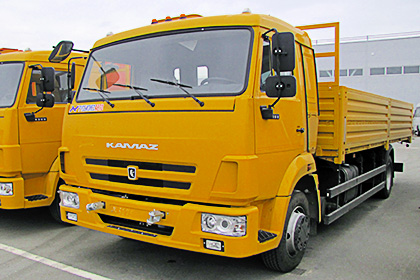

KAMAZ-4308 4x2, chassis (onboard)

the the the the the the the
Option The value
Overall dimensions, mm 7225х2500х2620
Base, mm 4800
Full weight, kg 11 500
Load capacity, kg 6500
Engines: diesel (Euro 4) 4.5 l/ 177 HP;
6,7 l/ 242 HP
The gas engine
mod. 333656 (Euro 5)
5,9 l/ 178 HP

KAMAZ-5308 (53085), 4x2, chassis

the the the the the the
Option The value
Overall dimensions, mm 9670х2500х3468
Base, mm 5600 (5900)
Full weight, kg 15 000
Load capacity, kg 8200 (7700)
Engine diesel (Euro 4) 6.7 l/ 300 HP

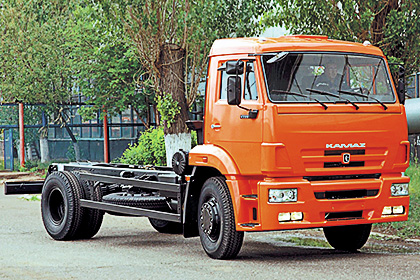

KAMAZ-43253 4x2, chassis

the the the the the the
Option The value
Overall dimensions, mm 7065–7325х2500х3120
Base, mm 4200
Full weight, kg 15 200
Load capacity, kg 8850
Engines: diesel (Euro 4) 4.5 l/ 185 HP;
6,7 l/ 245 HP

KAMAZ-65115, 6x4, chassis

the the the the the the
Option The value
Overall dimensions, mm 6350–9260х2500х2955
Base, mm 2840-4470+1320
Full weight, kg 25 200
Load capacity, kg 17 400
Engine diesel (Euro 4) 6.7 l/ 300 HP

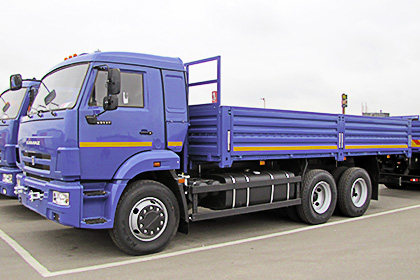

KAMAZ-65117 (М2740), 6x4, chassis (onboard)

the the the the the the
Option The value
Overall dimensions, mm 8585х2500х2990
Base, mm 3690+1320
Full weight, kg 24 000
Load capacity, kg 15 500
Engine diesel (Euro 4) 6.7 l/ 300 HP

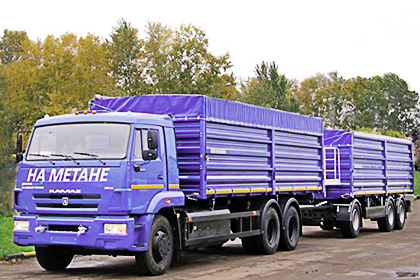

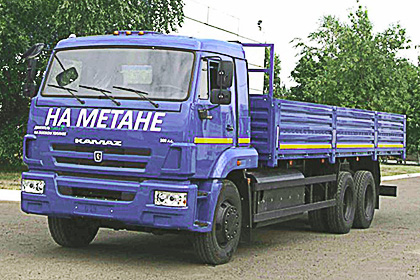

KAMAZ-65117-34 (М2740), 6x4, chassis (onboard)

the the the the the the the
Option The value
Overall dimensions, mm 9950х2500х2990
Base, mm 4970+1320
Full weight, kg 24 000
Load capacity, kg 15 500
Engine diesel (Euro 4) 6.7 l/ 300 HP
Gas engine (Euro 4) 11,76 l/ 260 HP;
of 11.76 l/ 300 HP

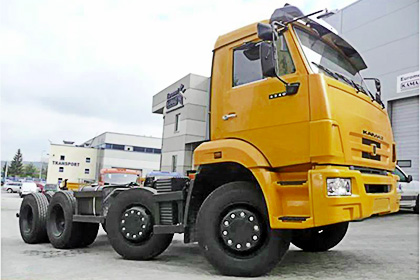

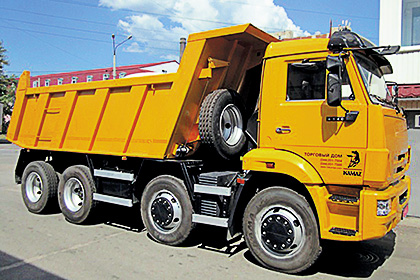

KAMAZ 6540, 8x4, chassis

the the the the the the
Option The value
Overall dimensions, mm 7310–8150х2500х2900
Base, mm 1800+2080-2840+1320
Full weight, kg 31 000
Load capacity, kg 22 000
Engine diesel (Euro 4) 6.7 l/ 300 HP

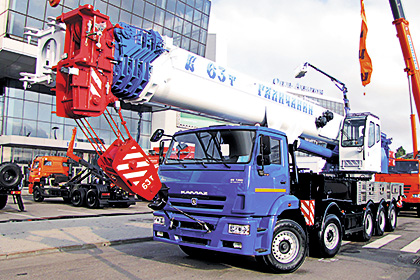

KAMAZ-7330, 10х4, chassis (crane)

the the the the the the
Option The value
Overall dimensions, mm 10 520х2550х2900
Base, mm 1800+2080-2840+1320
Full weight, kg 31 000
Load capacity, kg 22 000
Engine diesel (Euro 4) 8,9 l/ 400 HP

KAMAZ-53605, 4x2, chassis

the the the the the the
Option The value
Overall dimensions, mm 6630х2500х2865
Base, mm 3950
Full weight, kg 20 500
Load capacity, kg 13 200
Engine diesel (Euro 4) 6.7 l/ 300 HP

KAMAZ-65208, 6x2, chassis, side

the the the the the the
Option The value
Overall dimensions, mm 11 200х2500х3100
Base, mm 5700+1440
Full weight, kg 26 000
Load capacity, kg 16 770 (14 500)
Engine diesel (Euro-5) 11,97 l/ 401 HP

KAMAZ-65207 (30 t26s, t26s 40), 6x4, on-Board

the the the the the the the
Option The value
Overall dimensions, mm 10 600х2500х3100
Base, mm 5100+1440
Full weight, kg 26 000
Load capacity, kg 15 000
Engine diesel (Euro-5) 11,97 l/ 401 HP
Engine gas (Euro-5) 11,97 l/ 300 HP

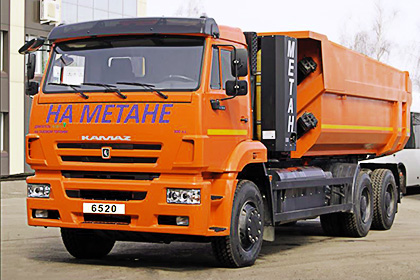

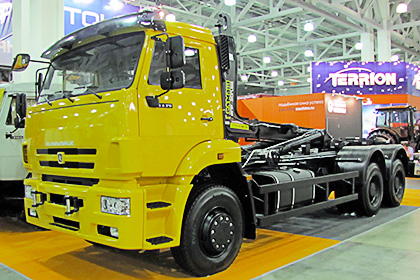

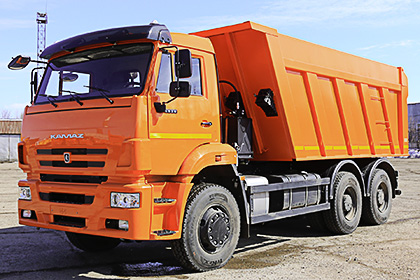

KAMAZ-6520, 6x4, chassis

the the the the the the
Option The value
Overall dimensions, mm 7415-10 180х х2500х2865
Base, mm 3600-4800+1440
Full weight, kg 33 100
Load capacity, kg 23 750
Engines: diesel (Euro 4) 6.7 l/ 300 HP;
8,9 l/ 400 HP;
of 11.76 l/ 400 HP;
of 11.76 l/ 420 HP

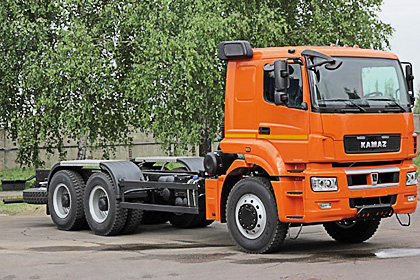

KAMAZ-6580-0003001-J5 6x4, chassis (under the truck)

the the the the the the
Option The value
Overall dimensions, mm 10 470х2500х3300
Base, mm 4410+1440
Full weight, kg 41 000
Load capacity, kg 29 600
Engine diesel (Euro 4) 12,0 l/ 440 HP

KAMAZ-6522, 6x6, chassis (double busbars)

the the the the the the
Option The value
Overall dimensions, mm 7610х2500х3140
Base, mm 3600+1440
Full weight, kg 33 100
Load capacity, kg 22 750
Engine diesel (Euro 4) 11,76 l/ 400 HP

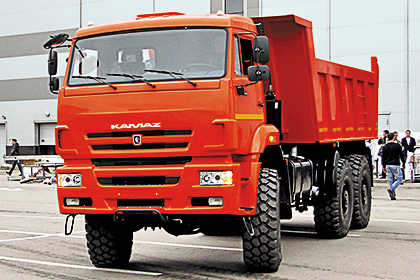

KAMAZ-65222, 6x6, chassis (single busbar)

the the the the the the
Option The value
Overall dimensions, mm 7950х2500х3220
Base, mm 4115+1440
Full weight, kg 34 000
Load capacity, kg 23 100
Engine diesel (Euro 4) 11,76 l/ 400 HP

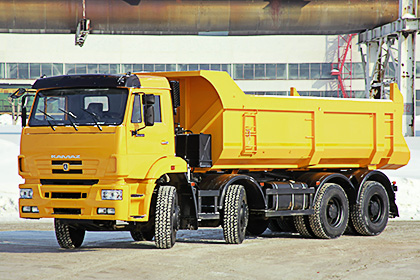

KAMAZ-65201, 8x4, chassis

the the the the the the
Option The value
Overall dimensions, mm 8800х2500х2930
Base, mm 1960+3000+1440
Full weight, kg 41 000
Load capacity, kg 30 000
Engine diesel (Euro 4) 11,76 l/ 400 HP;
of 11.76 l/ 420 HP

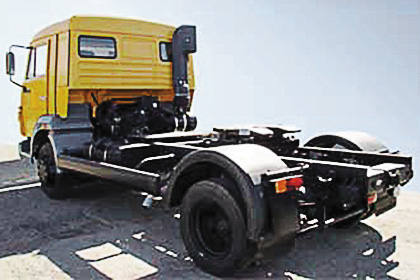

KAMAZ-RIAT-5446, 4x2, tractor unit

the the the the the the the
Option The value
Length, mm 5770
Base, mm 3500
Curb weight of tractor, kg 4850
Full combination weight, kg 19 900
Load SSA, kg 6500
Engine diesel (Euro 4) 6,7 l/ 242 HP

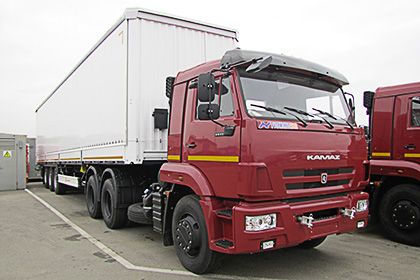

KAMAZ-65116, 6x4, tractor unit

the the the the the the the
Option The value
Length, mm 6150
Base, mm 2840+1320
Curb weight of tractor, kg 7700
Full combination weight, kg 37 850
Load SSA, kg 17 000
Engine diesel (Euro 4) 6.7 l/ 300 HP

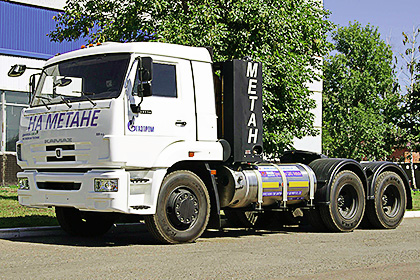

KAMAZ-65116-34, 6x4, truck tractor

the the the the the the the
Option The value
Length, mm 6150
Base, mm 2840+1320
Curb weight of tractor, kg 7700
Full combination weight, kg 37 850
Load SSA, kg 17 000
Engine gas (Euro 4) 11,76 l/ 260 HP;
of 11.76 l/ 300 HP

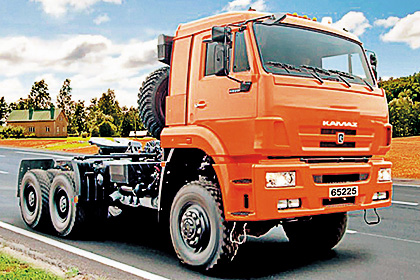

KAMAZ-65225, 6x6, tractor unit

the the the the the the the
Option The value
Length, mm 7230
Base, mm 3600+1440
Curb weight of tractor, kg 11 150
Full combination weight, kg 59 300
Load SSA, kg 17 000
Engine diesel (Euro 4) 11,76 l/ 400 HP

KAMAZ-5490, 4x2, tractor unit

the the the the the the the
Option The value
Length, mm 6090
Base, mm 3580
Curb weight of tractor, kg 7900
Full combination weight, kg 44 000
Load SSA, kg 10 550
Engine diesel (Euro-5) 11,97 l/ 401 HP;
11,97 l/ 428 HP

KAMAZ-5490 Neo, 4x2, tractor tractor

the the the the the the the
Option The value
Length, mm 6300
Base, mm 3760
Curb weight of tractor, kg 7900
Full combination weight, kg 44 000
Load SSA, kg 10 625
Engine diesel (Euro-5) 11,97 l/ 401 HP

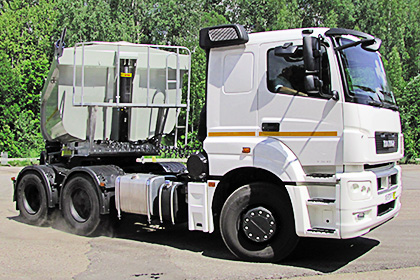

KAMAZ-65206 (T26 42/ 42 K26), 6x4

the the the the the the the
Option The value
Length, mm 7270
Base, mm 3300+1440
Curb weight of tractor, kg 9175/ 9325
Full combination weight, kg 44 000
Load SSA, kg 16 750/ 16 650
Engine diesel (Euro-5) 11,97 l/ 428 HP

KAMAZ-5460 4x2, tractor unit

the the the the the the the
Option The value
Length, mm 6420
Base, mm 3950
Curb weight of tractor, kg 7350
Full combination weight, kg 40 000
Load SSA, kg 10 500
Engine diesel (Euro 4) 11,76 l/ 400 HP

KAMAZ-6360-73 (M3741), 6x4, flatbed truck

the the the the the the the
Option The value
Overall dimensions, mm 10 380+2550+
+3175/3850
Base, mm 5300+1440
Curb weight of tractor, kg 12 100
Full combination weight, kg 47 500
Load capacity, kg 15 325
Engine diesel (Euro 4) 11,76 l/ 400 HP

KAMAZ-6460, 6x4, tractor unit

the the the the the the the
Option The value
Length, mm 6580
Base, mm 3020+1440
Curb weight of tractor, kg 9350
Full combination weight, kg 49 000
Load SSA, kg 16 500
Engine diesel (Euro 4) 11,76 l/ 400 HP

KAMAZ-65806, 6x4, tractor unit

the the the the the the the
Option The value
Length, mm 7140
Base, mm 3300+1440
Curb weight of tractor, kg 10 200
Full combination weight, kg 74 275
Load SSA, kg 23 225
Engine diesel (Euro 4) 11,97 l/ 428 HP

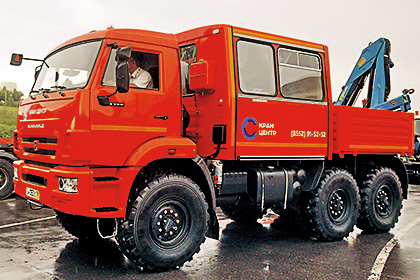

KAMAZ-5350, 6x6, chassis

the the the the the the
Option The value
Length, mm 7950
Base, mm 3340+1320
Curb weight, kg 9000
Load capacity, kg 6650
Engine diesel (Euro 4) 11,76 l/ 280 HP

KAMAZ-63501, 8 x 8 chassis (onboard)

the the the the the the
Option The value
Length, mm 9110-10 475 (9610)
Base, mm 1940+3340-3690+1320
Curb weight, kg 10 750
Load capacity, kg 16 000 (14 000)
Engine diesel (Euro 4) 11,76 l/ 360 HP

KAMAZ-43502-45(12 of 28) of the chassis (onboard), 4x4

the the the the the the
Option The value
Overall dimensions, mm 7690х2500х3300
Base, mm 4180
Full weight, kg 12 700
Load capacity, kg 5950
Engine diesel (Euro 4) 11,76 l/ 260 HP

KAMAZ-5387 chassis 4x4

the the the the the the
Option The value
Overall dimensions, mm 7600х2500х3300
Base, mm 3800-5100
Full weight, kg 15 200
Load capacity, kg 8550
Engine diesel (Euro 4) 8,9 l/ 340 HP

KAMAZ-43118, 6x6, chassis

the the the the the the
Option The value
Overall dimensions, mm 7115–9145х2500х3345
Base, mm 3690-4400+1320
Full weight, kg 21 600
Load capacity, kg 12 130-12 680
Engine diesel (Euro 4) 11,76 l/ 300 HP

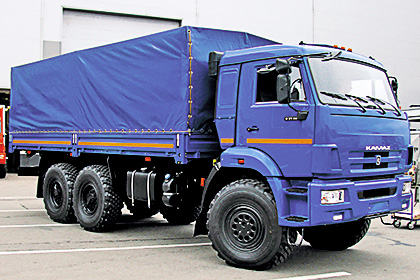

KAMAZ-43118-46 (21 30), 6x6, side

the the the the the the
Option The value
Overall dimensions, mm 8230х2500х3510
Base, mm 3690+1320
Full weight, kg 21 600
Load capacity, kg 11 225
Engine diesel (Euro 4) 11,76 l/ 300 HP

KAMAZ-53504 (6x6), a tractor

the the the the the the the
Option The value
Length, mm 7220
Base, mm 3690+1320
Curb weight of tractor, kg 8950
Full combination weight, kg 38 000
Load SSA, kg 12 300
Engine diesel (Euro 4) 11,76 l/ 300 HP

KAMAZ-65224, 6x6, chassis

the the the the the the
Option The value
Overall dimensions, mm 7280–8915х2500х3305
Base, mm 4115+1440
Full weight, kg 30 500
Load capacity, kg 18 900
Engine diesel (Euro 4) 11,76 l/ 360 HP

KAMAZ-65221, 6x6, tractor unit

the the the the the the the
Option The value
Length, mm 7280
Base, mm 3515+1440
Curb weight of tractor, kg 11 550
Full combination weight, kg 61 800
Load SSA, kg 17 000
Engine diesel 11,76 l/ 400 HP

KAMAZ-6560, 8x8, chassis

the the the the the the
Option The value
Overall dimensions, mm 10 300х2500х3265
Base, mm 2600+3640+1440
Full weight, kg 41 000
Load capacity, kg 26 500
Engine diesel (Euro 4) 11,76 l/ 400 HP

KAMAZ-65228, 8x8, tractor unit

the the the the the the the
Option The value
Length, mm 8590
Base, mm 1960+ 3000+1440
Curb weight of tractor, kg 16 150
Full combination weight, kg 120 000
Load SSA, kg 24 700
Engine diesel 14,9/ 535 HP

dump Trucks on KAMAZ chassis

Kama automobile plant produces several models of trucks (the body manufactures for them NefAZ). In addition, tipping equipment on the Kama chassis-to-order offer clients a number of other Russian manufacturers, for example, Naberezhnye Chelny, OOO "Automaster" (mark AMKAR) and Krasnogorsk BETSEMA (mark BTSM). The following is the model with tipping bodies, which are produced by that enterprise.

KAMAZ-43255 (4x2). two-Axle dump truck with a wheelbase of 3500 mm can carry 6 cubic platform rear unloading 7500 kg cargo. In version -25(C4) its complement Cummins diesel engine with a capacity of 177 HP and in version -R4 – 245 HP Full weight – 14 800 kg.

KAMAZ-53605-A4 (4x2). Biaxial dump truck with a wheelbase 3950 mm with full weight 20 500 kg designed to carry 11 700 kg of cargo. Power Cummins diesel 6ISBe4 – 300 HP, geometric volume discharged back tippers – 6.5 m3.

KAMAZ-65115-A4 (6x4). Three-axle rear-wheel drive dumper with full weight 25 200 kg can to transport 15 000 kg of cargo. The total combination weight – 38 200 lbs. Geometric body volume back discharge modification with long wheelbase 2840+1320 mm 8.5 m3, versions with a wheelbase 3190/ 1320 mm – 10 m3. Cummins diesel 6ISBe4 develops 300 HP, a gas engine KAMAZ-820.60-260 (Euro-4) on the modification 65115-30 – 260 HP C 2010 the truck received a restyled cabin.

KAMAZ-65111-42 (6x6). Four-wheel drive three-axle truck (wheelbase – 3340+1320 mm) with a gable strapped the rear wheel and discharged back to the body geometric volume 8.2 m3. Its total weight is 25 200 kg, payload 14 000 kg. The total combination weight – 200 kg. 38 the power of the engine KAMAZ-740.622-280 – 280 HP.

KAMAZ-6520-73 (6x4). Three-axle rear-wheel drive dump truck total weight 32 500 kg, load capacity up to 20,000 kg Wheel base 3600+1440 mm. Geometric the volume of different established bodies rear discharge – from 10.5 up to 20 m3. The power of the engine KAMAZ-740.72-400 – 400 HP gas engine KAMAZ-820.73-300 (Euro 4) the modification of 6520-34 – 300 HP

KAMAZ-65205 (6x4). Promising three-axis rear-wheel drive dump truck series M1842 with DMEC cab GVW 26 000 kg, load capacity 15 400 kg. Wheelbase – 3300+1440 mm Engine Cummins ISB-6.7-300 (Euro 4) – 300 HP dump Truck equipped with a body oval section rear unloading, new Daimler bridges, weighing system, ABS and awning with electric.

KAMAZ(Raritek)-68902С (6x4). three-axle rear-wheel drive dump truck-grain truck LPG chassis 65117-34 GVW 24 000 kg, carrying up to 11 650 kg with a trailer 83703G – 32 300 kg. Wheelbase – 4970+1320 mm. The geometric volume of a body with tripartite unloading to 29.7 m3. Power gas-engine KAMAZ-820.73-300 (Euro 4) – 300 HP

KAMAZ-6522-43 (6x6). Three-axle four-wheel drive truck with a gable busbar rear wheels, total weight is 33 of 100 kg, and has a capacity of 19 000 kg. Wheelbase 3600+1400, the geometric volume of the discharge back body – 12 or 16 m3. The power of the engine KAMAZ-740.632-400 – 400 HP, under the order at the firm RIAT – Cummins ISLe 375 (Euro 4) – 365 HP.

KAMAZ-65222-43 (6x6). three-axis four-wheel drive truck with a pent tread of all wheels (wheelbase 4115+1440 mm). Full weight 34 000 kg load capacity – 500 kg. 19 Geometric body volume rear unload – 12 m3. Diesel KAMAZ-740.632-400 – 400 HP

KAMAZ-6580-K5 (6x4). New three-axle rear-wheel drive truck series (М1842) cab type Axor and gable tread rear tires, full weight is 41 000 kg, load capacity – 25 kg 750 Wheelbase – 3510+1440, geometric volume discharged back body with oval cross section – 16 m3. Engine power Cummins ISG12E5 (Euro-5) – 419 HP KAMAZ-740.73-400 (Euro-4) – 400 HP

KAMAZ-65802-K5 (6x6). the New three-axle all-wheel drive truck series (М1842) cab type Axor and gable tread rear tires, full weight is 41 000 kg, load capacity 24 800 kg. Wheel base 3800+1440, geometric volume discharged back body with oval cross section and 15 m3. Engine power Cummins ISG12E5 (Euro-5) – 419 HP.

KAMAZ-65801-J5 (8x4). the New four-axle truck series (М1842) cab type Axor and gable the tread of the rear wheels, the total mass is 50,000 kg, capacity – 33 000 kg Wheelbase– 2000+2870+1440, geometric volume discharged back body with oval cross section – 20 m3. Engine power Cummins ISG12E5 (Euro-5) – 450 HP

KAMAZ-6540 (8x4). Rear-wheel drive four-axle truck with a wheelbase of 1800+2080+1320 mm, geometric body volume – 11 m3. His full weight 31 000 kg, carrying capacity – 18 500 kg capacity Cummins diesel 6ISBe4 – 300 HP Model Avtomaster-6589-08 on the same chassis equipped with a body volume of 12 m3.

KAMAZ-65201 (8x4). Rear-wheel drive four-axle truck with a wheelbase of 1960+3000+1440 mm and 400 - and 420-horsepower diesel engines KAMAZ (Euro-4), the geometric volume discharged-back body is 16 or 20 m3. Full the mass of the truck – 41 000 kg, capacity 25 500 kg. Model Avtomaster-6589-01 on the same chassis equipped with a body volume of about 21 m3.

KAMAZ-43255-25 (4x2)

the the the the the the
Option The value
Overall dimensions, mm 6030х2500х2830
Full weight, kg 14 800
Load capacity, kg 7750
Body volume, m3 6,0
Engine diesel (Euro 4) 6,7 l/ 177 HP

KAMAZ-53605 (4x2)

the the the the the the
Option The value
Overall dimensions, mm 6635х2500х2865
Full weight, kg 20 000
Load capacity, kg 11 000
Body volume, m3 6,5
Engine diesel (Euro 4) 6.7 l/ 300 HP

KAMAZ-65111 (6x6)

the the the the the the
Option The value
Overall dimensions, mm 7400х2500х3135,
unloading ago
Full weight, kg 25 200
Load capacity, kg 14 000
Body volume, m3 8,2
Engine diesel (Euro 4) 11,76 l/ 300 HP

KAMAZ-AVTOMASTER-658901-02 (6x6)

the the the the the the
Option The value
Overall dimensions, mm 7400х2500х3135,
unloading ago
Full weight, kg 25 200
Load capacity, kg 14 000
Body volume, m3 8,2
Engine diesel (Euro 4) 11,76 l/ 300 HP

KAMAZ-65115 (6x4), NefAZ-55108 (6x4)

the the the the the the the
Option The value
Overall dimensions, mm 7040х2500х2750,
unloading ago
Full weight, kg 25 200
Load capacity, kg 15 000
Body volume, m3 10
Engine diesel (Euro 4) 6.7 l/ 300 HP
The gas engine
mod. 65115-30 (Euro 4)
11,76 l/ 260 HP

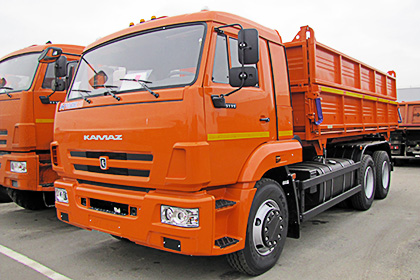

KAMAZ(NefAZ)-45143-A4 (6x4)

the the the the the the
Option The value
Overall dimensions, mm n. d., unloading
on three sides
Full weight, kg 25 200
Load capacity, kg 12 100
Body volume, m3 7,8/ 10/ 15,4
Engine diesel (Euro 4) 6.7 l/ 300 HP

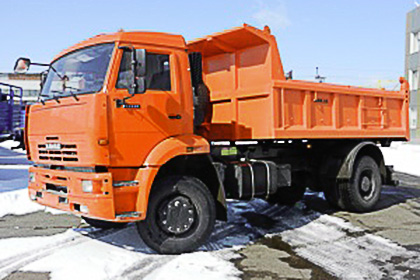

KAMAZ-AVTOMASTER-6589-02 (4x2)

the the the the the the
Option The value
Overall dimensions, mm 6915х2550х3030,
unloading ago
Full weight, kg 19 310
Load capacity, kg 9770
Body volume, m3 8
Engine diesel (Euro 4) 6.7 l/ 300 HP

KAMAZ-AVTOMASTER-658901-10, -11 (6x4)

the the the the the the
Option The value
Overall
dimension, mm
7200(7824)х2550х3130(3200)
unloading on three sides
Full weight, kg 25 200 (22 400)
Load capacity, kg 14 350 (11 430)
Body volume, m3 15
Engine diesel (Euro 4) 6.7 l/ 300 HP

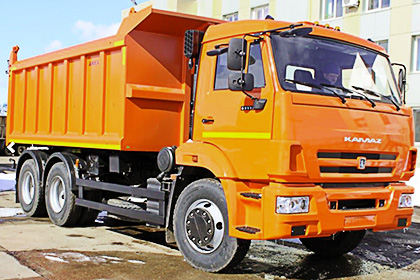

KAMAZ-AVTOMASTER-658901М (6x4)

the the the the the the
Option The value
Overall dimensions, mm 7525х2550х3160,
unloading ago
Full weight, kg 25 200
Load capacity, kg 14 560
Body volume, m3 12
Engine diesel (Euro 4) 6.7 l/ 300 HP

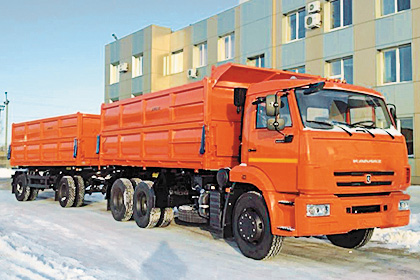

KAMAZ-AVTOMASTER-658901-10M -11M (6x4)

the the the the the the
Option The value
Overall dimensions, mm 7850(7955)х2550х3200(3180), unloading on three sides
Full weight, kg 25 200 (22 400)
Load capacity, kg 14 270 (11 700)
Body volume, m3 17
Engine diesel (Euro 4) 6.7 l/ 300 HP

KAMAZ-6520 (6x4)

the the the the the the
Option The value
Overall dimensions, mm 7795х2500х3055,
unloading ago
Full weight, kg 33 100
Load capacity, kg 20 000
Body volume, m3 12
Engines: diesel (Euro 4) 6.7 l/ 300 HP;
8,9 l/ 400 HP;
of 11.76 l/ 400 HP;
of 11.76 l/ 420 HP

KAMAZ-6520PG (6x4)

the the the the the the
Option The value
Overall dimensions, mm 7795х2500х3055,
unloading ago
Full weight, kg 33 100
Load capacity, kg 20 000
Body volume, m3 12
Gas engine (Euro 5) Of 12.94 l/ 407 HP

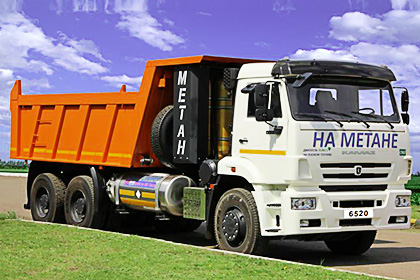

KAMAZ-6520PG CNG (6x4)

the the the the the the
Option The value
Overall dimensions, mm 7795х2500х3055 mm,
unloading ago
Full weight, kg 33 100
Load capacity, kg 20 000
Body volume, m3 12
Gas engine (Euro 5) Of 12.94 l/ 407 HP

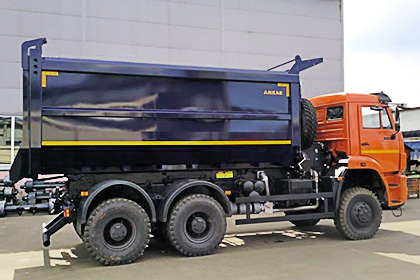

KAMAZ-AVTOMASTER-6589 (6x4)

the the the the the the
Option The value
Overall dimensions, mm 7853(8260)х2550х3220 mm, unloading ago
Full weight, kg 33 100
Load capacity, kg 19 250
Body volume, m3 16(19)
Engines
diesel (Euro 4)
6.7 l/ 300 HP;
8,9 l/ 400 HP;
of 11.76 l/ 400 HP;
of 11.76 l/ 420 HP

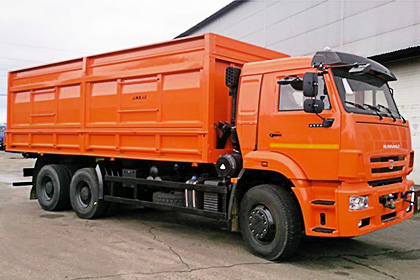

KAMAZ-AVTOMASTER-6589 (6x4), grain

the the the the the the
Option The value
Overall
dimension, mm
9540х2550х3630 mm,
unloading on three sides of the
rear swing gate, tent with frame
Full weight, kg 33 100
Load capacity, kg 19 020
Body volume, m3 28
Engine diesel (Euro 4) 11,76 l/ 400 HP

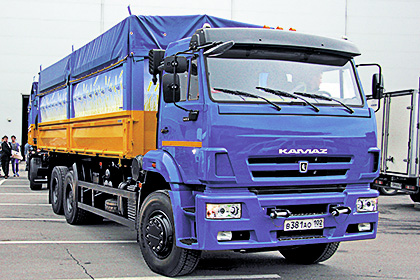

KAMAZ-45144 (6x4)

the the the the the the the
Option The value
Overall dimensions, mm 8480х2500х2970 mm, unloading on two sides
Full weight, kg 24 750
Load capacity, kg 13 575
Body volume, m3 19
Diesel engines
(Euro 4)
6.7 l/ 300 HP;
8,9 l/ 400 HP;
of 11.76 l/ 400 HP;
of 11.76 l/ 420 HP
The gas engine
(Euro 4)
11,76 l/ 300 HP

KAMAZ (Raritek)-68902С (6x4)

the the the the the
Option The value
Full weight, kg 24 000
Load capacity, kg 11 650 kg, unloading
on three sides
Body volume, m3 29,7
Gas engine (Euro 4) 11,76 l/ 300 HP

KAMAZ-AVTOMASTER-658901-03 (6x6)

the the the the the the
Option The value
Overall dimensions, mm 7890(7795)х2550х2990(3080) mm, unloading ago
Full weight, kg 21 600 (20830)
Load capacity, kg 9650 (9580)
Body volume, m3 7(6,6)
Engine diesel (Euro 4) 6.7 l/ 300 HP

KAMAZ-6520-21010-43 "Suite" (K3540) (6x4)

the the the the the the
Option The value
Overall dimensions, mm 7960х2500х3370,
unloading ago
Full weight, kg 35 000
Load capacity, kg 22 000
Body volume (NefAZ), m3 16
Engine diesel (Euro 4) 11,76 l/ 400 HP

KAMAZ-6580-K5 (К4141) (6x4)

the the the the the the
Option The value
Overall
dimension, mm
7245х2550х3460 mm unloading ago
Full weight, kg 41 000
Load capacity, kg 25 750
Body volume (BCM-290), m3 16
Engine diesel (Euro-5) 11,8 l/ 419 HP

KAMAZ-6580-K5 (К4141) (6x4)

the the the the the the
Option The value
Overall
dimension, mm
7245х2550х3460 mm unloading ago
Full weight, kg 41 000
Load capacity, kg 25 750
Body volume
(NefAZ), m3
20
Engine
diesel (Euro-5)
11,8 l/ 419 HP

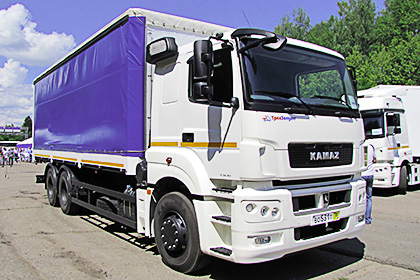

KAMAZ-65207-S5 (T2640-S5) (6x4), grain

the the the the the the
Option The value
Overall dimensions, mm 7245х2550х3460 mm,
unloading on three sides, rear swing gate, frame tent
Full weight, kg 26 000
Load capacity, kg 14 725
Body volume (NefAZ), m3 48,4
Engine
gas (Euro 4)
11,76 l/ 300 HP

KAMAZ-65802-K5 (6x6)

the the the the the the
Option The value
Overall
dimension, mm
8180х2550х3650 mm unloading ago
Full weight, kg 41 000
Load capacity, kg 24 800
Body volume (BETSEMA), m3 15 or 20 (NefAZ)
Engine diesel (Euro-5) 11,8 l/ 419 HP

KAMAZ-6522 (6x6)

the the the the the the
Option The value
Overall
dimension, mm
7800х2500х3280 mm, unloading ago
Full weight, kg 33 100
Load capacity, kg 19 000
Body volume, m3 16
Engine diesel (Euro 4) 11,76 l/ 400 HP

KAMAZ-6589-05 (6x6), 6589-06 (6x6)

the the the the the the
Option The value
Overall dimensions, mm 8400х2550х3560,
unloading ago
Full weight, kg 33 500/ 34 000
Load capacity, kg 19 360/ 20 010
Body volume, m3 16
Engine diesel (Euro 4) 11,76 l/ 400 HP

KAMAZ-65222 (6x6)

the the the the the the
Option The value
Overall dimensions, mm 7800х2500х3280,
unloading ago
Full weight, kg 34 000
Load capacity, kg 19 500
Body volume, m3 12
The diesel engine
(Euro 4)
11,76 l/ 400 HP

KAMAZ-AVTOMASTER-6589-06 (6x6)

the the the the the the
Option The value
Overall dimensions, mm 8400х2550х3560, unloading ago
Full weight, kg 34 000
Load capacity, kg 20 010
Body volume, m3 16
Engine diesel (Euro 4) 11,76 l/ 400 HP

KAMAZ-AVTOMASTER-658901-03 (6x6)

the the the the the the
Option The value
Overall dimensions, mm 8570х2550х3590,
unloading ago
Full weight, kg 34 000
Load capacity, kg 19 200
Body volume, m3 16
The diesel engine
(Euro 4)
11,76 l/ 400 HP

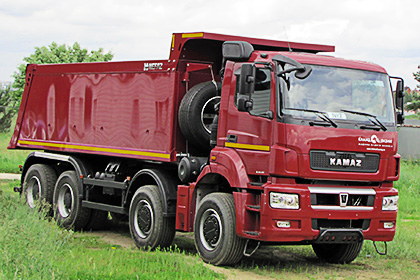

KAMAZ-6520121010-43 "Suite" (K4440) (8x4)

the the the the the the
Option The value
Overall dimensions, mm 9230х2500х3370,
unloading ago
Full weight (max) kg 44 000 (50 000)
Load capacity (max), kg 29 000 (33 000)
Body volume, m3 20
Engine diesel (Euro 4) 11,76 l/ 400 HP


KAMAZ-65801-J5 (K5044) (8x4)

the the the the the the
Option The value
Length, mm 9300,
unloading ago
Full weight, kg 50 000
Load capacity, kg 33 000
Body volume (NefAZ), m3 25
Engine diesel (Euro-5) 11.8 litres/ 440 HP

KAMAZ-65801-J5 (K5044) (8x4)

the the the the the the the
Option The value
Overall dimensions, mm 9300х2550х3450,
unloading ago
Full weight, kg 50 000
Full combination weight, kg
Load capacity, kg 33 000
Body volume (BCM-291), m3 20
Engine diesel (Euro-5) 11,8 l/ 450 HP

KAMAZ-6540 (8x4), AVTOMASTER-6589-08 (8x4)

the the the the the the
Option The value
Overall
dimension, mm
7720/ 8330х2500х3020, unloading ago
Full weight, kg 31 000
Load capacity, kg 18 500/ 17 000
Body volume, m3 11/ 12
Engine diesel (Euro 4) 6.7 l/ 300 HP

KAMAZ-65201 (8x4)

the the the the the the
Option The value
Overall
dimension, mm
9010х3000х3180 mm, unloading ago
Full weight, kg 41 000
Load capacity, kg 25 500
Body volume, m3 16 and 20
Engines: diesel (Euro 4) 11,76 l/ 400 HP;
of 11.76 l/ 420 HP

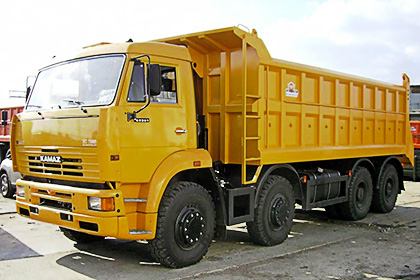

KAMAZ-AVTOMASTER-6589-01 (8x4)

the the the the the the
Option The value
Overall dimensions, mm 9040х2550х3585,
unloading ago
Full weight, kg 41 000
Load capacity, kg 24 800
Body volume, m3 21
Diesel engines
(Euro 4)
11,76 l/ 400 HP;
of 11.76 l/ 420 HP




Back to the list
