JAC

JAC


Anhui Jianghuai Automobile Co., Ltd.

jacmotor.ru, http://jacrus.ru

Founded in 1964 and originally called Hefei Jianghuai Automobile, this firm was one of the first manufacturers of trucks in China. Its modern name Anhui Jianghuai Automobile Co. she received in 1999, then the brand JAC. Today under this brand are manufactured commercial vehicles with carrying capacity from 0,5 to 50 tons, including a chassis intended for installation of various add-ons, tractors, machinery, buses, a few passenger car models and components: engines, transmissions, body parts, etc. used in the production of equipment and technologies of world famous companies, including Isuzu and Nissan. In 2013, the company Anhui Jianghuai released 321,4,2 thousand of trucks JAC of all classes, of which 86,1 thousand heavy, 15.2 thousand medium and 220,1 million (2nd place in the national ranking) light trucks. In the spring of 2013 entered the market of trucks JAC of the new third-generation modern cabins (in the style of Isuzu) N series, which includes four subfamilies from LCV to HCV and modern engines (including diesel engines Cummins) environmental class Euro-4, and a set of modern equipment (for example, ZF gear box, etc.). Among the new products of JAC in 2016/2017 year are model N-75 and N-120 total weight, respectively, 7.5 and 12 t

In Russia the exclusive import and distribution of cars of this brand are involved in the company JAC Motors Rus is a subsidiary of the group "Finasta". For 2016, Russia imported trucks JAC 39 (+62.5 percent). On the Russian market in 2017-2018 JAC intends to implement linenew models weighing from 2.5 to 17 tons with engines of class Euro-5.

At the motor show in Shanghai in April 2017, JAC showed a range of electrographical Shuajling from easy to medium, I3 T6 and updated family diesel truck Kangling, Jinling and Gallop.

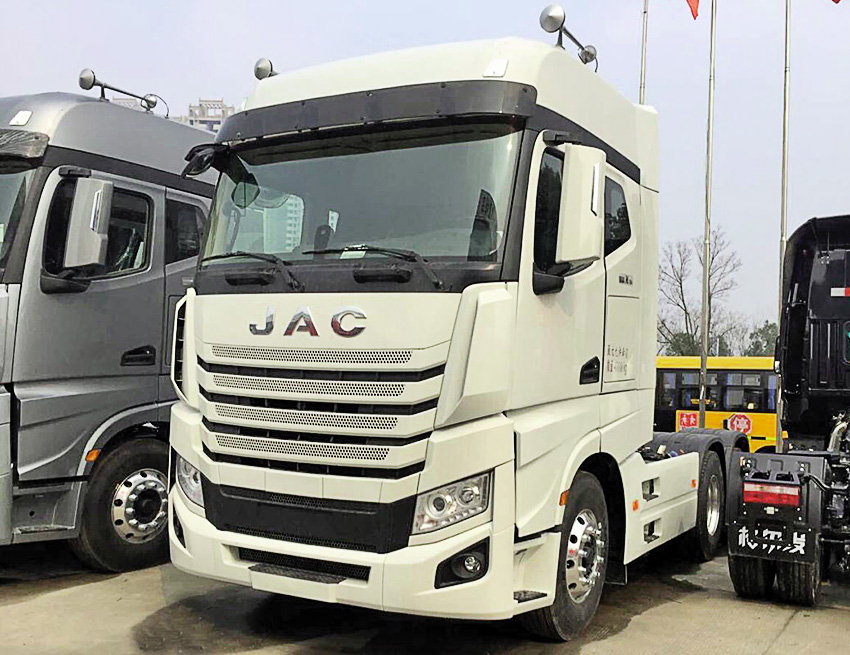

The new flagship K7 JAC Gallop went on the market for two long years

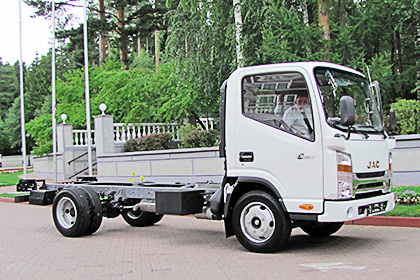

AS N56 (4x2)

JAC truck N56 (721S) is equipped with modern metal double cabin (N series) over the engine and 2.8-liter diesels JAC HFC4DA1-2C (Euro-4) with a power of 116 HP with a 5-speed manual gearbox and HFC4DE1-1D (Euro 5) 150 HP with 6-speed manual gearbox. Front and rear suspension – spring, brakes – drum, ABS. With a total length of car 5995 mm length side of the platform is 4230 mm. With the full weight of 5600 kg load capacity up to chassis 3445 kg. standard equipment included power steering, clutch booster, pre-heater, air conditioning and on demand – side and rear under run protection devices devices, and CD player.

JAC N75 (4x2)

JAC truck N75 (721) is equipped with modern metal double cabin (N series) over the engine and diesel engine Cummins ISF3.8s5154 working volume of 3.8 l, power 156 HP, environmental class Euro-5. Transmission – 6-speed manual JAC LC6T55. Front and rear suspension – spring, brakes – drum, ABS. With a total length of car 5995 mm length side of the platform is 4180 mm. the Car is full weight 6800 kg carries up to 3520 kg of cargo. Standard equipment included power steering, clutch booster, pre-heater, air conditioning and on demand – side and rear under run protection devices devices, and CD player.

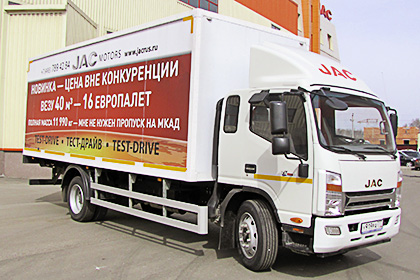

JAC N120 (4x2)

New JAC truck N120 is equipped with modern metal double cabin (N series) over the engine and diesel engine Cummins ISF3.8s5168 working volume of 3.8 l, power 166 HP, environmental class Euro-5. Transmission – 6-speed manual JAC LC6T55. Front and rear suspension – spring, brakes – drum, ABS. The length of the side of the platform is 6200 mm. Vehicle 11 980 kg carries up to 7690 kg of cargo. Standard equipment included power steering, clutch booster, pre-heater, air conditioning and on demand – side and rear under run protection devices devices, and CD player.

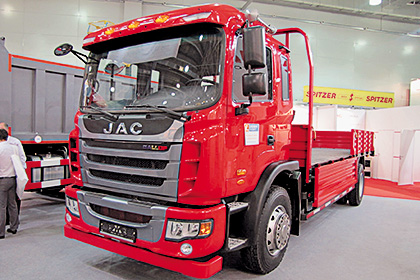

JAC HFC-serie (4х2, 6х4)

Heavy truck JAC Gallop series deliver to Russia in a two-axle (4x2) and three-axle (6x4) options. Their cabin was developed in 2011 in the Italian Bureau of JAC Turin. It is equipped with an upgraded instrument panel, improved ergonomics of the driver's seat, with one sleeper and air suspension. In a frontal impact provides the displacement of the cab in the opposite direction to compensate for the consequences of the attack for the driver and passenger. Surcharge set, air conditioning and electric Windows. Dluhonice are 10-ton truck side Gallop C1721 with a 6-cylinder inline diesel engine Cummins ISDe245 40 with a capacity of 245 HP, environmental class Euro-4 and 6-speed manual transmission. When the length of the machine 8980 mm platform length 6460 mm. is the Basic three-axle chassis JAC HFC3251P1K6E39F stands, whose frame is made of high strength steel by a single stamping with a seamless double sheet. Stamping made on the largest in China, 6000-ton press Kawasaki. The chassis is designed for installation of dump bodies, mixers and other specific adjustments. In Russia, on its basis, offer dump truck HFC3251P1K6 26 with a lifting capacity of 600 kg with a heated body with a volume of 19.3 m3 and a hydraulic cylinder HYVA front placement. Alternative may be offered the body of production of the Russian company "avtomaster". The truck is equipped with diesel engines WP12.375E40 or WP12.400E40 (Euro-4) with common rail system of Bosch SCR and 12-speed gearbox Fast Gear 12JSD200TA with increased torque. Improved front suspension provides the best angle maneuvering. The rear suspension is equipped with stabilizer bar. Brakes with ABS+ASR+EBL. The WEBASTO heater is protected by a metal casing. Rubber products cold-resistant (down to -50°C).

JAC N56 (721S), 4x2, chassis (flatbed/ van)

the the the the the the
Option The value
Overall dimensions, mm 5995х1900х2330
Base, mm 3360
Full weight, kg 5600
Load capacity, kg 3040
Engine diesel (Euro 4) 2.8 l/ 115,6 HP

JAC N75 (721), 4x2, chassis (flatbed/ van)

the the the the the the
Option The value
Overall dimensions, mm 5995х2070х2380
Base, mm 3308
Full weight, kg 6800
Load capacity, kg 3520
Engine diesel (Euro 4) 3.8 l/ 143 HP

JAC N120, 4x2, chassis (flatbed/ van)

the the the the the the the
Option The value
Overall dimensions, mm 8415х2442х3120
Base, mm 4700
Useful length of frame, mm 6200
Full weight, kg 17 400
Load capacity, kg 10 000
Engine diesel (Euro 4) 6,7 l/ 245 HP

JAC Gallop С1721, 4x2, chassis, side

the the the the the the the
Option The value
Overall dimensions, mm 8980х2390х3105
Body length, mm 6460
Base, mm 5000
Full weight, kg 16 600
Load capacity, kg 10 020
Engine diesel (Euro 4) 6,7 l/ 245 HP

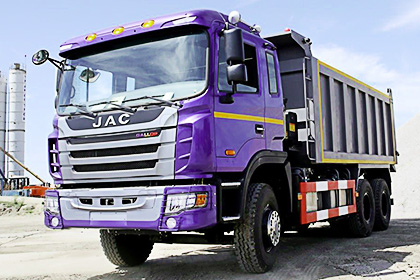

HFC3251P1K6E39F, 6x4, dump truck

the the the the the the
Option The value
Overall dimensions, mm 8265х2495х3500
Base, mm 3690+1350
Full weight, kg 40 000
Load capacity, kg 26 650
Engines: diesel (Euro 4) 11,6 l/ 375 HP;
11,6 l/ 400 HP
