Commercial cars

Hino Motors Industry, Ltd.

www.hinomotors.ru

The Japanese brand of medium and heavy duty trucks Hino Heavy Industry Co., Ltd. (1999 – Hino Motors, Ltd.) appeared in 1942, when separated from TGE company (established in 1910), the founder of production of trucks in Japan. In 1966, the firm Hino became part of the global Toyota Group. In 2009, sold 3 million commercial vehicle brands Hino. Today it is the second largest Japanese (57,9 thousand trucks in 2015) commercial vehicle manufacturer whose products are supplied to more than 100 countries. Some of them in China (GAC Hino Motors Co., Ltd., 2007), Pakistan, Thailand, Indonesia, Vietnam, USA, Canada and Mexico, established companies for production of equipment Hino. In 2008, the parent company of Hino Motors, Ltd. (65%) and the largest trading house in Japan MITSUI & CO., Ltd. (35%) were founded "Hino motors Sales" – the official distributor of Hino in Russia. The partner network of "Hino motors Sales" includes over 30 dealerships in the 3S system (Sales – Sales, Service, Spare Parts – spare Parts). In 2015, the company sold 1430 trucks (-50% in 2014). 2016 is only implemented 752 truck Hino (-47,4%).

In Russia the range of models make up the Hino 300 series with GVW 3,5 and 7,5 t, 500-series total weight of 12 t, 17.5 t and 26 t and 700 series total weight of 30 t and above. For supply to Russia of Hino trucks increased service mileage, and their design is especially adapted to specific local conditions: cold climate, overload, low quality fuel etc At the moment across the country certified 32 mesovortices that equip chassis Hino virtually any body – from the Department vans to flatbed platforms with CMU and refrigeration.

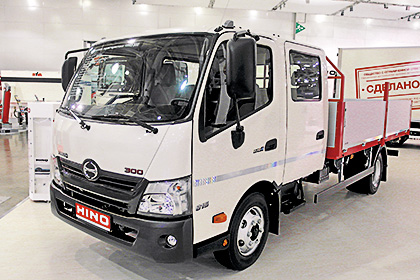

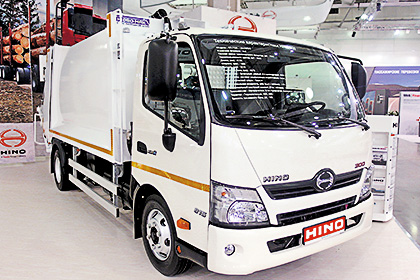

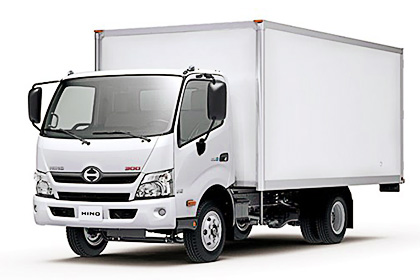

300 series

Series light truck 300 series available in two models – 3615 (GVW 3.5 t) and 3815 (7.5 t). Cabin model 3615 – narrow 3-seater, model 3815 – wide 3-seat or double 7-seat. Wheelbase versions of the model 3615 – 2525, 2800 and 3400 mm, model 3815 – 3430, 3870 and 4200 mm., Respectively provided 7 options mounting length frame (with double cabin) – from of 2.97 to 5.36 m Capacity of the chassis is from 1278 until 4935 kg. All vehicles equipped with 4-cylinder inline turbo diesel N04C-UV capacity of 4.0 liters, 150 HP transmission, 6-speed manual. Front and rear spring suspension, front anti-roll bar. Brakes front and rear disc, vented, with ABS, EBD and brake mountain. The volume of fuel tanks 70 and 100 l

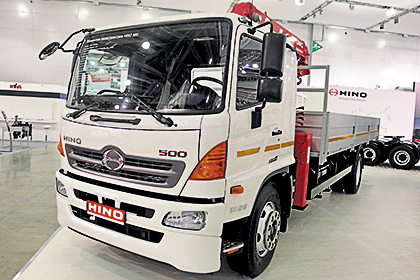

The 500 series

In the 500 series includes three models: GD GVW 12 tons, GH (17,5 t) and FM (26 m). They are all with single 2-seat cab equipped with a sleeper. The engine on all models – 6 cylinder diesel J08E-UR with a volume of 7.7 l, 260 HP, Euro-4 class. Transmission, 6-speed Hino (7-speed for FM), or to GH – 9-speed Eaton. The pneumatic brake system with ABS and ASR, exhaust brake available. Fuel tank capacity – 200 liters (on the dump truck up to 300 l).

Truck chassis 51226 (GD), two modifications of the same total weight of 12 tons and a payload capacity of 7.8 tonnes in 2013 – with a wheelbase equal to 3750, 4250, 4850 and 5150 mm. Suspension of the rear axle as leaf spring and pneumatic.

Truck chassis 51826 (GH), total weight of 17.5 tonnes and a payload of from 11.9 to 12.2 tons in versions with a wheelbase 4260, 5510 and 6200 mm, with spring and pneumatic suspension.

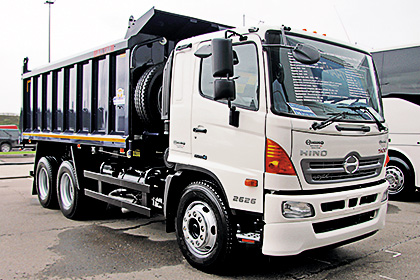

Dump truck 52626 (FM) total weight of 26 tons and a capacity of 14.5 (maximum of 20 t), with a wheelbase of 3590+1300 mm Tipper body produced by "Sinta" rear discharge (model "avtomaster-655191-01") 16 m3 and three-sided unloading ("avtomaster-655191-11-010") 15 m3 ("avtomaster-655191-11-210") 17.5 m3.

Series 700

Series 700 FS (6x4) presented a model 73041 in the form of truck chassis, dump truck or concrete mixer. These trucks are equipped with the 12.9-liter diesel engine E13C−UN with a capacity of 410 HP, environmental class Euro-4 and 7-speed manual gearbox. Tractor model 72845 equipped with the more powerful diesel engine E13C-UR 450 HP, Euro-4 class and 16-speed manual gearbox. Brakes pneumatic dual circuit with ABS and downhill brake. There are two batteries with a total capacity of 170 Ah to improve the start-up in winter.

Truck chassis 73041 (FS) proposed in two versions, differing in total length (9170 and 10 645 mm) wheelbase (4640+and 5350 1310+1310 mm) and the cab (sleeper or not). Other parameters of the car are the same: total weight 30,7 t, load capacity – 21 kg. 915 fuel tank Volume – 300/ 400 l (short/ long base). On long-wheelbase of 5.35-metre chassis release 19,4-ton truck-grain "avtomaster-655191-40" with 30-CC-body three-sided unloading.

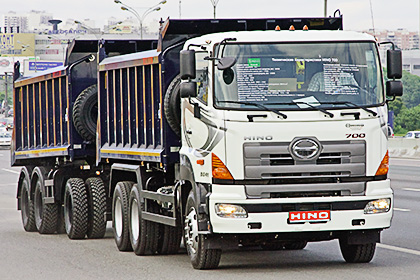

Dump truck 73041 (FS) equipped with a double extended cab with bunk. Its total weight 30,7 t, load capacity of 17.5 t (valid – 28 t), length 7840 mm, wheelbase 3655+1310 mm fuel tank capacity 300 liters Offer a tipper body two types with rear unloading, both Russian production: LLC "IPV" volume of 16.6 m3 and OOO "Automaster" volume of 16.5 m3.

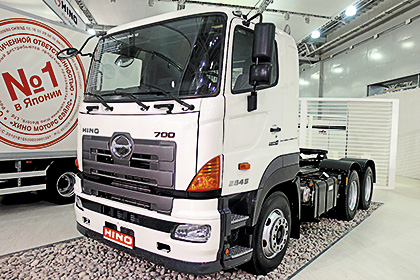

Tractor 72845 (SS) feature a double cabin with bunk. Curb vehicle weight – 8785 kg, the load on the SSU – 18,4 so the Truck can work in a roadtrain full weight up to 60 t dimensions – 7005х2520х3325 mm, wheelbase – 3300+1310 mm, the height of the fifth wheel – 1310 mm fuel tank capacity – l 400 tyre Size – 295/80R22,5. Maximum speed – 90 km/h.
