Commercial cars

Automobile plant "GAZ"

www.gaz.ru

The first stone in the Foundation of the Gorky automobile plant was founded in may 1930, and after 18 months after the start of construction of its gates came the first production car. With the help of experts from Ford Motor Company was mastered conveyor Assembly of the lorry GAZ-AA (after modernization in 1938 – GAZ-MM), which complements a three-axle 2-ton GAZ-AAA. On these trucks, issued nearly a million copies, the country won the great Patriotic war. In the postwar period, the Gorky automobile plant produced millions series a few models of trucks that formed the basis of the vehicle fleet of the country: GAZ-51, -52, -53, -63 and -66. In November 1992, the company became a joint stock company of open type. In 1994, the GAZ launched mass production of modern lorry GAS-3302 "GAZel" - class LCV, successfully completing, and later strongly pushed a line of medium-duty GAZ-3306/ -3307/ -3309/ -4301. In 2001, on the basis of the Gas was formed by the country's largest automotive holding RusPromAvto, received after the restructuring in 2005 the current name of "Group GAZ" and the Gorky automobile plant began to be called JSC "Automobile plant GAZ".

In early 2010, the series has gone restyled family "GAZelle BUSINESS" and "Sobol BUSINESS", and in autumn of the same year began a massive set of "Gazelles" and "Sables" with diesel Cummins ISF 2.8 and LPG fuel systems, including compressed natural gas (CNG). From April 2013 the series went to Nizhny Novgorod a new generation of light commercial vehicles "GAZelle NEXT", complemented in 2014, the two-cabin version and in the spring of 2016 all-metal vans (tsmf), including the version of the combo. A series of "GAZelle NEXT" was supplemented with the diesel and gas versions with upgraded engine Evotech 2.7 (A274) the production of UMP. In addition, a separate conveyor line AZ GAS 2014 is going van T1N Sprinter Classic (see Mercedes-Benz), equipped with diesel OM616, Assembly JAMZ. In the autumn of 2014 began a series of medium-duty 5-ton trucks "Gazon NEXT" with a diesel engine YAMZ-5344 (Euro-5), in which the ruler also includes a utility version of "Gazon NEXT City", replacing the 4-ton model of the "Valdai" GAZ-33106 (with Cummins engine ISF3.8L). The issue of the truck "Valdai" was completed in December of 2015. In the summer of 2017 went into a series version of the series "Sobol BUSINESS" – "the Farmer Sobol 4x4" (GAS-231073) and "Sobol CityVan". C 2017 the only petrol (gas) engine on both series of "GAZelle" became the Evotech A274 (A2755). In 2018, a series of "GAZelle NEXT" will receive a 2-liter turbodiesel TDI CR manufactured by Volkswagen 150 HP environmental standard Euro 6, which will be set on export version. In November 2017, the series has gone enhanced version of "GAZelle NEXT" (C41R92) total weight 4.6 tons, and in December/January will be a version "Lawn NEXT" full weight 10 tons, including advanced tractor C47, unified on the chassis with the new 7,7-meter bus "NEXT Vector".

a Series of "Gazon NEXT" with the end of 2017 will increase by the full model weight of 10 t carrying capacity of 5.65 t, wheelbase 5.15 m, and in 2018-m appears korotkobaznym version, which will replace the long-outdated ZIL.

And by 2019, the NEXT series will complement the 7-ton version of "Gazon NEXT" full mass 11,9 ton, also unified on the chassis with new extended to 8.8 m version "of the Vector NEXT". For the model of "Lawn" requires a more powerful frame and rear axle with a different layout of the power unit and landing mounted units that require additional design work. More far term (not before 2019) postponed and the release of all-wheel drive 3-ton truck "Sadko NEXT", and also compact van "GAZelle NEXT" (previously "Sobol NEXT") with GVW of 2.8 t

In the more distant term is not excluded the development of a light delivery vehicle models in the category lightLCV type VW Caddy, perhaps, under the revived brand "Volga". By the way, in 2018 a series of "GAZelle NEXT" will be equipped with a turbo-diesel Volkswagen TDI with Common Rail power
100-150 HP environmental class Euro 6, which LCV GAS will be exported to foreign countries where environmental the requirements are high. By the way, export "GAZ group" in 2017 has spread to 51 countries.

For the production of the range all-terrain versions of the collections "Sobol Rover", "Vepr NEXT" and "Sadko NEXT" in AZ GAS after 2018 will be a special production unit "GAS Trophy".

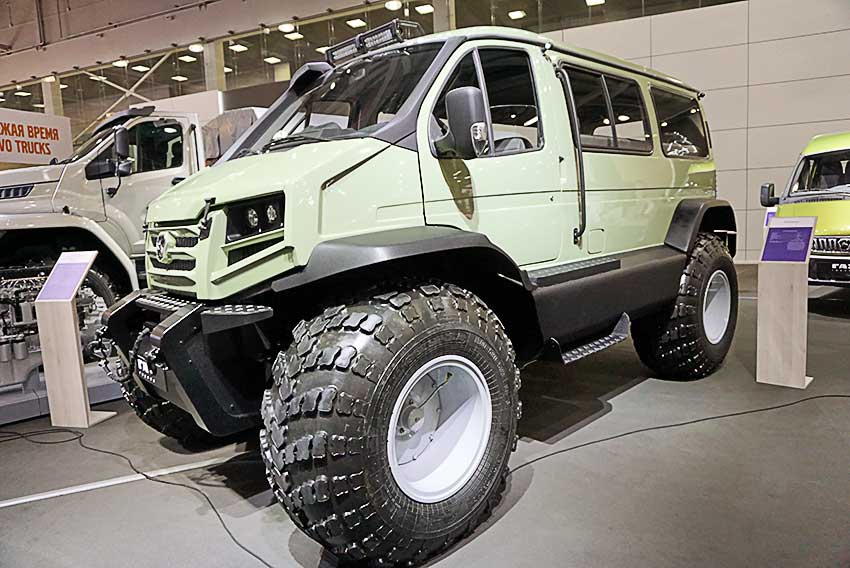

Prospective passenger vehicle "Sobol all-terrain Vehicle" designed to transport 10 persons (including the driver) on rough terrain and thanks to the "pneumatic" can even swim despite the total mass 3580 kg.

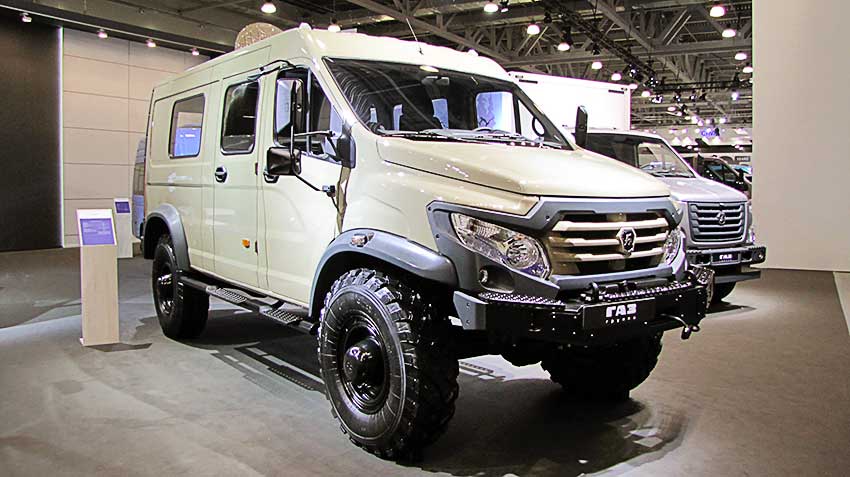

Forwarding the car "Vepr NEXT" when the total mass 6850 kg transports over rough area 7 and up to 1.5 t of cargo in the trunk. On the chassis
it is unified with a pickup truck, "Sadko NEXT".

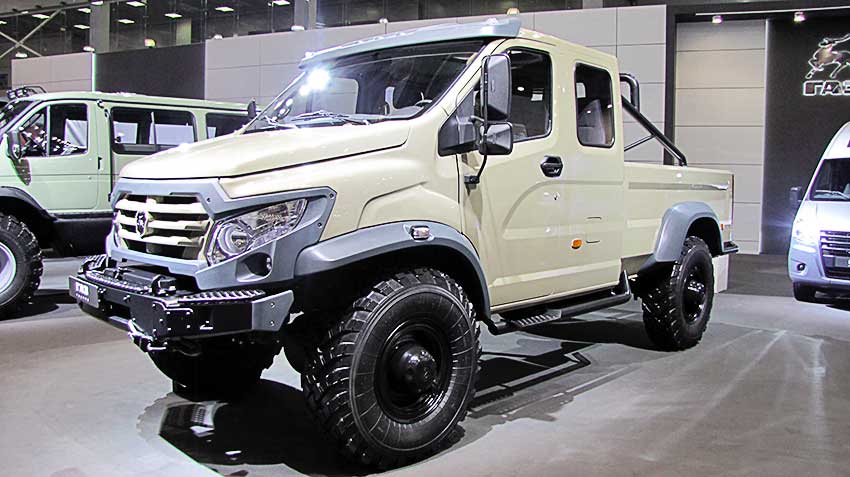

Pickup "Sadko NEXT" with the full weight 6980 kg in transports in addition to the cargo on the platform with dimensions 2,55х1,15х0,56 m still 7 people in the cockpit. Wheel with a bore diameter
18-inch is equipped with a centralized swap air.

AZ GAS also means actively develop the line electric. Thus, in the second quarter of 2018 will start small-scale production of elektroorgana "GAZelle NEXT Electro". In 2019 appears unified electroplating for all model number of bodies "GAZelle NEXT", including the side version. The main areas of application commercial electric GAS see also passenger transport segments catering and mobile trading (auto shops and food trucks), and the provision of services to the population including medicine (service and mobile medical centers), i.e., where the mileage of a small car and needed a permit to pedestrian and other the "green" zone. By 2020, the GAS is going in conjunction with MSU to develop the motor and components, including packaging batteries, on the basis of which to develop a new electric car generation.

In 2015, GAS fired 59,7 thousand trucks (-10,6%), of which 14,6 million (-28%) with diesel and 17.8 million (-11,4%) chassis. In 2016, the production of freight cars was 56,4 million (-5,5%), of which a diesel engine, 14.9 thousand (+2.3%) and 21.6 thousand chassis (by 21.5%). On the Russian market in 2016, was implemented (according to "AUTOSTAT info") 41 million (+8,9%) families LCV "GAZelle BUSINESS" (18.2 thousand) and "GAZelle NEXT" (of 18.15 million) and "Sobol BUSINESS"
(4.6 thousand), and 8.8 thousand LDT "Lawn NEXT" C41 (5.3 thousand) and 3.2 thousand series GAS-3307/3309/3308
and the last 0.3 thousand "of Valdaev" (GAS-3310). For the first 9 months of 2017, the implementation of collections LCV "GAZelle BUSINESS" (11,65 thousand), "GAZelle NEXT" (17,6 thousand) and "Sobol BUSINESS" (3.4 thousand) amounted to 32.6 thousand, and of 6.16 thousand LDT "Lawn NEXT" (3.7 million) and 2.4 thousand series GAS-3307/3309/3308.

GAZ-2310, GAZ-2752 "Sobol BUSINESS" (4x2, 4x4)

Car GAZ plant produces light commercial vehicle Sobol (gross weight – 2800 kg) of cargo in two basic versions: chassis and metal box. Both versions are rear-wheel drive, polkapete layout with pent busbar of the drive wheels. Customers also proposed a modification of the passenger van and four-wheel drive versions of all models. Upgraded in February of 2010 "Sable BUSINESS" has received the same changes (eg air conditioning) that polutoratonny the family "GAZelle BUSINESS".

After the upgrade in the engine compartment "Sable BUSINESS" appeared line 4-cylinder petrol engine UMZ-42164-70 (123 HP, Euro-4) with 5-speed manual transmission, imported Cummins ISF 2.8 turbo-diesel (120 HP, Euro-4) with original 5-speed manual gearbox. C 2017 main engine was a gasoline UMP Evotech A275 (see "GAZelle NEXT"), supplemented by diesel engine Cummins ISF2.8s5129P (of 106.8 HP, Euro-5). The car's wheelbase – 2760 mm, ground clearance – 150 mm fuel tank volume – 70 l Front suspension independent coil springs, rear – dependent spring. The brakes of the steered wheels disc leading – drum. With all rear-wheel drive version of "GAZelle BUSINESS" and "Sable BUSINESS" by the order set ABS 8.1 Bosch and differential lock rear axle electric firm Eaton.

Chassis GAZ-2310. In this embodiment, the vehicle equipped with the side platform size mm 2340х1978х400 or van body. The capacity of the machine is up to 995 kg.

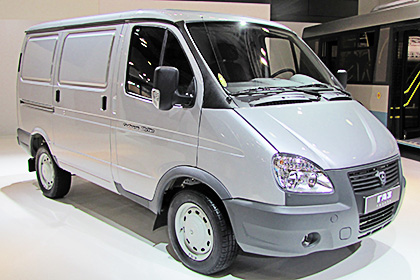

tsmf GAS-2752. In the variant panel van-a vehicle designed to carry
900 kg of cargo. The dimensions of the load compartment – 2460х1830х1530 mm, its volume – 6.9 m³.

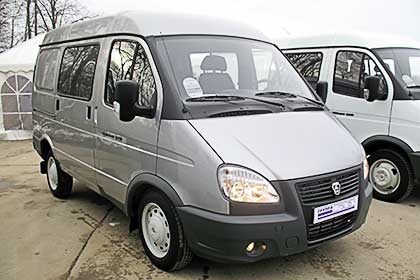

Combi GAS-2752. a Utility version of the vehicle designed to carry seven persons, and its maximum payload is 800 kg. the Dimensions of the load compartment – 1330х1830х1530 mm and a useful volume of approximately 3.7 m³. br>

tsmf GAZ-2752-6744 CityVan. New version with a body the van on the basis of minivans "Barguzin" carrying capacity of 950 kg and lifting back door is double hinged. The height of the cargo compartment – 1400 mm, its volume is 6.3 m³. 2018 will be certified lightweight version with full weight up to 2.5 t reduced to 600 kg passport load capacity, so it can avoid restrictions on capital cargo frame.

"Sobol 4x4" (GAZ-23107 – the-Board, GAS-231073 "Sobol Farmer" side with double cab, GAZ-27527 – van and Kombi) on average 250 kg heavier than the RWD versions and differ from them increased to 205 mm ground clearance, leaf spring front suspension and 2-speed transfer case and the order of forced locking center differential production Eaton. Version Full Time with permanent all-wheel drive and a locking center differential available with pluggable front axle with constant velocity joints (DANA, USA).

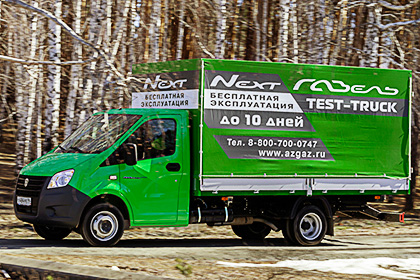

"GAZelle NEXT" (4x2)

the Second generation of the LCV Gas in the line from the original polkapete 3 - or 7-seater cabin or body of tsmf, rear wheel drive and a gable busbar of the drive wheels. Chassis and flatbed and tsmf are available with both standard and extended base. And short side version is equipped with aluminum side platform, and an elongated steel from "GAZelle BUSINESS". A number of third parties equipped with the chassis of "GAZel NEXT" a the range and special add-ons. In the spring of 2016 the series has expanded the range of tsmf useful volume of 11.5 m³ 13.5 m³. The total mass of any of the family vehicles until recently then is 3500 kg. At the end of 2017, the series has gone from 4.6 ton flatbed truck "GAZelle NEXT" model C41R92. On his chassis in 2018 will be created for 15.5 CC delivery vans and a 20-seater bus (H3L4).

On "GAZelle NEXT" on set today as the petrol engine UMP Evotech A274/A275
(2,69 l, of 106.8 HP, Euro-4/Euro-5) and its gas version Evotech A2755T (120 HP, Euro-5) and the turbo diesel Cummins ISF2.8s5R129P (2,89 l, 120 HP, Euro-5) and ISF2.8R148s5161P (149,6 HP, Euro-5). The last 150-horsepower engine became the base for the new 4.6-ton models "GAZelle NEXT". The NEXT cab (also in tsmf) in the short 3-seater and 7-seater twin (with additional side door) versions, featuring improved ergonomics, increased comfort, active and passive safety. Standard equipment includes: height-adjustable steering column, joystick gearshift (on tsmf), driver's seat with adjustable and armrest, electric Windows, cruise control, trip computer, Central locking, alarm open door, heated side mirrors, a heater radiator, audiopreparation (panel 2DIN), the washer tank 5 l, etc. For an extra charge of setting up the PA system with control buttons on the steering wheel and USB connector, pre-heater Webasto, electric mirrors, luxury seat with lumbar support and heated battery high-capacity (85 Ah), a set of door pockets and overhead console 1DIN. Transmission, 5-speed manual. Fuel tank volume of 80 l. Rear suspension is leaf spring with stabilizer bar front suspension model "NEXT" is made of independent spring with stabilizer lateral stability, which, coupled with import power rack and pinion steering ZF allowed us to achieve improved handling. Front wheels are installed disc brakes on the rear wheel – drum. By request – ABS. Is possible to install a custom differential lock rear axle of the firm of Eaton electric. In the longer term (not before 2019) there should be a version with 4x4 constant velocity joints on the front axle.

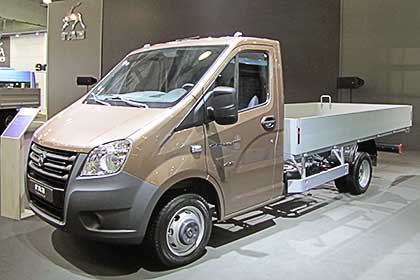

Chassis/side GAS A21R22. Size flatbed platform mounted on the standard chassis of "GAZel NEXT" with a wheelbase 3145 mm is 3089х2066х380 mm. Curb weight of this version of 2060 kg, payload if there are two people in the cab 1440 kg. of LPG modification to compressed natural gas (methane) is referred to as A21R26. Its load capacity of 1390 kg, and the total capacity 4 cylinders – 41,6 m³.

Chassis/side GAS A21R32. Extended modification of "GAZelle NEXT" with a wheelbase increased to 3745 mm curb 170 kg heavier than the basic version and is equipped increased by the length of the side platform size 4168х1978х380 mm.

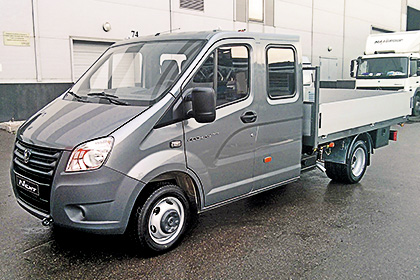

Side GAS A22R22. On the chassis of "GAZel NEXT" with 7 seater double cab with wheelbase 3145 mm set side platform size 2500х2070х380 mm. Curb weight of this version of 2235 kg, the load capacity of 1,300 kg.

Side GAS A22R32. extended modification of "GAZelle NEXT" with 7 seater double cab, with a wheelbase increased to 3745 mm curb weight 2365 kg and has an extra-long side platform size 3200х2070х380 mm.

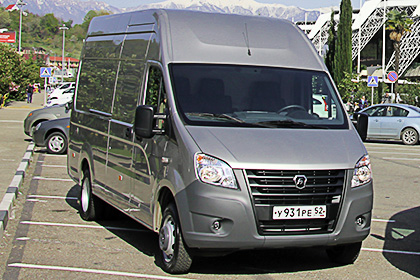

tsmf GAS A31R22/A31R23. In the base case, all-metal wagon (the base of 3145 mm) with a 3-seater cabin is a car designed to carry 1110-1220 kg of cargo. The dimensions of the load compartment – 3031х1860х1927 mm, its volume is 11.5 m³.

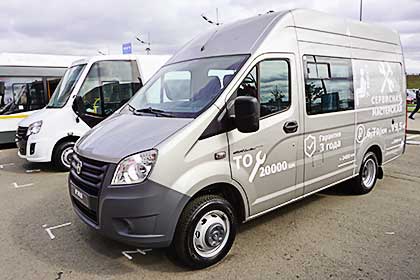

Combi GAS A32R22/A32R23. Cargo base van is designed to carry seven persons, and its maximum capacity is 1105 kg. Dimensions of the load compartment – 2400х1860х1927 mm, the volume of 7.5 m³.

tsmf GAS A31R32/A31R33. In long panel van (wheelbase 3745 mm), the vehicle is designed to carry 1070-1180 kg of cargo. The dimensions of the load compartment – 3631х1860х1927 mm, its volume – 13 m³.

Combi GAS A32R32/A32R33. Utility version long van is designed to carry seven persons, and its maximum carrying capacity is 980 kgs. Dimensions of the load compartment – 3000х1860х1927 mm, the volume of 9.5 m³. br>

Side GAS С41R92. a New more powerful model categories LDT in a series of "GAZelle NEXT", total weight 4600 kg with a 3-seater cab, with a wheelbase 3745 mm, load capacity 2618 kg, equipped with side platform increased dimension. Overall the size of the car: 6580х2513х2310 mm.

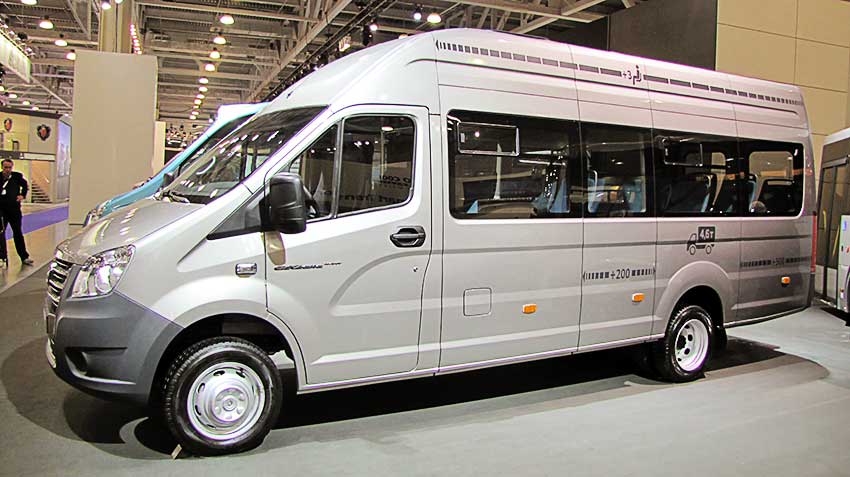

On the new chassis "GAZelle NEXT", total weight 4.6 t in 2018 appears to 15.5 CC tsmf
and this 20-seater bus.

"GAZelle NEXT Electro" (4x2)

In 2016 JSC "Spetsautoleasing" and the PIC of GAZ Group on the program of import substitution by the order of JSC "MOESK" (ROSSETI) has created small-scale family cargo, specialized and special electric vehicles segment LCV (total weight 4.2 t) with all-metal body type van and Kombi. In the future, the series will also appear "taxi" database of tsmf. Internal indices: GST 4511212117 ("Mobile lab") and OKP 4511212118 ("Mobile workshop"). Body type of tsmf and chassis of "GAZel NEXT Electro" is identical to the basic series "GAZelle NEXT". Premiere and serial production – July 2016, Nizhny Novgorod, taxi – 2017. Volume: 8.2 m³ in the future, and other dimensions of the body. Load capacity (Combi): 1140 kg. Motor Siemens (nominal/ maximum) power 63/98 kW and ΜM=160/ 300 N·m and power inverter-Converter – both with liquid cooling. Transmission: 1-speed gear ratio of the reduction gearing of 2.3:1. Battery lithium (NCM) maintenance-free manufactured by EnerDel with a capacity of 49 kW·h cruising range 130 km max speed: 110 km/h. acceleration to 60 km/h – 18 s. the charging Time of 22-kilowatt charging device evrostandart – 3 hours from a household socket – the Equipment is unified with the base model and also includes special for electric equipment: regenerative braking system and independent Webasto heater 7 kW of power. The warranty on electric vehicle – 150 000 km
or 24 months. and the battery is 36 months.

Of tsmf GAZelle NEXT made the electric car Electro

GAZ-3302, GAZ-33023, GAZ-2705 "GAZelle BUSINESS" (4x2, 4x4)

In the basic version, "Gazelle" is produced with polkapete 3 seater cab, rear wheel drive and a gable busbar of the drive wheels. Customers also proposed cargo version of the chassis and panel van (double cab), extended version of the chassis and different wheel-drive versions. The total mass of any of the family vehicles is 3,500 kg.

Since 2010 is a restyled family of "GAZelle BUSINESS". From 2013 to 2017, it was equipped with upgraded petrol engine UMZ-42164-70 (123 HP, Euro 4) or imported Cummins ISF 2.8 turbo diesel (120 BHP, Euro 4) and an LPG engine UMZ-42167 (99 HP) liquefied gas (propane-butane) and compressed methane (UMZ-421647). From 2017 the base engine was upgraded UMP EVOTECH 2.7 L (A274) on petrol or gas. Transmission, 5-speed manual (diesel versions – the original reinforced). Fuel tank capacity (petrol/diesel) is 80 l, and the volume of gas cylinders for gas releases: 33025 (propane) – 1х88 l 1x100 l or 1х120 l; 33026 (methane) – 4х53 L. Suspension "GAZelle" leaf spring, the front wheels are installed disc brakes on the rear leading – drum. To order install the lock ELoker™ rear axle the firm of Eaton electric.

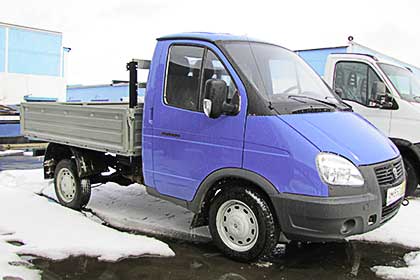

Chassis/Board of GAZ-3302. Size flatbed platform mounted on the chassis "gazelles" with a wheelbase of 2900 mm, is 3056х1943х380 mm. Curb weight of this model

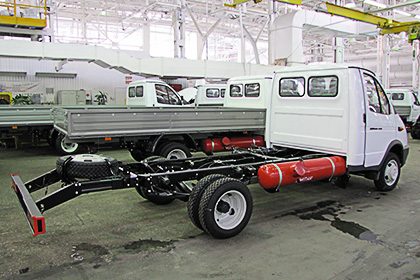

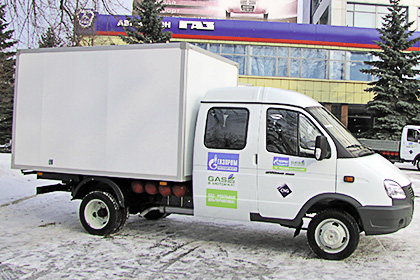

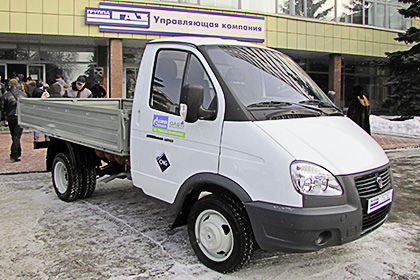

1850 kg load capacity in the presence of two people in the cockpit – 1500 kg. of LPG modifications LPG (propane) are designated as 33025, and compressed natural gas (CNG) – how 33026.

Chassis/onboard GAS-330202. extended modification of "GAZelle", wheelbase which increased from 2900 to 3500 mm curb 100 kg heavier than the basic version and is equipped increased by the length of the side platform size 4166х1943х380 mm. long LPG modifications LPG (propane) are designated as 330252, and compressed natural gas (methane) as 330262.

chassis Passenger-and-freight GAZ-33023 "Farmer BUSINESS". This vehicle has an extra-long double row cabin, accommodating six people. Size of loading platform versions with a wheelbase of 2900 mm is 2306х1943х380 mm, curb weight is 2050 kg. 330232 Modification with increased up to 3500 mm wheelbase equipped with the side platform size 3056х1943х380 mm, and its curb weight – 2150 kg. extra long cylinder modify the "Farmer BUSINESS" liquefied petroleum gas (propane) are designated as 330253, and compressed natural gas (methane) as 330263.

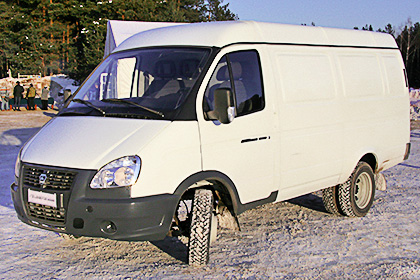

Van GAZ-2705. delivery vans with a wheelbase of 2900 mm has the same total weight 3500 kg, and the chassis, but its curb weight is slightly more and is 2000 kg. Dimensions of the load compartment – 3130х1719х1515 mm, its volume – 9 m³. Modification of LPG liquefied petroleum gas (propane) is designated as 27055.

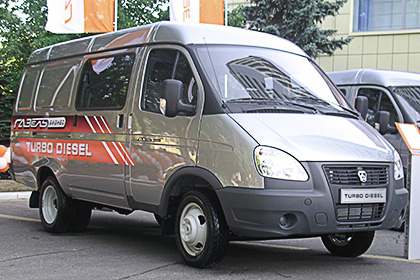

Kombi GAZ-2705. delivery vans in the Combi version can transport up to seven people, and its maximum capacity is 1400 kg Dimensions of the load compartment – 2000х1719х1515 mm, its capacity is about 5.8 m³. Modification of LPG liquefied petroleum gas (propane) is designated as 27055.

Modification of "GAZelle BUSINESS" terrain with permanent all-wheel drive all wheels are called GAZ-33027 (side), GAS-330237 (on-Board utility "Farmer BUSINESS") and GAZ-27057 (delivery vans). From the base rear-wheel drive versions are different increased by 250 kg curb weight, the presence of a 2-speed transfer case with forced locking differential millennim increased from 170
up to 190 mm ground clearance.

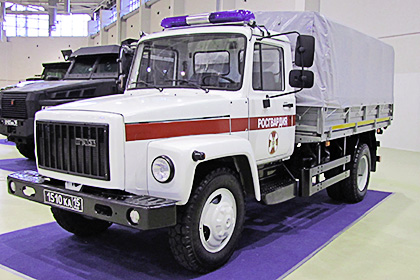

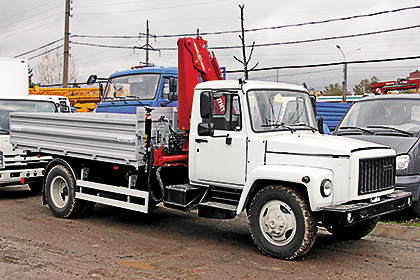

GAZ-3309 (4x2)

Conventional medium-duty truck of the fourth generation with the wheel formula 4x2, lifting capacity 4500 kg, is designed for operation on roads of all categories. 2013
until 2017 GAZ-3309 is equipped with only 4-cylinder turbo diesel with intercooler (with intercoolers) 4th environmental class: Belarusian MMZ D-245.7Е4 with a nominal capacity of about 125.4 PS (version of GAZ-3309); domestic YMZ-53442 capacity of 134,5 HP (GAZ-33098) and by order of the imported turbo diesel Cummins ISF (version of GAZ-33096). 2017 truck (GAZ-33098) equip only diesel engine YAMZ-5344 5th environmental class. Transmission, 5-speed manual. The standard 3770 mm wheelbase, ground clearance 265 mm fuel tank capacity 105 l, the dimensions of the factory on-Board platform 3490х2170х510 mm. in Addition to modifications with the standard wheelbase, third parties (for example, "Chaika-Service") offer versions with elongated wheelbase, increased to or 4570 5070 mm. the Maximum length of a side of the platform or add-in the first case is 5000 mm, and the second 6100 mm. both Suspension bridges spring (front stabilizer), power steering fitted with steering, brakes drum type, with ABS, capable of installation of the tachograph and GLONASS.

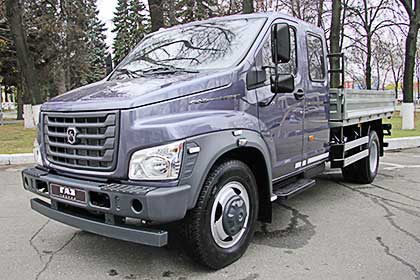

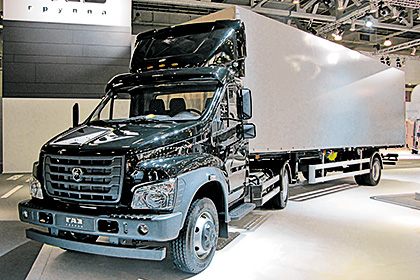

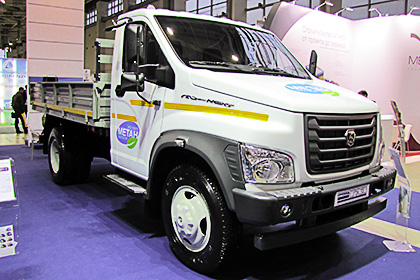

the"Lawn NEXT" (4x2)

Series medium-duty conventional trucks, the fifth generation of a 4x2 with a lifting capacity of 4700-5100 kg for the use on roads of all categories. Commercials version of "Gazon NEXT City" 4x2 with low loading height is designed for use on roads with improved surface. The car is equipped with a 3-seater or 7-seater cabin module "GAZelle NEXT" and original plumage. In a series of "Gazon NEXT" set or turbodiesel YAMZ-53441 (4,43 l, of 148.9 PS, 490 N·m, Euro-5), or the gas motor of YAMZ-534 CNG (4.45 l, 148,8 PS, 490 N·m, Euro-5). Equipped with a turbodiesel Cummins ISF3.8s41R154 (Euro 4) are stopped. Gearbox reinforced 5-speed manual ZF production (torque 500 N·m). The maximum length of a side of the platform or add-in the first case is 3650 mm, second – 5120 mm. the Body is the basic version holds 10 standard Euro pallets in the load compartment volume of 23 m³. Version with enhanced side platform holds 12 pallets, the volume of the cargo compartment can reach 25 m³. The possibility of additional refinement of the loading platform increases the capacity to 17 pallet or 45 m³. Both suspension bridges spring (with rubber mount) with stabilizers, integral power steering ZF power-steering and height-adjustable steering column, pneumatic brake system with Wabco disc brakes with ABS+ASR. On a version of "Gazon NEXT City" the turning radius is reduced accordingly to 6.8 and 7.9 M. Provided the ability to install tachograph and GLONASS.

Chassis/side GAS C41R13. the basic version of the chassis with a wheelbase of 3770 mm and an overall length 6263 mm. Loading height (with flatbed) 1300 mm ground clearance 253 mm Kerb weight of this version 3000/2840 kg, load capacity kg. 3850/4010 Cylinder modification for compressed natural gas (methane) is referred to as C41R16.
Its capacity 4515 kg, and the total capacity 7 cylinders – 72,8 m³.

Chassis/side GAS С42А41. Chassis "Gazon NEXT" with 7 seater double cab with a wheelbase of mm. 3770 Curb weight of this version of 4155 kg, load capacity 2695 kg. With flatbed carrying capacity 2505 kg.

Side GAS C42A43. extended modification "Gazon NEXT" with 7 seater double cab, with standard wheelbase 4515 mm, the curb weight 4315 kg, payload
2535 kg When equipped with the side platform capacity is 2345 kg.

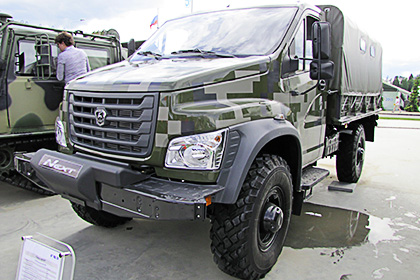

"Sadko NEXT" (4x4)

Prospective truck high flotation of the fifth generation GAS С41А23/ С42А43 "Sadko NEXT" created by deep modernization of the truck GAZ-3308 "Sadko". It is provided with a frame with additional crossmember, strengthened front and rear suspension, tyres extra load and reinforced base platform, which allowed to raise the load capacity of 1 t to 3 t, with total mass 6850 kg. is also Strengthened transfer box (electric), applied integral steering and upgraded brake system. The standard wheelbase is 3770 mm (version C41A2), and long – 4515 mm (С42А4). For the civilian market, the base engine for "Gazon NEXT 4x4" – JAMZ-53441 (C41A23/ C42A43), by order – Cummins ISF3.8s41R154 (C41A21/C42A41). Transmission – 5-speed manual, it implements, 2-speed transfer case with electric drive. The dimensions of the side platforms 3565х2335х380 mm, ground clearance – 315 mm. the Suspension is fully sprung with rubber-metal hinges, brake mechanisms of all wheels drum, pneumatic-hydraulic brake system with ABS. Long wheelbase version C41A23 utility with 7-seat double row cabin, will also manufacture the long-wheelbase version with single 3-seat cabin and extended (4.3 m) side platform.

Chassis/side GAS C41R13. base version chassis 4x4 with a wheelbase 3770 mm and an overall length 6263 mm. Loading height (with flatbed) 1300 mm ground clearance 253 mm Kerb weight of this version 3000/2840 kg, load capacity kg. 3850/4010 Cylinder modification for compressed natural gas (methane) is referred to as C41R16.
Its capacity 4515 kg, and the total capacity 7 cylinders – 72,8 m³.

Chassis/side GAS С42А41. Chassis "Gazon NEXT" with 7 seater double cab with a wheelbase of mm. 3770 Curb weight of this version of 4155 kg, load capacity 2695 kg. With flatbed carrying capacity 2505 kg.

Side GAS C42A43. extended modification "Gazon NEXT" with 7 seater double cab, with standard wheelbase 4515 mm, the curb weight 4315 kg, payload
2535 kg When equipped with the side platform capacity is 2345 kg.

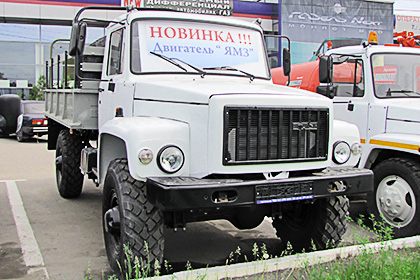

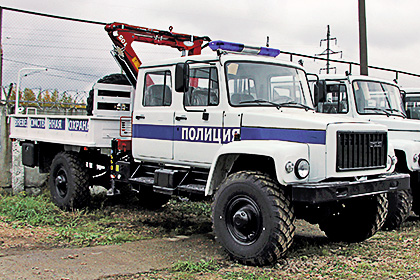

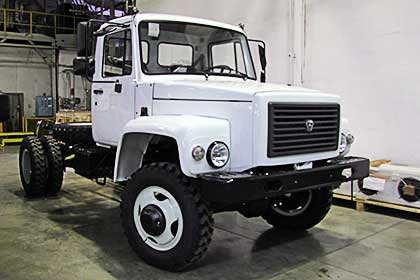

the GAZ-3308 "Sadko" (4x4)

Truck high flotation of the fourth generation of GAZ-3308 "Sadko", the successor to the legendary GAZ-66 (third generation), in the frame, the cab, the hood and the powertrain is almost unified with the road GAZ-3309. Its wheelbase is mm. 3770 With the full weight of 6350 kg truck carries 2000 kg of cargo. For the civilian market in 2013-2016 proposed modification of the 4th environmental class with 4-cylinder turbo diesel with intercooler (with intercoolers): MMZ D-245.7Е4 capacity of about 125.4 PS (version of GAZ-33081) and YMZ-53442 capacity of 134,5 HP (GAZ-33088). 2017 version of GAZ-33088 became the only. Transmission – 5-speed manual, it implements, 2-speed transfer box. The dimensions of the side platforms 3390х2145х380 mm, ground clearance –
315 mm. the Suspension is fully sprung, brake mechanisms of all wheels-drum. The extended chassis Sadko small-scale release a passenger version of the GAZ-3325 with two-row 5-seater cabin, dubbed the "Huntsman-2", and on a shortened chassis – special bus GAZ-33081 "wild boar".

GAZ-33086 "Countryman" (4x4)

For operation on roads of all types and in difficult road conditions, the Gorky automobile plant offers four-wheel drive truck GAZ-33086 "Countryman". In fact, it is the GAZ-3309, but with four-wheel drive transmission off-road "Sadko". Conventional "road" wheels with rear gable, strapped though reduced permeability (clearance reduced from 315
to 265 mm), however, allowed to increase the capacity of the machine almost doubled to 4400 kg in the variant of the chassis. In 2013-2016 the truck for the Russian market was equipped with only 4-cylinder turbodiesel with intercooler MMZ D-245.7Е4 capacity of about 125.4 HP 4th environmental class. 2017 is the only modification of GAZ-33086-74 with diesel engine YMZ-53442 capacity of 134,5 also HP 4th environmental class. Transmission, 5-speed manual. Suspension is fully sprung, brake mechanisms of drum type. The modification of the chassis of GAZ-33086 with the extended double cab, is intended primarily for fire fighters and special vehicles.

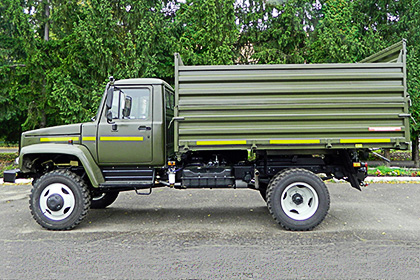

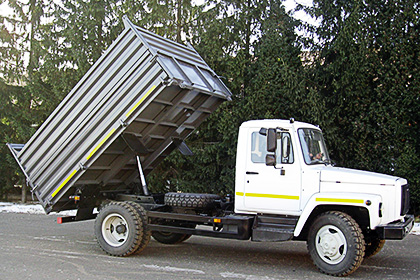

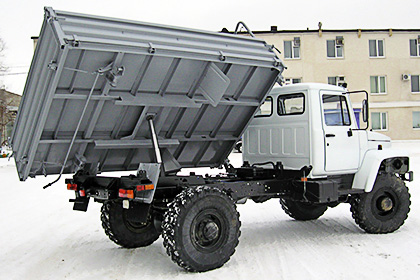

Dump trucks on the chassis of GAZ-3309 and GAZ-3310 "Valdai"

Dump trucks on the chassis of trucks produced Nizhny Novgorod JSC "Saransk plant dump trucks" and AZ "Chaika-Service". If SAZ produces four traditional family haulers, the "Chaika-Service" has mastered release of new models on the chassis of GAZelle NEXT and Gazon NEXT both single-and double cabins. The first family of SAZ is made-to-order low-tonnage trucks GAZ-SAZ-3512 with rear unloading on the chassis "gazelles", and as short and with extended crew cab (capacity of about 1.4 MT), with back (model 3512) or full (model 35121) drive. In 2014 they added a series 35125 (single cabin) and 35128 (double cab). The second family is an agricultural dump truck GAZ – SAZ-35071 with a box-like body three-sided unloading (old and new types) on the chassis GAZ-3309 (capacity about 3.8–4.25 MT) or four-wheel drive chassis GAZ-3308 "Sadko" (GAZ-SAZ-25061, capacity of 1.54 t) and GAZ-33086 "Countryman" (GAZ-SAZ-25063, load capacity 3.45 m and MT tractor 35064), and since 2014 also a new dump the family GAS-SAZ 2507 (single cabin) GAS-SAZ-2507-01 (double cab) chassis Gazon NEXT C41R31/C41R33 (load capacity up to 4.4 MT). The third family – with rear unloading of the body, equipped with a visor to protect the cab, chassis GAZ-3309 (capacity of 4.25 tons), amended in 2017, the latest model GAS-SAZ-25072-01 double cab on the chassis of the "Lawn NEXT" (body volume from 5 to 9.4 m³). The fourth family is an agricultural dump truck GAZ-SAZ-2504 with rear unloading with advanced lifting body on the chassis of GAZ-3309 (lifting capacity 3,5 tons). It is designed for filling all kinds of bunkers and storage facilities.

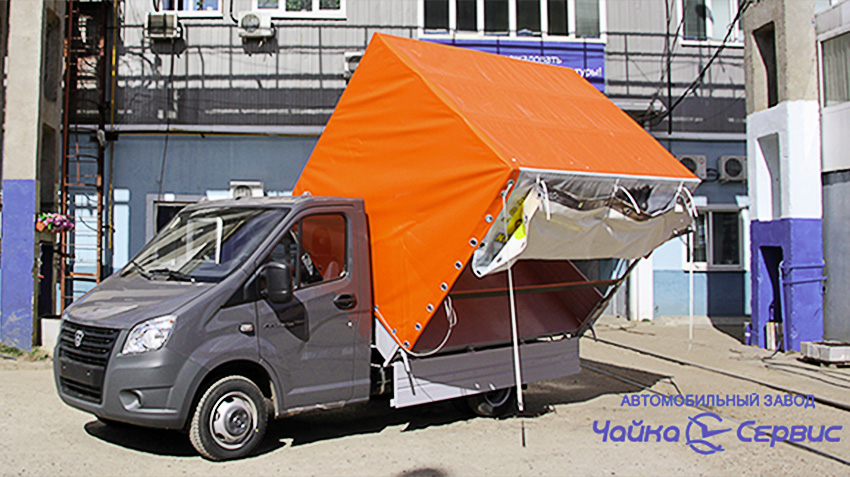

New dump "Chaika-Service" chassis "GAZelle NEXT"...

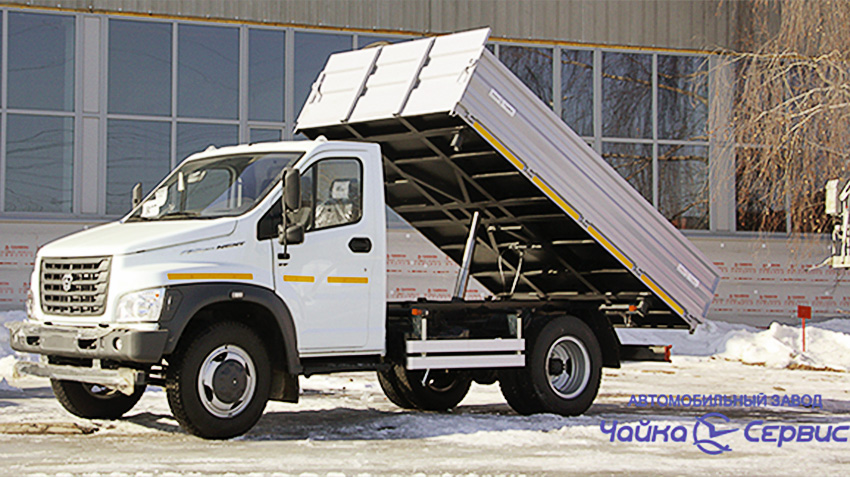

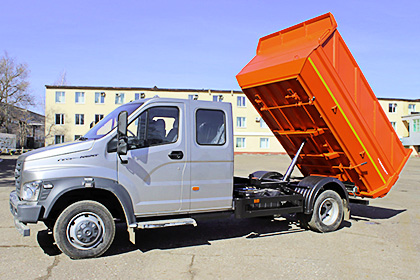

...and Gazon NEXT

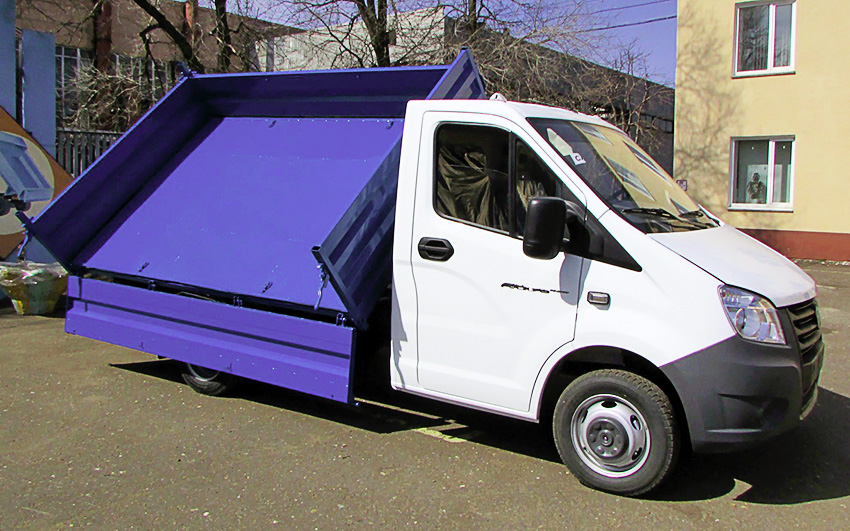

New light dump truck GAZ-SAZ-35125...

...and GAS-SAZ-35128 on the chassis of "GAZel NEXT" A21R22 and A22R22

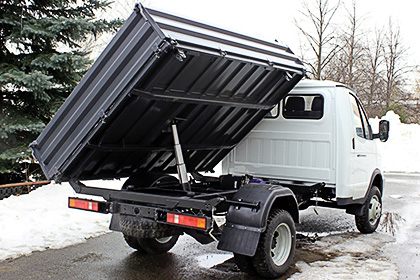

Agricultural dump trucks on chassis "GAZelle BUSINESS" GAZ-SAZ-3512 (4x2) and GAZ-SAZ-35121 (4x4)
