Commercial cars

Beiqi Foton Motor Co. Ltd

www.foton-motor.ru

The Chinese state holding company Beiqi Foton Motor, which produces commercial vehicles, the Foton was established in August 1996 and United manufacturers of SUVs, trucks and various special equipment. Its headquarters and main production facilities are located in Changping area of Beijing. The company employs over 40 thousand employees are employed in 10 plants with a total capacity of up to 1.5 million YNW also have in Germany, Japan and India. In 2015, Foton sold 435,9 thousand trucks of all classes of which 31.5 thousand heavy vehicles and 43.5 thousand tractors. In 2016, the results are even improved, as total sales increased to 500,2 thousand vehicles, of which series Auman amounted to 77.4 thousand, Aumark – 51.6 thousand, Ollin – 72,2 thousand, Forland – 191,1 thousand Export Foton trucks in 55 countries amounted to 57,8 thousand Number of dealers around the world more than 1.5 thousand.

Since 2011, the firm Foton has made efforts on development of its dealer network in Russia in the format of "3S" (Sales – Service – Spare Parts), but faced with strong competition. In 2017-2018, she wants to increase the number of its dealers to 50 in most regions of the Russian Federation, including the far East. In 2016, was sold (according to manufacturer) 540 trucks of which the lion's share was the model BJ1093. According to Avtostat info in 2015 were imported 86 units of heavy and medium trucks with GVW over 5 tons, and in 2016-m – 61 units (-29,1%). And it was only a stock model Ollin (BJ1039) and Auman (BJ1093) second generation (M2), despite the fact that the official line of Foton in Russia is Aumark series M3 (third generation) with full weight from 3,5 to 12 tons with engines of Euro-4. Since March began selling the 1-ton four-wheel drive pick-up double cab Tunland, although it was first introduced in Russia in 2012. The model is equipped with a turbodiesel Cummins ISF2.8 with 120 HP 5-speed manual transmission. By the way, at the Shanghai motor show in April 2017 was presented the upgraded version with the 163-strong turbodiesel Cummins ISF2.8s4161P. In Russia this version is expected only at the end of the year.

The top model in the line of Chinese Foton 2017 is the newest family of trucks Auman EST A fifth generation (H5) with a diesel engine the latest Cummins series X12 "automatic" ZF TraXon, the leading axle of Shaanxi HANDE Axle. The latest series Cummins diesels X12 flaunts innovative technology ISOPOD, administering MFS turbocharger to take into account the driving mode, air temperature and even altitude above sea level. Furthermore, transmission technology is applied for dynamic control of power and torque of the ADEPT, allowing you to save up to 5-8% of fuel, also allowing to develop ΜM=2300 N·m at 1000 m^-1. System CumminsBrake2 along with a ZF Intarder has allowed to increase the capacity of the braking force up to 400 HP in addition, the tractor has a full set of electronic driver assistance systems, including: ESP and tracking of markings LDWS,. In addition, there are Smart Fleet program, which allows to monitor online the location of car, driving style, traffic conditions and the technical condition. The interior of the cabin as the model of the previous generation GTL (TL) is made based on the MB Sprinter with the previous generation, the cabin is equipped with system roll-over protection ROPS. Premiere tractor series H5 will be held in September 2017 at the exhibition "Komtrans".

The main novelty Foton at the Shanghai motor show in 2017 became the flagship tractor Auman EST A H5-2490 High Roof 4x2 related to fifth generation (H5), developed by JV Foton Global Innovation Alliance, which includes such giants as Daimler, Cummins, ZF, Wabco and Continental. Delivery of the tractor to Russia are planned in the near future

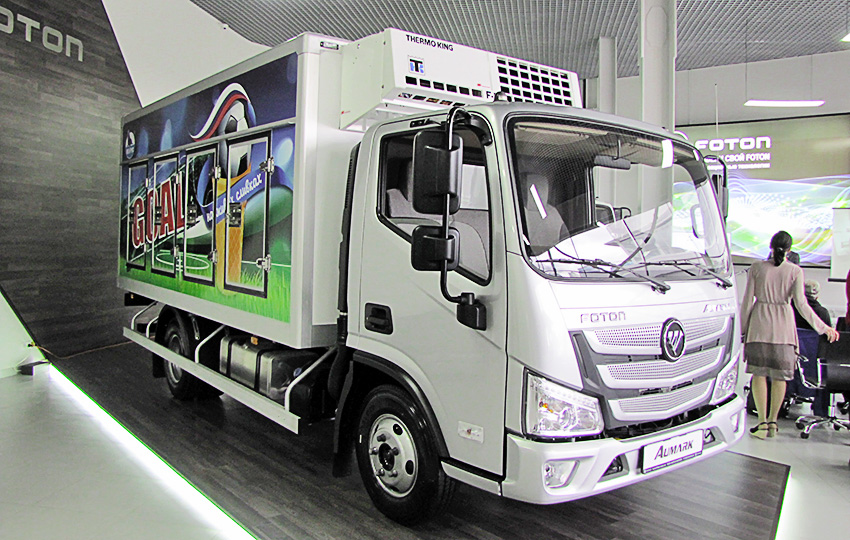

Another principal novelty Foton, whose debut is scheduled for "Komtrans-2017" will be a new generation of srednetonnazhnye series M4 (S1 Aumark), which debuted in Russia in the autumn of 2017. First on our market will range Aumark S1 with GVW from 3.5 to 6.5 tons, then in 2018 the range of S3 to the "medium" models with GVW from 8.3 to 9.5 t, and only at the beginning of 2019, the flagship of the medium-duty series 12-ton S5.

The new generation of trucks Aumark S platform is the fourth generation M4 was also presented in the spring of 2017 at the Shanghai motor show. The output of the S1 series with GVW from 3.5 to 6.5 tons, the Russian market is scheduled for autumn 2017. The trucks will still be equipped with diesel engines Cummins ISF 2.8 and 3.8 liters, but the class Euro-5.

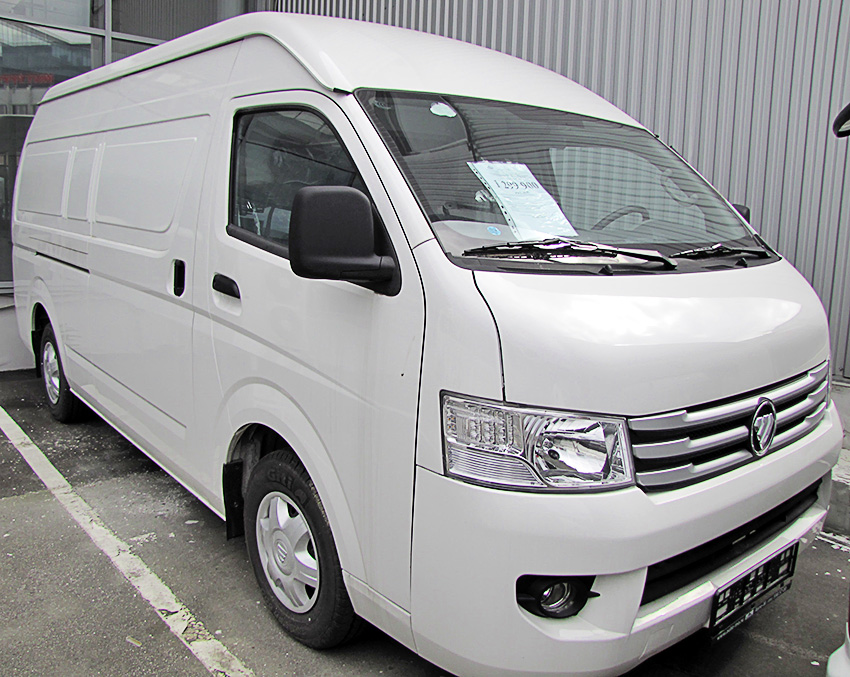

On the basis of Dongfeng minibus View (license Toyota E200) and there is a van version Van, however, it was decided not to promote

Foton Aumark M3 (4x2)

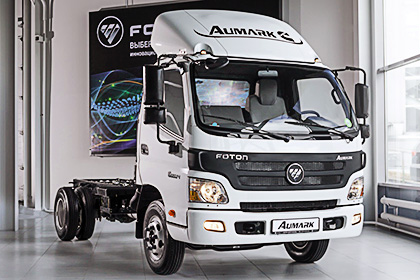

The family of biaxial M3 srednetonnazhnye Aumark (China Aumark TX) third generation includes models BJ1039, С6511 (BJ1069) and BJ1089, who designs often differ significantly from each other, including two cabins (both wide, triple, "day"). Suspension all models spring, drum brakes with ABS, order front wheels may be disc brakes. Family equipped with modern diesel engines of Euro-4. The equipment of all models includes power steering, adjustable steering column, electric Windows, ABS, fairing on the roof, etc. Medium-duty models equipped with mountain brake and order a box of selection of power.

Model Aumark С3511 (BJ1039) GVW 3500 kg with a nominal capacity of 1550 kg and can carry up to 3450 kg on the short wheelbase version BJ1039 NWB and, accordingly, 1380 and 3280 kg dlinobaznom version BJ1039 LWB. The truck is equipped with a 2.8-liter diesel engine Cummins ISF2.8s4107 with 107 HP, class Euro-4 with EGR system EGR, which aggregated the 5-speed manual transmission. Provides a rear stabilizer bar. Brake system equipped with ABS. Length compact chassis of the car is 4890 mm, wheelbase 2600 mm; long-baseline, respectively, 5875 mm 3360 mm chassis set standard or tentovannye flatbed or van body with a length of 3.2 or 4.0 m.

Model Aumark С6511 (BJ1069) total weight 6500 kg can carry up to 3115 kg. In the engine compartment installed in-line of 3.76-liter diesel engine Cummins ISF3.8s4141 of Euro-4 that develops 141 horsepower packaged With it 6-speed manual transmission. The length of the car 5995 mm wheel base 3360 mm. mounting frame length is 4.15 m.

Model Aumark С8215 (BJ1089) total weight 7990 kg nominal load capacity 4890 kg can carry up to 5,900 kg (gross weight up to 9,000 kg). In the engine compartment installed in-line of 3.76-liter diesel engine Cummins ISF3.8s4R154 Euro-4 class, developing 154 HP, which is aggregated 6-speed manual transmission. Vehicle length 6725 mm, wheelbase 3800 mm. mounting frame length is 5,05 m.

Foton Auman (4х2, 6х4, 8х4)

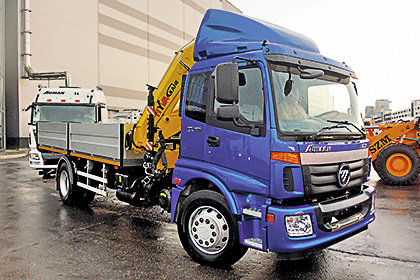

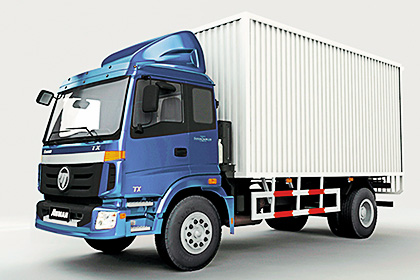

Series Auman Foton was launched in 2002, and the latest fifth generation (H5) Auman EST A was shown at the Shanghai motor show in April 2017. The family is sufficiently large and diverse and includes not only trucks with different characteristics, but with different cabins: VT, ETX and GTL. Russia delivered a series of TX/ETX (denoted simply Auman). It includes previous 6-ton truck BJ1093 (4x2, Euro 3) second-generation, the implementation of which was delayed until 2016, but of the more heavy and modern models with engines of the ecological class Euro-4 is represented only by a 16-ton BJ1163, including the version with mounted Crane HYVA lifting capacity of up to 5.4 t and in the short term it will complete the "intermediate" 8-ton BJ1113 (Aumark 5). On top of the model line are heavy models Auman ETX series with a 6x4 (BJ3253) and 8x4 (BJ3313) full weight 26-48,8 tons with diesel engines, Cummins ISM E4 with a capacity of 345 and 385 HP, respectively. C 2014, they complement a similar series trucks Auman GTL with a cabin under license from Mercedes-Benz: BJ3259 (6x4) and BJ3319 (8x4) with diesel engines Weichai Power E40 power, respectively, 336 and 375 HP All Foton Auman, regardless of the purpose complement a spring suspension and drum brakes with ABS. Cab triple, extra-long, behind the seats is bed, have air-conditioning, electric Windows, exhaust brake.

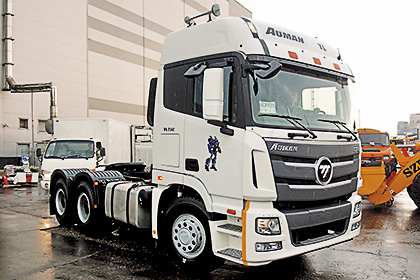

Tractor. Three-axle truck tractor Foton Auman GTL BJ4259 SMFKB-BK (6x4) with a 420-horsepower diesel engine Cummins ISM 11E4 16-speed manual gearbox, designed to work in a roadtrain full weight from 44 to 64 etc

Dump trucks on chassis Foton Auman

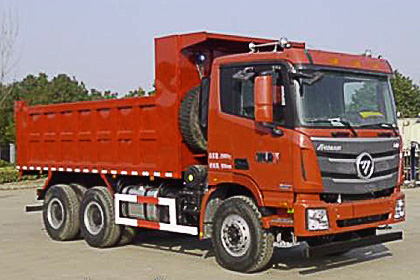

In the heavy Foton Auman series consists of two types of trucks with engines of Euro-4: three axis BJ3251 (series ETX) and BJ3259 (GTL series) and four-BJ3313 (ETX) and BJ3319 (GTL). They all feature extra long triple cabins with a sleeping compartment. The ETX series is equipped with a row of 9.73-liter "six" Weichai Power E40 power 336 or 375 horsepower, and a series of GTL equipped with the 10.8-litre Cummins engine ISM11E4 capacity of 336 or 375 horsepower On three-axle trucks set 9-speed manual gearbox and four-and 12-speed manual gearbox. Clearance equal to 314 mm. Suspension spring, brake mechanisms of all wheels – drum type, with ABS.

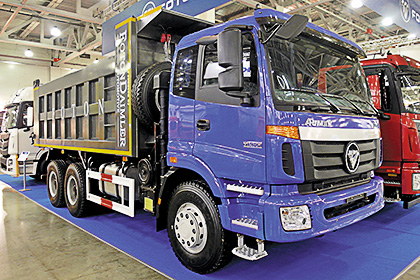

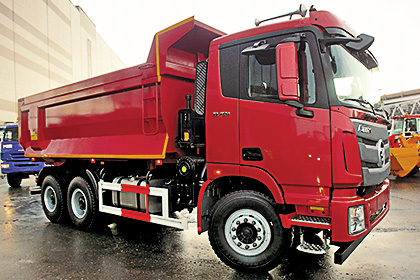

Auman triaxial BJ3253 and BJ3259 (6x4) equipped with tipper platform, box-type rear discharge, geometrical volume which is 19.3 m³. It trucks with GVW 25 000 kg (allowable weight – 32 000 kg) can carry from 13 000 to 22 000 kg of cargo. Geometric volume of the discharge back tipper platform – from 15.5 to 19.3 m³. The volume of the fuel tank – 260 l

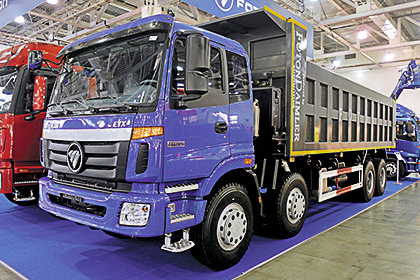

Four-axle Auman BJ3313 and BJ3319 (8x4) with the full weight of 31 000 kg (allowable weight 41 000 kg) can carry 15 500-25 500 kg of cargo. Geometric volume of the discharge back tipper platform – from 20.2 to 27.6 m³. The volume of the fuel tank – 350 l
