Commercial cars

China FAW Group Corporation

www.china-faw.ru

The oldest Chinese car manufacturer China FAW Group Corporation – started in 1953 with the production of chetyrekhtomnym the Soviet ZIS-150, which received the local name Jiefang ("Liberation") and for many years remained the main truck of China. The main production facilities of the Corporation, its headquarters, research center and testing ground located in the North-East China in Changchun. Today, the Chinese market has become the leader on manufacture of cars, with 28 subsidiary companies with 100 percent foreign capital, and 18 enterprises with partial (more than 50% of shares) participation, as well as cooperating with leading manufacturers from Germany, Japan and Sweden. The group produces trucks and chassis of all classes and exports them to more than 50 countries. In 2015, it was sold to 173.4 thousand trucks, chassis and tractors of the FAW all classes. By the way, in the segment of tractors (65.2 thousand in 2015) FAW a strong leader on the national market. In 2016, the company produced 238,8 thousand trucks of all classes, and in the segment of tractors (124,1 thousand) increased his lead even more. In April 2017, the company FAW announced the successful completion of the testing of heavy truck with semi-Autonomous control, developed by R & D center in Changchun, and enabling the machine to independently detect obstacles, traffic lights, road signs, on their own to accelerate, brake and perform the rebuild and overtaking in traffic not under the control of the driver, and the computer. Commercialization of robotrek planned for 2018.

In Russia, the Chinese company came in the summer of 2007 with a wide range of delivery models for small and medium-duty trucks, heavy three - and four-axle trucks and dump trucks, truck tractors with a 4x2 and 6x4. However, several attempts (2007-2008 and 2011) FAW Group to establish jointly with the Russian companies the production of trucks failed. In 2015, FAW sold on the Russian market only 150 heavy truck against 300 units a year earlier, and 101 units of delivery trucks model CA1041. For the year 2016 the implementation of medium and heavy truck FAW amounted to 181 units, mostly 6x4 dump trucks, as well as 100 units of light trucks of the model 1041 and CA 3 units microforge model 6371, deliveries under the order resumed in 2016.

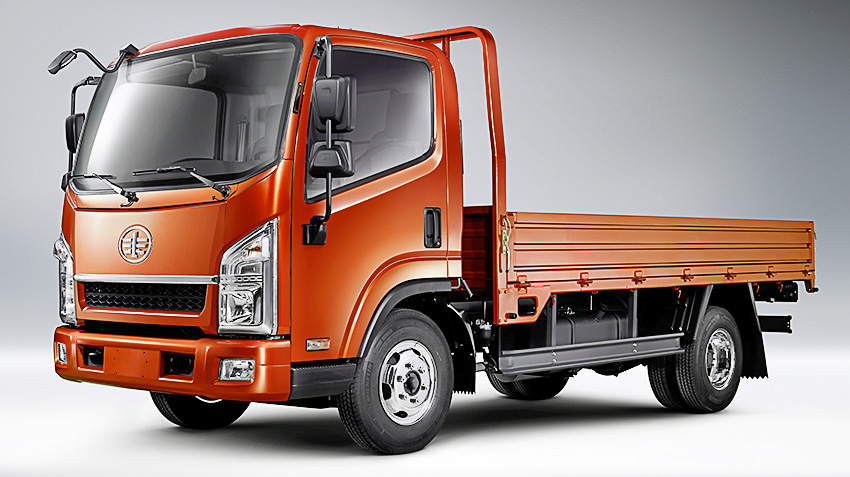

New delivery trucks FAW has received the name Tiger, but in Russia they are not yet available.

The range of FAW truck in China, heads the show at the Beijing motor show 2014 JH06 truck tractor 6x4 with increased height cubicles, designed for operation in the composition of the combination weights up to 40 t. D is also family includes upgraded srednetonnazhnye J6E 4-liter 170-horsepower diesel engine Deutz, as an export-oriented, thanks to eurocertificate ECER29. Great attention pays FAW and development trucks on gas fuel, actually duplicating-cylinder versions of the basic model line. In 2015, the series of medium-duty trucks has been restyled and received the name Tiger.

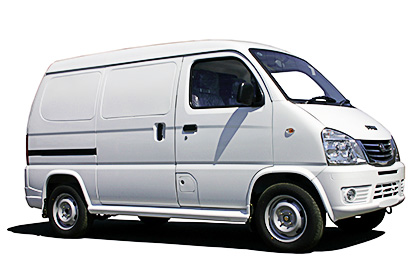

FAW 6371 (4x2)

The family is typical of China's rear-wheel drive micropurging and microbicidal FAW 2006 with full weight up to 1,5 t, of which in the Russian market only all-metal wagon with 5 doors, two of which are sliding. Front suspension is independent with struts McPherson, rear – dependent spring. Brakes front disc, rear drum. Ground clearance: 156 mm. Curb weight is 985 kg, and full – 1505 kg. Internal dimensions of cargo compartment: length 1.95 m, width and height 1.3 m. Engine gasoline 4-cylinder in-line. Its working volume is only 1.05 l, the maximum power – 52 HP transmission 5-speed manual. Fuel tank capacity – 35 litres, maximum speed – 100 km/h.

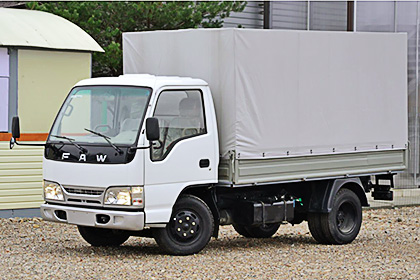

FAW CA 1041 (4х2)

The family of FAW malotonnazhnogo total weight of up to 3.4 t, the last restyled in 2008, includes three main versions: basic 1041K26L short double cab, long-wheelbase version of its CA 1041L2 and its modification of the CA 1041L2R5 with extended double cabin, in which the backrests of the front seats made a bed. In the first case, the length set the standard on-Board platform is of 3.72 m in the second – 4,17 m, the third to 3.12 m. Engine 4-cylinder in-line. Its working volume is 3.2 litres, maximum power of 103 HP C 2014 comes version the fourth environmental class. Transmission, 5-speed manual. Wheelbase of any of the modifications is equal to 3100 mm, loading capacity of the vehicle with a single cabin – 2 ton, with two – 1 ton, fuel tank volume is 60 L. the Suspension is fully sprung, brake mechanisms of all wheels-drum. The dimension of wheels: 165/70 R13.

FAW J6 (4x2, 6x4, 8x4)

Family of heavy commercial vehicles of FAW J6 family includes two-, three - and four-axle chassis, as well as two - and three-axle tractors, which are distinguished by the height of the cockpit of the original design. However, even the construction or delivery vehicles, within the family, with extra-long cabin, which seats the driver and passenger have a sleeping compartment. In the engine compartment install one of two inline-6-cylinder diesel engine of 8.6 litre engine power of 350 HP 11.1-liter with a power of 390 HP Engines certified according to ecological standard Euro-4. Gearbox 9-speed mechanical. Some modifications of a three-axle truck tractors complement of 12.5-litre diesels 420 HP, paired up with which put a 16-speed manual gearbox. Depending on the purpose of the car is its minimum ground clearance is in the range from 220 to 340 mm fuel tank volume is 400 L. the Front suspension three - and four-axle chassis spring, rear – spring-balance, brake mechanisms of all wheels-drum. Part of truck tractors equipped with a front spring and a rear air suspension and disc brakes. Braking performance is enhanced due to the presence of the engine brake and ABS.

Chassis. In the Russian market of chassis for FAW J6 has only been presented in special shortened chassis for vehicle dump bodies. In the triaxial version of their wheel base 4200+1350 mm axle– 2100+3600+1350 mm.

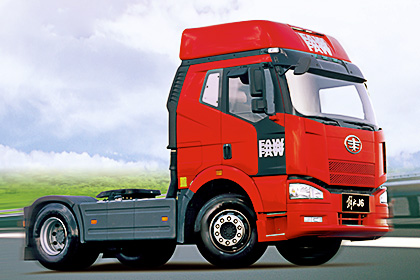

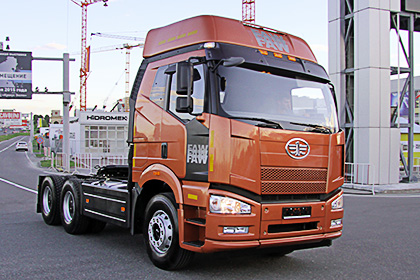

Tractors. In our country FAW J6 in the performance of the truck tractor supply in biaxial (model СА4180) and triaxial (model СА4252) variants. Wheel base first depending on the modification is 3400-3600 mm, the second – 3450+1350 mm. Height of the fifth wheel have different versions of car ranges from 1280 to 1480 mm.

Dump trucks on the chassis of FAW J6

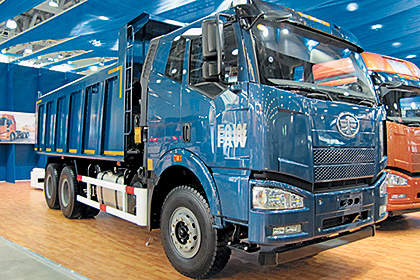

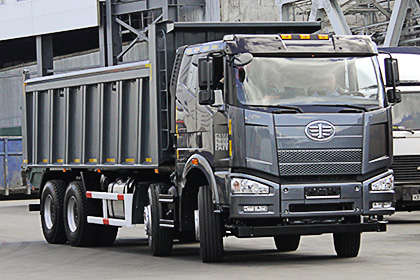

In Russia on the chassis of FAW J6 are represented as three-axle and four-axle dump trucks. The upgraded three-axis FAW CA3252 (with new cockpit) is equipped with a tipping back of 19.3 CC body and with the full weight of 37 510 kg can carry it up to 22,000 kg of cargo. With a total length of 8.8 m, its wheelbase 4200+1350 mm Capacity of the modernized four-axle models FAW CA3312 (new cabin) is 23 600 kg, gross weight – 42 600 kg Car with a length of 10.3 m with a wheelbase of 2100+3600+1350 mm equipped with dump platform with rear unloading by the geometric volume of 23 m³. The body of both trucks subjected to anti-corrosion treatment and in winter is heated by exhaust gases.

Used engines – 8,6-liter 350-horsepower (for 6x4) and 11.05-liter 390-horsepower. Both engines are 6-cylinder in-line, 390-strong meets the requirements of ecological standard Euro-4. Gearbox 9-speed mechanical. Suspension is fully spring, brakes all wheels drum, with ABS. The engines are equipped with engine braking.
