CAMC
CAMC Automobile Co., Ltd
Formed in 1971, the Chinese company CAMC Automobile Co. Ltd is a included in part of the automobile holding Anhui Hualing Automobile. Its factory is located near Shanghai, in the city of Maanshan. Production in the area of 10,000 m2. In the development of motor vehicles Automobile CAMC collaborates with famous Japanese manufacturers like Mitsubishi Fuso and Isuzu Motors. So, on the company has two 120-meter leg of the pipeline, equipped with the Mitsubishi (line of welding booths are fully automated), and 5000-ton press of the company Kawasaki, intended for forming automobile frames.
CAMC Automobile company is producing trucks of various carrying capacity. So, in 2015, it sold 13.2 thousand heavy duty trucks, chassis and truck tractors, 8 thousand medium and 166,5 thousand light trucks.
In early 2012 year, SAMS launched in a series of second generation heavy truck H08, modern cabin which was designed by Bertone. With 2014 years series H08 available on the Russian market with engines of Euro-4.
In Russia in 2015 included 66 trucks (-74,1%) CAMC in mostly trucks and truck mixers.
Dump of SAMS (6x4, 8x4)
As the basic chassis of the previous generation, the CAMC trucks with a wheelbase of have three-axis model is 3600+1350 mm, and four-axis equal to 1850+3370+1350 mm, can be equipped with an 8.9-liter (345 HP) or the 10.8-liter (375 HP) diesel engine Dongfeng Cummins ISLe 375 40 (Euro-4) and the 10.5-litre HINO diesel engines, 350 or 380 HP mechanical Gearbox with the number of stages 9 or 12. The back of dump trucks designed for Russia, slightly shifted back and heated exhaust gases. The cabin is low, long, with the bed. Capacity and the capacity of the original tippers box type respectively have three-axis model of 15 m3 and 20 t, have four-axle – 24 m3 25,7 T. also Available in three four-axle dump trucks CAMC, body capacity which is respectively 19 and 25 "cubes". Tire size 12.00R20, fuel tank capacity 350 liters
Family CAMC H08 (6x4, 8x4, 10х4)

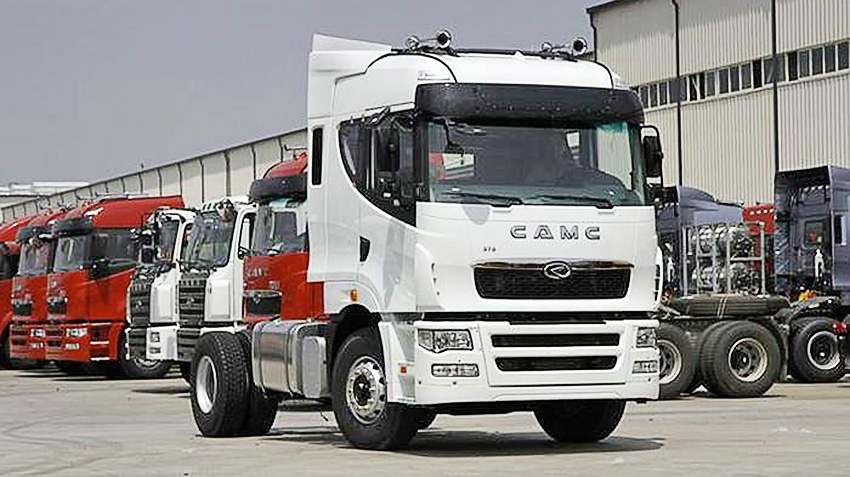

The cabin of the new family H08 is designed in Bertone (pictured tractor unit 4x2)
Led is the new family truck tractor (6x4) with Cummins turbodiesel license ISME420.30 power of 416 HP of Euro-4, with intercooler and Common Rail. Tractor equipped with 16 speed manual gearbox ZF 16S1650. Left front suspension spring, rear – spring-balance. Brakes drum. In collection includes a 32-tonne tipper CAMC 3310 with the wheel formula 8x4 and 24 CC body with heating system exhaust gases. The car is equipped with reinforced double layered frame and diesel engine Cummins ISLe 375 capacity of 375 HP and 9-speed gearbox Fast 9JS165T. The tipper is equipped with tires of size 12.00R20 350 litre fuel tank. To the new family also refers patienoe (10х4) chassis 5474P42E2M3J total weight of 47 tonnes under the concrete pump with the 420-horsepower diesel engine Cummins ISMe 420 and 9-speed manual ZF gearbox 9S1820.

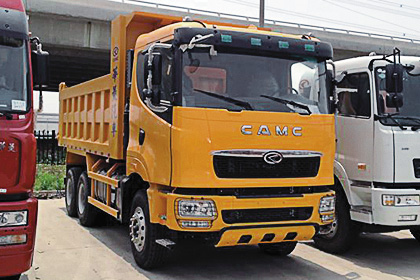

CAMC HN3250P34C6M, 6x4, dump truck
| Parameter | the Value |
| overall dimensions, mm | 8400x2550x3360 |
| Curb weight, kg | 14 580 |
| load Capacity, kg | 18 420 |
| body Volume, m 3 | 18.7 |
| diesel Engine | 8.9 l/ 340 HP |
CAMC HN3310P38C3M, 8x4, dump truck
| Parameter | the Value |
| overall dimensions, mm | 9880x2495x3360 |
| Curb weight, kg | 15 275 kg |
| load Capacity, kg | 25 700 |
| body Volume, m 3 | 24-25, 7 m 3 |
| diesel Engine | 10.8 l/ 375 HP |
