BAW
BAW MOTOR CORPORATION
The company "BAW Motor Corporation", part of Russian holding company "AMS-GROUPS", was founded in Ulyanovsk, Russia in June 2006 as a dealer of trucks and buses BAW (Beijing Automobile Works Co., Ltd). In 2008, the company organized Assembly production of trucks from BAW Chinese SKD SKD-kits. The first Ulyanovsk-Chinese trucks, certified in Russia, have polutoratonny Feph 1044 BAW BAW and four tons Feph 1065. From 2010 began the transition to CKD Assembly of vehicles by CKD technology, including welding and painting of bodies, which allowed to transfer all the cars manufactured by "BAW Motor Corporation", on the Russian VIN and sectoral indices. In 2011, the "BAU Motor Corporation" signed with the Chinese Corporation BAIEC the agreement on creation in Ulyanovsk a joint venture for the production of commercial vehicles and passenger cars with annual capacity of 60 000 cars. However, at the moment, the agreement remains dormant.
Currently, the "BAU Motor Corporation" collects models of BAW Tonik 33463 (capacity 990 kg) and BAW 33462 (1.7 t), 3346 BAW (4 tons) and BAW 33468 (7 t) and 38-local buses of small class Street. "BAW Motor Corporation" has contributed to the design of manufactured trucks many changes that have adapted them to Russian conditions of operation. In 2011, the model 3346 33462 and has been redesigned with restyled cabs, in particular, received new lighting equipment, on-Board computer, roof hatch, with an increase in engine life up to 500 thousand km, improved bridges, heavy electrical, etc. On the basis of these chassis produced vans of General and specialized purposes, CMU, tow trucks, dump trucks and other specavtotehnika. In 2014, the production went 7-ton truck models 33468 (Chinese index BJ1126PPU91) total weight less than 12 t.
In the fall of 2015 has occurred, a restart of the production, and increase the level of localization, including through the use of bi-fuel engine ZMZ (gas equipment LOVATO (Italy) under LPG) for light weight and reduced models 33462.
In 2015, the "BAU-RUS Motor Corporation", in fact, revived production, producing 239 trucks (an increase of 12.4% by 2014). However, registration in 2015 amounted to only 169 cars, "BAU" (-78,1%). For 2016 were sold 101 units of light trucks model Tonik and 22 units of medium-duty series Feph (total -27,2%).

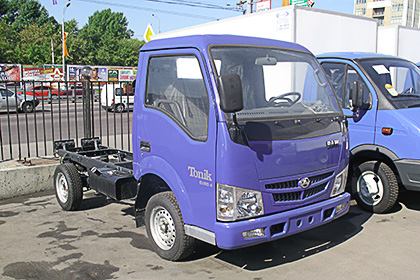

BAW 33463 Tonik, 4х2
Cab utility truck BAW Tonik designed for three people and is available only in the "daytime" version. Wheelbase 2515 mm, internal dimensions of body mm. 3045х1620х350 Engine – inline 4-cylinder (Euro-4) CA4AC power 69,3 HP transmission – 5-speed manual. Front and rear suspension – dependent spring. The pneumatic brake system, with front disc and rear drum brakes, fuel tank capacity – 43 L. The basic equipment included an adjustable steering column, fog lamps and audio system optional pre-heater, auxiliary heater, awning and air conditioning.

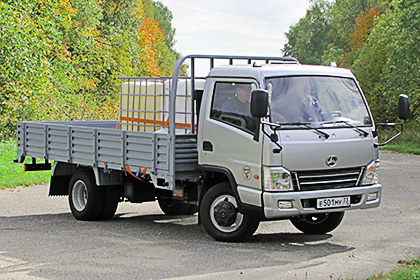

BAW 33462 FEPH, 4X2
BAW 33462 Feph are made with cabin in the "day" and "half" (sleeper) variants. Depending on the length of the side platforms that accommodate six pallets, or is 4250 3880 mm Loading height – 960 mm ground clearance – 180 mm. In the 2015 model is upgraded with chelyabiskaya and cheaper, so the frame is made of less thick profiles, and the brakes refused to Pneumatics. Engines: on version 33462-102 – gas bi-fuel ZMZ-409061.10 – inline 4-cylinder (Euro-5) 136 HP or a diesel engine CA4DC2-10E4 – inline 4-cylinder (Euro-4) 103 HP transmission – 5-speed manual. Suspension – fully sprung (Lite – front to five leaves back without podrecznika), brake system – hydraulic, front wheel brakes – disc, rear – drum. In the list of options included an adjustable steering column, power steering, fog lights, pre-heater engine (diesel), onboard computer with many functions, defroster, radio, extra cab insulation, auxiliary heater, air conditioning, daytime running lights, heated seats, sunroof, clearance lights on the roof, increased tank capacity and gas equipment LOVATO (LPG) from cylinders 95 or 130 l, flatbed platform 6 (width 1905 mm) or 8 (2060 mm) pallets, tent (body volume 14 or 20 m3). The cab was given a 5-Letnaya guarantee from through corrosion by coating metallic.

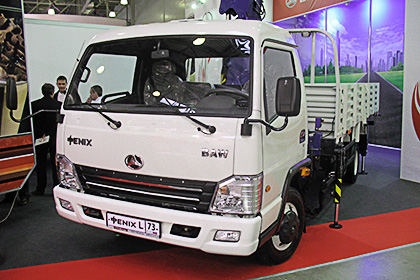

BAW 3346 FAH L, 4X2
Cabin srednetonnazhnye BAW Feph L 3346 sleeps three people and can be delivered in "day" or "half" (sleeper) variants. The body holds eight pallets, its length depending on the type of cabin is 5200 or 4550 mm Loading height – 1090 mm, ground clearance – 205 mm. Diesel CA4DC2-12E4 – inline 4-cylinder (Euro-4) with a capacity of 120 HP transmission – 5-speed manual. Suspension – spring. The pneumatic brake system, with front disc and rear drum brakes. The basic equipment included an adjustable steering column, fog lamps and audio system. Additionally, you can order pre-heater, auxiliary heater, awning and air conditioning.

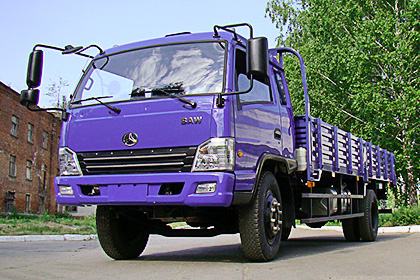

BAW 33468, 4х2
Cabin srednetonnazhnye BAW 33468 designed for three people with bunk. The body holds 12 pallets. Body dimensions: 6000х2140х550 mm, ground clearance – 205 mm. Cummins Diesel ISF 8s4R168 – inline 4-cylinder (Euro-4) with a capacity of 168 HP transmission – 6-speed manual. Suspension – spring. The pneumatic brake system, with all drum brakes and ABS. The basic equipment included an adjustable steering column, power steering, fog lights, air conditioning, exhaust brake, audiopreparation, insulation of the cabin. Additionally, you can order pre-heater, sunroof, auxiliary heating, car and awning.
BAW Tonik 33463, 4х2
| Option | The value |
| Overall dimensions, mm | 4735х1710х2150 |
| Base, mm | 2515 |
| Load capacity, kg | 990 |
| Full weight, kg | 2730 |
| Engine: | 1,3 л/ 70 л.с. |
BAW 33462 Feph with a gas motor ZMZ
| Option | The value |
| Overall dimensions, mm | 5990х2000х2220 |
| Base, mm | 3320 |
| Load capacity, kg | 1300 (T. 1700) |
| Full weight, kg | 3500 |
| Gas (33462-102) | 2.7 l/ 136 HP |
| Diesel (33462) | 3.2 l/ 103 HP |
BAW 3346 FAH L, 4x2, chassis
| Option | The value |
| Overall dimensions, mm | 6990х2100х2287 |
| Base, mm | 3860 |
| Load capacity, kg | 4000 (maximum 5000) |
| Full weight, kg | 7490 |
| Diesel | 3.2 l/ 120 HP |
BAW 33468, 4x2, chassis
| Option | The value |
| Overall dimensions, mm | 8400х2350х2540 |
| Base, mm | 4700 |
| Load capacity, kg | 7000 (allowable 8000) |
| Full weight, kg | 11 900 |
| Diesel | 3.8 l/ 170 HP |
