KAMAZ showed on bauma STT-2019 new line of trucks with Daimler cabins
5 June 2019
New trucks KAMAZ steel serial
Alexander Klimov, photo by the author

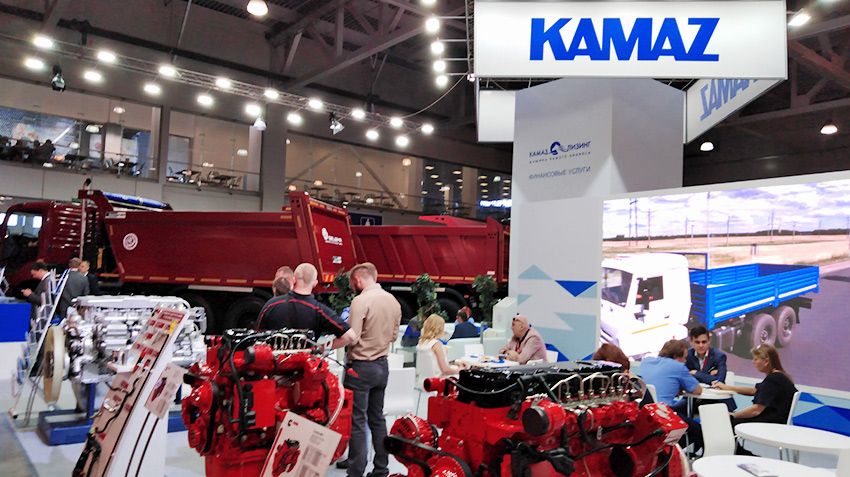

At the stand of KAMAZ showed on bauma STT-2019 new range of trucks, equipped with cab type Daimler Axor series (KAMAZ K4) and a turbo-diesel Mercedes-Benz OM457LA.V environmental standard Euro-5, with system of neutralization of exhaust gases with AdBlue injection.
Just started on a new savage SP DK RUS build cabins has yet to be production cars not got a new cab series K5 will appear on the series "54901" until next year.
Model KAMAZ-6580-S5 (6x4) dumper capacity of 26.2 MT with rear unloading, are equipped with a rectangular platform production BETSEMA of high strength steel Hardox 8 mm bottom and 5mm sides smooth with a volume of 16 m3, heated, with lifting system by hydraulic cylinder HYVA or Binotto, canopy with folding mechanism, stairs, ICD and MOB. Dump truck equipped with a diesel engine Mercedes-Benz OM 457LA.V/3 a power of 401 HP and MKP type ZF16S2225 TO. Fuel tank capacity 350 l is Estimated such a machine in almost ₽7 million
On four-wheel drive truck KAMAZ-65802-S5 (6x6) with a payload of 24.8 tonnes with rear unloading, with a rectangular platform production NefAZ volume of 15 m3, heated, hydraulic cylinder HYVA or Binotto and other equipment of the same model 6x4, and the same 401-horsepower engine Euro 5, ZF and MKP 16S2225 IT. Fuel tank capacity 350 l.

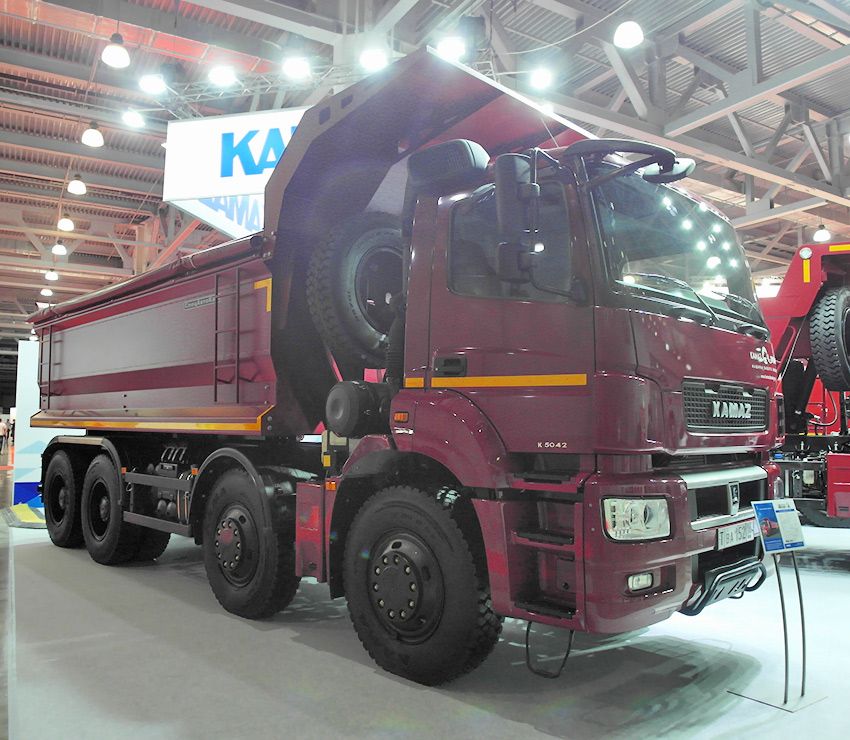

The most powerful in the family of eight-wheel dump truck KAMAZ-65801-T5 (8x4) with a lifting capacity of 33 tonnes (total weight 50 ton) are equipped with a rectangular platform with a volume of 19.2 m3 production "Specialtoken" steel QUARD450 (8 mm bottom and 6 mm bead) with unloading on the left side, heated, hydraulic cylinder HYVA or Binotto, canopy with folding mechanism, stairs, ICD, MOB. This truck is also equipped with a diesel engine Mercedes-Benz OM 457LA.V/4 (Euro 5), but in the iteration 428 HP, and MKP ZF 16S2225 IT. Also the fuel tank capacity of 350 liters is Estimated this hero is already in ₽9 million operation is Possible with the tipping trailer models NefAZ-85300К.

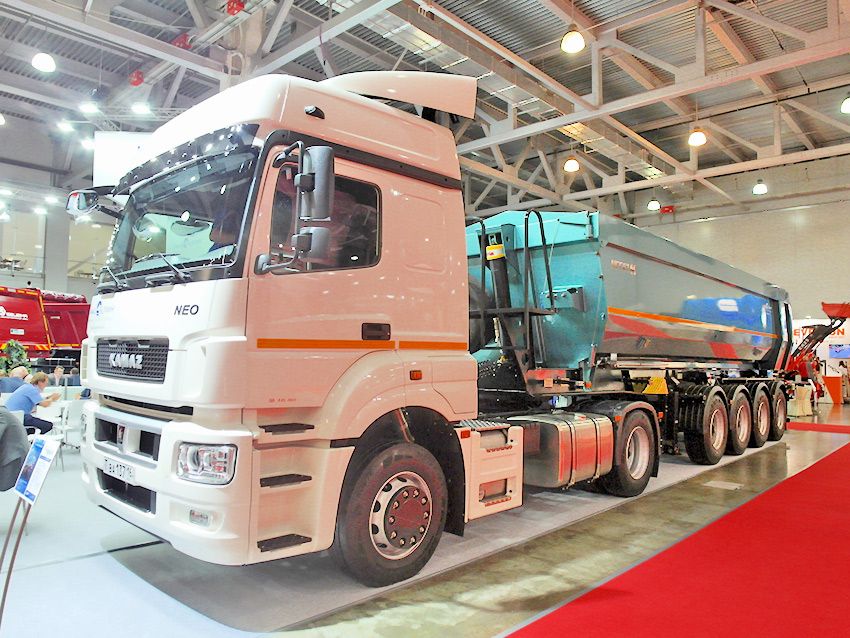

Also was submitted to tipper truck KAMAZ-5490-892-S5 sport (4x2) GVW 44 tonnes four-axle semi-trailer NefAZ-95094 capacity 39 t platform oval cross section with a volume of 30 m3 of domestic high-strength steel S700, with a hydraulic cylinder HYVA axles BPW, and. The first and second axle semi-trailer – lifting. Tractor equipped with diesel engine MB OM 457LA.V/3 (Euro-5) with an output of 401 HP fuel tank Capacity – 450 litres, plus 4 gas tank 80 l (total volume of 64 m3). The consumption of diesel and gas (kompilowanego) fuel is 60/40. Pneumatic suspension with electronic control ECAS.
A representative was shown range of modern engines KAMAZ, starting with a promising inline six-cylinder diesel KAMAZ-920.13-750 with common rail, power 749,5 HP (ΜM=2845 N•m) remove with a displacement of 11.9 l.

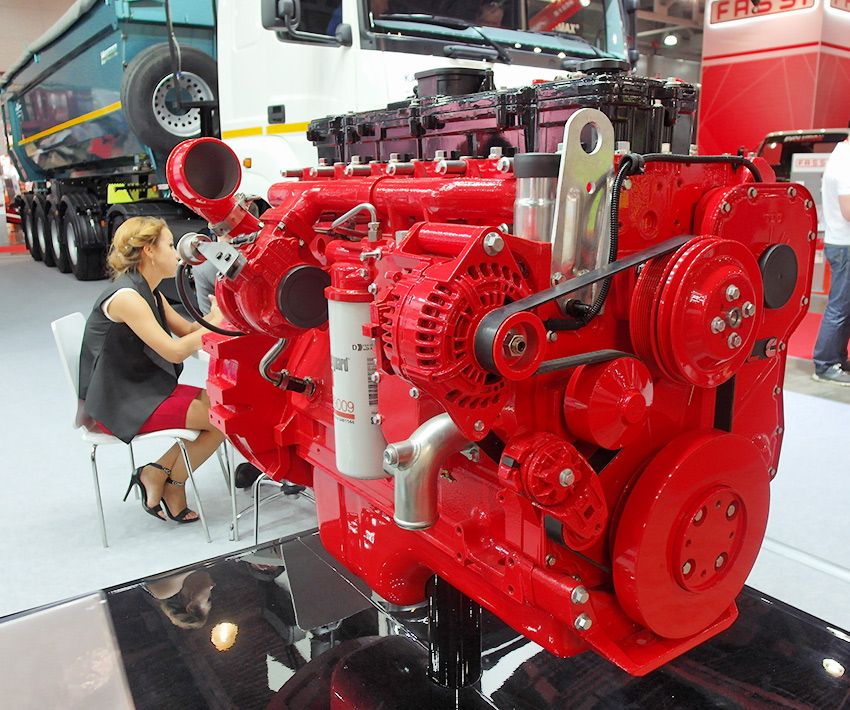

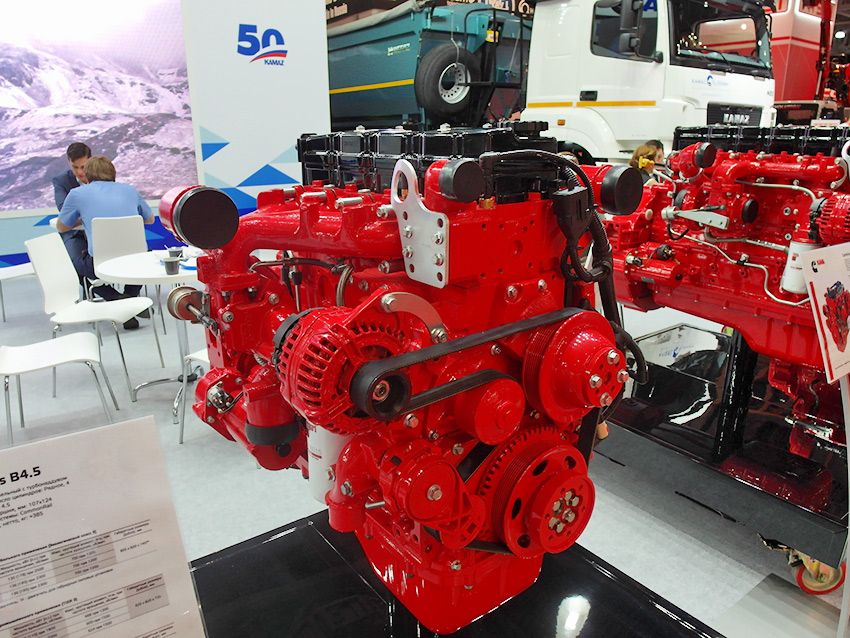

And line motors joint production SP KAMA (with Cummins) in automotive versions of the ecological class Euro-5: B4.5 (4-cylinder) with a capacity of 178 and 185 HP;

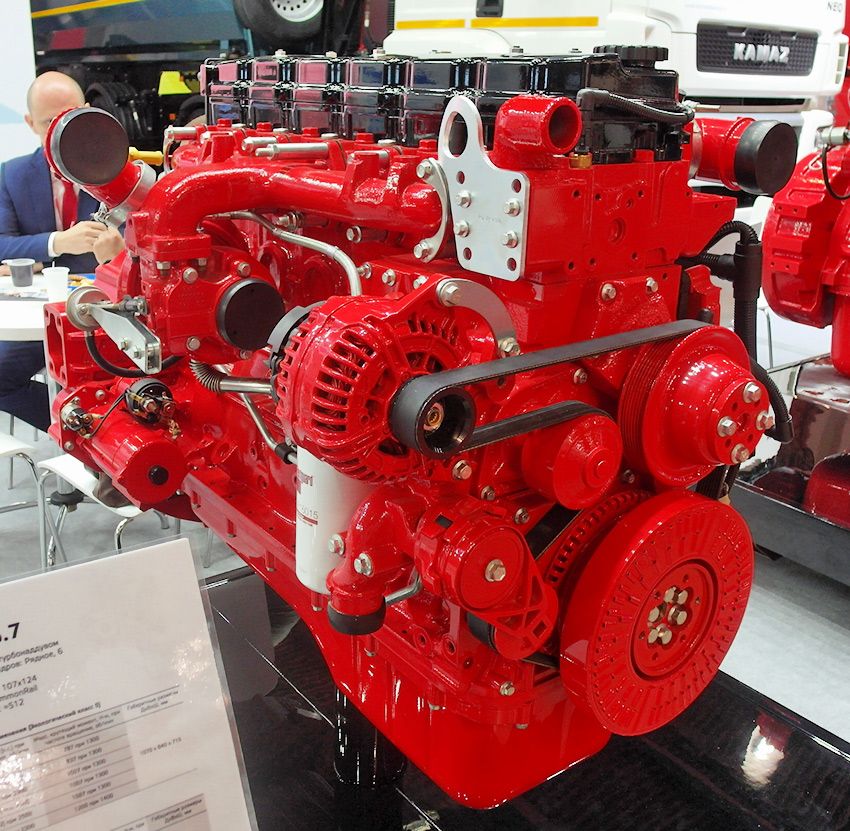

B6.7 (6-cylinder) capacity 202-307 HP; L8.9 (6-cylinder ISL) capacity 343-400 HP
.
|
|
|
