Road builders held a forum

16 October 2017

International exhibition-forum "ROADEXPO-2017" in the complex "Crocus Expo" took place on 10 to 13 October

International exhibition-forum "ROADEXPO-2017" in center "Crocus Expo" was held from 10 October 13 United specialists of the road construction industry.

The timing of the exhibition has successfully coincided with this professional Day of workers of road economy. At the same time here summed up, for example, a priority project of the Ministry of transport of Russia "Safe quality roads," carried out in some regions, Astrakhan and Saratov regions, Udmurtia and Chuvash republics.

In the exhibition-forum was attended by 210 companies from 11 countries from force China 34 region of the Russian Federation, who showed their latest research and development, modern equipment and materials used for the full range of road construction works: from geodetic calculations and design to construction and maintenance of roads and structures.

Among others presented their developments in the control equipment, measuring systems and software: "ROSDORNII", "SNPTS rosdortekh, "SKB Stroypribor" and other.

Various types of equipment for construction and maintenance of roads shown are known in their segments of the company like Astec Industries, "Arctic Machine", "BRIZ Stroitelnye Mashiny", "Kominvest-AKMT", "Dormash Group", "Plant of Road machines", "KAMAZ", the "Company Biei VI", "Korrus-Tekh", "Merkator holding", "Steam", "Tverskaya mekhanicheskaya Kompaniya", "Hydrog TDS".

In the framework of the exhibition and forum held a series of round tables for professionals technologies of road asphalt concrete, green building, digital innovation and features winter maintenance of roads.

The most significant import-substituting novelties dorororororo technology presented the company "Kominvest-AKMT", KAMAZ, "Merkator holding" and others.

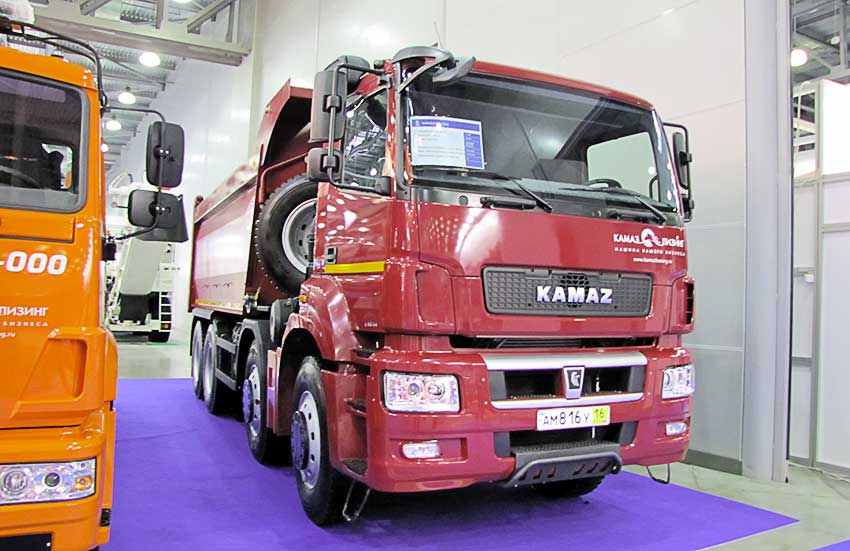

KAMAZ showed off its most powerful four-axle (8x4) dump truck model К5044 (65801) with a lifting capacity of 33 tons when the full weight of 50 tons. It is equipped with a Cummins engine with a capacity of 428 ISG12E5 HP, meet the norms of Euro-5. The body holds 20 cubic meters of bulk cargo.

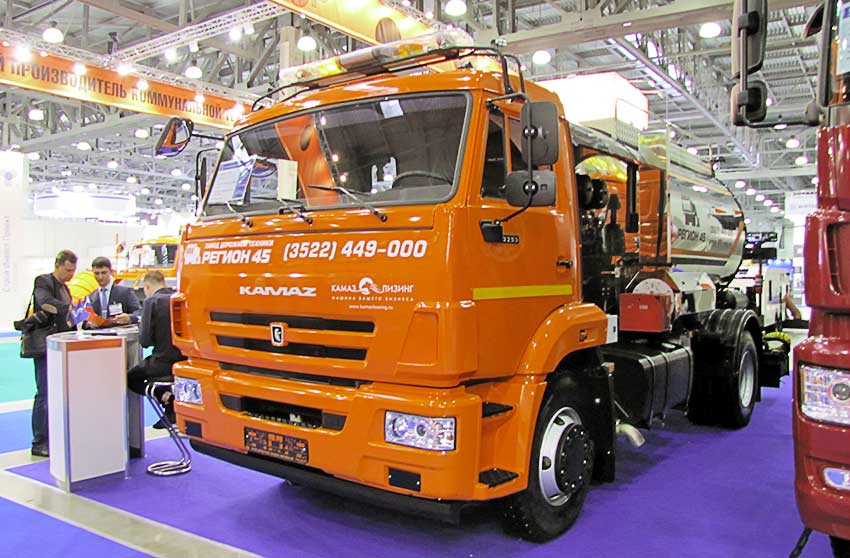

Another model of KAMAZ became 6-CC asphalt distributor as-43253М from official partner of Road Machinery Plant "REGION 45" with the automated control mode that facilitates the work of operator, who is not have to worry about maintaining the temperature of the bitumen emulsion and washing (diesel fuel) and the compressed air dispenser ventilation type 30 nozzles. The thickness of the steel thermo-insulated tank is 5 mm. Bitumen pump type NO-004. The width of the filling through the 25 injector – 4.8 m with step through or 0.19 m and the Specific rate of filling of 0.3 to 2.5 l/m². New going to sell for 7.3 million RUB from where the cost of bitumen spraying machine is 4.5 million, and the rest is KAMAZ chassis-43253-3010-20 with engine Cummins ISB6.7e4 245.

Group "Merkator holding" showed a new KDM Bucher SH for the distribution of dry de-icing materials with the function of moisture. KDM adjusted for seasonal storage and can be mounted on any suitable chassis. Dual stage powder coating hopper with pre-treatment by shotblasting allows us to give a 7-year warranty from corrosion working with PSS, and pure salt. The adjustment range of densities spreading from 10 to 500 g/m³.

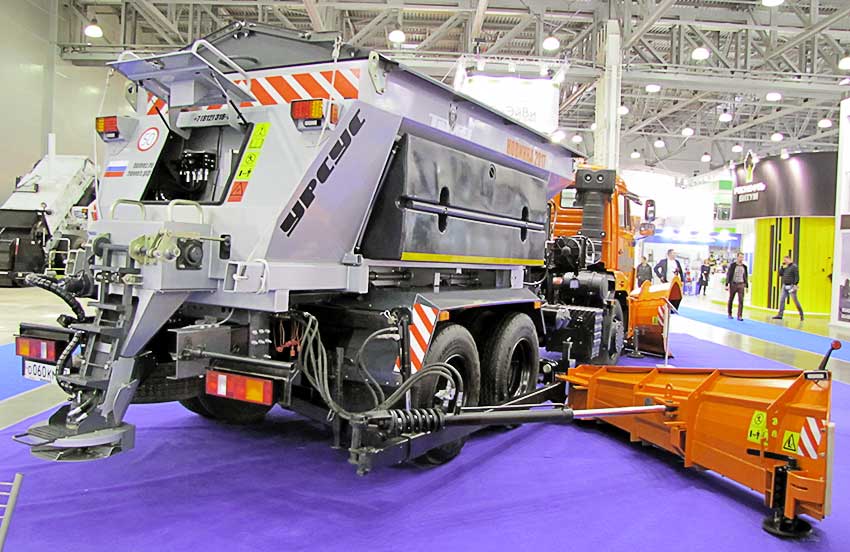

JSC "Cominvest-AKTM" introduced a new production model of their unit of JSC "Tomes" under a custom name, "Ursus" nominal volume 3-9 m³. Is distributor of bulk materials (PCM) with replacement equipment for spreading (the width of the distribution is up to 10 m) sand, sand-salt mixture, or salt hydration road a hard coating in the autumn-winter period. Bunker "Ursus" made of stainless steel. Plus the machine is equipped with high-speed plow COMES 2800K and side plow TOMES 1, so that the overall width of the cleaned strip is up to 5.5 m . Although the stand price new indicate refused, but all claim that it will be much cheaper than imported counterparts, although some imported components in her present (mainly hydraulics).

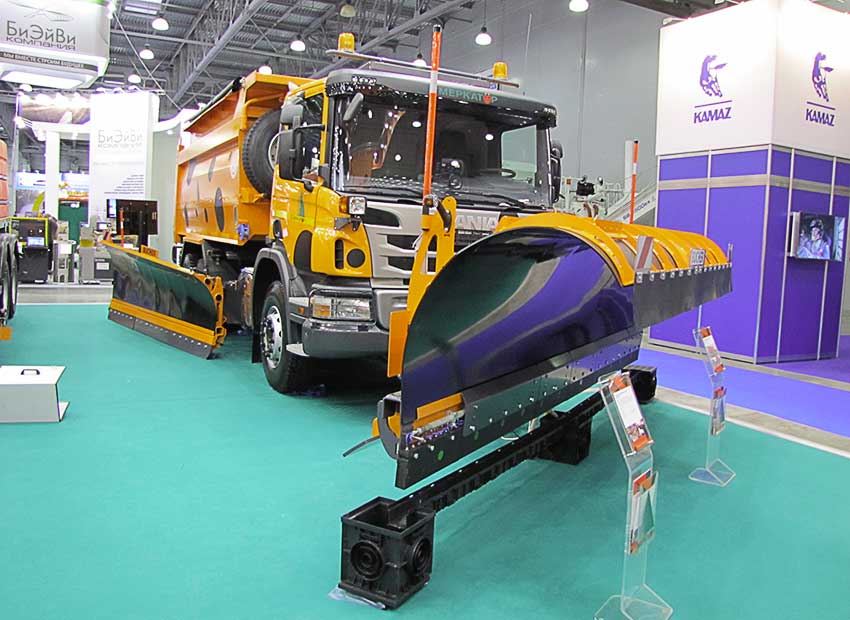

"Merkator holding" showed a combined road machine ЭД700АС on database truck Scania P360 with the width of the processed strip to 6.5 m two piles – front Giletta MN42 and side – AA40 Giletta. In the back has a removable dispenser deicing agents Giletta Uniqa 4000 with a hopper volume of 10 m^3, tank chemicals 2600 l and a spreading width from 2 to 12 M.

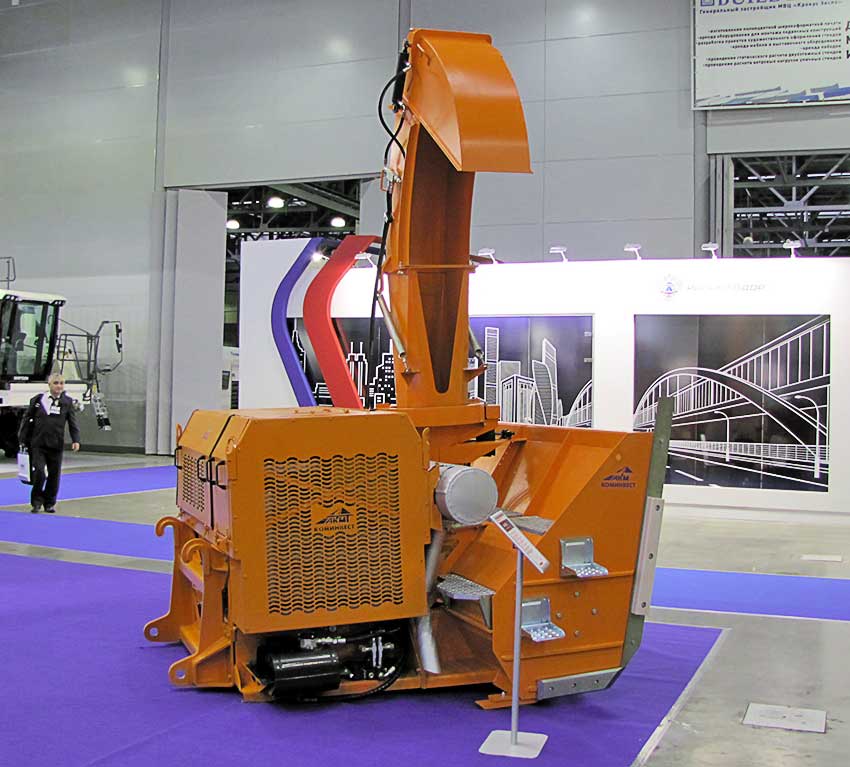

Single-section rotary snowplow SHA-2200 is designed for installation front-end loader. It has its own engine Cummins QSB 4.5 power 167 PS capable of cleaning from the snow strip with a width of 2.6 m height 1.33 m, throwing snow on distance 1.5 to 20 meters hours this unit is capable to remove not less than 1000 tons of snow.

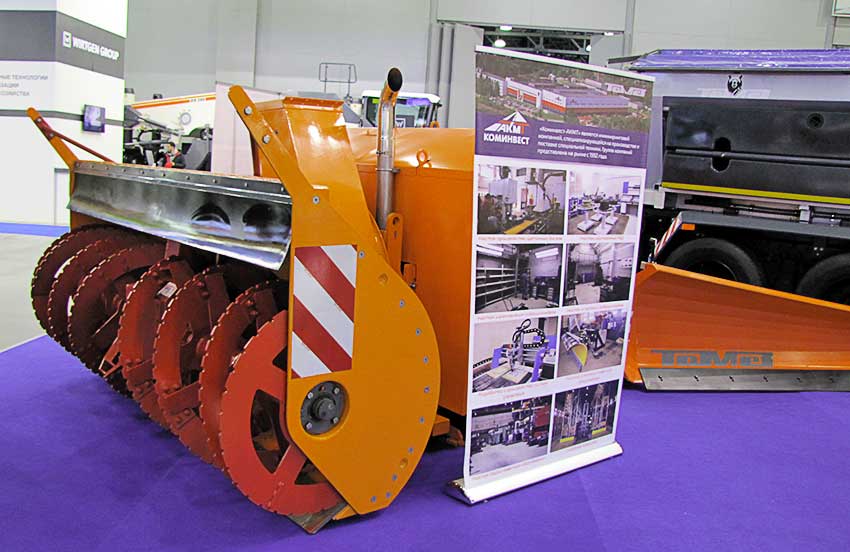

Hinged auger snow blower TV-360 for machine DE-210 BF-1 on the basis of tractor K-708 Kirovets much more powerful – he is able to throw snow with stripe width of 2.85 m on distance 40 m. With a production capacity of 3600 t/h, which can provide the Cummins diesel 6СТА8,3-C215 power 215 HP

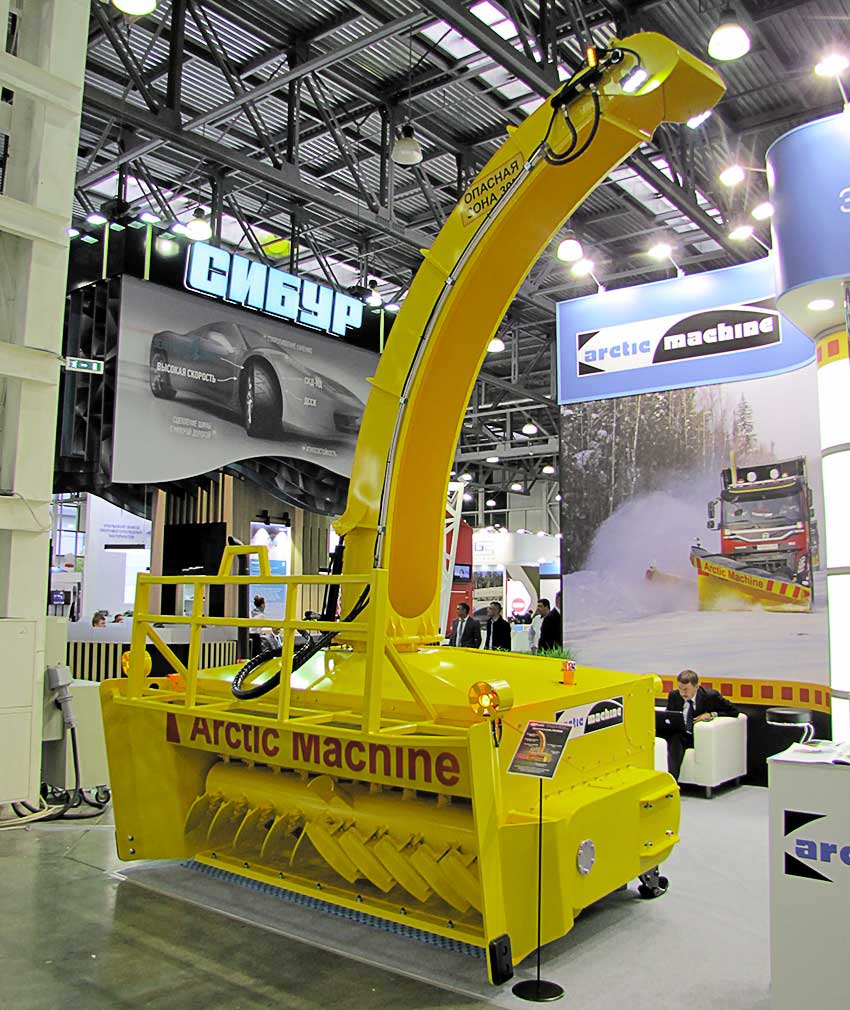

Hinged snowplow АМ2500 company Arctic Mashine even copied some Russian producers. Its capacity of 30 m³/min (up to 1,800 t/h), the width of harvesting strips of snow-2.7 m. the Chute with a loading height of 3.6 m can rotate 270°. Such aggregate cost 115 000 €, but in demand among those public utilities who value performance and reliability. The performance of such a machine in the 3-6 times higher than the usual snow blowers, the so-called "gold pens" or regular front-end loaders.

Motor drive – 175-HP Iveco diesel production. At dry weight 3680 kg unit АМ2500 better to hang on front-end loaders with loading capacity from 4 t, tK. at lesser capacity and there are problems with handling the machine. At this unit is equipped with a system of assistance to the operator, for example, equipped with visual and audible alarm engine operating speed.

The famous German firm WIRTGEN INTERNATIONAL presented the cold recycler and soil stabilizer model WR240. This mighty machine with a motor power of 619 HP Tier 3 are able to independently cut by a cutter (width 2.4 m) the old pavement, grind it, add binding components (cement or lime) and again put in as the bottom of the base layer for new pavement. Total weight of the unit is 29.4 tons.

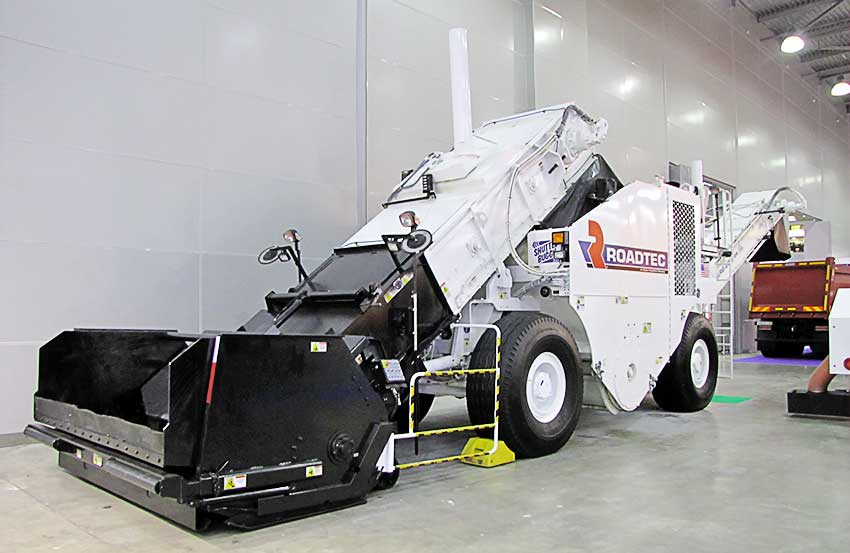

Dealers of the American firm Road Dryer showed an interesting unit impressive size loader asphalt mixture SB-2500ex with a 300-horsepower diesel engine Cummins C9 and intermediate bunker in 22.7-MT designed for transportation of hot mix asphalt from the truck to the paver, ensuring a continuity of styling. Conveying capacity – 544 t/h, and its angle of deviation from the center – 50°, the maximum operating speed of 4.8 km/h, and working – 14.5 km/h. the Price of this new unit from $950 000. In an extra set of equipment includes lighting system, spraying, two night vision cameras (front and rear) color monitor with waterproof case pick out rollers.

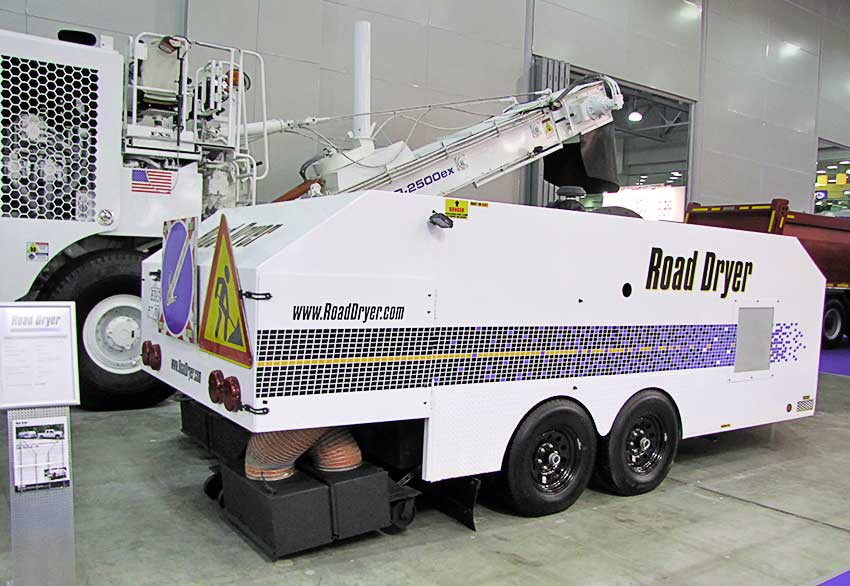

Another interesting unit from the same machine drying of road surface ROAD DRYER RD-1200 for road surface preparation (dehumidifying from moisture) before laying the asphalt. The machine dries the road with speed of 4.5 to 15 m width of the drained bands from 2.44 to 3,62 m. One stream of air removes the water, and other (with a temperature up to 150°) drying the canvas. Total weight of machine – 4500 kg, and transport speed – up to 45 km/h. In the set of equipment includes manual hose treatment of fractures.

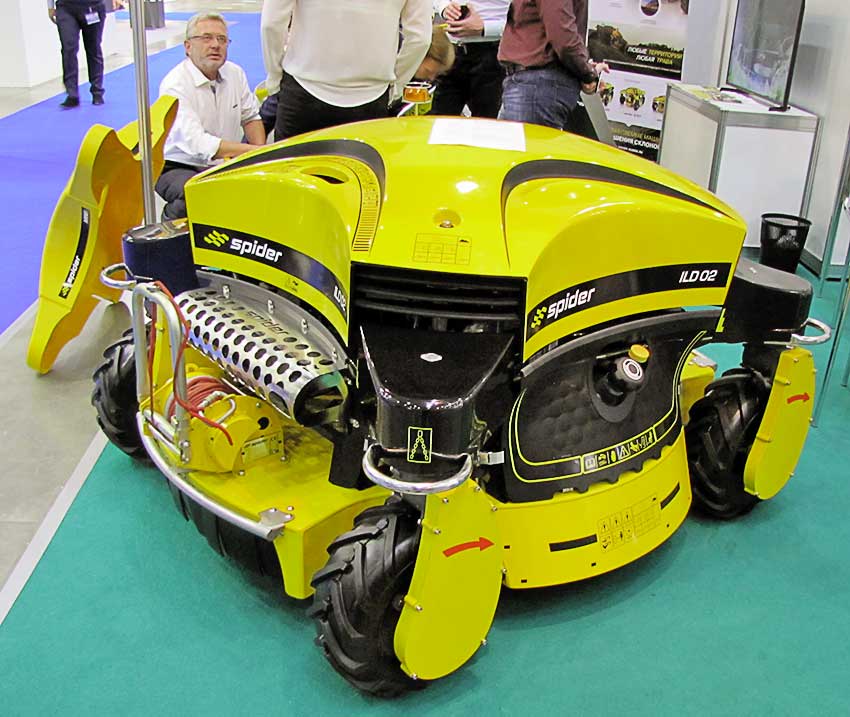

Radio-controlled SPIDER ILD02 mower is able to mow slopes with a gradient up to 60° without direct human intervention. It is equipped with individual hydrostatic drive and control each of the four wheels (SAUER DANFOSS), so able to turn around its own axis without damaging the grass cover (unlike caterpillar counterparts).

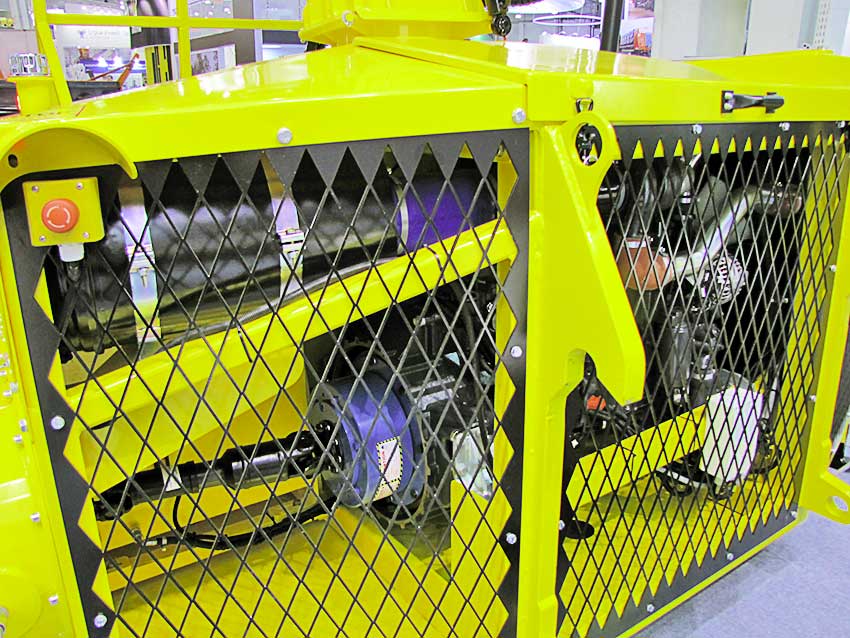

This is the internal structure of a radio-controlled lawn mowers with internal combustion engine air cooling (model SPIDER ILD01)...

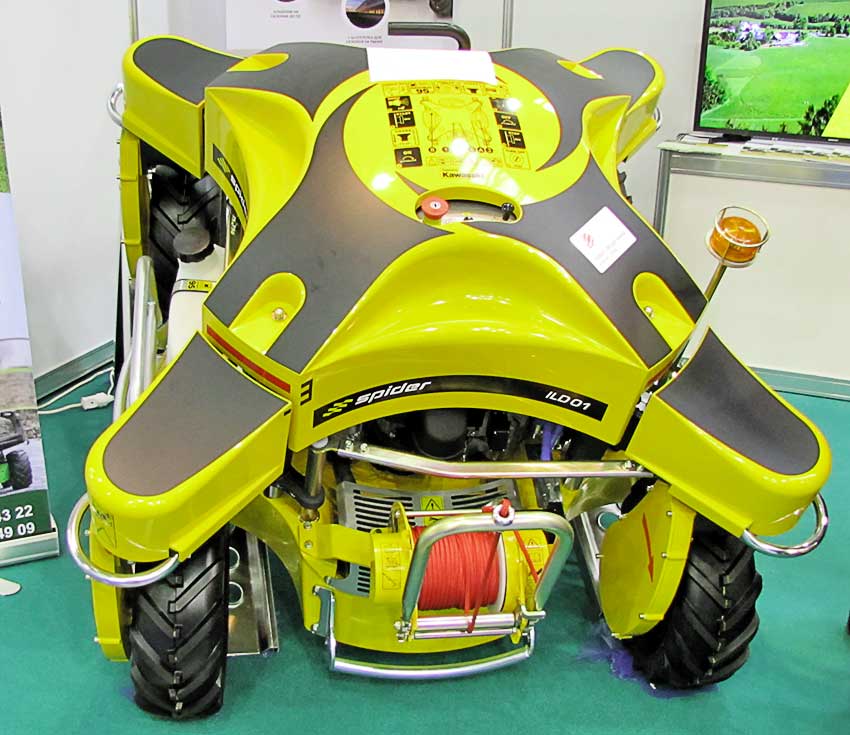

...and such is her appearance.

It turned out rather representative segment road-marking machines. Here were the main domestic producers: OOO TMK ("Tverskaya mekhanicheskaya Kompaniya"), Tula Dorozhnik and Smolenskoe, OOO "Tau-C".

Road-marking machine "winner" SM-122, LLC "TAU-C" for road marking paint by airless spraying (Airless) with using the glass bead container. Engine – 44-HP turbo diesel Kubota. The width of the damage lines from 5 to 40 cm capacity thermoplastic – 120 HP (170 kg), for glass bead container – 55 litres (80 kg). Gross vehicle weight – 850 kg operating speed 1-6 km/h, cargo – up to 17 km/h.

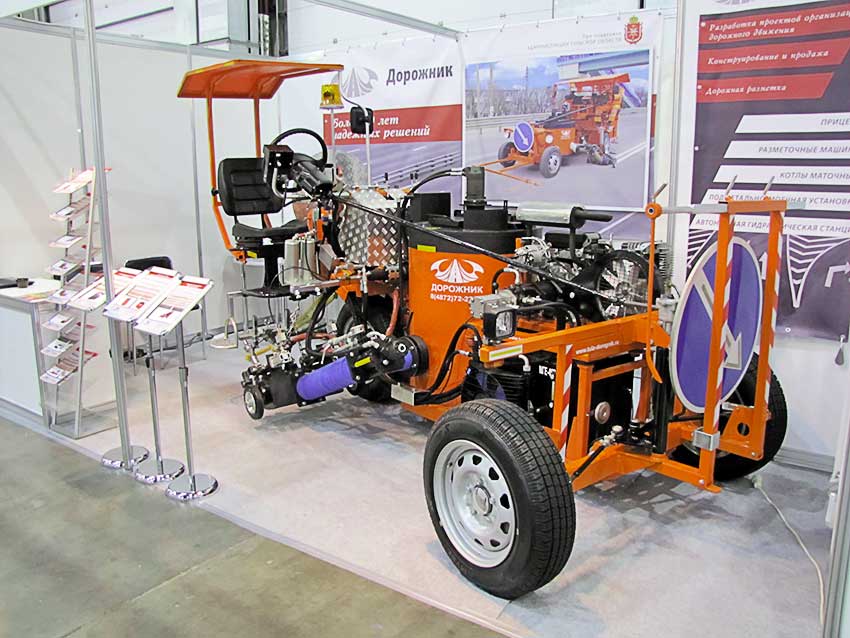

Its road-marking machine MRD-8 for road marking with thermoplastic also introduced the company "Dorozhnik" from D. Garino Tula region Width of the damage lines from 10 to 40 cm, and the markup is made by extruding gun

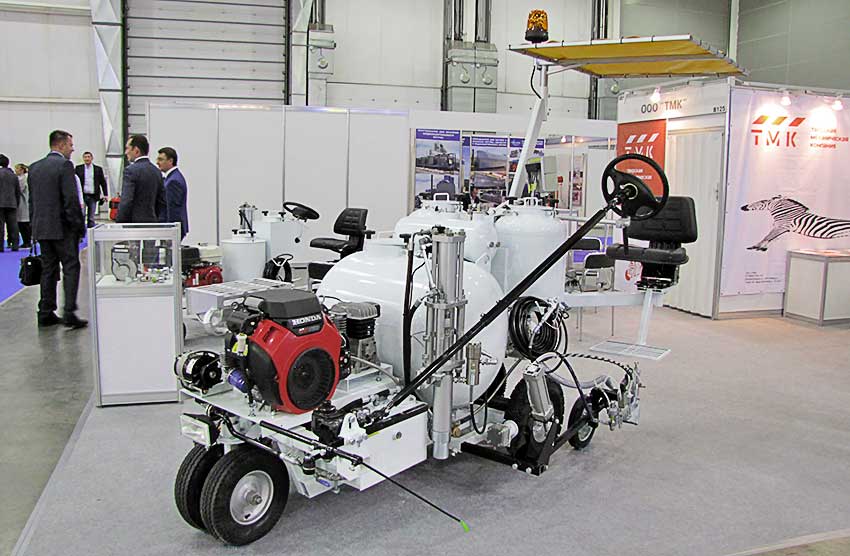

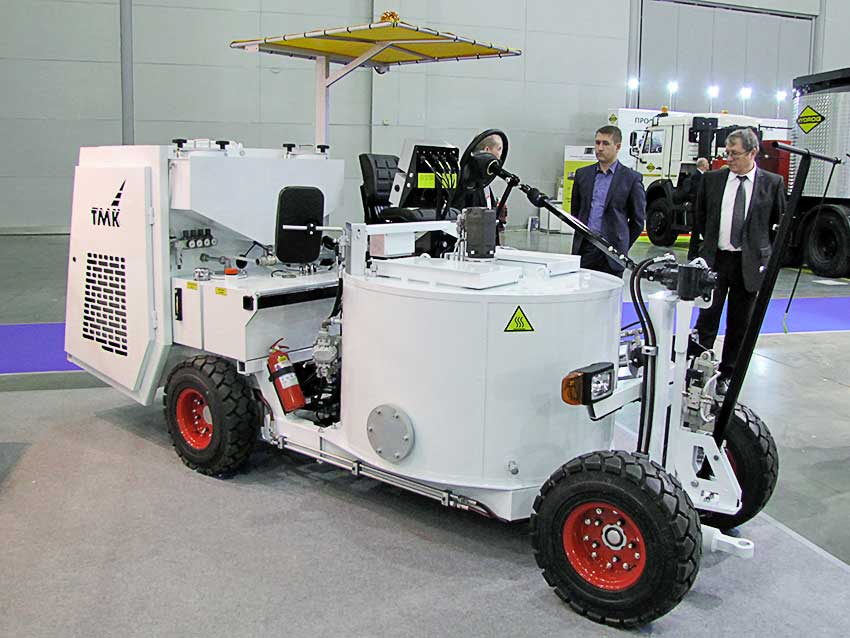

OOO TMK presented three road-marking machines of various capacities – MDR-5 MIDILINER...

...the new MDR-5 COMPACT...

...and MDR-5 MINILINER.

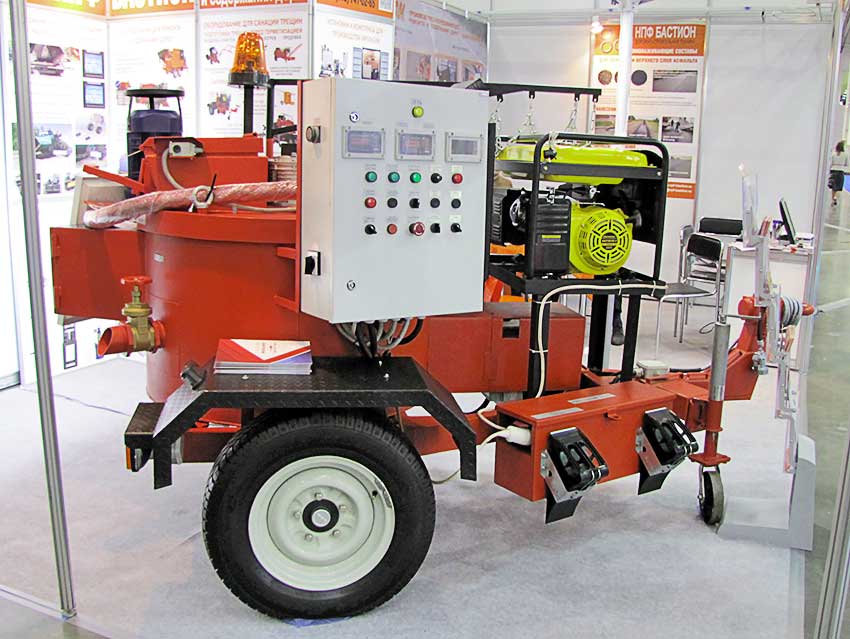

Machine for pit repair Champion GG7501-E3 presented NPF "Bastion".

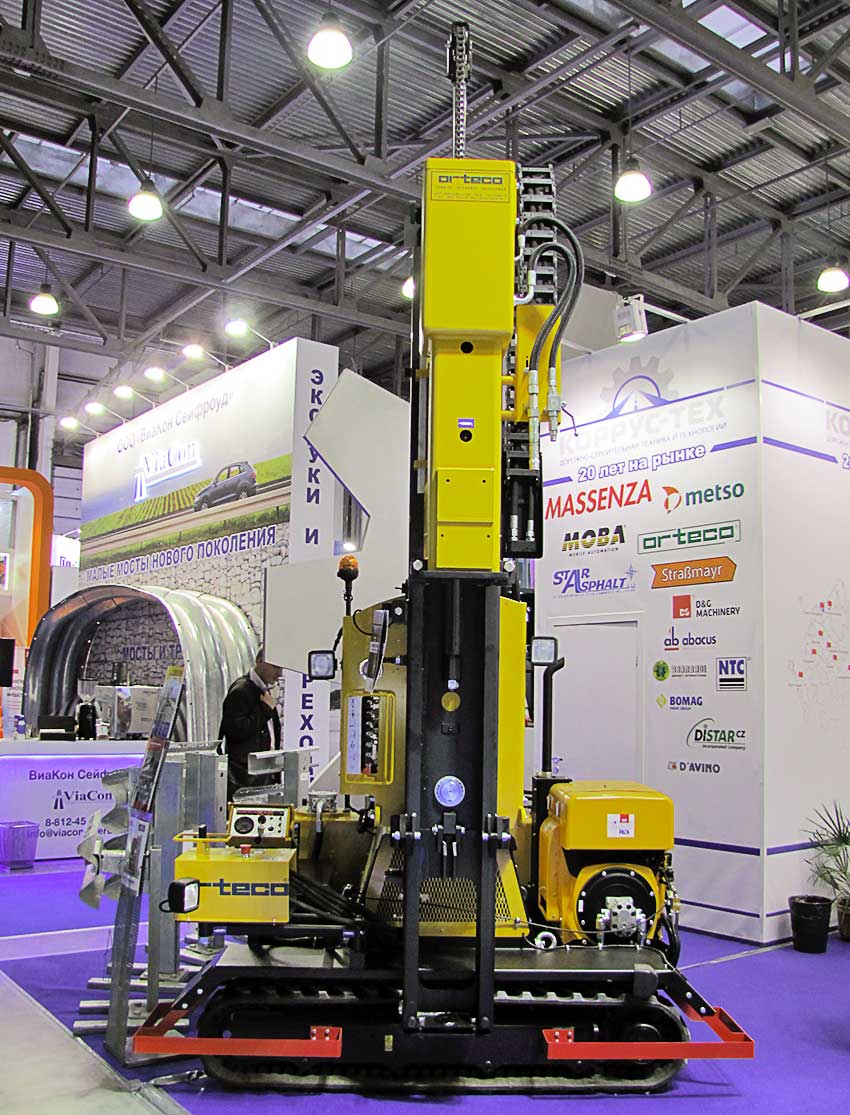

Caesarion machine for pile supports under side rails and other equipment of the highways were presented by Orteco.

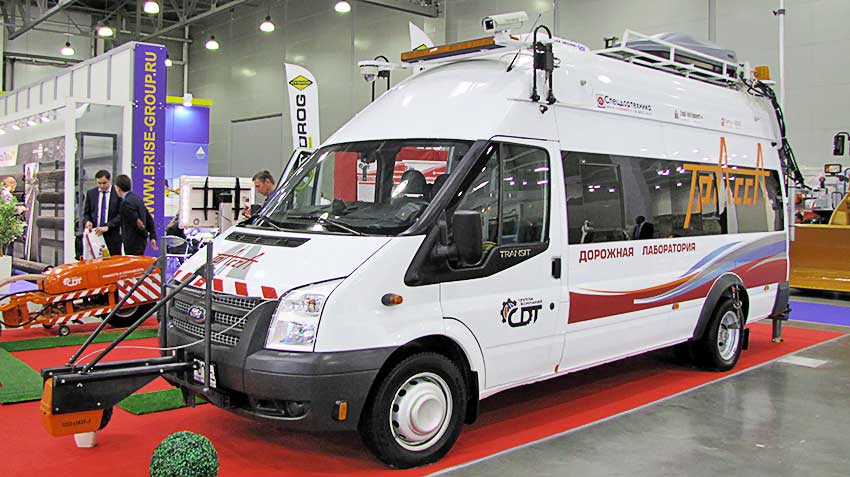

"Spetsdortekhnika" "Dortekhproekt" presented a road laboratory for visual inspection of roads. The laboratory is equipped with a full set of cameras and other equipment determine necessary repair of any road segment.

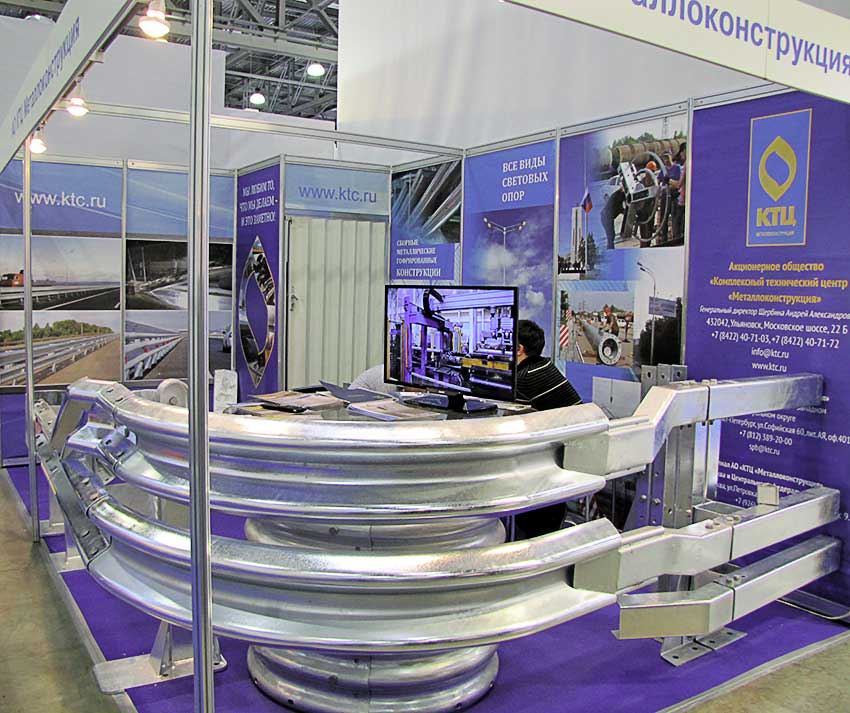

Roads there are roads and where no guardrails – they presented AO KTTS "Metalwork".

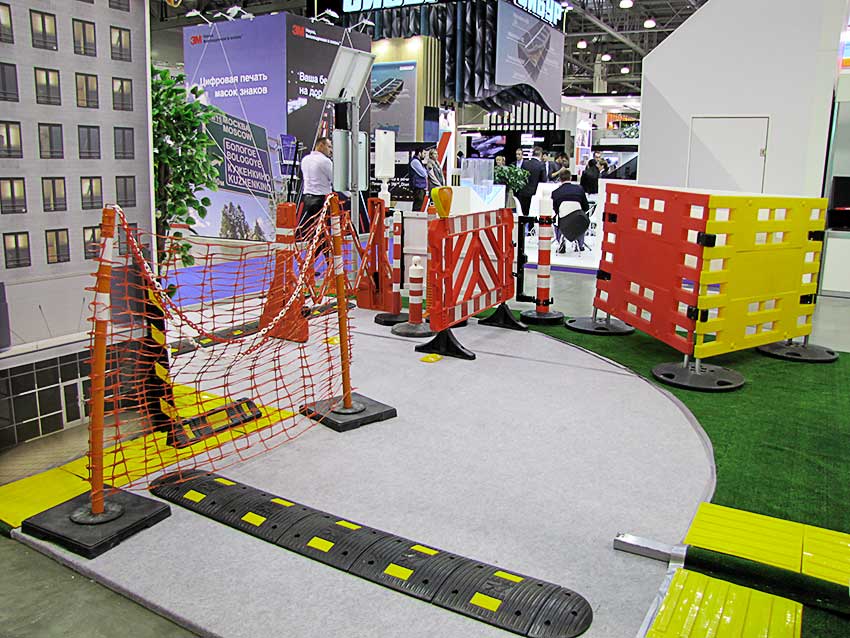

Various road barriers introduced firma GASZNAK – 10 years leading in this segment in Russia and CIS.

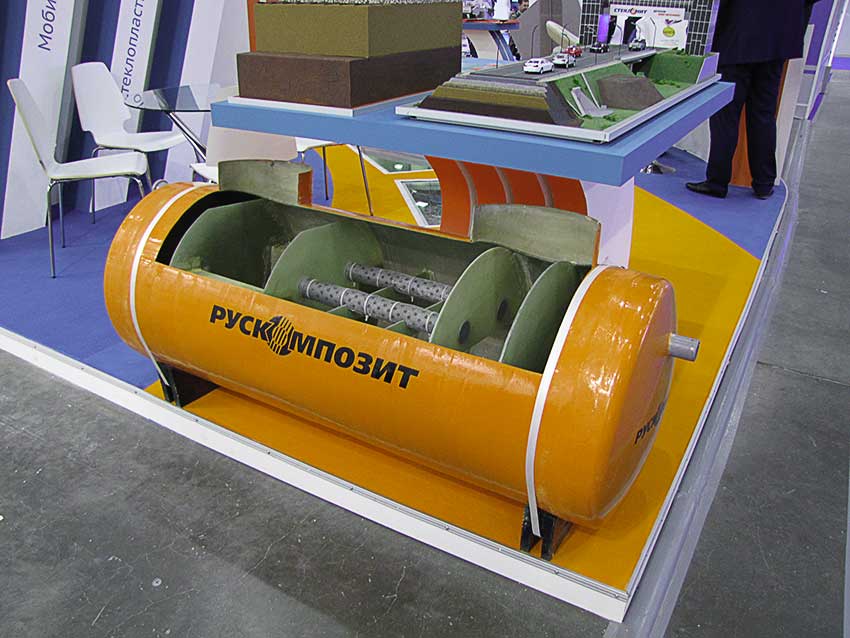

"Ruskompozit" presented similar to the plastic gas bottle design – capacity for wastewater treatment.

.
