UAZ

UAZ


Ulyanovsk automobile plant, JSC

www.uaz.ru

Their production activities Ulyanovsk automobile plant began in may 1942 years, having mastered the release of trentodoc ZIS-5, the production of which has passed in Ulyanovsk after the evacuation of the Moscow Plant named after Stalin. Commercial vehicles of its own design in the production program of the enterprise appeared in the beginning 60-ies – on pipeline got a truck, a van and a minibus, after some pretty significant upgrades successfully produced and this day. In addition, in the mid 90-ies of the customers offered and cargo and passenger versions of these vehicles at shipping several passengers. In October 2000 years, the Ulyanovsk automobile plant became the part of the company "Severstal-Avto", which April 2008 years called Sollers. In 2008, the plant started production on the basis of UAZ Patriot SUV light truck conventional CAB Cargo with a utilitarian 2-seater cabin and UAZ Pickup with the 5-seater cabin. In 2011, UAZ announced the extension of the warranty period for cars UAZ Patriot and UAZ Pickup to 3 years 100 thousand kilometers. Was introduced high-quality anti-corrosion treatment of the body and the chassis the factory Assembly line. With June 2011 years, the cars of the commercial range "3303-3962" got ABS and with end of the year – the engines of class Euro-4. In recent years commercial versions UAZ "Pickup truck" and"cargo" modernized almost in parallel with the passenger model SUV "Patriot". The recent modernization of UAZ Pickup was in January 2017.

Utilitarian commercial series "3303-3962" upgraded in early 2016. On it has found application, for example, electronic odometer and custom heated seats.

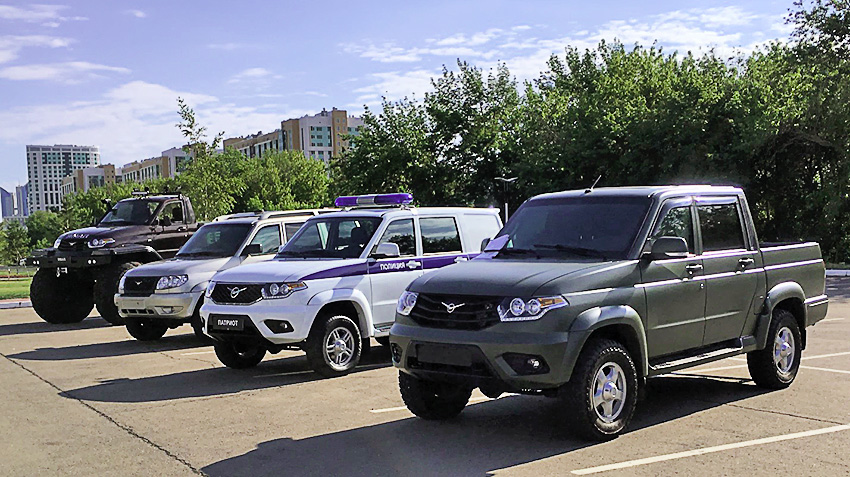

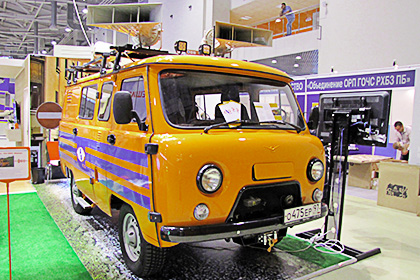

On the basis of product line UAZ offers the most variety of specialized equipment (see photo exhibit on the Silk Way Road Show in Tashkent in July 2017)


Ulyanovsk automobile plant presented a "concept-truck"

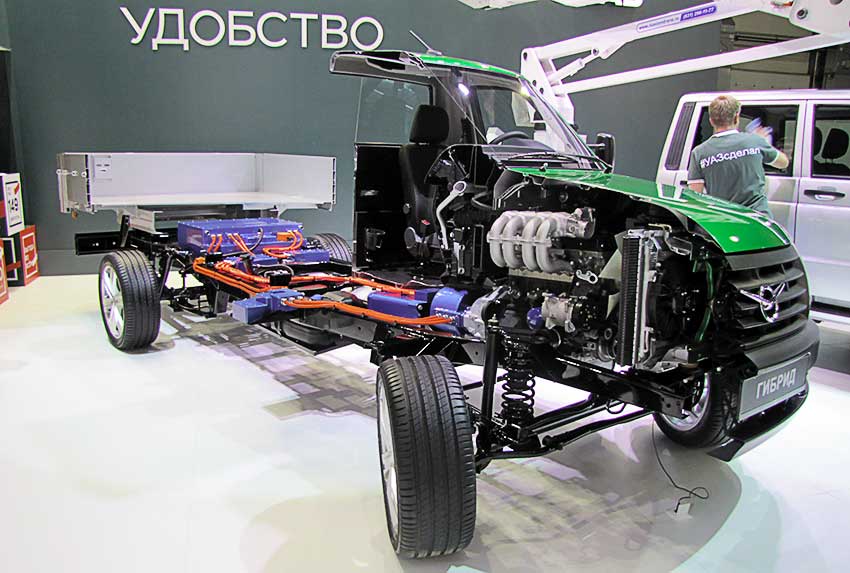

UAZ "Pro Hybrid" with a hybrid power plant

In July 2017 UAZ showed at the exhibition INNOPROM in Yekaterinburg 2017 prototype of a promising hybrid lorry "Pro Hybrid" sequential propulsion of internal combustion engine+an electric motor and a 25-kilowatt battery, which reduce consumption topliva to 7 l/100 km, and also to drive 100 km just on electric. Accordingly, the total mileage up to 1,000 km away. the Prototype is also equipped with an integrated driver assistance system ADAS and telematics.


Concept-Trak "Pro Hybrid" with a hybrid power plant became a show-stopper to the serial line of trucks UAZ "Pro" at the exhibition COMTRANS-2017. However, before 2021, in the series it did not promise

In the fall of 2017 at the exhibition COMTRANS-2017 took place, perhaps the biggest in the last decade, Prime Minister of the SOLLERS Group and the Ulyanovsk automobile plant – the first in the history of the brand UAZ lorry series "Profi" with power and the extended chassis. I wonder what "Pros" were presented in the form of the whole family, including rear-wheel drive (4x2) and four-wheel drive (4x4) version with single or double cabs and a variety of add-ons. Rear-wheel drive truck got an upgraded 3-seater (though only nominally) cab with budget lighting and the dash panel from the most recent upgraded version of the "Patriot".

Production of commercial vehicles in 2016 amounted to 22 million, which is 12.9% more than in 2015, while sales in Russia amounted to 17,9 million (-7,4%), no vans and 886 units of "cargo" and 2793 units "Pickups". For the first 9 months of 2017 UAZ sold on the Russian market of 12.7 thousand LCV (+25,7%) without vans and another 505 units of 0.75-ton "cargo" (-25,4%), and the first lorry "Pro". Plus sold of 1.91 thousand "Pickups" (+2.7 percent).

Presentation UAZ "Pros" COMTRANS-2017 carried out personally by head of the SOLLERS Group
Vadim Shvetsov

UAZ Pickup (4x4)

The family four-wheel-drive pickups on the chassis of the SUV UAZ "Patriot" now includes only the "sport" model UAZ Pickup (UAZ-23632) with dual 5-seater cabin, but also utilitarian model UAZ "cargo" (UAZ-23602) single 2-person cabin will soon be removed from production. They differ increased from 2760 to 3000 mm wheelbase, the length of the "cargo" is 5320 mm, and the bus – 5200 mm. overall dimensions of the cargo hold "cargo" – 2470х1870х400 mm, the "Pickup" – 1400х1500х650 mm, load capacity of 725 kg. the Engine of Euro-4 is now only one: gasoline 2.7-liter 128-horsepower "four" ZMZ-40906 (revision 23632), which is also mounted on Cargo. Transmission – 5-speed manual brand Dymos. Front suspension spring, with stabilizer bar, rear – spring. Front disc brakes, rear – drum. Wiring diagram all-wheel drive and transfer case with low range are similar to those of the model UAZ Pickup. Similarly, clearance (210 mm) fording depth (500 mm) and sizes of used tyres (225/ 75 R16 or 245/ 70 R16). A five cabin Pickup is equipped with a box for storing tools under the rear sofa. Model "Pickup" in the maximum configuration Limited staff equipped with the lid of the cargo compartment (volume 1181 l) or KUNG-Ohm (volume 2243 liters), sound system, alarm, electric Windows, electrically operated and heated exterior mirrors, heated front seats, air conditioning, and a version of "Kargo Comfort" air – conditioning and an awning body.

UAZ "Pro" (4x2, 4x4)

The need for modern distribution truck class LCV (4x2) in the line of the Oise for direct competition with the Nizhny Novgorod "Gazelle BUSINESS" was felt for quite a while, as the model of "cargo" is too small a capacity (0,75 t), and "commercial" truck UAZ-33036 cab-over-engine is now obsolete and is also distinguished by the lack of capacity of only
1.3 T. Therefore, in the fall of 2017 went into production series frame rear-drive and all-wheel-drive delivery trucks UAZ "Pro" single (UAZ-236021) 3-seater cab or dual 5-seater cabin and four-wheel drive version of "Pro 4x4" (UAZ-236022 and UAZ-236324) with similar cabins. "Pro" is different from "cargo" increased from 3,000 to 3,500 mm wheelbase and a total length of 5940 mm (4x2) or 5990 mm (4x4). Overall dimensions of the underlying platform in "Profi" – 3089х1870 mm, and in broadened version, the same as that of the "Gazelle BUSINESS" – 3089х2060 mm, which allows you to carry instead of 4 to 5 pallets, and load capacity is 1500 kg At version with a double cabin it is, of course, in short . Loading height – mm. 986 Engine Profi diesel (in the future, possible of imported diesel) and 2.7-litre PRO ZMZ (ZMZ-409051) with a capacity of 149,6 PS (ΜM=235,4 N·m) and dual fuel petrol/ gas (LPG) motor ZMZ-409052 power 143 BHP transmission – 5-speed manual gearbox. On four-wheel drive versions transfer case with reduction gear and a one-lever control. Front suspension dependent spring with stabilizer bar, rear –parabolic leaf springs. Optional – compulsory electrical interlocking rear differential Eaton. Ground clearance – 210 mm. Front disc brakes, rear – drum. Wheels the size 6.5Jx16H2 tires single dimension 225/75 R16С for rear-wheel and all-wheel drive versions. Cab "Profiles" available in two versions: "Standard" adjustable seat belt height, unit for driver, adjustable steering wheel height and reach, display trip computer, power Windows, cabin air filter, alarm with Central locking and remote control, electric adjustable and heated exterior mirrors, additionally posted on the racks because of its wide side platforms, ABS+EBD. Version 4x2 double passenger seat with the organizer on the 4x4 version – passenger seat single, and between him and the driver placed the glove duplex box. Also provides overhead console for A4 documents. Under the platform is installed a hidden lock box. Surcharge is possible to install the winter pack with electrically heated the entire perimeter of the windshield, heated seats and power 75-amp battery. Performance Comfort includes extras: fog lights, adjustable driver seat height and lumbar podpora, alarm with remote Central locking, audio system with MP3 and USB and two speakers, as well as overall conditioning and contour lights. The fee proposed Parking sensors, multimedia system with 7-inch touch screen and the possibility of equipping a navigation system.

UAZ-3303, -39094, -3741, -3909 (4x4)

Hoodless all-wheel drive family vans, vans and passenger versions of the full weight 2650-3050 kg. Since 2009, they are equipped with 4-cylinder inline petrol engine Zavolzhsky motor plant ZMZ-4091 displacement of 2.7 liters, which develops 112 HP and from 2013 is certified under the environmental requirements of Euro-4. Transmission – 4-speed manual transfer case – 2-speed. The wheelbase is 2300 or 2550 mm ground clearance under the Carter bridge – 205 or 220 mm. the Suspension is fully sprung, brake mechanisms of drum type.

UAZ-330395. the basic model with a wheelbase of 2550 mm, total weight 3070 kg offers customers the option of chassis or with flatbed, which can carry cargo weighing up to 1225 kg (1075 kg in the presence of two people in the cockpit). Short wheelbase (2300mm) model UAZ-33039 capacity up to 1000 kg produce only for export.

UAZ-390945 "Farmer". Wheelbase manufactured by UAZ flatbed utility version is 2550 mm. In an extended two - or three-door two-row cabin offers space for five people, and next to it a shorter cargo deck (2027х1870х400 mm) – up to 1150 kg of cargo. With full vehicle weight is 3050 kg.

UAZ-374195. delivery vans, the Ulyanovsk automobile plant produces on the chassis with wheelbase of 2300 mm. With a total length of 4440 mm useful length of its cargo compartment is 2603-2730 mm width 1818 mm. gross weight – 2720 kg load capacity – 1000 kg (850 kg in the presence of two people in the cockpit).

UAZ-390995. panel van From its passenger version is different, first of all, partially glazed exterior, which is immediately behind the cab is the passenger compartment for five people. Gross vehicle weight – 2820 kg, weight of cargo, depending on the fullness of the salon is 475-1000 kg Length of cargo compartment – 1300 mm, width – 1880 mm.

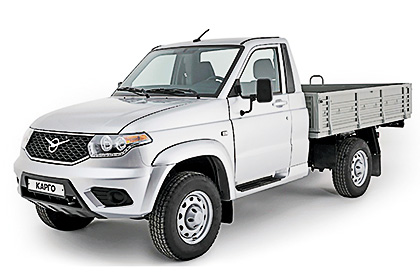

UAZ 23602 "cargo", 4x4, onboard

the the the the the the
Option The value
Overall dimensions, mm 5320х1990х2260
Base, mm 3000
Full weight, kg 2775
Load capacity, kg 725
Gasoline engine (Euro 4) 2.7 l/ 128 HP

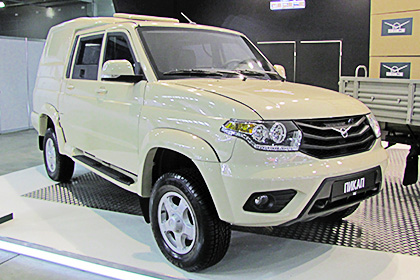

UAZ-23632 Pickup, 4x4, pickup (from the top)

the the the the the the the
Option The value
Overall dimensions, mm 5110х1915х1915
Base, mm 3000
Full weight, kg 2890 (gasoline);
2940 (diesel)
Load capacity, kg 725-755
Engine diesel (Euro 4) 2,3 l/ 113,5 HP
Gasoline engine (Euro 4) 2.7 l/ 128 HP

UAZ-330395, 4x4, chassis

the the the the the the
Option The value
Overall dimensions, mm 4460x1965x2060
Wheelbase, mm 2550
Full weight, kg 3070
Load capacity, kg 1225
Gasoline engine (Euro 4) 2.7 l/ 112 HP

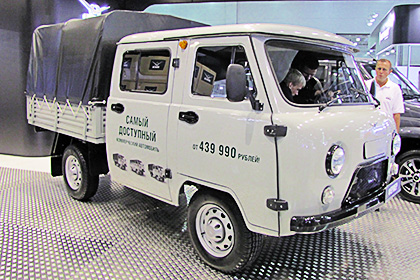

UAZ-390945, 4x4, utility chassis

the the the the the the the
Option The value
Overall dimensions, mm 4820x1974x2355
Wheelbase, mm 2550
Full weight, kg 3060
Load capacity, kg 1150
Capacity, people 5
Engine: petrol (gas) 2.7 l/ 112 HP

UAZ-374195, 4x4, van

the the the the the the the
Option The value
Overall dimensions, mm 4440x1940x2101
Wheelbase, mm 2300
Full weight, kg 2730
Load capacity, kg 925
The volume of the van, m3 about 6
Engine: 2.7 l/ 112 HP

UAZ-390995, 4x4, cargo van

the the the the the the
Option The value
Overall dimensions, mm 4440x1940x2101
Full weight, kg 2830
Capacity, people 7
The volume of the van, m3 about 3
Engine: 2.7 l/ 112 HP

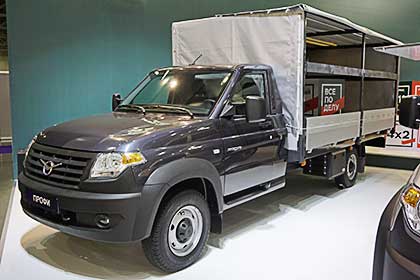

UAZ-236021 "Pro", 4x2, chassis (side)

the the the the the the the the the the
Option The value
Overall
dimensions, mm
5940х1940(2180)h1900
(2520 – with awning)
Body length, mm 3,09
Body width, mm
Or of 1.87 to 2.06
Wheelbase, mm 3500
Full weight, kg 3500
Load capacity, kg 1510
The volume of the tent, m3
Of 9.4 or 10.1
Engine: 2.7 l/ 149,6 HP
The gas engine
2.7 l/ 143 HP.

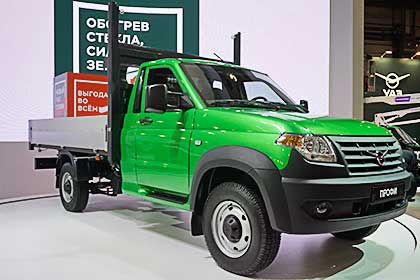

UAZ-236022 "Pro", 4x4, chassis (side)

the the the the the the the the the
Option The value
Overall dimensions, mm 5940х1940(2180)h1900
(2520 – with awning)
The length of the body, m 3,09
Body width, m Or of 1.87 to 2.06
Wheelbase, mm 3500
Full weight, kg 3500
Load capacity, kg 1435
The volume of the tent, m3 Of 9.4 or 10.1
Engine: 2.7 l/ 149,6 HP

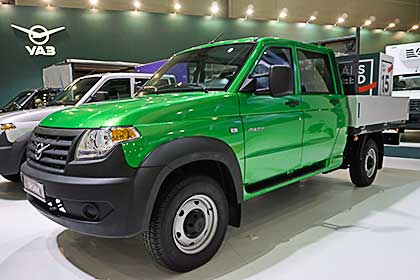

UAZ-236323 "Pro", 4x2, chassis
(side with awning) double cab

the the the the the the the the the
Option The value
Overall dimensions, mm 5990х1940х1915
(2550 – with awning)
The length of the body, m 2,35
Body width, m 1,87
Wheelbase, mm 3500
Full weight, kg 3440
Load capacity, kg 1320
Passenger capacity, pers. 5
Engine: 2.7 l/ 149,6 HP

UAZ-236324 "Pro", 4x4 chassis
(side with awning) double cab

the the the the the the the the the
Option The value
Overall dimensions, mm 5990х1940х1915
(2550 – with awning)
Body length, mm 2,35
Body width, m 1,87
Wheelbase, mm 3500
Full weight, kg 3500
Load capacity, kg 1275
Passenger capacity, pers. 5
Engine: 2.7 l/ 149,6 HP
