Commercial cars

Tonar, OOO MZ

www.tonar.info

Organized in 1990, in the suburban village of Gubino, OOO PKF "Tonar" started with light trailers and truck and is so good in this field that the word "Tonar" almost became a household name in our country when referring to the mobile trailers of the stalls. For 1990-e years the firm has updated the machinery, since 1999 has launched its own axes, and since 2002 – dump bodies. Starting in 2005 new shops has allowed "Tonare" to dramatically increase production volumes. The area of the company has grown to 15 hectares and employs almost 700 people. Currently, the production program includes trailers several dozen types, most of different dimensions and destination. This brought the suburban firm among the leaders of the national precipatate, the output of which reaches two dozen pieces a day. The company independently produces the frame and suspension trailers, dump and other body, it is not surprising that, starting with equipping others automotive chassis their bodies, firm back in 2006 decided to develop their own truck. The main calculation was based on the batch principle of customer service, which at the same time would they need the rolling stock in the form of complete trains. Recipe of the auto industry was chosen quite traditional: frame and suspension is its own, and the most complex components and assemblies (cab, engine, gearbox and bridges) – purchase (of Chinese origin). In 2009 appeared first tractors thonar-5422 (4x2) and Tonar-6428 (6x4) and a dump truck 6528 (6x4), specially designed for towed composition of their own making "Tonar". Their cab type MAN F2000 (2014 type F3000) produced Chinese manufacturer Shaanxi. Starting in 2011, we began sales and third-party buyers. Since 2013, the trucks Tonar set domestic 6-cylinder diesel engine YAMZ-651.10 Euro 4 power 412 HP Mastered the unique for Russian cars individual rear suspension axles at the pneumocylinders, however, for heavier traffic exists and a traditional version with equalizer suspension. A feature and advantage of truck "Tonar" was their implementation is exclusively bundled with the semi-trailer of the same brand. This facilitates the operation of trains, as the construction and service of the tractor and trailer/ semi-trailer adapted to each other.

In February 2013, was shown the first domestic specialized dump truck with single cabin based on Chinese components. In 2013 began production of four-axle 30-ton on-road dump truck Tonar-65281, wheel formula 8x6, and lateral unloading 24-cubic body. In 2014 the company introduced a 45-ton uglevodnogo version dump truck Tonar-45251 with 37 CC bodywork and domestic diesel engine YAMZ-650.10; 5-axle dump truck Tonar-652803 with rear unloading (wheel formula 10х4), equipped with a 412-horsepower diesel engine YAMZ-651.10 Euro 4. In 2016, the novelty was conventional truck TONAR-45252 in a roadtrain with a two-piece semi-truck TONAR-95405 capacity 116,7 t, which was commissioned by diamond-mining company ALROSA.

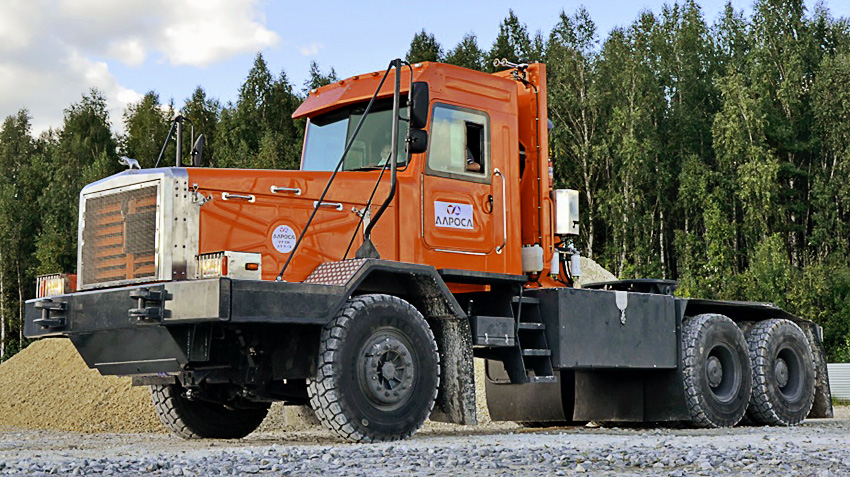

Career conventional truck TONAR-42252 under 117-ton truck was manufactured
in a single instance

In 2017 another new steel career 45-ton dump trucks bonnet layout series 45251 – TONAR-45253 (with the body under the ore) and a diesel engine TMZ-8437.10 capacity of 425 HP and a TONAR-45251ОН (under the coal) with diesel Cummins QSZ13-C450-II 450 HP

In 2016, "Tonar" has produced 19 vehicles (-13,6%).

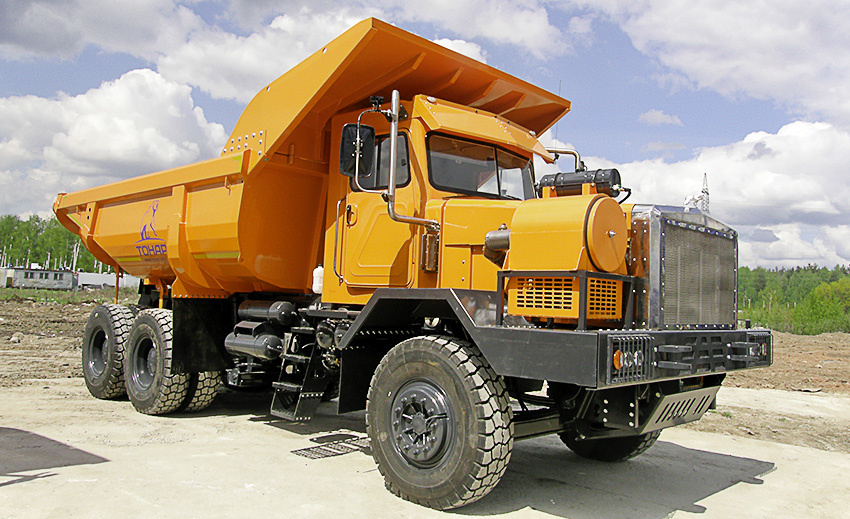

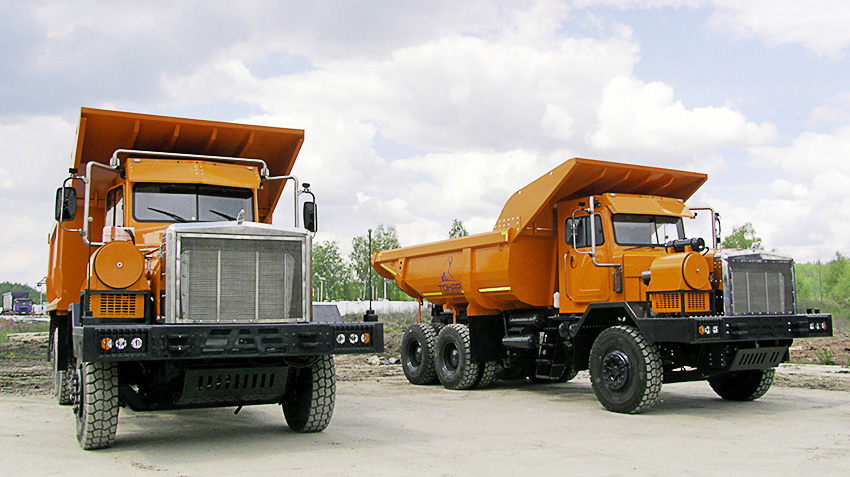

In the spring of 2017, "Tonar" showed a new 45-ton conventional mining truck of the series 45251
in versions by ore (42253) and coal (45251ОН)

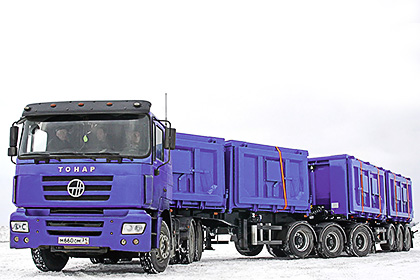

Tonar-5422, 6428 (4x2, 6x4)

Tractors for work in the tipper trailers (including tandem) total weight 40 000 kg (biaxial) 80 000 kg (triaxial). Curb weight of the tractor is 5422 6900 kg, length – 6220 mm and the base – 3520 mm, and a curb weight of tramosnica 6428 – 8480 kg, length and base respectively and 6710 2960+1360 mm Height SSA production Jost – 1150 mm model 5422, 1200 mm on the model 6428. The cabin is equipped with a full bed that allows the use of tractors on "long-range" transportation. Both Russian tractor equipped with a 6-cylinder inline 11,1-litre diesel engine YAMZ-651.10 power 412 HP ecological class Euro-4. Gearbox – 12-speed manual. Front suspension spring, rear – air, individually for each axle or spring-balance. Brake system pneumatic dual circuit with ABS. Tractors can be operated with a tandem tipper truck for construction purposes Tonar-95233+95231 with a volume of 45 m³ and a payload of 49 tons or as part of the agricultural three-link coupling Tonar-95233 total volume of 55 m3 and a payload of 57 T.

Tonar-45252 (6x4)

A tractor to work in the dump trailers (including tandem) total weight of up to 116 700 kg. Unladen weight of the tractor is 20,000 kg, the load on the SSU – 43 000 kg Length of the tractor – 9740 mm, base – 5290+1550 mm Cab double fluorescent type. The tractor is equipped with a 6-cylinder inline of 18.9-liter diesel engine Cummins QSK19-C600 output of 600 HP transmission – 7-speed automatic. Front and rear suspension with pneumatic elements and torque rods. Steering with the main and auxiliary hydraulic actuators. Brake system pneumatic double circuit with ABS and retarder. The tractor can be operated with a tandem tipper truck for construction purposes Tonar-95233+95231 with a volume of 45 m³ and a payload of 49 tons or as part of the agricultural three-link coupling Tonar-95233 total volume of 55 m3 and a payload of 57 T.

Thonar-6528, 652803 (6x4, 10х4)

Three - and patiene trucks with a cab of the tractor 6428 with a berth under the upgraded engines of Euro-4. Dump trucks, and tractors equipped with diesel engine YAMZ-651.10 power 412 HP Gearbox – 12-speed manual. All suspension bridges spring back – balance. Brakes pneumatic dual circuit, with ABS.

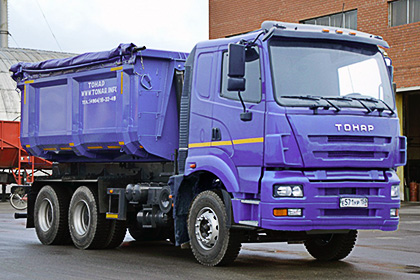

Tonar 6528 6x4. Equipped with dump platform with rear unloading, volume of 16 m3 rounded in terms of profile, produced directly by the firm "Tonar". On the new version installed 6528-11-40 box-shaped platform with side unloading. The truck transports the 21 000 kg and its total weight is 33 500 kg. operation is Possible with tipper trailer volume of 10.5 or 12.3 m3.

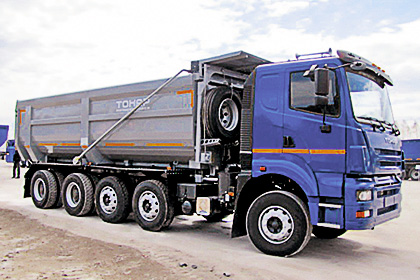

Tonar-652803 10х4. dump Truck box 26,5-bottoms platform with rear unloading, with electric awning. Truck transports 34 500 kg, its total weight is 40 000 kg.

Tonar-4525, 45251 (6x4)

A series of triaxial dump truck with single cabin. Dump truck equipped with diesel engine YAMZ-651.10 power 412 HP transmission: 9-speed manual. All suspension bridges spring back – balance. Brakes pneumatic dual circuit, with ABS.

Tonar-45251 4525 and 6x4. platforms Equipped with tipper back unloading with a volume of 25 m3 rounded in terms of profile, or 37 m3 rectangular profile production company Tonar. The truck transports the 45 000 kg, its total weight is around 67 000 kg. Engine – YAMZ-650.10 power 412 HP transmission: 9-speed manual. Maximum speed – 41 km/h.
